CXA10-48D05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> CXA10-48D05

CXA10-48D05: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 10W, Hybrid; CategoryPower/power management The power supply circuit; File Size203KB，3 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

CXA10-48D05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CXA10-48D05	-	-	View	Buy Now

CXA10-48D05 Overview

DC-DC Regulated Power Supply Module, 2 Output, 10W, Hybrid

CXA10-48D05 Parametric

Parameter Name	Attribute value
Maker	Vertiv
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -5V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CSA, EN, UL
Efficiency (main output)	81%
high	10 mm
Maximum input voltage	75 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P5
JESD-609 code	e0
length	50.8 mm
Maximum grid adjustment rate	0.2%
Maximum load regulation	0.2%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Maximum output current	1 A
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Ripple voltage (main output)	0.02 Vrms
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
width	25.4 mm

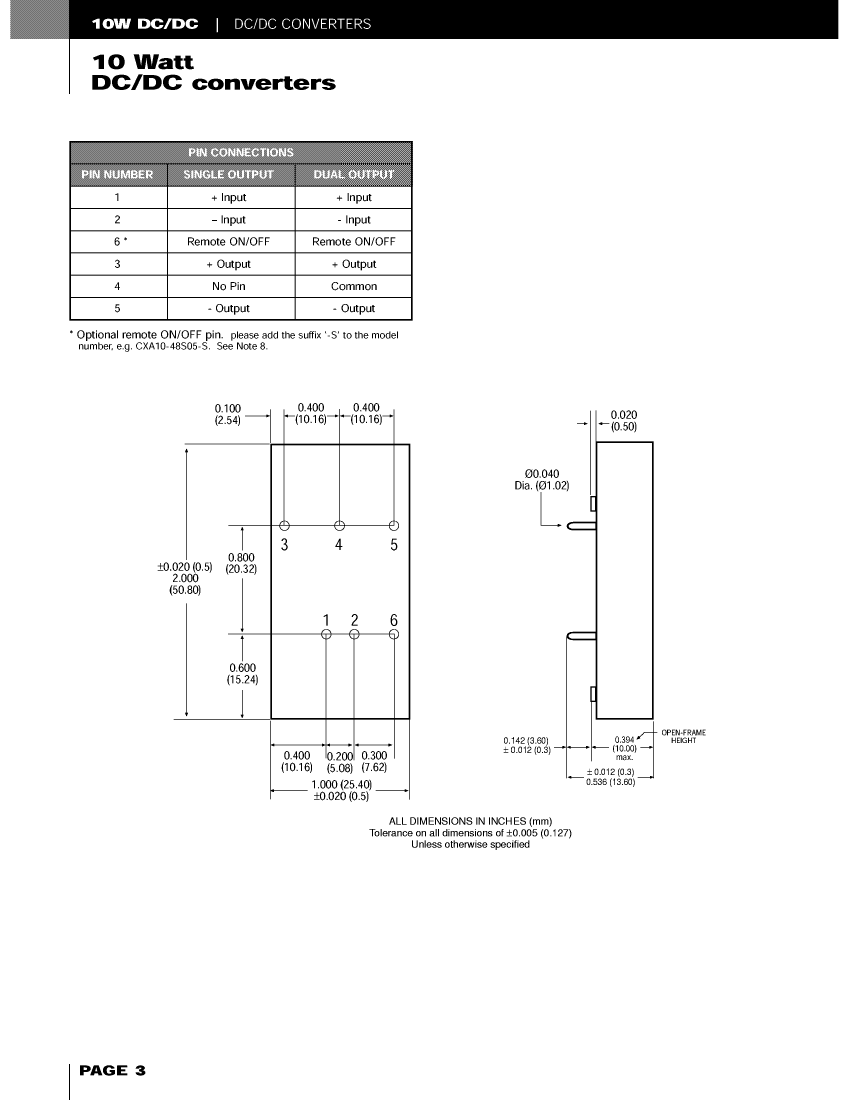

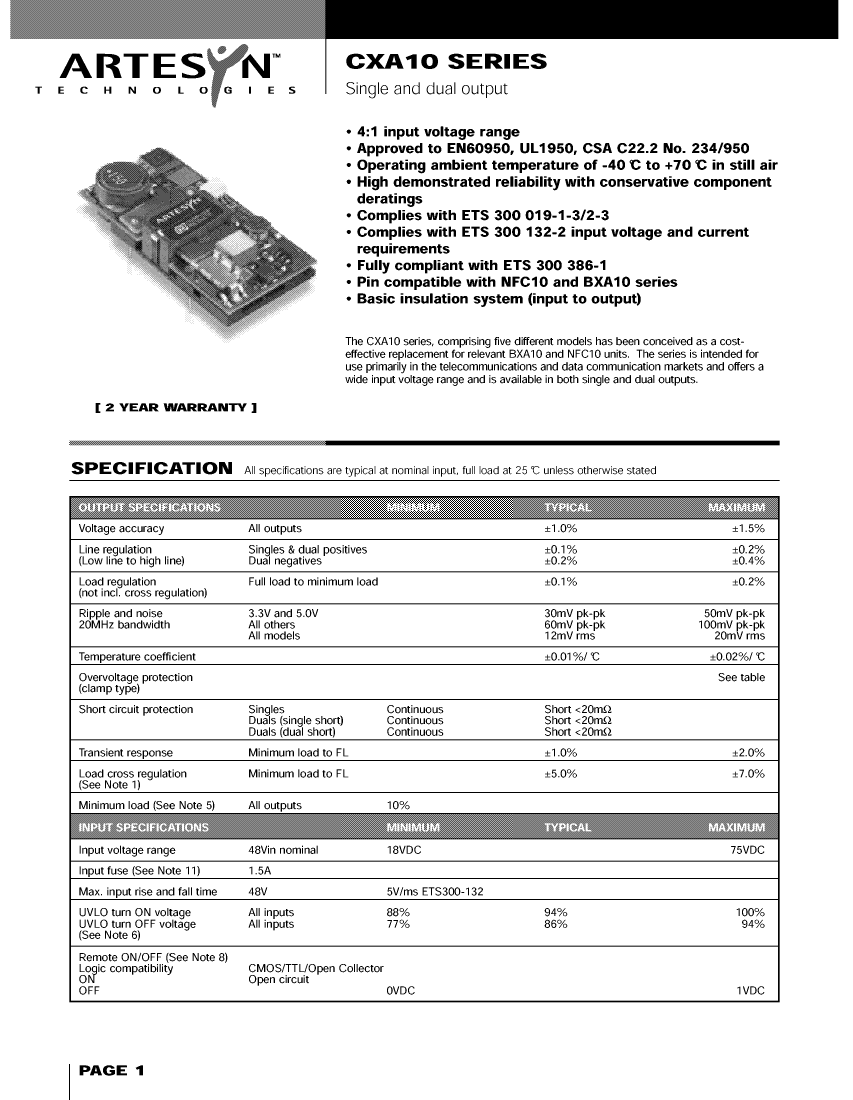

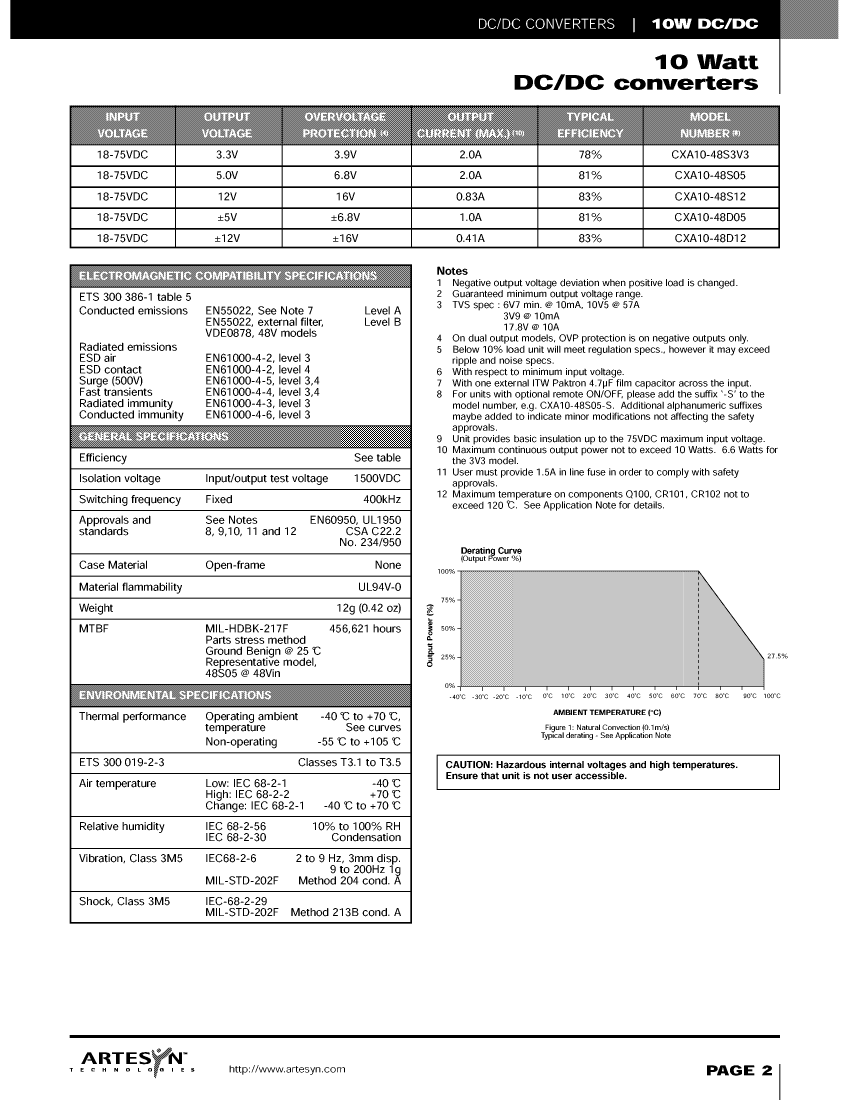

Preview

Download Datasheet

View All

CXA10-48D05 Related Products

	CXA10-48D05	CXA10-48S05	CXA10-48D12	CXA10-48S3V3	CXA10-48S12
Description	DC-DC Regulated Power Supply Module, 2 Output, 10W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 10W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 7.9W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid
Maker	Vertiv	Vertiv	Vertiv	Vertiv	Vertiv
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ADDITIONAL -5V OUTPUT AVAILABLE	REMOTE SHUTDOWN	ADDITIONAL -12V OUTPUT AVAILABLE	REMOTE SHUTDOWN	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL	CSA, EN, UL
Efficiency (main output)	81%	81%	83%	78%	83%
high	10 mm	10 mm	10 mm	10 mm	10 mm
Maximum input voltage	75 V	75 V	75 V	75 V	75 V
Minimum input voltage	18 V	18 V	18 V	18 V	18 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V
JESD-30 code	R-XDMA-P5	R-XDMA-P4	R-XDMA-P5	R-XDMA-P4	R-XDMA-P4
JESD-609 code	e0	e0	e0	e0	e0
length	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm
Maximum grid adjustment rate	0.2%	0.2%	0.2%	0.2%	0.2%
Maximum load regulation	0.2%	0.2%	0.2%	0.2%	0.2%
Number of functions	1	1	1	1	1
Output times	2	1	2	1	1
Number of terminals	5	4	5	4	4
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	1 A	2 A	0.41 A	2 A	0.83 A
Maximum output voltage	5.05 V	5.05 V	12.12 V	3.333 V	12.12 V
Minimum output voltage	4.95 V	4.95 V	11.88 V	3.267 V	11.88 V
Nominal output voltage	5 V	5 V	12 V	3.3 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Ripple voltage (main output)	0.02 Vrms	0.02 Vrms	0.02 Vrms	0.02 Vrms	0.02 Vrms
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	10 W	10 W	10 W	7.9 W	10 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
width	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
