MC68HC805B6CP datasheet, PDF - EEWORLD Datasheet

MC68HC805B6CP: DescriptionMicrocontroller, 8-Bit, EEPROM, 6805 CPU, 2.1MHz, CMOS, PDIP48; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，42 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

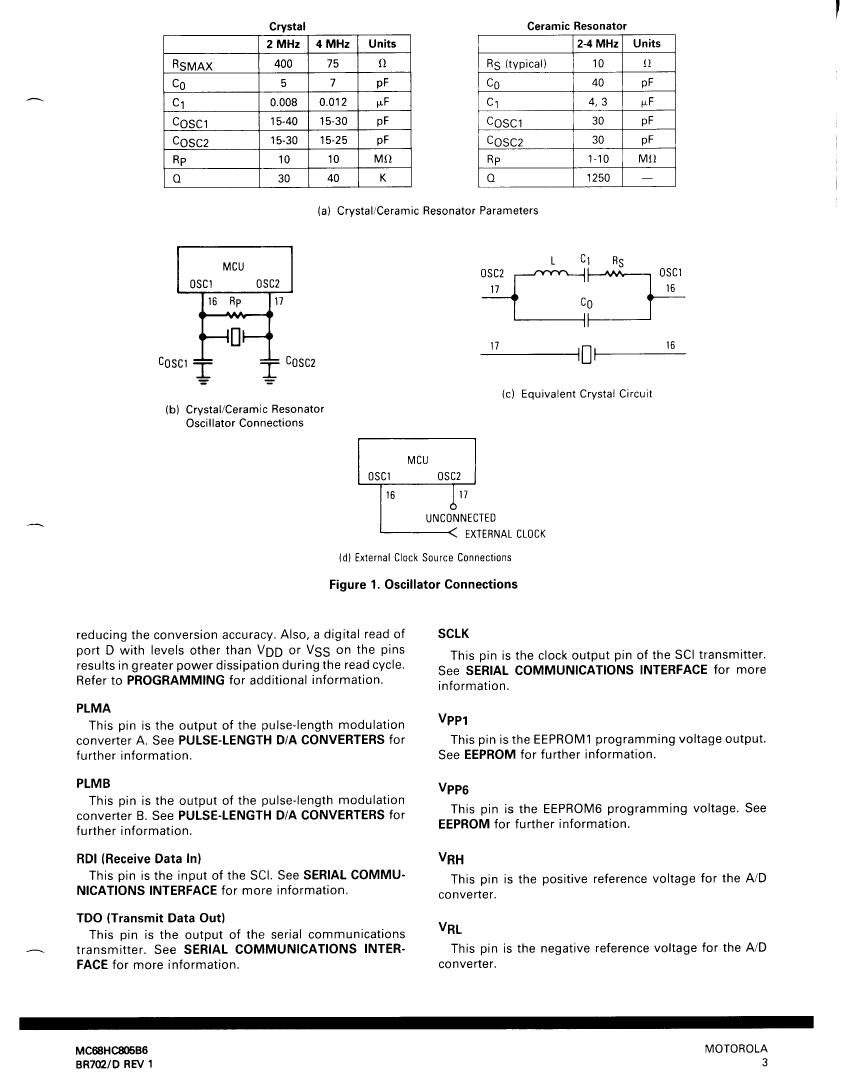

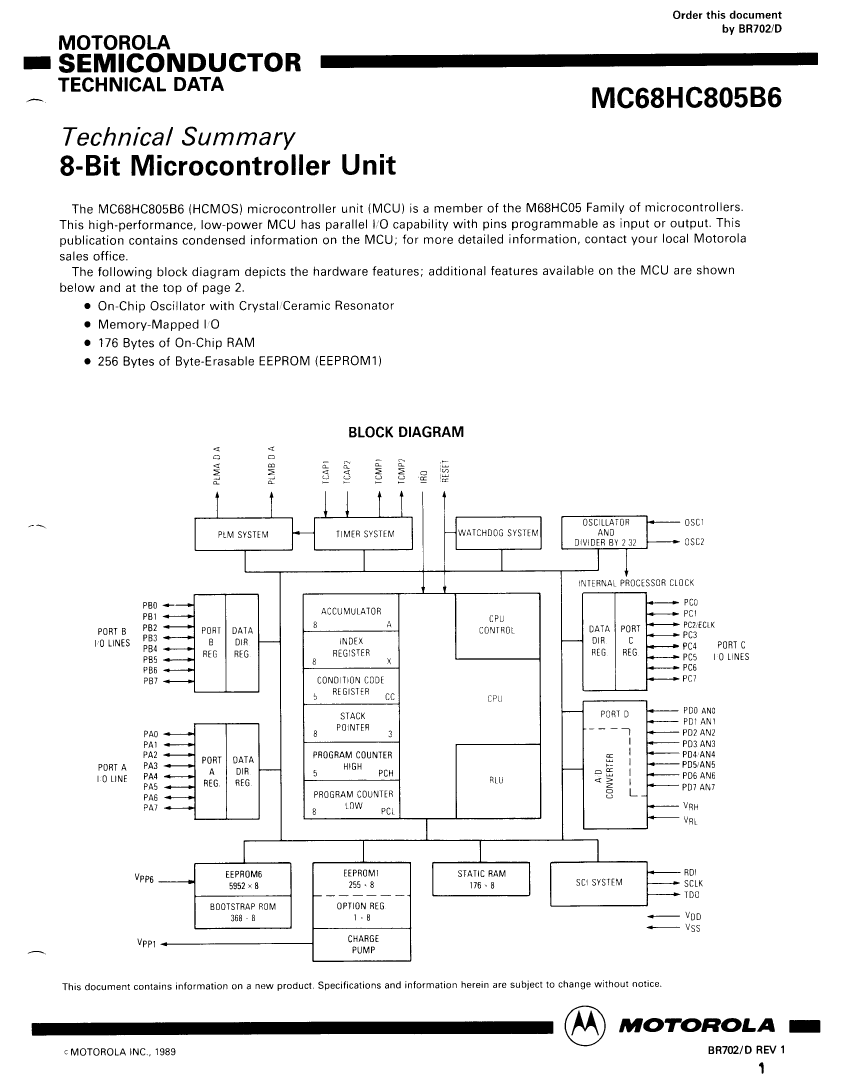

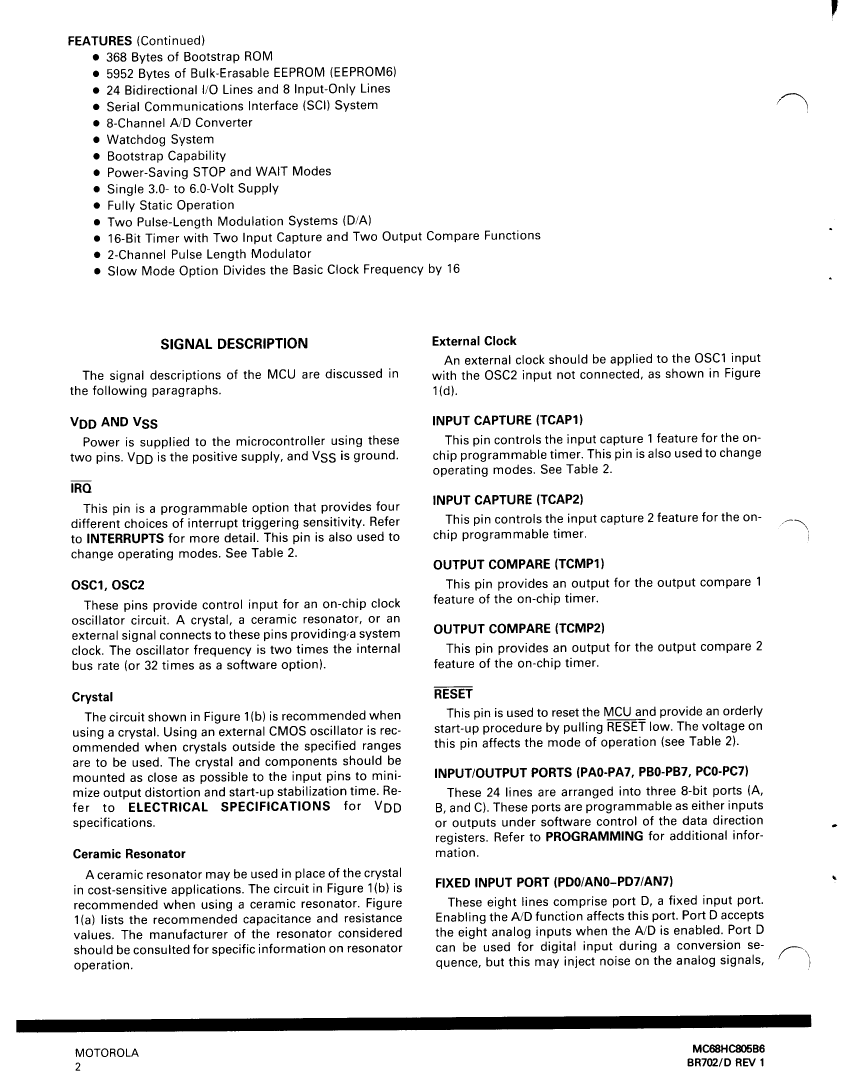

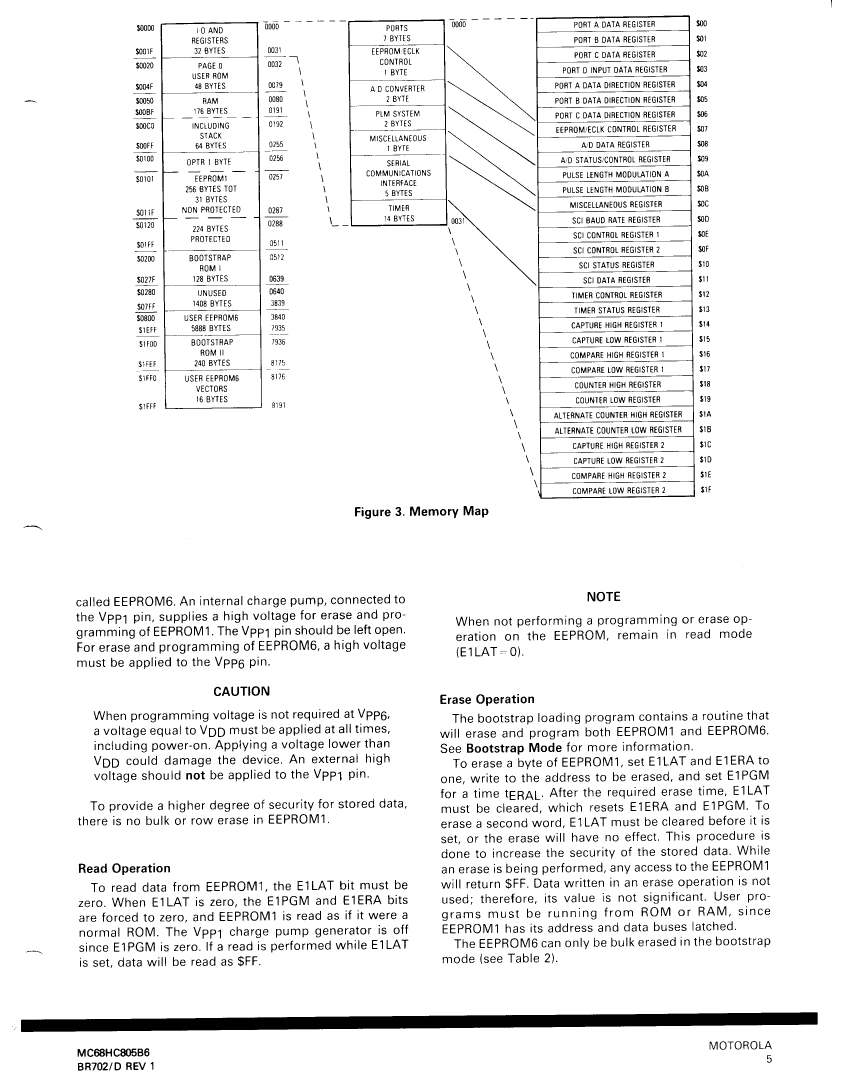

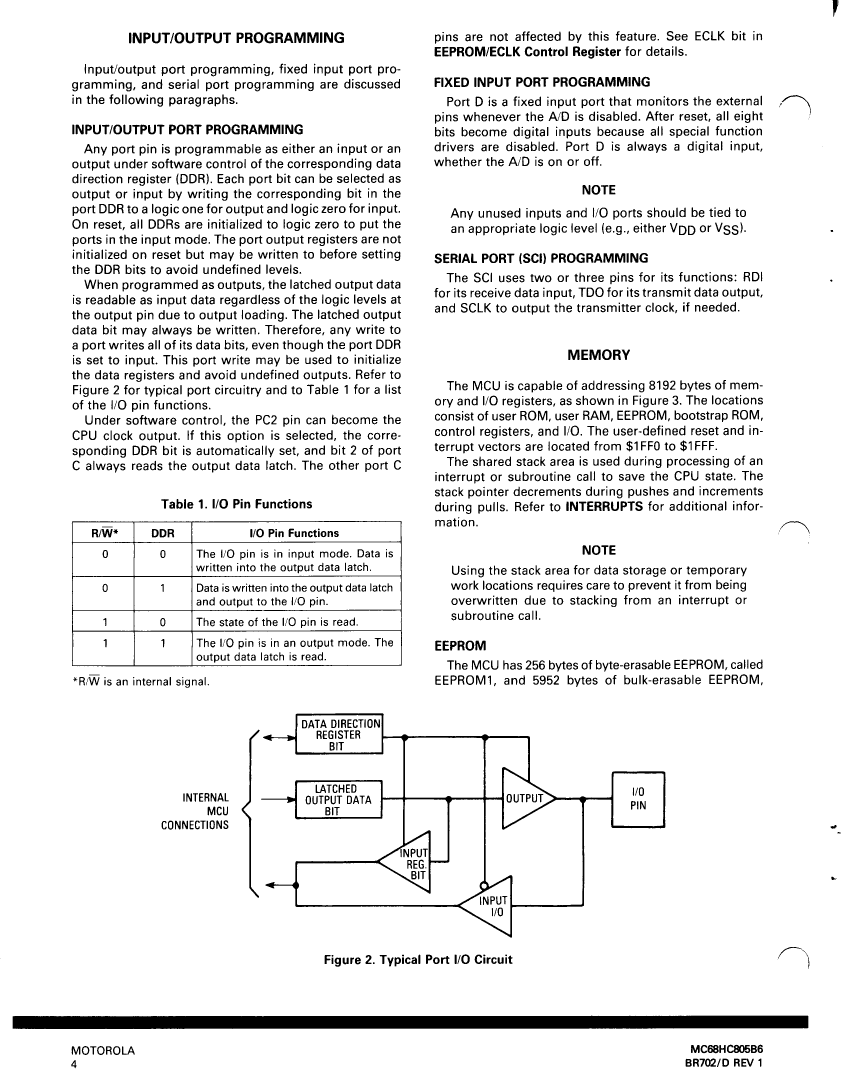

MC68HC805B6CP Overview

Microcontroller, 8-Bit, EEPROM, 6805 CPU, 2.1MHz, CMOS, PDIP48

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP48,.6
Reach Compliance Code	unknown
bit size	8
CPU series	6805
JESD-30 code	R-PDIP-T48
JESD-609 code	e0
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (bytes)	176
rom(word)	5952
ROM programmability	EEPROM
speed	2.1 MHz
Maximum slew rate	9 mA
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	MC68HC805B6CP	MC68HC805B6P	MC68HC805B6MP
Description	Microcontroller, 8-Bit, EEPROM, 6805 CPU, 2.1MHz, CMOS, PDIP48	Microcontroller, 8-Bit, EEPROM, 6805 CPU, 2.1MHz, CMOS, PDIP48	Microcontroller, 8-Bit, EEPROM, 6805 CPU, 2.1MHz, CMOS, PDIP48
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6
Reach Compliance Code	unknown	unknown	unknown
bit size	8	8	8
CPU series	6805	6805	6805
JESD-30 code	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48
JESD-609 code	e0	e0	e0
Number of terminals	48	48	48
Maximum operating temperature	85 °C	70 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP48,.6	DIP48,.6	DIP48,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	176	176	176
rom(word)	5952	5952	5952
ROM programmability	EEPROM	EEPROM	EEPROM
speed	2.1 MHz	2.1 MHz	2.1 MHz
Maximum slew rate	9 mA	9 mA	9 mA
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
