LSP1000 – LSP1012
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM
®
PIN Diodes
RoHS Compliant
DESCRIPTION
The LSP series of Enhanced Performance Surface Mount (EPSM)
PIN diodes offers the circuit designer a higher level of quality in a
commercially priced package. Choose from LSP1000, LSP1004,
and LSP1008 for switching applications, LSP1002, LSP1005,
LSP1010 and LSP1011 for low distortion attenuation from VHF
through 5 GHz. They are available in a host of configurations (see
configuration table for internal wiring.) The LSP products are
supplied with a RoHS compliant gold finish.
Other configurations are available - consult factory for details. When
ordering specify configuration (example: LSP1004-454-4 is a
common cathode dual pin).
KEY FEATURES
Low Cost
High Performance
Surface Mount
Available on Tape
Multiple Configurations to Choose
From
RoHS Compliant
1
www.MICROSEMI.com
APPLICATIONS
Specify EPSM package style 450A or 454. For 3 terminal style 454,
refer to configuration page. Example: LSP1001-454-4 is a common
cathode pair of PIN diodes for broadband switching applications; for
the 2 terminal style 450A, refer to the outline dimension table.
Example: LSP1001-450A is a single device with a 0.075 x 0.050
outline.
APPLICATIONS/BENEFITS
High Performance Wireless
Surface Mount Options for
GSM, TAGS, WANS, PCS
Wideband Switching
Broadband Attenuators
ABSOLUTE
MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Rating
Maximum Leakage Current
@80% of Minimum Rated V
B
Storage Temperature
Operating Temperature
Power Dissipation
Forward Current (1uS Pusle)
Symbol
I
R
T
STG
T
OP
P
D
I
F
Value
50
-65 to +125
-65 to +125
500
1
Unit
nA
Phase Shifters
Broadband Limiters
LSP1000-LSP1012
LSP1000-LSP1012
ºC
ºC
mW
A
IMPORTANT:
For the most current data, consult our website
:
www.MICROSEMI.com
Specifications are subject to change, consult factory for the latest information.
These devices are ESD sensitive and must be handled using ESD precautions.
1
The EPSM products are supplied with a
RoHS complaint Gold finish
.
Copyright
2007
Rev: 2009-09-10
Microsemi
Microwave Products
Page 1
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
LSP1000 – LSP1012
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM
®
PIN Diodes
RoHS Compliant
EPSM PIN Diodes
.
ELECTRICAL PARAMETERS @ 25C (unless otherwise specified)
Model Number
LSP1000
LSP1002
LSP1004
LSP1011
LSP1012
V
B
(V)
IR=10μA
(Min)
35
100
35
200
20
C
T
(pF)
1
@V
R
(Max)
0.28
0.32
0.75
0.35
0.35
www.MICROSEMI.com
V
R
(V)
5
50
20
50
10
R
S
(Ohms)
2
@I
F
(Max)
2.5
4.0
0.6
2.0
1.8
I
F
(mA)
5
100
10
100
10
T
L
(nS)
3
(Typ)
80
1500
150
2000
5
Application
Switch
Attenuator
Switch
Attenuator
Limiter
Notes
1.
2.
3.
Capacitance (C
T
) is measured at f = 1 MHz
Series Resistance (R
S
) is measured at f = 100 MHz
a. The LSP1012 is measured at f = 1GHz
Carrier Lifetime (T
L
) is measured at I
F
= 10 mA, I
R
= 6 mA

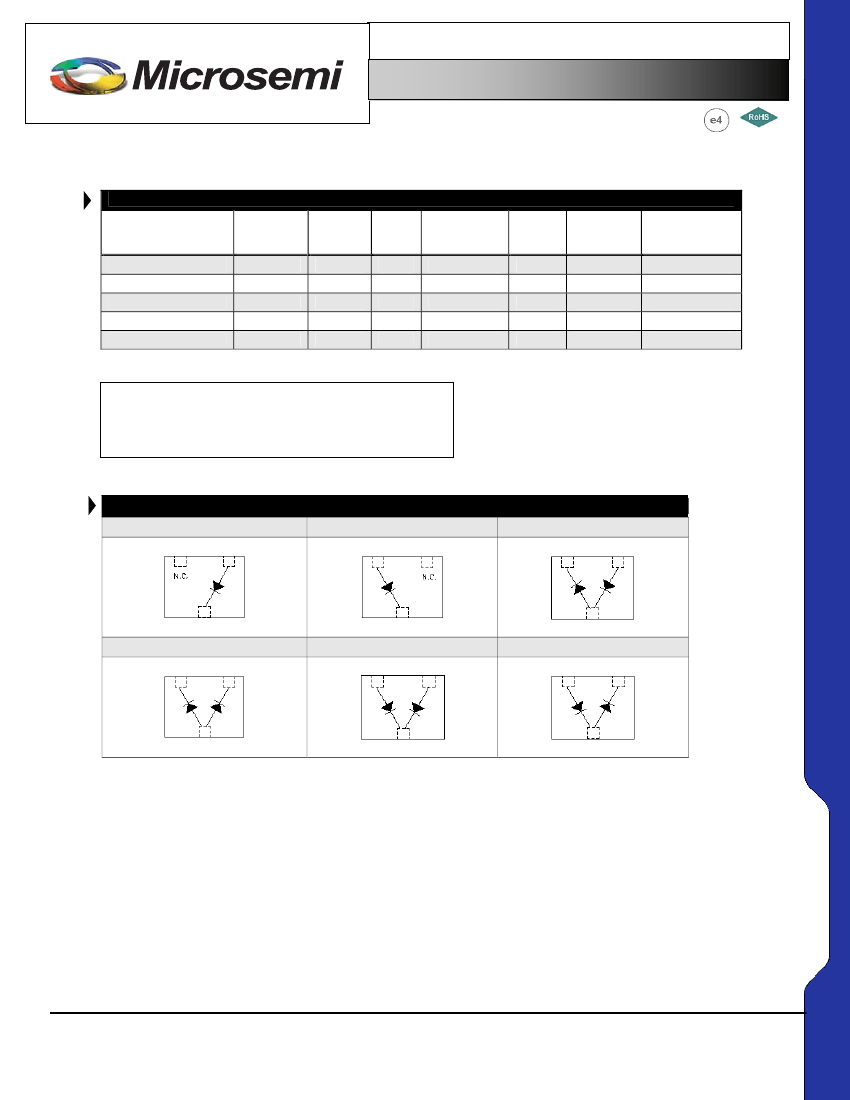

TYPICAL PINOUT FOR 454-X PACKAGE STYLE
454-0
454-1
454-2
454-3
454-4
454-5
ELECTRICAL
ELECTRICAL
Copyright
2007
Rev: 2009-09-10
Microsemi
Microwave Products
Page 2
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
LSP1000 – LSP1012
TM
®
ENHANCED PERFORMANCE SURFACE MOUNT
EPSM
®
PIN Diodes
RoHS Compliant

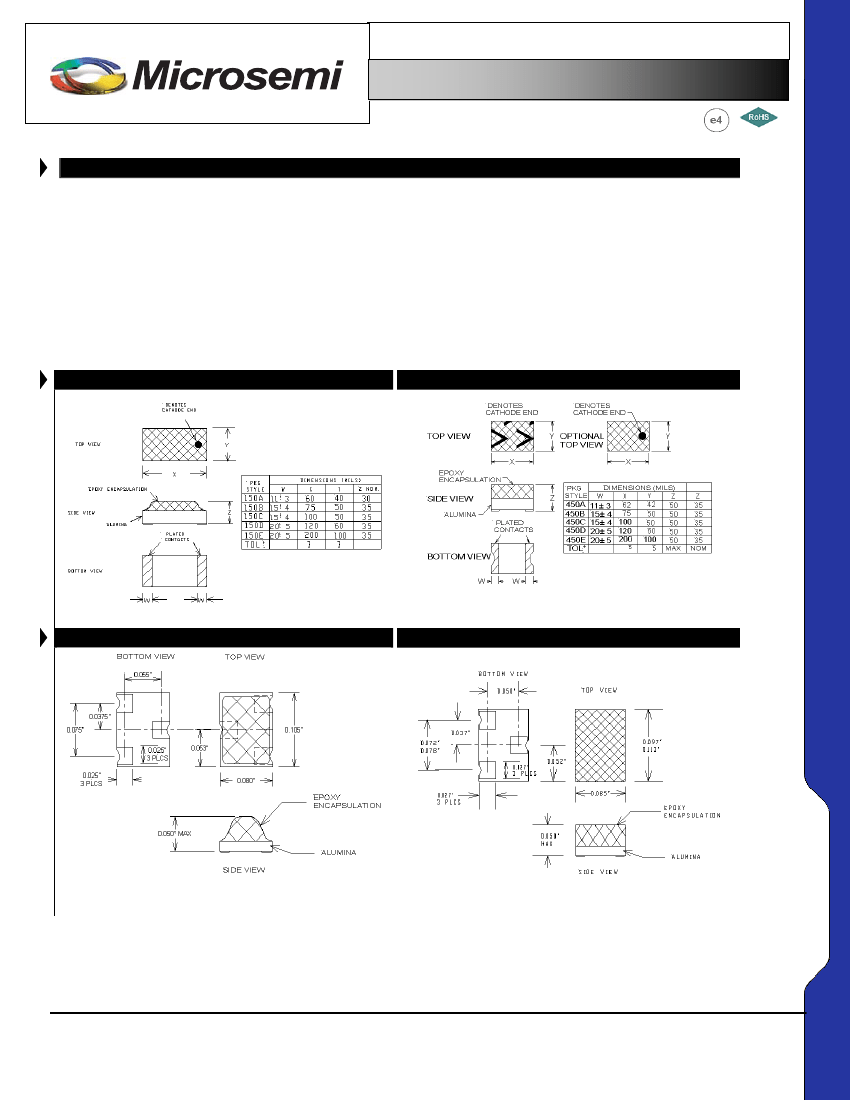

MECHANICAL OPTIONS
EPSM products are available in a broad range of mechanical configurations. The standard package style is the 450
series. This series has several sizes available to accommodate the internal chip configurations. The 450A is the most
common configuration for single diode applications. The 454 series package style is a three terminal configuration
designed to accommodate 2 chip for ‘T” and common anode/cathode designs. With uniform ‘flat-top’ construction, the
450 series of EPSM products are ideally suited for tape and reel / automated assembly.
The 150 series of EPSM products have a ‘glob-top’ construction and are traditionally used in smaller volume
applications.
www.MICROSEMI.com
PACKAGE STYLE 150X
PACKAGE STYE 450X
PACKAGE STYLE 154
PACKAGE STYPE 454
MECHANICAL
MECHANICAL
Copyright
2007
Rev: 2009-09-10
Microsemi
Microwave Products
Page 3
75 Technology Drive, Lowell, MA. 01851, 978-442-5600, Fax: 978-937-3748
