TD-5Q3TB2H1% Overview

General Fixed Inductor, 1 ELEMENT, 2000000 uH, GENERAL PURPOSE INDUCTOR

TD-5Q3TB2H1% Parametric

Parameter Name	Attribute value
Maker	Vishay
Objectid	1409806349
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	65140289
DC Resistance	475 Ω
Nominal inductance(L)	2000000 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	35 °C
Minimum operating temperature	13 °C
self resonant frequency	0.012 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	FLEXIBLE LEAD
Tolerance	1%

Preview

Download Datasheet

View All

Models TE and TD

Vishay Dale

Filter Inductors

Toroid

FEATURES

•

Choice of encapsulated (TE) or dipped (TD) styles.

•

TD style combines low cost with excellent performance in

commercial applications.

•

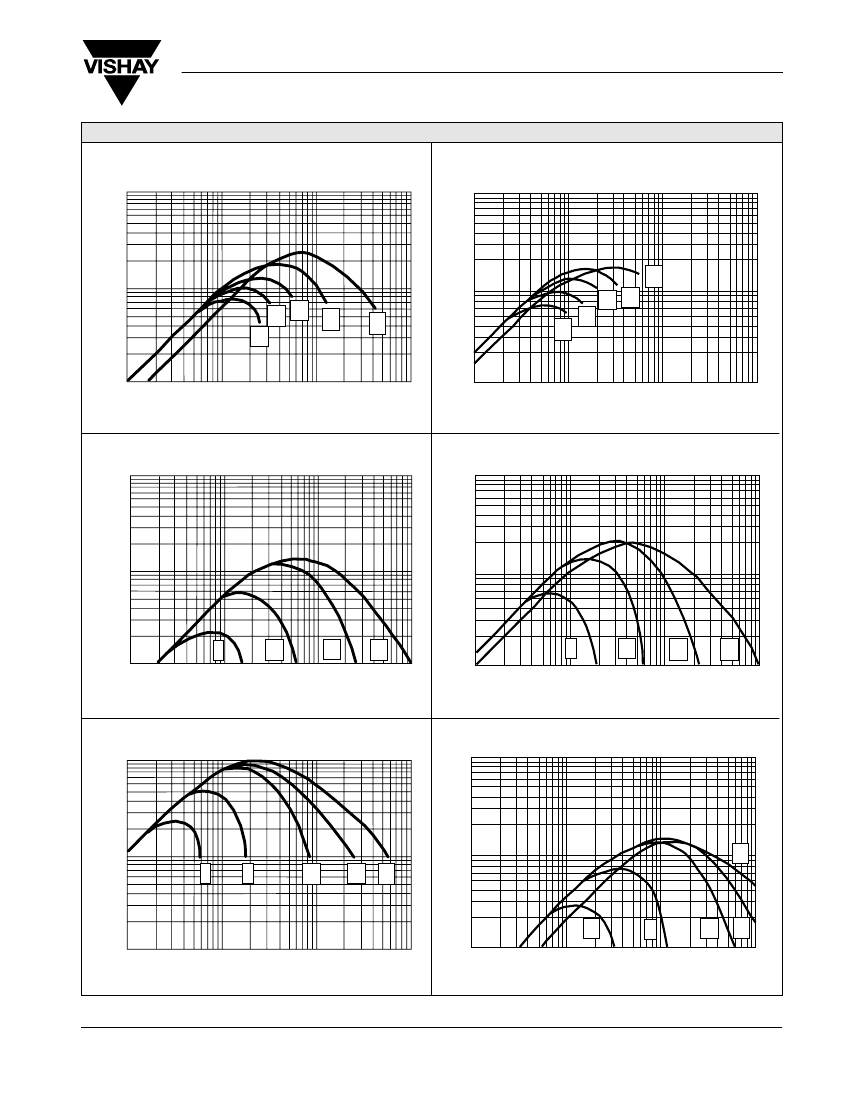

High Q and wide selection of Q versus frequency ranges in

one small package. Large number of standard inductance

values.

STANDARD ELECTRICAL SPECIFICATIONS (APPLIES TO CORE ONLY)

MODEL

TE-3

TD-3

TE-4

TD-4

TE-5

TD-5

CODE

TL*

TEMPERATURE

COEFFICIENT

0.1%

0.15%

+ 40 to + 110 PPM/°C

+ 85 to + 185 PPM/°C

0.25%

50 PPM/°C (Typical)

0.25%

TEMPERATURE

RANGE

- 55°C to + 125°C

+ 13°C to + 35°C

0°C to + 55°C

- 55°C to + 25°C

+ 25°C to + 85°C

- 65°C to + 125°C

- 55°C to + 85°C

AVAILABILITY

*Inverse of typical Temperature Coefficient of polystyrene capacitor.

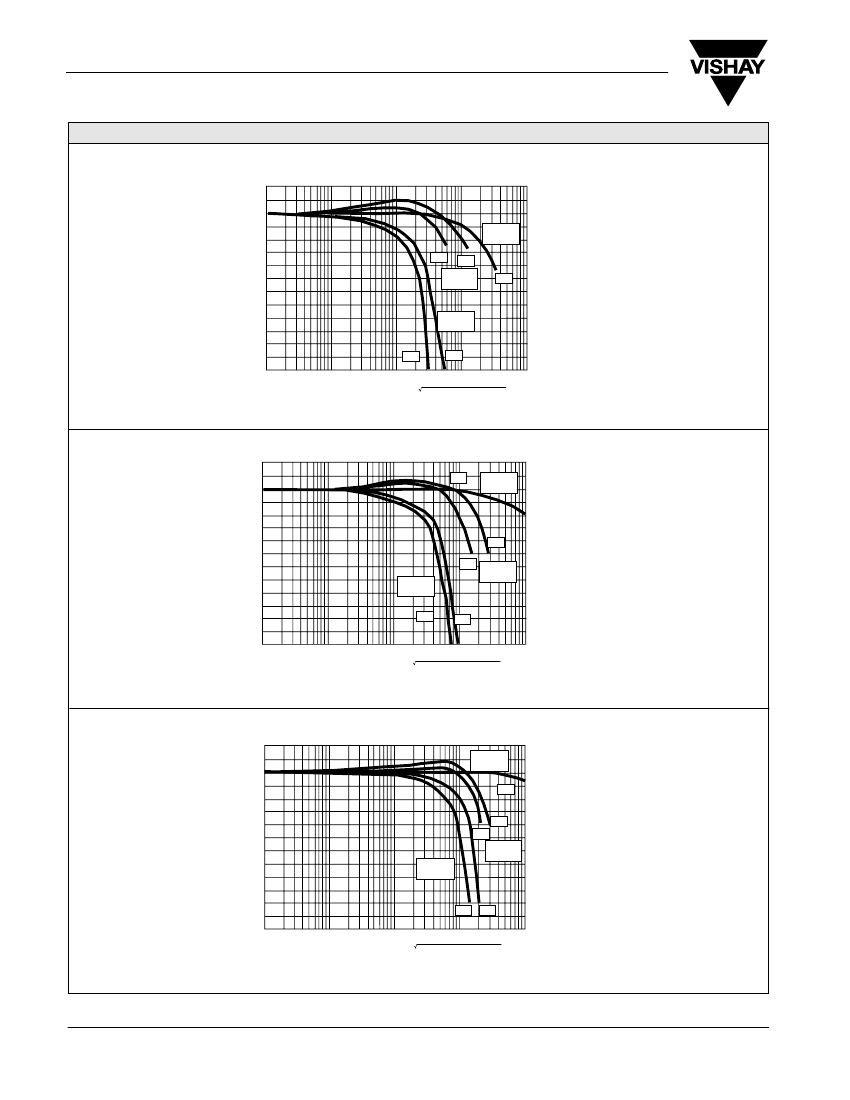

INDUCTANCE RANGES

CODE

TE-3

TD-3

50µH to 15mH

500µH to 1H

1mH to 4H

TE-4

TD-4

150µH to 20mH

1mH to 2H

2mH to 5H

TE-5

TD-5

1mH to 100mH

5mH to 2H

10mH to 5H

ELECTRICAL SPECIFICATIONS

Tolerance:

TE-3, TD-3 =

1% > 2mH,

2% 154µH to 2mH,

5% < 150µH.

TE-4, TD-4 =

1% > 2mH,

2% < 2mH.

TE-5, TD-5 =

1% > 2mH,

2% < 2mH.

Insulation Resistance:

1000 Megohm minimum.

Dielectric Strength:

1000V minimum (TE). 500V minimum

(TD).

DIMENSIONS

in inches (millimeters)

A Dia.

Max.

.375

.125

[9.53

3.18]

MECHANICAL SPECIFICATIONS

Terminal Strength:

2 pounds pull test (TE).

Vibration:

Per MIL-T-27 (TE).

Shock:

Per MIL-T-27 (TE).

Weight:

TE-3 = 5.1 grams, TD-3 = 4.9 grams typical.

Max.

Dia.

Min.

A Dia.

Max.

C Min.

B Max.

F Min.

Dia.

TE-4 = 20 grams, TD-4 = 17 grams typical.

TE-5 = 53 grams, TD-5 = 52 grams typical.

0.250

[6.35]

—

MODEL

TE-3

TD-3

TE-4

TD-4

TE-5

TD-5

.685

[17.40]

.685

[17.40]

0.385

[9.78]

0.320

[8.13]

1.0

0.025 0.500 0.093

[25.40] [0.635] [12.70] [2.36]

3.0

[76.20]

—

0.125

[3.18]

MATERIAL SPECIFICATIONS

Coating:

Vinyl (TD), non-flammable, abrasion and moisture

resistant. Resists most cleaning agents. (Consult factory for

chemicals which may be used.)

Standard Terminals:

Tinned copper (TE).

Stranded, tinned copper, Teflon insulated (TD).

Encapsulant:

Epoxy (TE).

Gauge:

TE-3 = 22 AWG, TD-3 = 26 AWG.

TE-4 = 20 AWG, TD-4 = 24 AWG.

TE-5 = 20 AWG, TD-5 = 24 AWG.

Document Number 34078

Revision 19-Apr-01

1.0

0.500

0.032 0.900 0.120 0.450

1.06

[26.92] [12.70] [25.40] [0.813] [22.86] [3.05] [11.43]

4.0

0.437

1.06

[26.92] [11.10] [101.60]

—

0.220

[5.59]

—

1.0

0.725

0.032

1.0

1.32

[33.53] [18.42] [25.40] [0.813] [25.40]

6.0

0.688

1.32

[33.53] [17.48] [152.40]

—

0.144 0.500

[3.66] [12.70]

0.220

[5.59]

—

www.vishay.com

140
