Common mode
SS Coils
SS11V/H-CH Type
[RoHS Compliant]
[RoHS Compliant]
Model
SS11V/H-03550-CH
SS11V/H-04350-CH
SS11V/H-05230-CH
SS11V/H-06180-CH
SS11V/H-07120-CH
SS11V/H-08083-CH
SS11V/H-10062-CH
SS11V/H-11050-CH
SS11V/H-13035-CH
SS11V/H-17024-CH
SS11V/H-22013-CH
SS11V/H-30006-CH
SS11V/H-R03820-CH
SS11V/H-R04520-CH
SS11V/H-R05350-CH
SS11V/H-R06270-CH
SS11V/H-R07190-CH
SS11V/H-R08125-CH
SS11V/H-R10093-CH
SS11V/H-R11076-CH
SS11V/H-R13052-CH
SS11V/H-R17036-CH
SS11V/H-R22020-CH
SS11V/H-R30009-CH
Rated
current
AC(A)
0.3
0.4
0.5
0.6
0.7
0.8
1.0
1.1
1.3
1.7
2.2
3.0
0.3
0.4
0.5
0.6
0.7
0.8
1.0
1.1
1.3
1.7
2.2
3.0
Inductance
(mH)
min.
55
35
23
18
12
8.3
6.2
5
3.5
2.4
1.3
0.6
82
52
35
27
19
12.5
9.3
7.6
5.2
3.6
2
0.9
DC resistance
( /line)
max.
4.1
2.6
1.8
1.3
0.90
0.74
0.44
0.40
0.28
0.19
0.12
0.063
4.1
2.6
1.8
1.3
0.90
0.74
0.44
0.40
0.28
0.19
0.12
0.063
Temperature
rise(K)
max.
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
45
Marking
03 lot No.
04 lot No.
05 lot No.
06 lot No.
07 lot No.
08 lot No.
10 lot No.
11 lot No.
13 lot No.
17 lot No.
22 lot No.
30 lot No.
R03 lot No.
R04 lot No.
R05 lot No.
R06 lot No.
R07 lot No.
R08 lot No.
R10 lot No.
R11 lot No.
R13 lot No.
R17 lot No.
R22 lot No.
R30 lot No.
Weight
approx.
(g)
10.5
10.7
10.5
11.1
10.8
9.8
11.1
10.7
10.5
10.8
10.4
9.6
10.5
10.7
10.5
11.1
10.8
9.8
11.1
10.7
10.5
10.8
10.4
9.6
• Rated voltage: 250VAC/VDC • Withstanding voltage: AC 2400V (2 sec between lines)
• Insulation resistance: at 500VDC, more than 100M (between lines) • Thermal class: E (120˚C)
• Operating temperature range (˚C): –25 to T (T=120–temperature rise) • Inductance measurement condition:1kHz, 1V, KC530
Shape and Dimensions
bSS11V-CH
Marking
21.5
±1.0
13±0.5
16±1.0
bSS11H-CH
Marking
18.0±0.5
10±0.5
ø0.8
3.5±1.0
18±0.5
21±1.0
14±0.5
20.5±1.0
13±0.5
22±1.0
10±0.5
14.5±1.0
3.5±1.0
ø0.8
14±0.5
[mm]
Numbering System
SS 11V/H -
03 550 - CH
Series
Core size
Type (V : vertical H : horizontal)
Core Type
Rated current (03 stands for 0.3A)
Inductance (550 stands for 55.0mH)
Product type
AC Line Filters VOL.08
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.03.06 P0915MCAF10VOL08E
Common mode

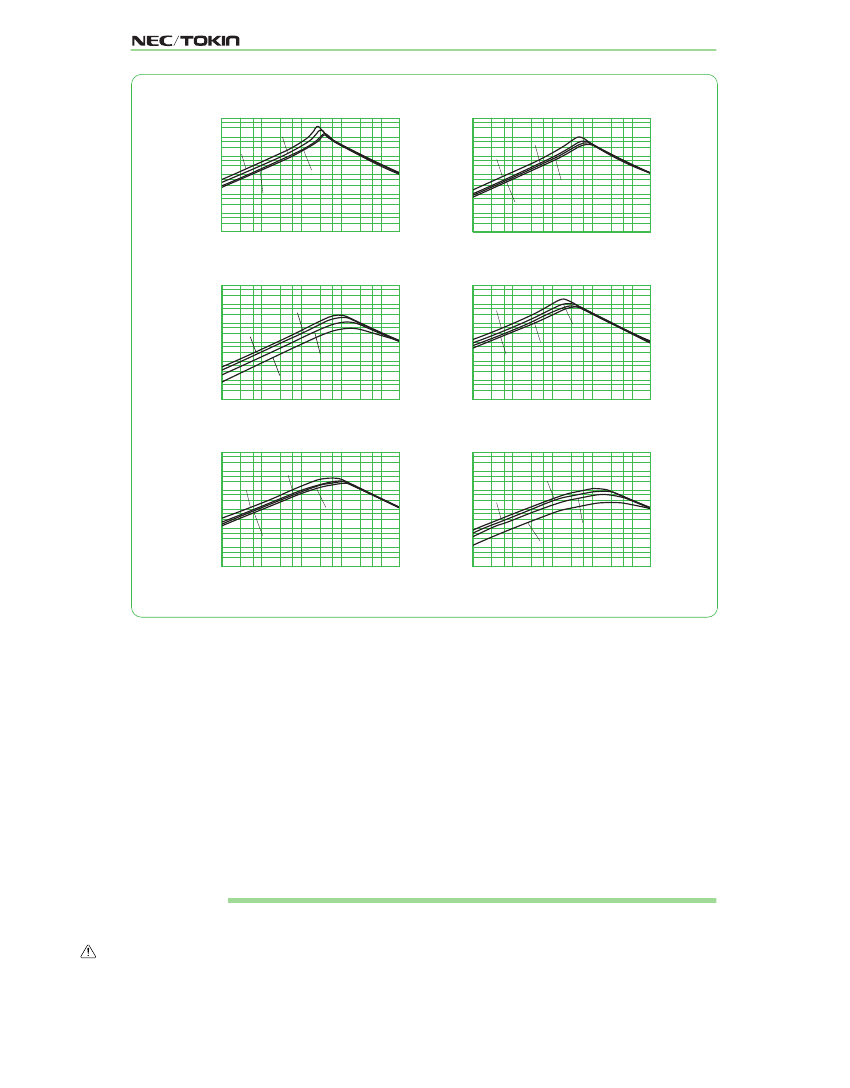

Frequency characteristic
