SHD3156C

Description
Rectifier Diode, 1 Phase, 1 Element, 70A, Silicon,
CategoryDiscrete semiconductor    diode
File Size60KB,1 Pages
ManufacturerSENSITRON
Websitehttp://www.sensitron.com/

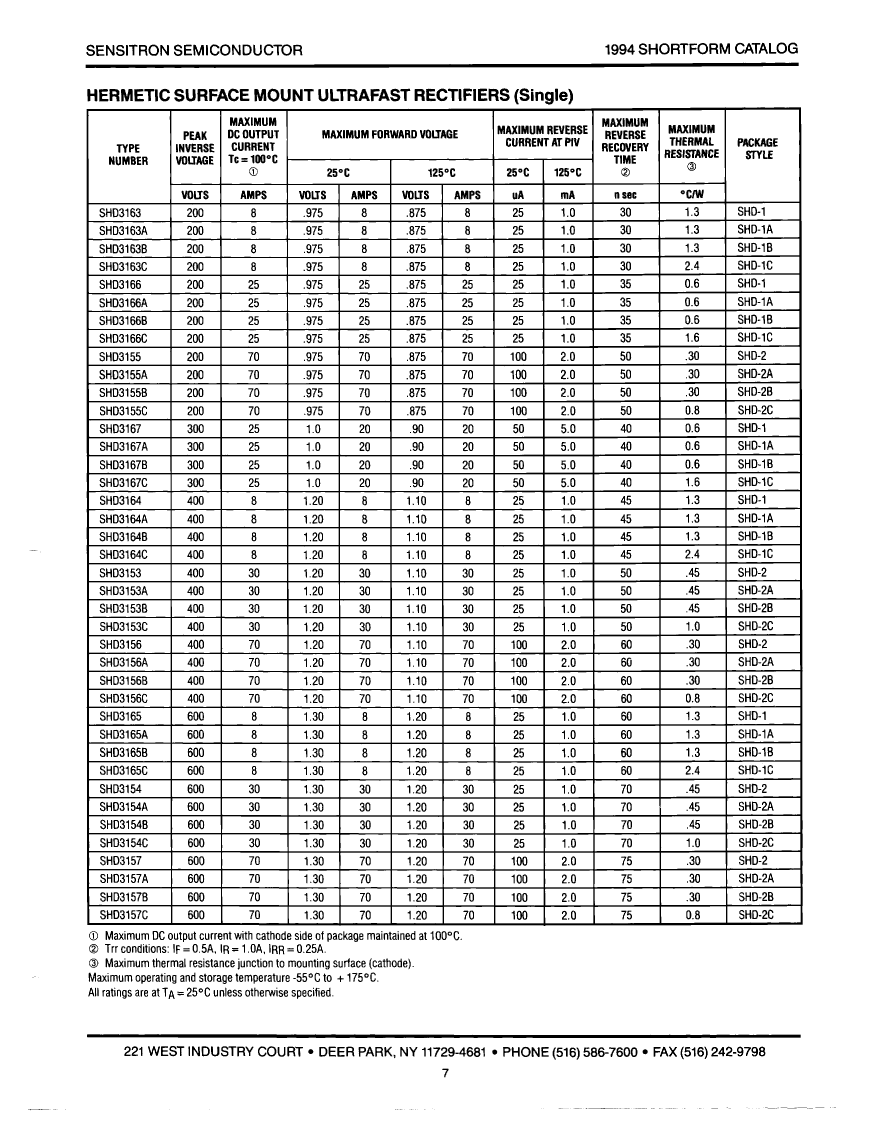

Download Datasheet Parametric View All

SHD3156C Overview

Rectifier Diode, 1 Phase, 1 Element, 70A, Silicon,

SHD3156C Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerSENSITRON
package instructionS-XXSO-F2
Reach Compliance Codecompliant
ECCN codeEAR99
applicationULTRA FAST RECOVERY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.2 V
JESD-30 codeS-XXSO-F2
Number of components1
Phase1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Maximum output current70 A
Package body materialUNSPECIFIED
Package shapeSQUARE
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum reverse current100 µA
Maximum reverse recovery time0.06 µs
surface mountYES
Terminal formFLAT
Terminal locationUNSPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
