ZFM-12-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFM-12-S+

ZFM-12-S+: DescriptionDouble Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size136KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFM-12-S+ Overview

Double Balanced Mixer, 800MHz Min, 1250MHz Max, 7.5dB Conversion Loss-Max, ROHS COMPLIANT, CASE K18

ZFM-12-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Objectid	1615966948
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	7230418
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	7.5 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	1250 MHz
Minimum operating frequency	800 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	2.64

Preview

Download Datasheet

View All

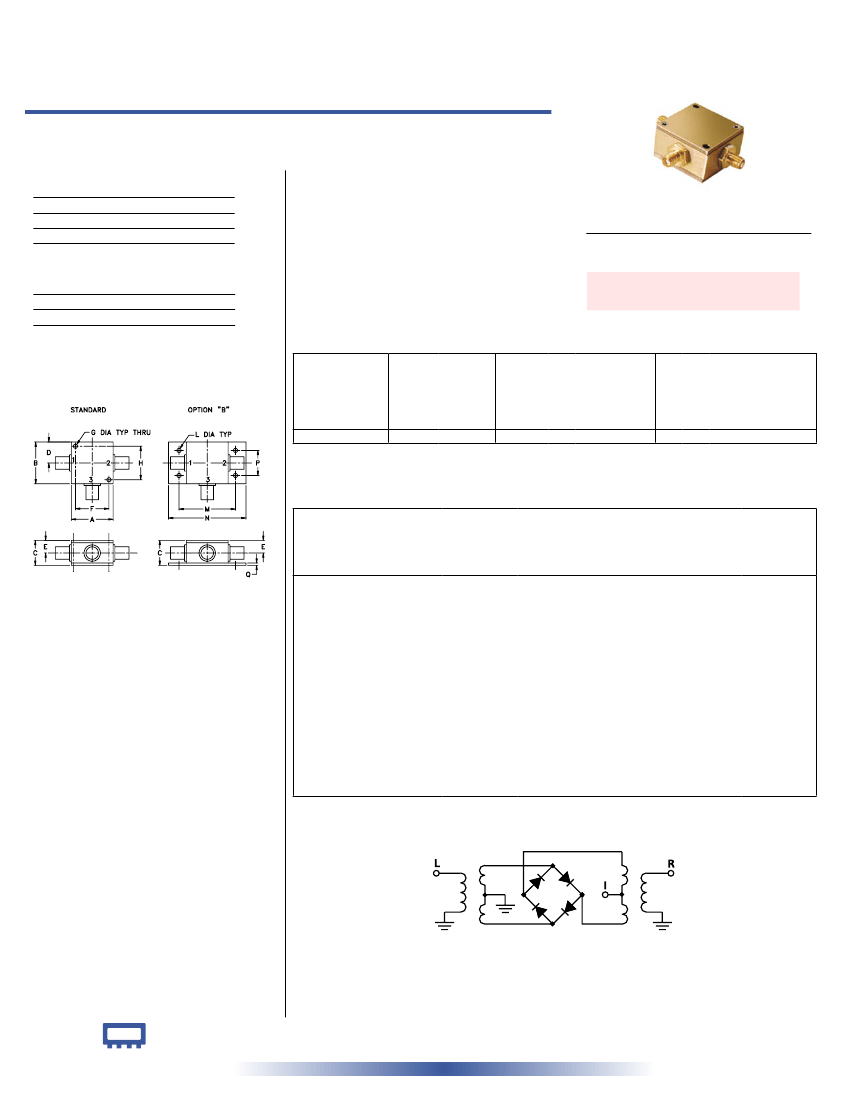

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm) 800 to 1250 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZFM-12+

ZFM-12

Features

• low conversion loss, 5.67 dB typ.

• good L-R isolation, 35 dB typ, L-I, 30 dB typ.

• rugged shielded case

SMA version shown

CASE STYLE: K18

Connectors Model

BNC

ZFM-12 (+)

SMA

ZFM-12-S (+)

BRACKET (OPTION “B”)

Price

$79.95 ea.

$84.95 ea.

$2.50

Qty.

(1-9)

(1+)

Applications

• VHF/UHF

• cellular

• GPS

• instrumentation

Coaxial Connections

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site for

RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

800-1250

50-90

1 dB COMP.: +1 dBm typ.

—

5.67

CONVERSION LOSS

(dB)

Mid-Band

0.12

Total

Range

Max.

7.5

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

Typ.

Min.

Typ.

Min.

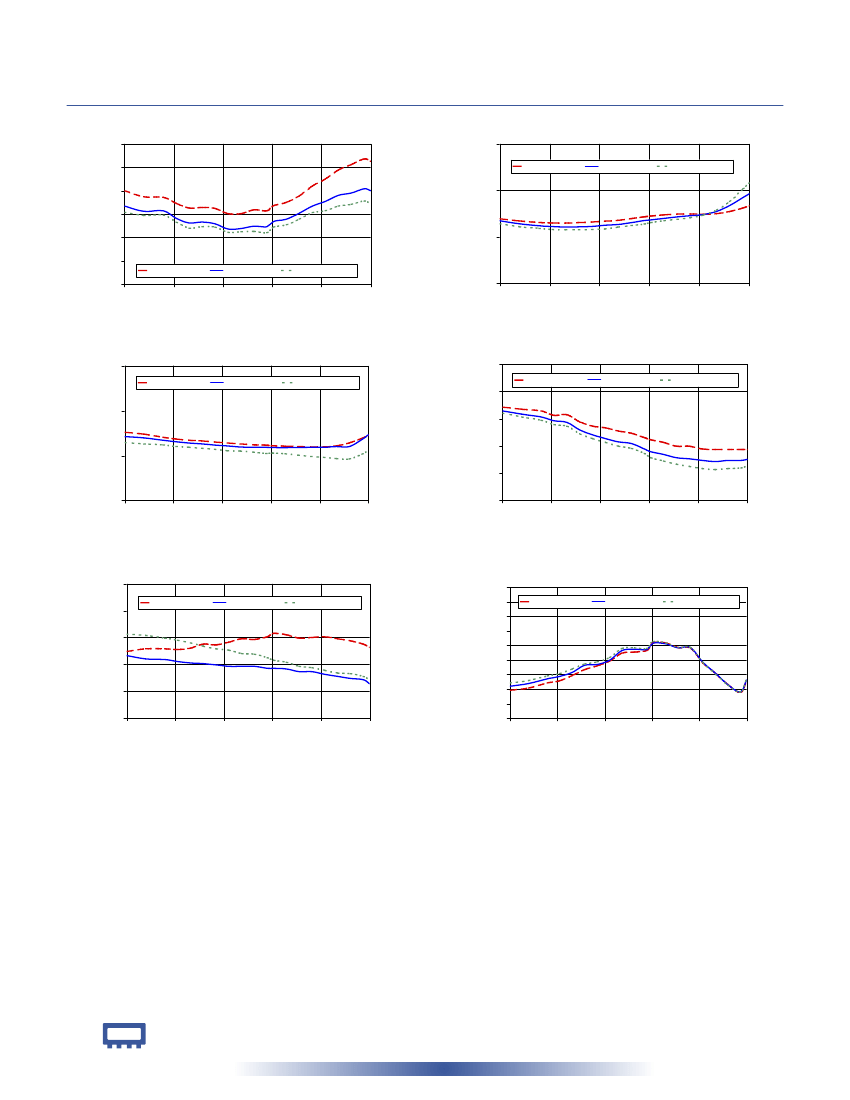

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

730.00

765.53

801.05

824.74

848.42

872.10

895.79

919.47

943.20

966.80

990.50

1002.40

1026.10

1049.70

1073.40

1097.10

1120.80

1144.50

1168.20

1180.00

Isolation

L-R

(dB)

+7dBm

33.42

32.78

32.33

32.16

32.06

32.10

32.20

32.44

32.61

33.00

33.47

33.61

33.93

34.25

34.50

34.75

35.42

36.69

38.41

39.24

Isolation

L-I

(dB)

+7dBm

34.21

33.92

33.41

33.06

32.78

32.59

32.33

32.15

31.91

31.84

31.77

31.75

31.80

31.82

32.00

33.59

34.65

VSWR RF

Port

(:1)

+7dBm

2.64

2.58

2.53

2.46

2.43

2.29

2.20

2.13

2.07

2.04

1.94

1.89

1.84

1.78

1.76

1.73

1.71

1.73

1.75

VSWR LO

Port

(:1)

+7dBm

1.93

1.88

1.87

1.84

1.82

1.81

1.79

1.77

1.74

1.73

1.69

1.65

1.62

1.59

1.57

1.51

800.00

835.53

871.05

894.72

918.42

+7dBm

6.67

6.56

6.57

6.41

6.31

6.33

6.29

6.18

6.19

6.24

6.23

6.34

6.39

6.52

6.67

6.77

6.90

6.95

7.04

7.00

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.125

3.18

.63

16.00

1.688

42.88

.38

9.65

2.18

55.37

1.00

25.40

.75

19.05

.125

3.18

1.000

25.40

942.10

965.79

989.47

1013.20

1036.80

1060.50

1072.40

1096.10

1119.70

1143.40

1167.10

1190.80

1214.50

1238.20

1250.00

.07 grams

1.78

70.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. A

M98898

ZFM-12+

DJ/TD/CP

060627

Page 1 of 2
