ZFSC-2-1W-N: DescriptionCombiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size109KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFSC-2-1W-N Overview

Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18

ZFSC-2-1W-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	N, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
JESD-609 code	e0
Maximum operating frequency	750 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.22

Preview

Download Datasheet

View All

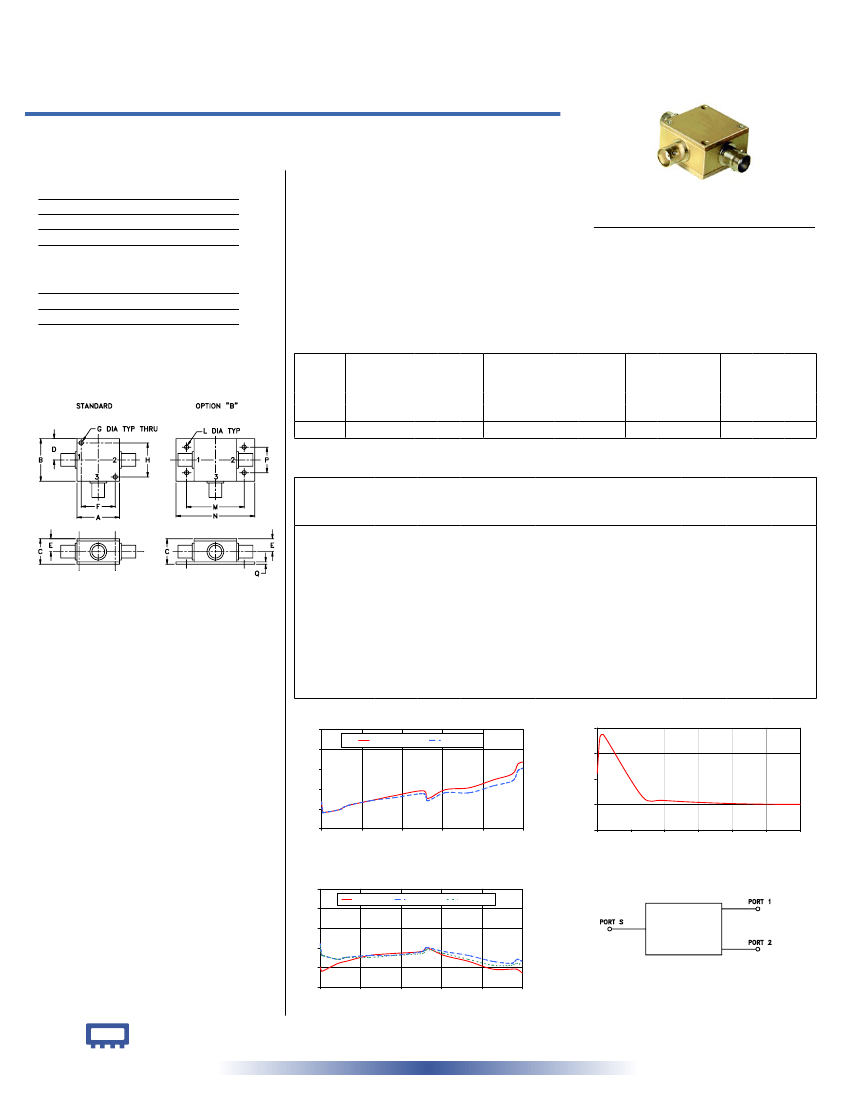

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

Coaxial

ZFSC-2-1W

50Ω

1 to 750 MHz

Features

• low insertion loss, 0.4 dB typ.

• high isolation, 28 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 0.5 deg. typ.

• very good return loss, VSWR, 1.15:1 typ.

• rugged shielded case

BNC version shown

CASE STYLE: K18

Connectors Model

BNC

ZFSC-2-1W

SMA

ZFSC-2-1W-S

N-TYPE

ZFSC-2-1W-N

BRACKET (OPTION "B")

Price

$48.95

$53.95

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUMPORT

PORT 1

PORT 2

3

1

2

Applications

• VHF/UHF

• federal & defense communication

Splitter Electrical Speciﬁcations

Outline Drawing

FREQ.

RANGE

(MHz)

L

f

L

-f

U

1-750

ISOLATION

(dB)

M

U

INSERTION LOSS (dB)

ABOVE 3.0 dB

L

M

U

PHASE

UNBALANCE

(Degrees)

L

Max.

2

M

Max.

4

U

Max.

4

AMPLITUDE

UNBALANCE

(dB)

L

Max.

0.15

M

Max.

0.15

U

Max.

0.30

Typ. Min Typ. Min Typ. Min

30

20

28

20

25

20

Typ. Max. Typ. Max. Typ. Max.

0.2

0.5

0.4

0.8

1.0

L = low range [f

L

to 10 f

L

]

M = mid range [10 f

L

to f

U

/2]

U= upper range [f

U

/2 to f

U

]

Typical Performance Data

Frequency

(MHz)

Insertion Loss

(dB)

S-1

1.00

5.00

10.00

68.00

97.00

184.00

271.00

380.00

395.00

460.00

550.00

640.00

710.00

730.00

750.00

3.27

3.17

3.16

3.19

3.23

3.28

3.33

3.38

3.30

3.39

3.41

3.49

3.55

3.65

3.67

Amplitude

Unbalance

(dB)

0.00

0.01

0.00

0.01

0.00

0.01

0.02

0.03

0.02

0.03

0.05

0.06

0.07

Isolation

(dB)

Phase

Unbalance

(deg.)

0.01

0.02

0.14

0.07

0.09

0.20

0.24

0.21

0.22

0.31

0.36

0.48

0.59

0.58

VSWR

S

VSWR

1

VSWR

2

S-2

3.27

3.16

3.19

3.23

3.28

3.31

3.35

3.28

3.36

3.43

3.48

3.58

3.61

31.01

38.19

38.65

26.38

25.75

25.18

24.97

24.99

24.95

25.18

25.42

25.07

23.78

23.32

22.79

1.10

1.08

1.12

1.13

1.16

1.17

1.18

1.20

1.16

1.13

1.09

1.07

ZFSC-2-1W

ISOLATION

40

35

30

25

20

1.22

1.17

1.16

1.14

1.15

1.16

1.18

1.20

1.18

1.16

1.13

1.12

1.14

1.13

1.21

1.16

1.14

1.15

1.16

1.17

1.19

1.17

1.14

1.11

1.12

1.11

Outline Dimensions (

inch

)

mm

A

1.25

31.75

J

--

B

1.25

31.75

K

--

C

.75

19.05

L

.125

3.18

D

.63

16.00

M

1.688

42.88

E

.38

9.65

N

2.18

55.37

F

1.00

25.40

P

.75

19.05

G

.125

3.18

H

1.000

25.40

Q

wt

.07 grams

1.78

70.0

For option B with N-type connectors, dimension "C" increases to 0.94 inches.

4.0

INSERTION LOSS (dB)

ZFSC-2-1W

INSERTION LOSS

S-1(dB)

S-2(dB)

3.6

3.4

3.2

3.0

0

150

300

450

600

750

FREQUENCY (MHz)

ISOLATION (dB)

3.8

0

50

100

150

200

250

300

FREQUENCY (MHz)

1.5

#S-VSWR

ZFSC-2-1W

VSWR

#1-VSWR

electrical schematic

#2-VSWR

1.4

VSWR

1.3

1.2

1.1

1.0

0

150

300

450

600

750

REV. OR

M94482

ZFSC-2-1W

HY/TD/CP

060915

FREQUENCY (MHz)

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZFSC-2-1W-N Related Products

	ZFSC-2-1W-N	ZFSC-2-1W-S	ZFSC-2-1WB-N	ZFSC-2-1WB	ZFSC-2-1WB-S
Description	Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18	Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18	Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18	Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18	Combiner, 1MHz Min, 750MHz Max, 1dB Insertion Loss-Max, CASE K18
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
Other features	N, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20	N, ISOLATION-MIN (DB):20	BNC, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1 dB	1 dB	1 dB	1 dB	1 dB
JESD-609 code	e0	e0	e0	e0	e0
Maximum operating frequency	750 MHz	750 MHz	750 MHz	750 MHz	750 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.22	1.22	1.22	1.22	1.22
