ZMSC-4-1B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZMSC-4-1B

ZMSC-4-1B: DescriptionCombiner, 0.1MHz Min, 200MHz Max, 1dB Insertion Loss-Max, CASE N24; CategoryWireless rf/communication Radio frequency and microwave; File Size90KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZMSC-4-1B Overview

Combiner, 0.1MHz Min, 200MHz Max, 1dB Insertion Loss-Max, CASE N24

ZMSC-4-1B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
JESD-609 code	e0
Maximum operating frequency	200 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.32

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

4 Way-0° 50Ω

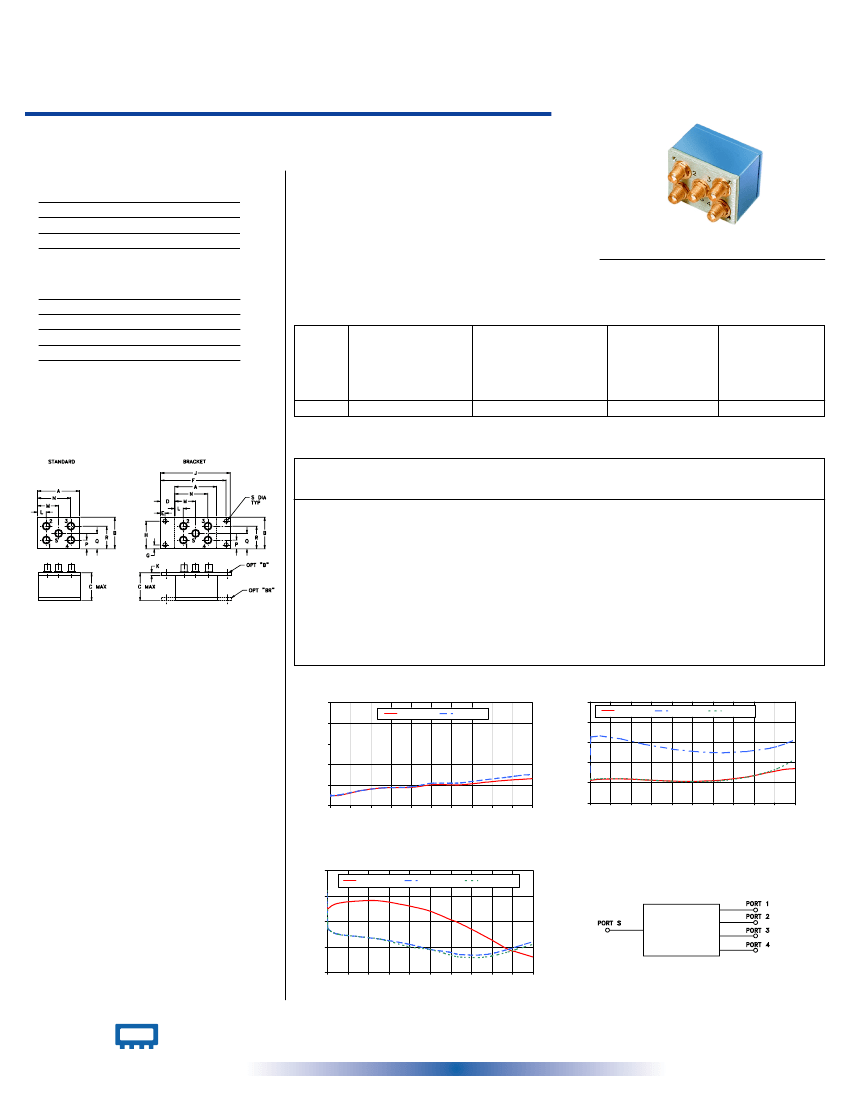

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.250W max.

ZMSC-4-1

0.1 to 200 MHz

Features

• high isolation, 30dB typ.

• rugged, shielded case

CASE STYLE: N24

Applications

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

FREQ.

RANGE

(MHz)

-f

0.1-200

• HF/VHF

• radio communication

• receivers/transmitters

Connectors

Model

SMA

ZMSC-4-1

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$66.95

$5.00

$1.50

Qty.

(1-9)

(1+)

Splitter Electrical Specifications

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 6 dB

Typ. Max. Typ. Max.

0.5

0.75

0.7

1.0

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.15

Max.

0.20

Max.

0.25

Typ. Min. Typ. Min. Typ. Min. Typ. Max.

0.4

0.6

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U = upper range [f

/2 to f

]

Outline Drawing

Freq.

(MHz)

Insertion Loss

(dB)

S-1 S-2

S-3 S-4

6.17

6.20

6.19

6.20

6.29

6.34

6.35

6.40

6.45

6.49

6.50

6.51

6.52

6.17

6.20

6.19

6.21

6.29

6.34

6.35

6.40

6.41

6.40

6.45

6.48

6.49

6.51

6.17

6.20

6.19

6.21

6.29

6.34

6.36

6.43

6.44

6.50

6.55

6.57

6.59

6.60

6.16

6.20

6.18

6.21

6.29

6.35

6.36

6.43

6.44

6.51

6.57

6.59

6.62

6.63

Typical Performance Data

Amp.

Unbal.

(dB)

0.01

0.00

0.01

0.02

0.04

0.05

0.06

0.09

0.10

0.11

0.12

Isolation

(dB)

1-2

2-3

3-4

28.93

29.03

28.87

29.26

29.41

29.05

28.55

28.45

28.68

29.03

30.28

32.10

32.76

33.28

33.46

32.05

43.97

45.99

46.44

45.20

43.18

41.17

40.30

39.86

39.76

40.30

41.55

42.38

43.49

44.99

29.34

29.35

29.14

29.47

29.56

29.13

28.52

28.37

28.52

28.83

30.13

32.45

33.67

35.26

37.10

Phase

Unbal.

(deg.)

0.07

0.05

0.06

0.04

0.05

0.07

0.06

0.07

0.09

0.10

0.19

0.22

0.25

VSWR VSWR VSWR VSWR VSWR

0.10

0.50

1.00

10.00

31.00

52.00

80.00

100.00

118.00

130.00

154.00

176.00

184.00

192.00

200.00

1.27

1.24

1.25

1.27

1.28

1.26

1.24

1.21

1.19

1.14

1.09

1.08

1.07

1.06

1.31

1.18

1.17

1.15

1.14

1.13

1.11

1.09

1.08

1.07

1.09

1.10

1.11

1.12

1.31

1.18

1.17

1.15

1.14

1.13

1.10

1.09

1.08

1.07

1.09

1.10

1.11

1.12

1.32

1.19

1.17

1.15

1.14

1.13

1.10

1.09

1.07

1.06

1.08

1.09

1.10

1.11

1.32

1.19

1.17

1.15

1.14

1.13

1.11

1.09

1.07

1.06

1.07

1.08

1.09

1.10

ZMSC-4-1

INSERTION LOSS

INSERTION LOSS (dB)

ZMSC-4-1

ISOLATION

S-3(dB)

ISOLATION (dB)

1-2(dB)

2-3(dB)

3-4(dB)

Outline Dimensions (

inch

)

1.50

38.10

.10

2.54

1.13

28.70

.32

8.13

1.00

25.40

.75

19.05

.50

12.70

1.18

29.97

.155

3.94

.31

7.87

2.345

59.56

.56

14.22

.138

3.51

.81

20.57

.987

25.07

2.50

63.50

8.0

S-1(dB)

7.6

7.2

6.8

6.4

6.0

100 120 140 160 180 200

FREQUENCY (MHz)

ZMSC-4-1

VSWR

1.40

.150 grams

3.81

45.0

100 120 140 160 180 200

FREQUENCY (MHz)

#S-VSWR

1.30

VSWR

#1-VSWR

#3-VSWR

electrical schematic

1.20

1.10

1.00

100

120

140

160

180

200

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M96470

ZMSC-4-1

HY/TD/CP

050930

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZMSC-4-1B Related Products

	ZMSC-4-1B	ZMSC-4-1	ZMSC-4-1BR
Description	Combiner, 0.1MHz Min, 200MHz Max, 1dB Insertion Loss-Max, CASE N24	Combiner, 0.1MHz Min, 200MHz Max, 1dB Insertion Loss-Max, CASE N24	Combiner, 0.1MHz Min, 200MHz Max, 1dB Insertion Loss-Max, CASE N24
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Other features	SMA, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm
Maximum insertion loss	1 dB	1 dB	1 dB
JESD-609 code	e0	e0	e0
Maximum operating frequency	200 MHz	200 MHz	200 MHz
Minimum operating frequency	0.1 MHz	0.1 MHz	0.1 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.32	1.32	1.32
