ZX05-C42MH+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZX05-C42MH+

ZX05-C42MH+: DescriptionDouble Balanced Mixer, 1000MHz Min, 4200MHz Max, 8.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905; CategoryWireless rf/communication Radio frequency and microwave; File Size246KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX05-C42MH+ Overview

Double Balanced Mixer, 1000MHz Min, 4200MHz Max, 8.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905

ZX05-C42MH+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA-F
structure	COAXIAL
Maximum frequency conversion loss	8.9 dB
Maximum input power (CW)	23 dBm
Maximum operating frequency	4200 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Nickel (Ni)
Maximum voltage standing wave ratio	8.33

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 13 (LO Power +13 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-40°C to 85°C

-55°C to 100°C

200mW

40mA

ZX05-C42MH+

1000 to 4200 MHz

CASE STYLE: FL905

Connectors

SMA

Model

ZX05-C42MH-S+

Price

Qty.

$39.95 ea. (1-24)

Features

Permanent damage may occur if any of these limits are exceeded.

• rugged construction

• small size

• low conversion loss

• high L-R isolation

• protected by US Patents 6,790,049 & 7,027,795

Coaxial Connections

Applications

• cellular

• PCS

• instrumentation

• satellite communication

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

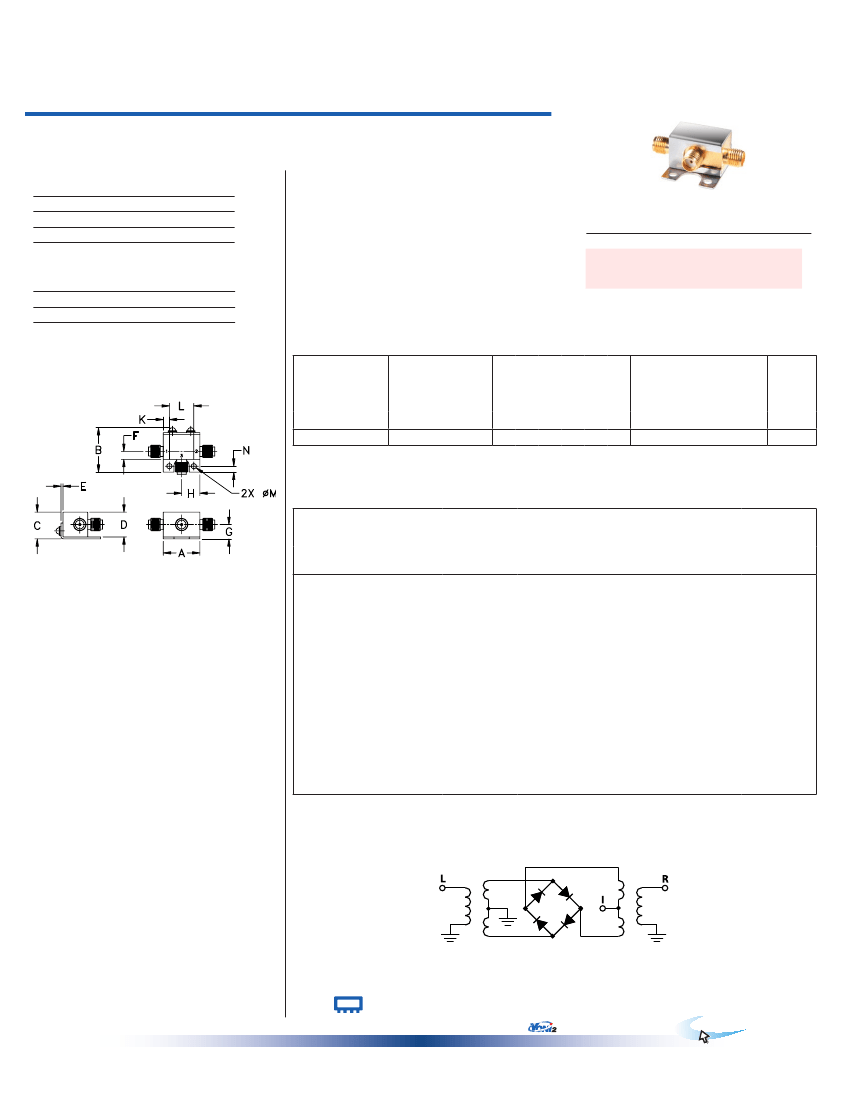

Electrical Specifications (T

AMB

=25°C)

Outline Drawing

FREQUENCY

(MHz)

LO/RF

-f

1000-4200

DC-1500

1 dB COMP.: +9 dBm typ.

CONVERSION LOSS

(dB)

Mid-Band

—

6.2

0.1

Total

Range

Max.

8.9

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

IP3

at center

band

(dBm)

Typ.

Min.

Typ.

Min.

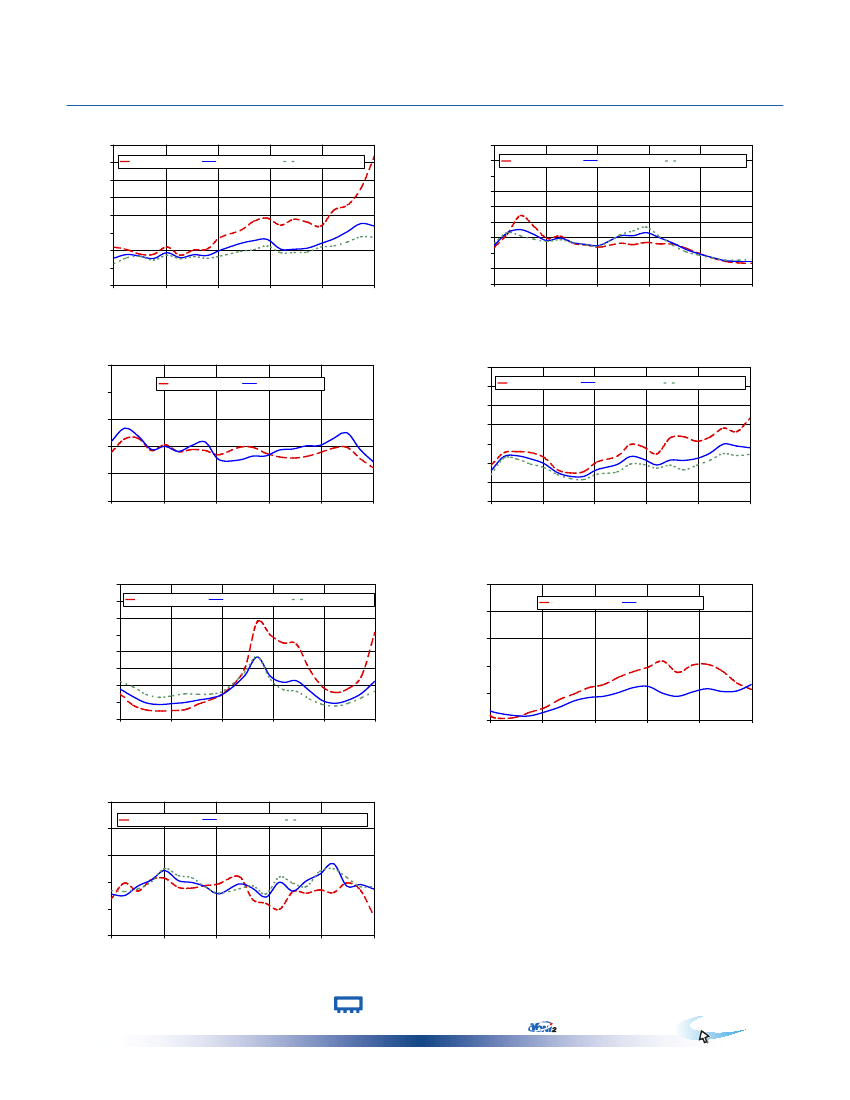

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

1030.11

1194.21

1358.32

1522.42

1686.52

1850.62

2014.73

2178.83

2342.93

2589.08

2753.19

2917.29

3081.39

3245.50

3409.60

3573.70

3737.80

3901.91

4066.01

4170.09

+13dBm

5.54

5.75

5.65

5.52

5.86

5.56

5.74

5.69

6.00

6.38

6.54

6.61

6.05

6.11

6.37

6.65

7.05

7.51

7.37

Isolation

L-R

(dB)

+13dBm

34.65

42.95

45.06

41.94

37.88

39.58

36.47

35.35

34.88

40.91

41.04

43.02

39.81

36.34

32.23

29.28

26.88

24.86

24.53

24.55

Isolation

L-I

(dB)

+13dBm

22.99

25.97

24.23

21.25

21.97

20.83

22.17

22.92

19.04

18.95

19.81

19.85

21.17

21.37

22.06

22.17

23.67

25.01

21.27

18.50

VSWR

RF Port

(:1)

+13dBm

2.57

3.33

3.36

3.20

2.96

2.49

2.29

2.64

2.91

3.33

3.18

2.88

3.14

3.12

3.22

3.50

3.97

3.87

3.78

VSWR

LO Port

(:1)

+13dBm

4.54

3.62

2.88

2.69

2.79

2.93

3.21

3.47

4.03

6.03

8.33

6.06

5.33

5.53

4.32

3.15

2.83

3.22

4.02

5.45

1000.10

1164.20

1328.31

1492.41

1656.51

Outline Dimensions (

inch

)

.74

18.80

.37

9.40

.90

22.86

.54

13.72

.122

3.10

.50

12.70

.496

12.60

.04

1.02

.106

2.69

.16

4.06

.29

7.37

1820.61

1984.72

2148.82

2312.92

2559.07

2723.18

2887.28

3051.38

3215.49

3379.59

3543.69

3707.79

3871.90

4036.00

4200.10

.122 grams

3.10

20.0

Electrical Schematic

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. D

M108294

ZX05-C42MH

RVN/TD/CP/AM

091007

Page 1 of 2

ZX05-C42MH+ Related Products

	ZX05-C42MH+	ZX05-C42MH-S+
Description	Double Balanced Mixer, 1000MHz Min, 4200MHz Max, 8.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905	Double Balanced Mixer, 1000MHz Min, 4200MHz Max, 8.9dB Conversion Loss-Max, ROHS COMPLIANT, CASE FL905
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	not_compliant
Other features	SMA-F	SMA
structure	COAXIAL	COAXIAL
Maximum frequency conversion loss	8.9 dB	8.9 dB
Maximum input power (CW)	23 dBm	23 dBm
Maximum operating frequency	4200 MHz	4200 MHz
Minimum operating frequency	1000 MHz	1000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED
Terminal surface	Nickel (Ni)	Nickel (Ni)
Maximum voltage standing wave ratio	8.33	8.33
