ZX05-C24LH-S

Description
Double Balanced Mixer, 300MHz Min, 2400MHz Max, 8.9dB Conversion Loss-Max, CASE FL905
CategoryWireless rf/communication    Radio frequency and microwave
File Size145KB,2 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric View All

ZX05-C24LH-S Overview

Double Balanced Mixer, 300MHz Min, 2400MHz Max, 8.9dB Conversion Loss-Max, CASE FL905

ZX05-C24LH-S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresSMA, HIGH ISOLATION
structureCOAXIAL
Maximum frequency conversion loss8.9 dB
Maximum input power (CW)17 dBm
JESD-609 codee0
Maximum operating frequency2400 MHz
Minimum operating frequency300 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
RF/Microwave Device TypesDOUBLE BALANCED
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio15.23
Coaxial
Frequency Mixer
Level 10 (LO Power +10 dBm)
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-40°C to 85°C
-55°C to 100°C
50mW
40mA

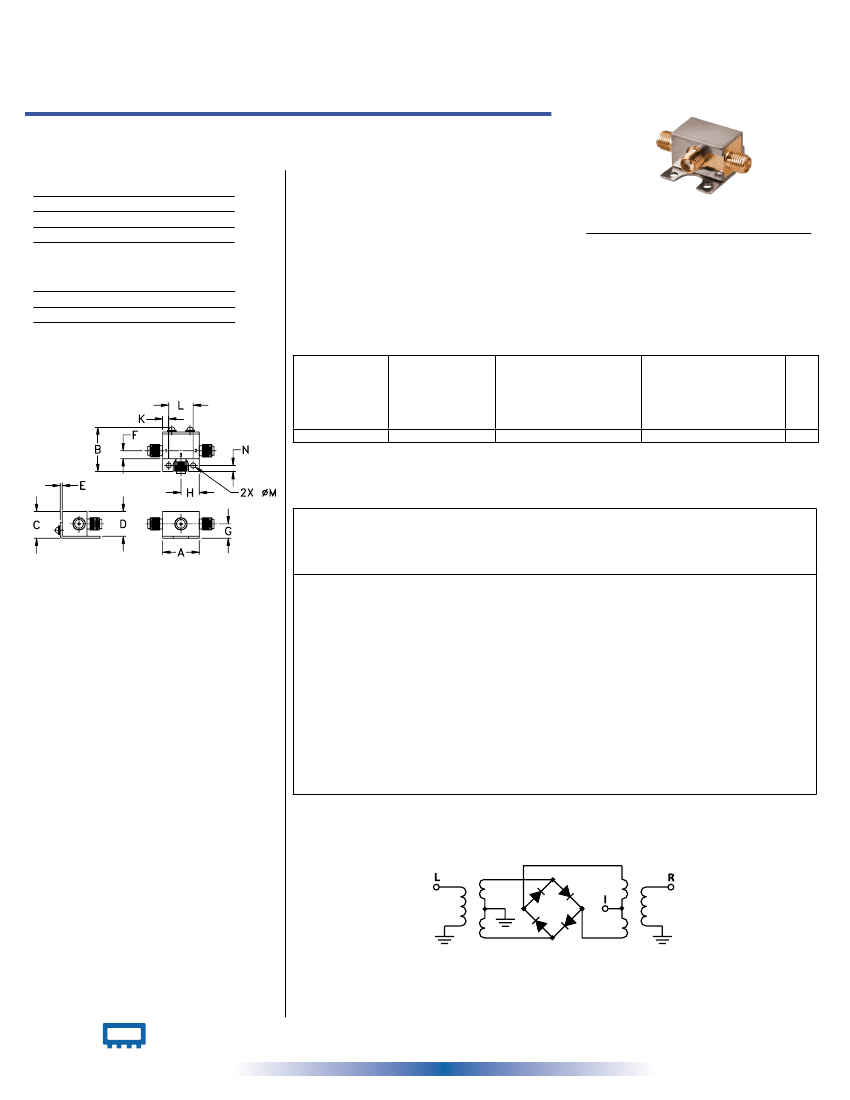

ZX05-C24LH
300 to 2400 MHz
Features
• rugged construction
• small size
• low convesion loss
• high L-R isolation
• protected by US Patents 6,790,049 & 7,027,795
CASE STYLE: FL905
Connectors
SMA
Model
ZX05-C24LH-S
Price
Qty.
$38.95 ea. (1-24)
Coaxial Connections
LO
RF
IF
1
2
3
Applications
• cellular
• PCS
• instrumentation
• satellite communication
Electrical Specifications (T
AMB
=25°C)
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
300-2400
DC-700
1 dB COMP.: +5 dBm typ.
m= mid band [2f
L
to f
U
/2]
CONVERSION LOSS
(dB)
Mid-Band
m
X
6.5
σ
0.1
LO-RF ISOLATION
(dB)
LO-IF ISOLATION
(dB)
IP3
at
center
band
(dBm)
Typ.
13
IF
Total
Range
Max.
8.9
Typ.
40
Min.
25
Typ.
30
Min.
15

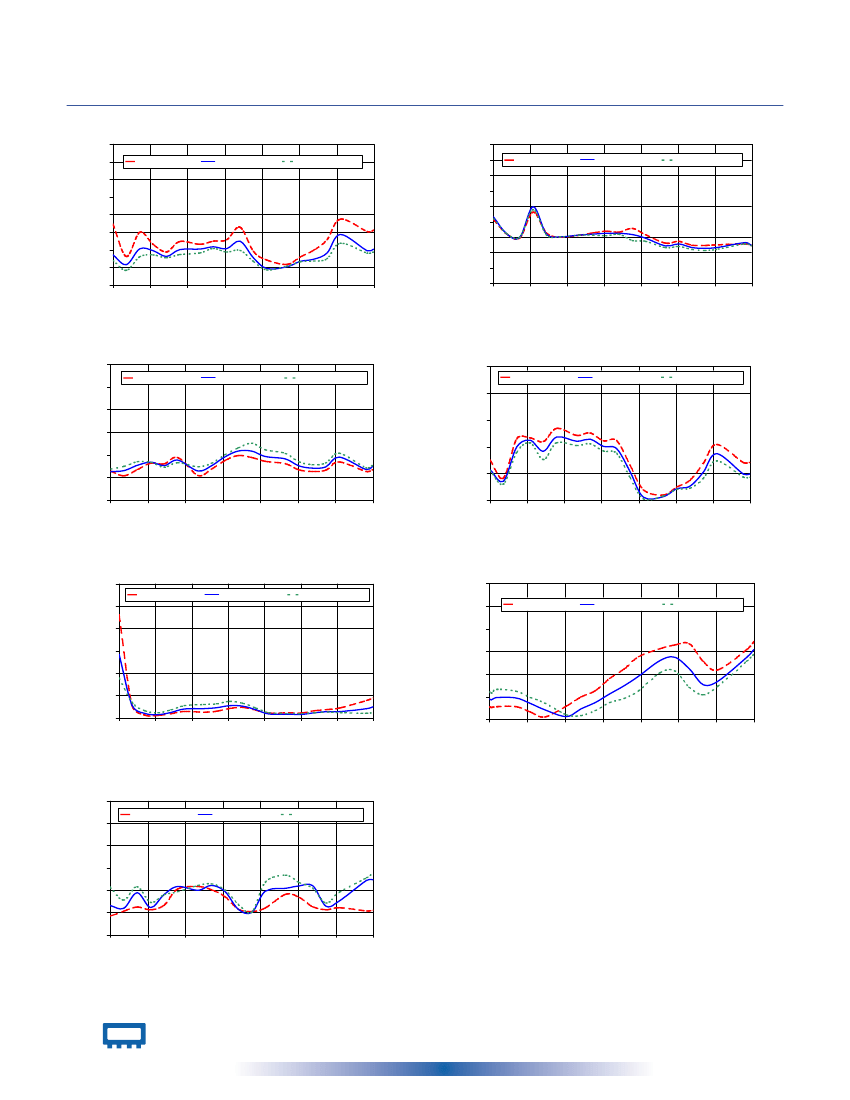

Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
330.11
437.80
545.50
653.19
760.88
868.57
1030.11
1137.80
1245.50
1353.19
1460.88
1568.57
1730.11
1837.80
1945.50
2053.19
2160.88
2376.26
2370.09
LO
+10dBm
5.70
5.14
6.04
5.94
5.61
6.00
6.03
6.16
6.05
6.48
5.53
4.92
5.02
5.33
5.45
5.80
6.86
5.93
6.03
Isolation
L-R
(dB)
LO
+10dBm
53.04
42.05
39.80
59.61
41.90
40.08
41.25
41.82
42.41
42.37
41.58
39.23
34.19
35.50
33.18
32.63
33.32
36.33
34.46
Isolation
L-I
(dB)
LO
+10dBm
22.52
23.01
25.36
26.76
25.22
27.63
22.89
25.12
29.02
31.66
31.62
29.26
28.15
25.13
24.10
24.63
29.00
23.52
24.94
VSWR RF
Port
(:1)
LO
+10dBm
2.14
1.71
2.99
3.24
2.83
3.36
3.20
3.28
3.01
2.92
2.07
1.12
1.14
1.43
1.53
2.05
2.74
1.98
1.98
VSWR LO
Port
(:1)
LO
+10dBm
15.23
3.78
1.99
1.72
2.22
2.99
3.07
3.27
3.72
3.62
2.81
1.86
1.84
1.77
2.14
2.38
2.41
3.05
3.47
RF
300.10
407.79
515.49
623.18
730.87
Outline Dimensions (
inch
)
mm
A
.74
18.80
H
.37
9.40
B
.90
22.86
J
--
--
C
.54
13.72
K
.122
3.10
D
.50
12.70
L
.496
12.60
E
.04
1.02
M
.106
2.69
F
.16
4.06
G
.29
7.37
838.56
1000.10
1107.79
1215.49
1323.18
1430.87
1538.56
1700.10
1807.79
1915.49
2023.18
2130.87
2346.25
2400.10
N
wt
.122 grams
3.10
20.0
Electrical Schematic
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
Mini-Circuits
ISO 9001 & ISO 14001
Certified
REV. B
M105396
ZX05-C24LH
RVN/TD/CP
060717
Page 1 of 2
