ZFSC-16-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-16-3

Preview

ZFSC-16-3: DescriptionCombiner, 1MHz Min, 30MHz Max, 0.9dB Insertion Loss-Max, CASE R30; CategoryWireless rf/communication Radio frequency and microwave; File Size77KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZFSC-16-3 Overview

Combiner, 1MHz Min, 30MHz Max, 0.9dB Insertion Loss-Max, CASE R30

ZFSC-16-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BNC, ISOLATION-MIN (DB):28
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.9 dB
JESD-609 code	e0
Maximum operating frequency	30 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.24

Preview

Download Datasheet

View All

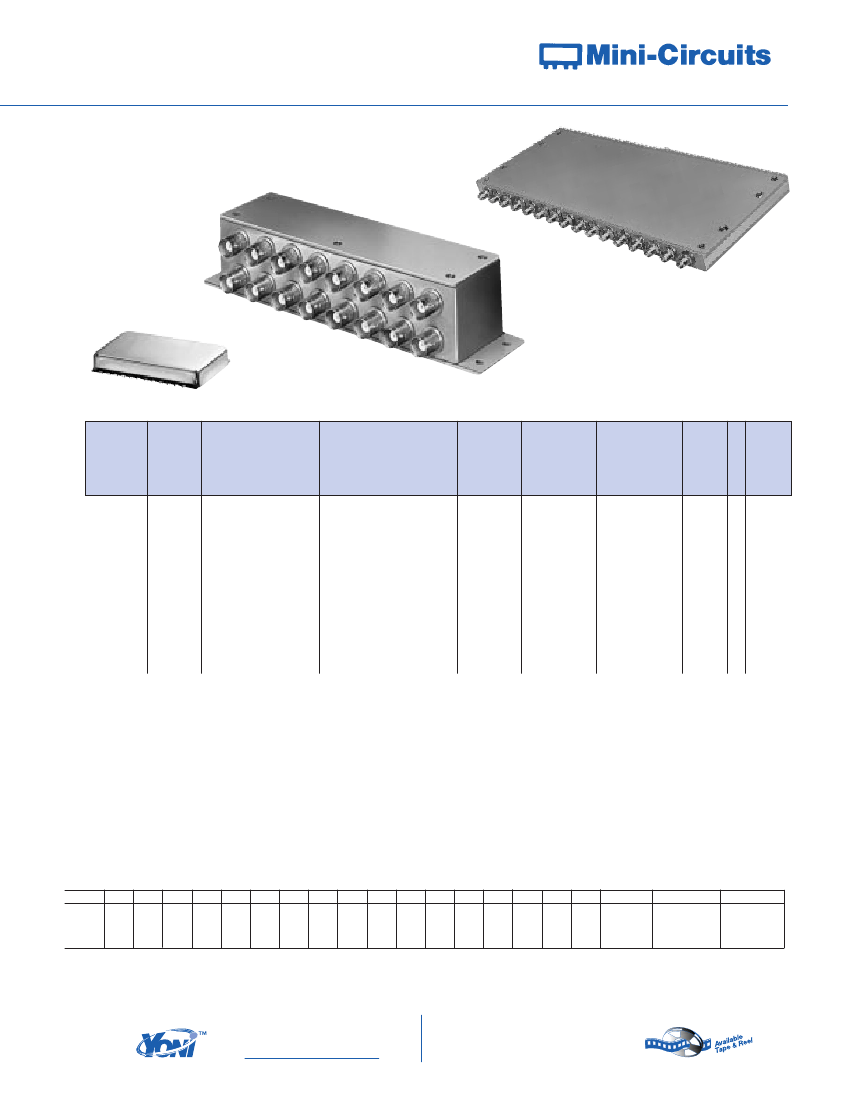

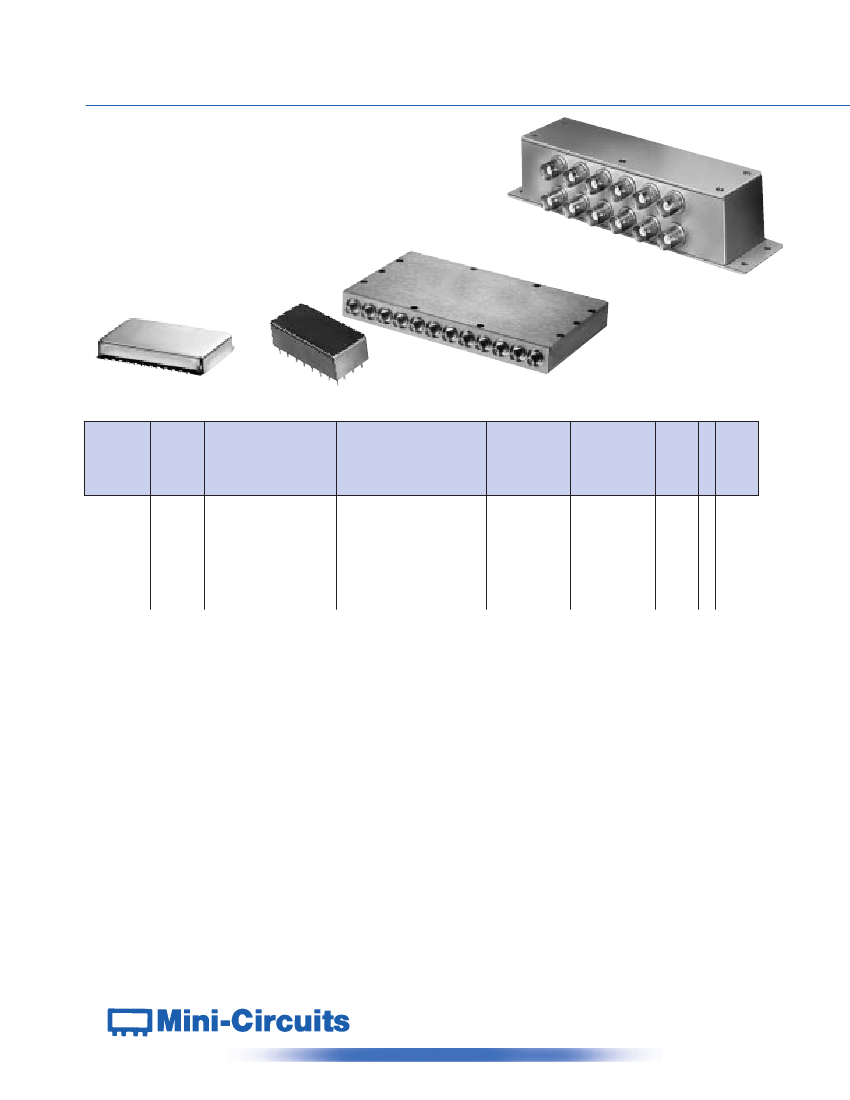

P

OWER

S

PLITTERS

/C

OMBINERS

12 W

AY

-0°

1 to 1700 MHz

ZFSC-12

50&75Ω

SURFACE MOUNT

ZN12PD

JEPS-12

PSC-12

MODEL

NO.

u

JEPS-12-10

PSC-12-1

ZN12PD-17

ZFSC-12-1

n

ZFSC-12-1W-75

ZFSC-12-11

n

ZFSC-12-1-75

n

ZFSC-12-175

FREQ.

RANGE

MHz

f

L

-f

U

50-1000

1-200

800-1700

1-200

5-860

10-300

10-200

10-500

30

33

28

35

23

25

22

20

27

20

ISOLATION

dB

L

M

Typ. Min. Typ. Min.

25

35

16

30

—

27

30

35

30

33

—

24

—

20

18

20

25

—

20

28

26

28

27

22

20

18

20

18

0.8

0.5

1.1

0.5

0.9

U

Typ. Min.

23

21

14

18

INSERTION LOSS, dB

Above 10.8dB

L

M

Typ. Max. Typ. Max.

1.6

0.5

2.5

0.8

—

0.8

—

1.2

U

Typ. Max.

2.2

1.0

4.0

1.4

PHASE

UNBALANCE

Degrees

L

M

U

Max. Max. Max.

10

4

—

8

14

23

16

AMPLITUDE

UNBALANCE

dB

L

M

U

Max. Max. Max.

0.7

0.2

—

0.4

0.7

1.4

0.7

CASE

STYLE

Note B

BL372

E10

UU589

C

O

N

E

C

T

I

O

N

PRICE

$

Qty.

(1-9)

lx 109.95

bu

88.95

—

249.00

174.95

199.95

174.95

179.95

197.95

0.45 1.2

1.2

1.3

0.8

1.2

1.1

0.8

1.1

1.4

2.5

1.5

1.3

1.6

1.5

0.8

1.2

1.6

4.2

1.8

1.3

2.0

4

2

—

8

4

—

16

20

6

—

0.3

0.7

0.2

0.25

0.4

0.2

0.8

0.3

—

0.5

0.3

1.5

0.4

0.8

R67

— —

1.0 1.3

L = low range [f

L

to 10 f

L

]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

u

o

n

J

<

A.

B.

NOTES:

Aqueous washable

Non-hermetic

Denotes 75 Ohm model, for coax connector models 75 Ohm BNC connectors are standard.

When only specification for M range given, specification applies to entire frequency range.

At low range frequency band (f

L

to 10 f

L

), linearly derate maximum input power by 13 dB.

General Quality Control Procedures, Environmental Specifications, Hi-Rel and MIL description

are given in section 0, see “Mini-Circuits Guarantees Quality” article.

Connector types and case mounted options, case finishes are given in section 0, see “Case

styles & Outline Drawings”.

Prices and specifications subject to change without notice.

Absolute maximum power, voltage and current ratings:

1a. Matched power rating,

Model ZC16PD

10 Watt

Model ZN12PD

5 Watt

Model ZC16PD-23

2 Watt

Model JEPS

0.5 Watt

All other models

1 Watt

1b. Internal load dissipation,

Model ZC16PD, ZC16PD-24

2.4 Watt

Model ZN12PD, ZC16PD-23

2 Watt

Model ZC16PD-2185

1.75 Watt

Model ZFSC-12-1W-75

1.5 Watt

Model JEPS-16-1W-75

0.275 Watt

Model JEPS-16-1W

1.875 Watt

All other models

0.87 Watt

C.

1.

NSN GUIDE

MCL NO.

ZFSC-16-1(BNC)

NSN

5820-01-9321

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417 335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

120

ISO 9001

CERTIFIED

020314

ZFSC-16-3 Related Products

	ZFSC-16-3	ZC16PD-23	ZC16PD-960W	ZFSC-12-11	ZFSC-16-12	JEPS-12-10	ZC16PD-1900	ZFSC-16-1
Description	Combiner, 1MHz Min, 30MHz Max, 0.9dB Insertion Loss-Max, CASE R30	Combiner, 1500MHz Min, 2300MHz Max, 1.4dB Insertion Loss-Max, CASE UU640	Combiner, 700MHz Min, 1000MHz Max, 1.3dB Insertion Loss-Max, CASE UU179	Combiner, 10MHz Min, 300MHz Max, 1.8dB Insertion Loss-Max, CASE R67	Combiner, 0.1MHz Min, 200MHz Max, 1.5dB Insertion Loss-Max, CASE R30	Combiner, 50MHz Min, 1000MHz Max, 4dB Insertion Loss-Max, CASE BL372, 24 PIN	Combiner, 1700MHz Min, 1900MHz Max, 1dB Insertion Loss-Max, CASE UU179	Combiner, 0.5MHz Min, 125MHz Max, 1.4dB Insertion Loss-Max, CASE R30
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	BNC, ISOLATION-MIN (DB):28	ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):15	BNC, ISOLATION-MIN (DB):20	BNC, ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):14	ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):15
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COMPONENT	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	40 dBm	40 dBm	30 dBm	30 dBm	26.99 dBm	40 dBm	30 dBm
Maximum insertion loss	0.9 dB	1.4 dB	1.3 dB	1.8 dB	1.5 dB	4 dB	1 dB	1.4 dB
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating frequency	30 MHz	2300 MHz	1000 MHz	300 MHz	200 MHz	1000 MHz	1900 MHz	125 MHz
Minimum operating frequency	1 MHz	1500 MHz	700 MHz	10 MHz	0.1 MHz	50 MHz	1700 MHz	0.5 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	85 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.24	1.4	1.3	1.25	1.46	1.12	1.3	1.27
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	-	-	Mini-Circuits	Mini-Circuits
