ZSC-4-1-75BR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZSC-4-1-75BR

ZSC-4-1-75BR: DescriptionCombiner, 1MHz Min, 200MHz Max, 1.2dB Insertion Loss-Max, CASE N27; CategoryWireless rf/communication Radio frequency and microwave; File Size232KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZSC-4-1-75BR Overview

Combiner, 1MHz Min, 200MHz Max, 1.2dB Insertion Loss-Max, CASE N27

ZSC-4-1-75BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	BNC, ISOLATION-MIN (DB):20
Characteristic impedance	75 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
JESD-609 code	e0
Maximum operating frequency	200 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.08

Preview

Download Datasheet

View All

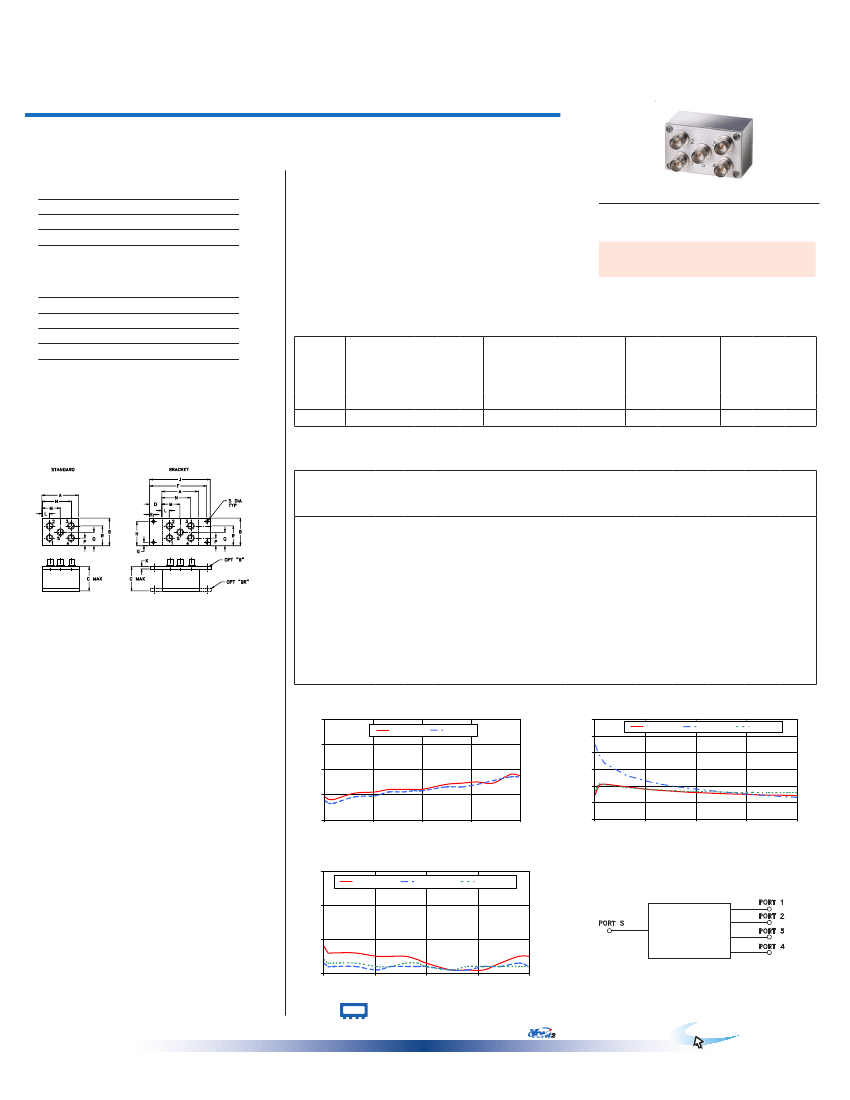

Power Splitter/Combiner

4 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

Coaxial

ZSC-4-1-75+

75Ω

-55°C to 100°C

1W max.

0.250W max.

1 to 200 MHz

Features

• wideband, 1 to 200 MHz

• good isolation, 25 dB typ.

• excellent VSWR, 1.05:1 typ.

• rugged shielded case

CASE STYLE: N27

Connectors Model

Price

BNC

ZSC-4-1-75+

$59.95

BRACKET(OPTION "B")

$5.00

BRACKET(OPTION "BR")

$1.50

Qty.

(1-9)

(1+)

Maximum Ratings

Permanent damage may occur if any of these limits are exceeded.

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

PORT 4

Applications

• HF/VHF

• radio communication

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

FREQ.

RANGE

(MHz)

-f

1-200

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 6.0 dB

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.15

Max.

0.20

Max.

0.30

Typ. Min. Typ. Min. Typ. Min. Typ. Max. Typ. Max. Typ. Max.

0.4

0.7

0.5

0.8

0.7

1.2

Outline Drawing

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Freq.

(MHz)

S-1

1.00

5.00

10.00

31.00

52.00

66.00

80.00

92.00

100.00

124.00

140.00

156.00

172.00

190.00

200.00

3.25

82.55

Total Loss

(dB)

S-2

6.19

6.14

6.16

6.20

6.23

6.26

6.25

6.26

6.27

6.29

6.30

6.34

6.33

S-3

6.15

6.13

6.18

6.19

6.22

6.23

6.26

6.28

6.31

6.34

S-4

6.14

6.13

6.18

6.19

6.22

6.24

6.27

6.28

6.35

6.31

Amp.

Unbal.

(dB)

0.05

0.03

0.04

0.02

0.04

0.03

0.02

0.03

0.02

0.03

Isolation

(dB)

1-2

34.52

40.21

40.92

39.37

37.86

37.17

36.61

36.09

35.92

35.29

34.97

34.65

34.35

34.25

33.98

2-3

64.35

58.11

53.77

46.26

42.68

40.88

39.47

38.57

38.00

36.36

35.50

34.72

33.98

33.34

33.01

3-4

36.73

40.89

40.67

38.91

37.96

37.44

36.94

36.64

36.52

36.20

35.92

35.91

35.79

35.86

35.79

Phase VSWR VSWR VSWR VSWR VSWR

Unbal.

(deg.)

0.27

0.03

0.17

0.05

0.17

0.22

0.26

0.30

0.47

0.43

0.47

0.33

0.56

0.64

0.67

1.08

1.06

1.05

1.04

1.03

1.01

1.03

1.05

1.03

1.02

1.01

1.02

1.01

1.02

1.03

1.02

ZSC-4-1-75+

ISOLATION

1-2(dB)

2-3(dB)

3-4(dB)

6.18

6.16

6.21

6.22

6.24

6.28

6.29

6.30

6.29

6.36

6.35

1.03

1.02

1.01

1.02

1.01

1.02

1.03

1.02

1.04

1.03

1.02

1.03

1.02

1.01

1.02

1.04

1.02

1.01

1.02

1.01

1.02

1.03

1.02

Outline Dimensions (

inch

)

2.25

57.15

.10

2.54

1.38

35.05

.48

12.19

1.24

31.50

1.13

28.70

.50

12.70

1.78

45.21

.150

3.81

.36

9.14

3.100

78.74

.69

17.53

.138

3.51

1.01

25.65

1.238

31.45

ZSC-4-1-75+

TOTAL LOSS

6.8

S-1(dB)

TOTAL LOSS (dB)

6.6

6.4

6.2

6.0

100

FREQUENCY (MHz)

ZSC-4-1-75+

VSWR

1. Total Loss = Insertion Loss + 6dB splitter loss.

S-3(dB)

ISOLATION (dB)

.150 grams

3.81

92.0

150

200

100

FREQUENCY (MHz)

150

200

1.30

#S-VSWR

1.20

VSWR

#1-VSWR

#3-VSWR

electrical schematic

1.10

1.00

100

FREQUENCY (MHz)

150

200

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. C

M127604

ZFSC-4-1-75+

HY/TD/CP/AM

100617
