ZAPD-20-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZAPD-20-N

ZAPD-20-N: DescriptionCombiner, 700MHz Min, 2000MHz Max, 0.7dB Insertion Loss-Max, CASE F53; CategoryWireless rf/communication Radio frequency and microwave; File Size106KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZAPD-20-N Overview

Combiner, 700MHz Min, 2000MHz Max, 0.7dB Insertion Loss-Max, CASE F53

ZAPD-20-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	N, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.7 dB
JESD-609 code	e0
Maximum operating frequency	2000 MHz
Minimum operating frequency	700 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.35

Preview

Download Datasheet

View All

Coaxial

Power Splitter/Combiner

2 Way-0° 50Ω

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

10W max.

0.125W max.

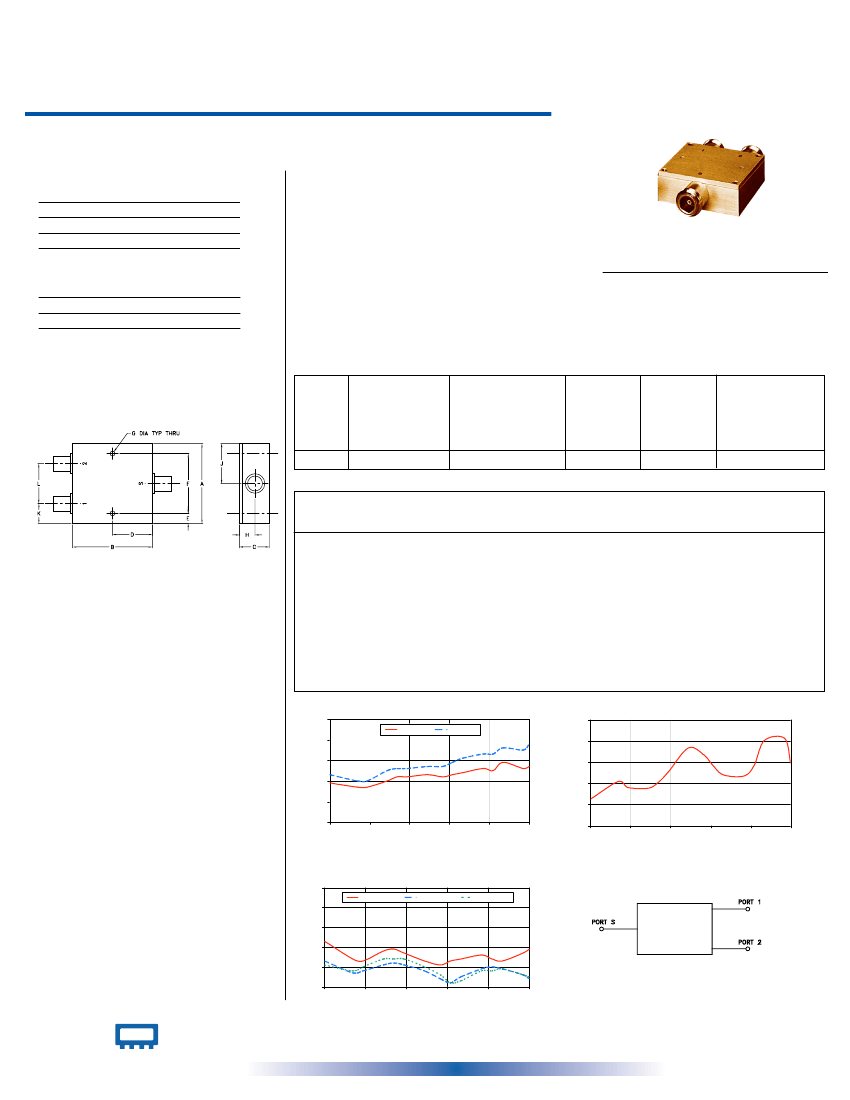

ZAPD-20

700 to 2000 MHz

Features

•

wideband, 700 to 2000 MHz

low insertion loss, 0.3 dB typ.

high isolation, 30 dB typ.

up to 10W power input as splitter

excellent amplitude unbalance, 0.1 dB typ.

excellent phase unbalance, 1 deg. typ.

excellent VSWR, 1.1:1 typ.

rugged shielded case

cellular

GPS

PCS/DCS

instrumentation

N-Type version shown

CASE STYLE: F53

Model

Price

ZAPD-20-N

$59.95

ZAPD-20-S

$59.95

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

Connectors

N-TYPE

SMA

Qty.

(1-9)

Splitter Electrical Specifications

FREQ.

RANGE

(MHz)

-f

700-2000

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

Outline Drawing

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.4

VSWR

(:1)

Typ. Max.

1.15

1.35

OUT

Typ. Max.

1.1

1.3

Typ. Min.

Typ. Max.

0.3

0.7

Typical Performance Data

Frequency

(MHz)

700.00

880.00

945.00

1075.00

1140.00

1205.00

1335.00

1435.00

1500.00

1566.00

1697.00

1763.12

1828.75

1960.00

2000.00

Insertion Loss

(dB)

S-1

S-2

3.19

3.17

3.20

3.22

3.23

3.22

3.23

3.24

3.26

3.25

3.29

3.26

3.27

3.23

3.20

3.25

3.26

3.27

3.29

3.31

3.33

3.36

3.35

3.38

Amplitude

Unbalance

(dB)

0.04

0.03

0.05

0.04

0.05

0.06

0.07

0.08

0.07

0.09

0.10

Isolation

(dB)

23.74

26.24

25.39

25.29

26.12

27.59

30.97

30.03

28.39

27.16

27.03

28.54

32.04

32.34

28.83

Phase

Unbalance

(deg.)

0.29

0.50

0.54

0.59

0.61

0.60

0.64

0.53

0.51

0.66

0.71

0.69

0.78

0.94

0.83

VSWR

1.23

1.14

1.13

1.18

1.19

1.17

1.13

1.11

1.13

1.14

1.16

1.14

1.13

1.17

1.19

VSWR

1.13

1.07

1.08

1.11

1.12

1.11

1.08

1.04

1.02

1.05

1.09

1.10

1.09

1.06

1.04

VSWR

1.11

1.08

1.10

1.14

1.10

1.06

1.02

1.03

1.08

1.09

1.06

1.05

Outline Dimensions (

inch

)

2.00

50.80

.39

9.91

2.00

50.80

1.00

25.40

.75

19.05

.50

12.70

1.00

25.40

1.00

25.40

.13

3.30

1.750

44.45

.125

3.18

INSERTION LOSS (dB)

ZAPD-20

INSERTION LOSS

3.5

S-1(dB)

3.4

3.3

3.2

3.1

3.0

700

S-2(dB)

ISOLATION (dB)

700

ZAPD-20

ISOLATION

grams

170.0

960

1220

1480

1740

2000

960

1220

1480

1740

2000

FREQUENCY (MHz)

ZAPD-20

VSWR

1.5

#S-VSWR

1.4

VSWR

1.3

1.2

1.1

1.0

700

#1-VSWR

#2-VSWR

FREQUENCY (MHz)

electrical schematic

960

1220

1480

1740

2000

FREQUENCY (MHz)

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. B

M94665

ZAPD-20

HY/TD/CP

060105

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

ZAPD-20-N Related Products

	ZAPD-20-N	ZAPD-20-S
Description	Combiner, 700MHz Min, 2000MHz Max, 0.7dB Insertion Loss-Max, CASE F53	Combiner, 700MHz Min, 2000MHz Max, 0.7dB Insertion Loss-Max, CASE F53
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown
Other features	N, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	40 dBm	40 dBm
Maximum insertion loss	0.7 dB	0.7 dB
JESD-609 code	e0	e0
Maximum operating frequency	2000 MHz	2000 MHz
Minimum operating frequency	700 MHz	700 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.35	1.3
