ZFSC-2-2-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-2-2-S+

ZFSC-2-2-S+: DescriptionCombiner, 10MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size217KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFSC-2-2-S+ Overview

Combiner, 10MHz Min, 1000MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT, CASE K18

ZFSC-2-2-S+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, CASE K18
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):18
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.2 dB
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.29

Preview

Download Datasheet

View All

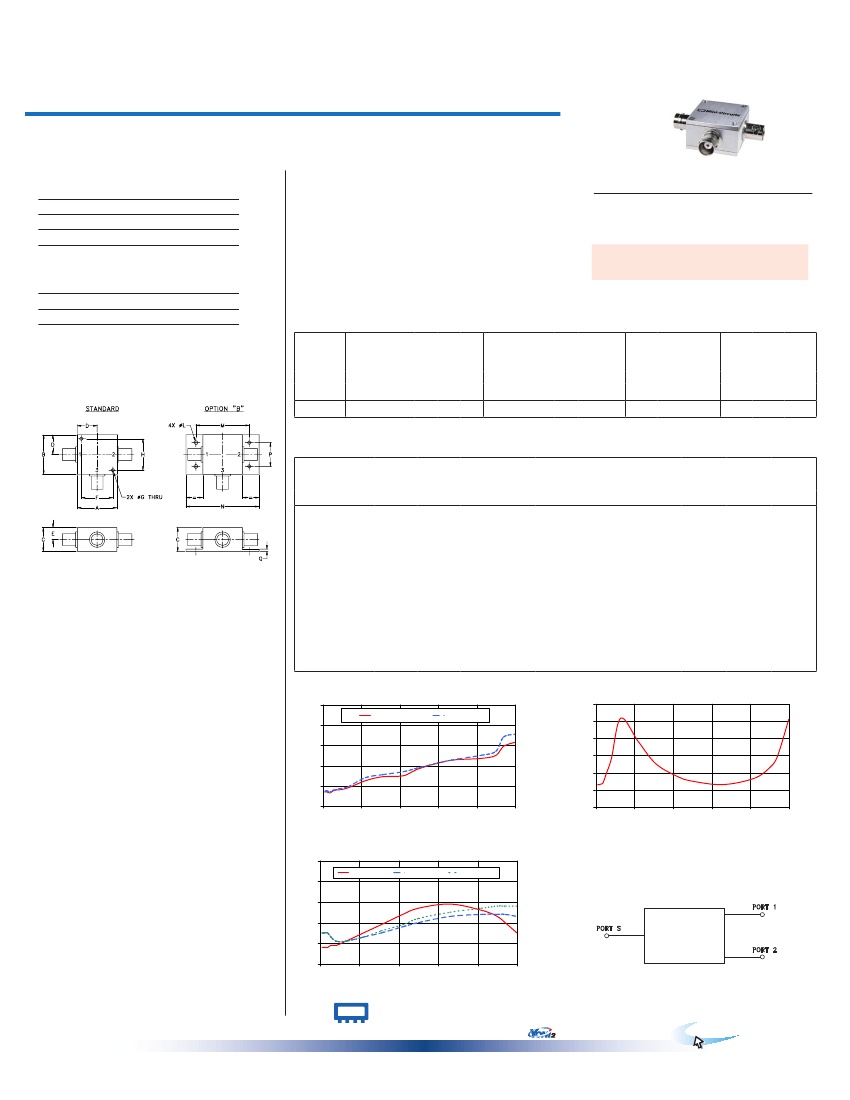

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

Coaxial

ZFSC-2-2+

CASE STYLE: K18

Connectors Model

Price

ZFSC-2-2+

$51.95

BNC

SMA

ZFSC-2-2-S+

$56.95

N-TYPE

ZFSC-2-2-N+

$56.95

BRACKET (OPTION "B")

$5.00

BNC version shown

50Ω

10 to 1000 MHz

Features

• wideband, 10 to 1000 MHz

• low insertion loss, 0.4 dB typ.

• excellent isolation, 28 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 0.5 deg. typ.

• very good return loss, VSWR, 1.2:1 typ.

• rugged shielded case

Qty.

(1-9)

(1+)

Permanent damage may occur if any of these limits are exceeded.

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• cellular

• VHF/UHF

• instrumentation

FREQ.

RANGE

(MHz)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

Typ. Min.

Typ. Max.

0.2 0.5

Typ. Max.

0.5 1.0

Typ. Max.

0.9 1.2

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.15

Max.

0.15

Max.

0.30

Outline Drawing

-f

10-1000

Typ. Min.

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Frequency

(MHz)

Total Loss

(dB)

S-1

10.00

19.00

37.00

55.00

82.00

130.00

220.00

310.00

420.00

500.00

3.15

3.14

3.13

3.16

3.18

3.25

3.29

3.30

3.37

3.45

3.47

3.50

3.59

3.63

S-2

3.14

3.15

3.14

3.15

3.17

3.19

3.28

3.31

3.34

3.38

3.45

3.50

3.54

3.68

3.71

Amplitude

Unbalance

(dB)

0.01

0.00

0.01

0.03

0.02

0.04

0.01

0.00

0.03

0.04

0.08

Isolation

(dB)

Phase

Unbalance

(deg.)

0.03

0.01

0.03

0.06

0.00

0.03

0.15

0.22

0.37

0.31

0.87

0.52

0.51

VSWR

26.42

26.49

26.85

29.63

34.12

45.87

39.11

32.63

28.93

27.48

26.48

28.28

31.36

34.52

45.49

1.08

1.09

1.11

1.15

1.19

1.24

1.27

1.29

1.26

1.23

1.20

1.15

ZFSC-2-2+

ISOLATION

1.15

1.13

1.11

1.13

1.15

1.18

1.20

1.23

1.24

1.23

1.15

1.13

1.11

1.13

1.16

1.19

1.22

1.25

1.27

1.28

Outline Dimensions (

inch

)

1.25

31.75

1.25

31.75

.75

19.05

.125

3.18

.63

16.00

1.688

42.88

.38

9.65

2.18

55.37

1.00

25.40

.75

19.05

.125

3.18

1.000

25.40

660.00

820.00

900.00

940.00

1000.00

.07 grams

1.78

70.0

1. Total Loss = Insertion Loss + 3dB splitter loss.

ZFSC-2-2+

TOTAL LOSS

4.0

S-1(dB)

TOTAL LOSS (dB)

3.8

3.6

3.4

3.2

3.0

200

400

600

800

1000

FREQUENCY (MHz)

S-2(dB)

ISOLATION (dB)

200

400

600

800

1000

FREQUENCY (MHz)

For option B with N-type connectors, dimension "C" increases to 0.94 inches.

1.5

1.4

VSWR

1.3

1.2

1.1

1.0

200

#S-VSWR

ZFSC-2-2+

VSWR

#1-VSWR

#2-VSWR

electrical schematic

400

600

800

1000

FREQUENCY (MHz)

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. D

M127604

ZFSC-2-2+

HY/TD/CP/AM

120221
