BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-B5134-FP5-TBF23A
●
Features:
1. Chip material: GaP/GaP
2. Emitted color : Bright Red
3. Lens Appearance : Red Diffused
4. Low power consumption.
5. High efficiency.
●
Package dimensions:
5.0(.197)
8.6(.339)
6. Versatile mounting on P.C. Board or panel.
7. Low current requirement.
8. 5mm diameter package
9. This product don’t contained restriction
substance, compliance ROHS standard.
0.5(.02)
SQ.TYP.
5.0(.197)
90
5
CATHODE
1.0(.039)
5.7(.224)
1.0(.039) MIN.
Flat Denotes Cathode
●
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
Notes:
5.0(.197) NOM.
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
●
Absolute maximum ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current*
1
Reverse
Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
40
15
50
5
-40
℃
~80
℃
-40
℃
~85
℃
260
℃
(for 5 seconds)
Unit
mW
mA
mA
V
*
1
Condition for I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page: 1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-B5134-FP5-TBF23A
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Symbol Condition
Forward Voltage
Luminous Intensity
V
F
Iv
I
R
λp
λd
∆λ
2θ
1/2
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
-
-
-
-
-
-
Typ.
2.2
6.0
-
700
650
100
35
Max.
2.6
-
100
-
-
-
-
Unit
V
mcd
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
µA
nm
nm
nm
deg
●

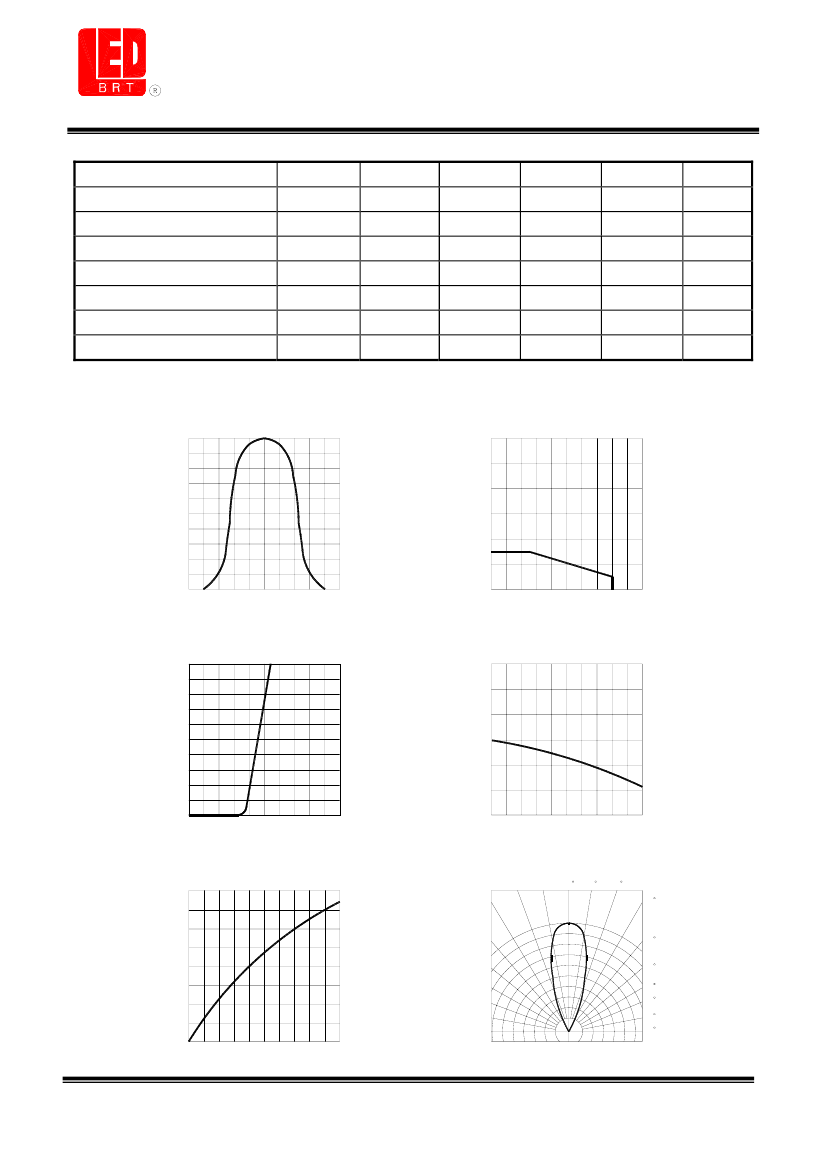

Typical electro-optical characteristics curves
Fig.1 Relative intensity vs. Wavelength
1.0
60
Fig.2 Forward current derating curve
vs. Ambient temperature
50
Relative radiant intensity
Forward current(mA)
40
0.5
30
20
10
0
600
700
800
0
20
40
60
80
100
Wavelength
λ
(nm)
Ambient temperature Ta(
℃
)
Fig.3 Forward current vs. Forward voltage
50
3.0
Fig.4 Relative luminous intensity
vs. Ambient temperature
40
Relative luminous intensity
2.5
Forward current(mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta(
℃
)
Fig.5 Relative luminous intensity
vs. Forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity(@20mA)
1.5
Relative radiant intensity
1.0
40
1.0
0.9
0.8
50
60
70
0.5
0.7
80
90
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page: 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-B5134-FP5-TBF23A
●

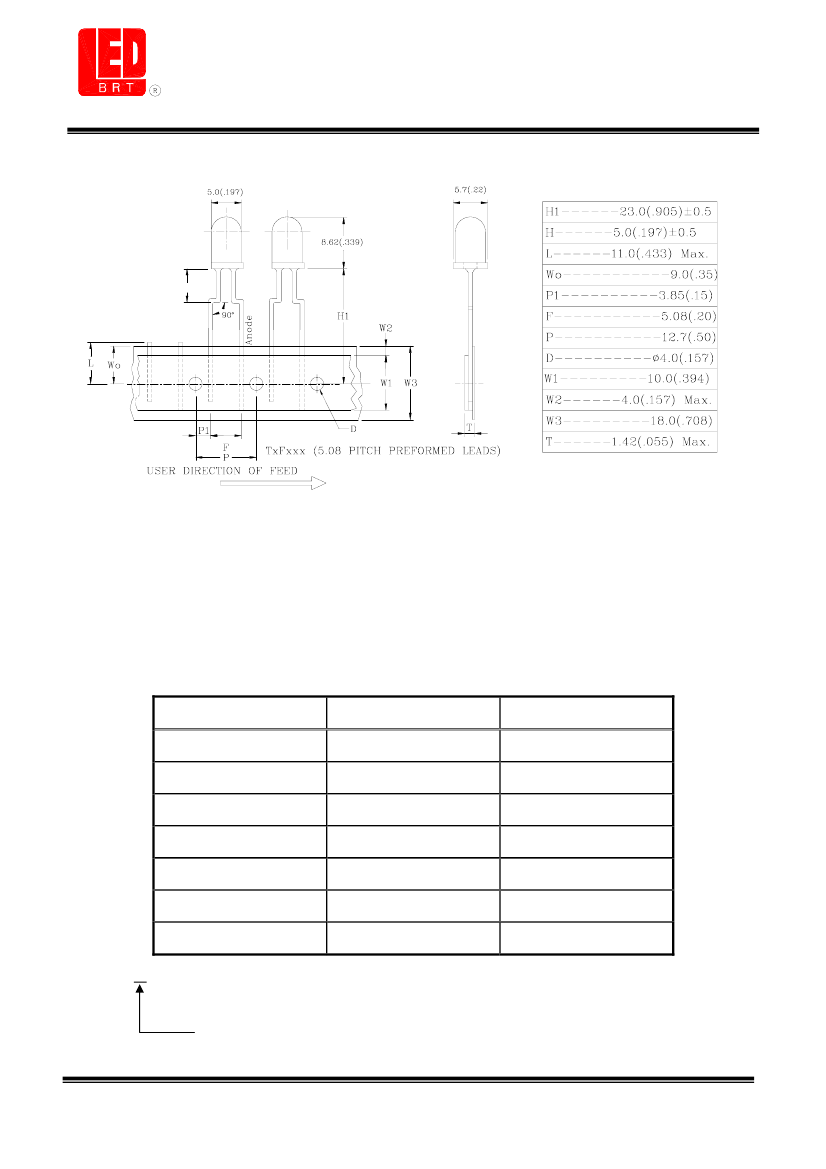

Tapping and packaging specifications(Units: mm)
H
Notes: 1.All dimensions are in millimeter (inch).
2.Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the package.
●
Bin Limits
1. Intensity Bin Limits (At I
F
= 20mA)
Bin Code
:
F
G
H
J
K
:
●
Bin
：
x
Min. (mcd)
:
2.1
3.2
4.8
7.0
11
:
Max. (mcd)
:
4.2
6.3
9.4
14
21
:
Intensity bin code
Ver.1.0 Page: 3 of 3
