VXM1-1GJ-32-10M0000000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> VXM1-1GJ-32-10M0000000

VXM1-1GJ-32-10M0000000: DescriptionParallel - Fundamental Quartz Crystal, 10MHz Nom,; CategoryPassive components Crystal/resonator; File Size621KB，3 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

VXM1-1GJ-32-10M0000000 Overview

Parallel - Fundamental Quartz Crystal, 10MHz Nom,

VXM1-1GJ-32-10M0000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vectron International, Inc.
Objectid	145071878980
Reach Compliance Code	compliant
compound_id	310465296
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	5mm x 3.2mm x 1.1mm
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

VXM1-1GJ-32-10M0000000 Preview

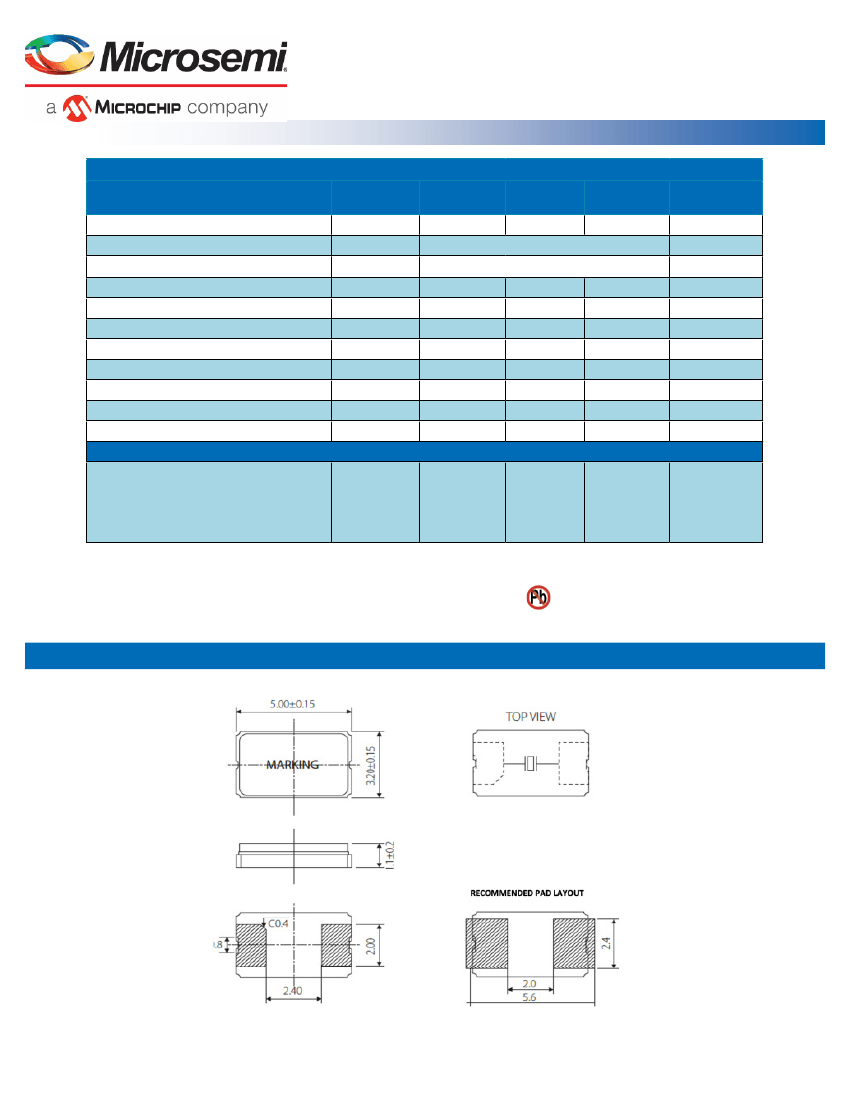

5.0 x 3.2mm, 2-Pad Crystal

Standard Crystal Datasheet

Helping Customers Innovate, Improve & Grow

VXM1

Table 1. Electrical Performance

Parameter

Nominal Frequency

Mode

Operating Temperature Range

Stability Over T

OP1

Frequency Tolerance

Load Capacitance

Shunt Capacitance

Drive Level

STAB

TOL

AGE

500

Description

STO

ESR

100

Applications

-40

Equivalent Series Resistance

Crystal Frequency

8.000MHz-12.000MHz

12.001MHz-16.000MHz

16.001MHz-20.000MHz

20.001MHz-60.000MHz

Ohm

±10

100

±5

Symbol

NOM

Min.

8.000

Typ

Max

60.000

Units

MHz

°C

ppm

MOhm

°C

Fundamental or 3rd Overtone

0/70, -10/70, -20/70, -40/85

±100

VT-804

Aging / 1st year (at 25 °C)

Insulation Resistance

Storage Temperature

Notes:

Features

1. Referenced to the Frequency at 25 °C.

2. Frequency measured at 25 °C ± 3 °C.

Product is compliant to RoHS directive and fully compatible with lead free assembly.

Package Drawing

Block Diagram

Page1

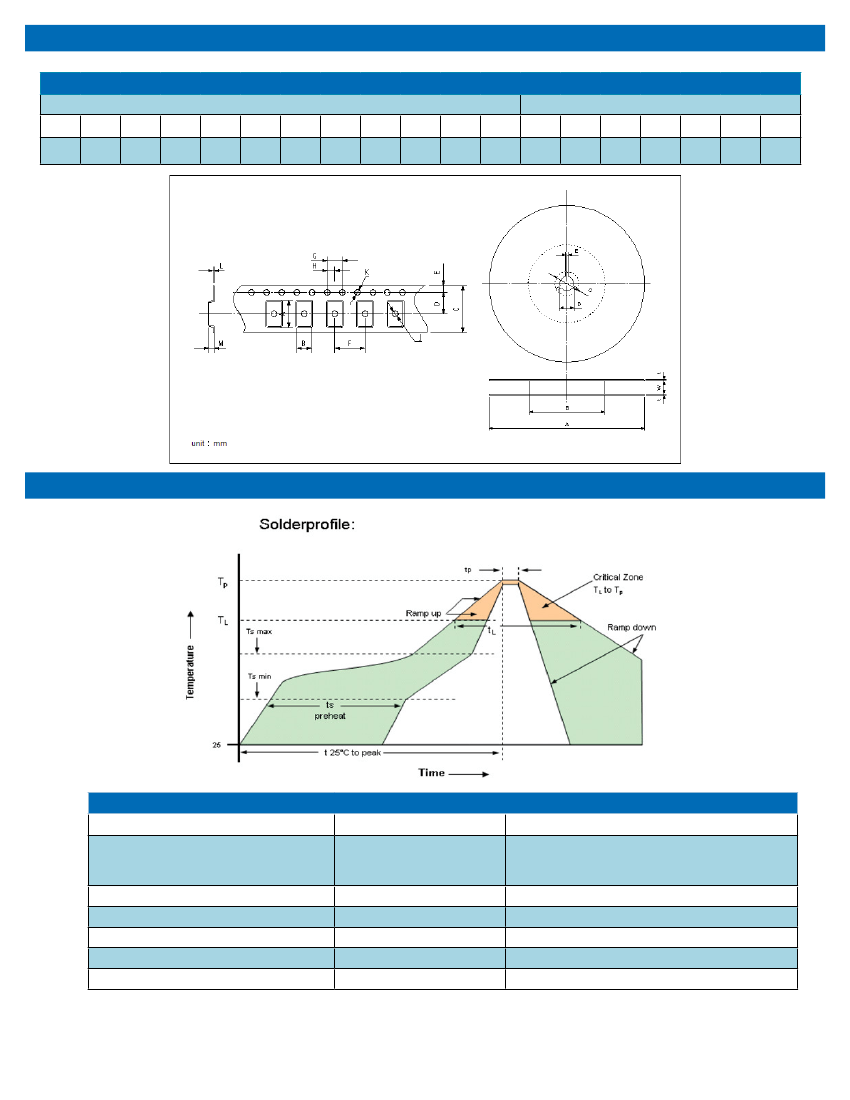

Tape & Reel

Table 7. Tape and Reel Dimensions (mm)

Tape

5.25

3.45

12.0

5.5

1.75

8.0

4.0

2.0

1.5

0.3

1.1

Reel

178

180

21.0

13.0

2.0

12.4

2.0

Reliability & IR Compliance

Table 2: Reﬂow Proﬁle

Parameter

PreHeat Time

Ts-min

Ts-max

Ramp Up

Time Above 217 °C

Time To Peak Temperature

Time at 260 °C

Ramp Down

Symbol

Value

60 sec Min, 260 sec Max

150°C

200°C

3 °C/sec Max

60 sec Min, 150 sec Max

480 sec Max

30 sec Max

6 °C/sec Max

AMB-P

Pads are Au over Ni and compatible with either SnPb or Pb free attachment.

MSL: 1

Page2

Ordering Information

VXM1 - XXX - XX- xxMxxxxxxx

Product

5.0 x 3.2mm, Crystal

Mode

Fundamental

Temp Stability

10ppm

15ppm

20ppm

25ppm

30ppm

35ppm

40ppm

45ppm

50ppm

100ppm

Frequency in MHz

Load Capacitance

0: Series Resonance

06-32pF

Operating Temperature

-40 to 85 °C

-20 to 70 °C

W: -10

to 70 °C

0 to 70 °C

*Note: not all combination of options are available.

Other speciﬁcations may be available upon request.

10ppm stability not available for -40 to 85°C

Add

_SNPBDIP

for tin lead solder dip

Example: VXM1-1KE-18-10M0000000_SNPBDIP

Revision History

Revision Date

August 29, 2016

August 10, 2018

Approved

Description

Initial datasheet for factory approval and release to customer.

Update logo and contact infromation, add “SNPBDIP” ordering option

Page3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

VXM1-1GJ-32-10M0000000 Related Products

	VXM1-1GJ-32-10M0000000	VXM1-1ST-06-8M00000000_SNPBDIP	VXM1-1HT-32-10M0000000	VXM1-1HT-06-10M0000000
Description	Parallel - Fundamental Quartz Crystal, 10MHz Nom,	Parallel - Fundamental Quartz Crystal, 8MHz Nom,	Parallel - Fundamental Quartz Crystal, 10MHz Nom,	Parallel - Fundamental Quartz Crystal, 10MHz Nom,
Is it Rohs certified?	conform to	incompatible	conform to	conform to
Maker	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.
Reach Compliance Code	compliant	compliant	compliant	compliant
Ageing	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW
frequency stability	0.003%	0.01%	0.0035%	0.0035%
frequency tolerance	10 ppm	10 ppm	10 ppm	10 ppm
JESD-609 code	e4	e0	e4	e4
load capacitance	32 pF	6 pF	32 pF	6 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	10 MHz	8 MHz	10 MHz	10 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
physical size	5mm x 3.2mm x 1.1mm	5mm x 3.2mm x 1.1mm	5mm x 3.2mm x 1.1mm	5mm x 3.2mm x 1.1mm
Series resistance	100 Ω	100 Ω	100 Ω	100 Ω
surface mount	YES	YES	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
