Datasheet> All Categories > Other integrated circuit (IC)> Consumption circuit> MV1822IGDPAS

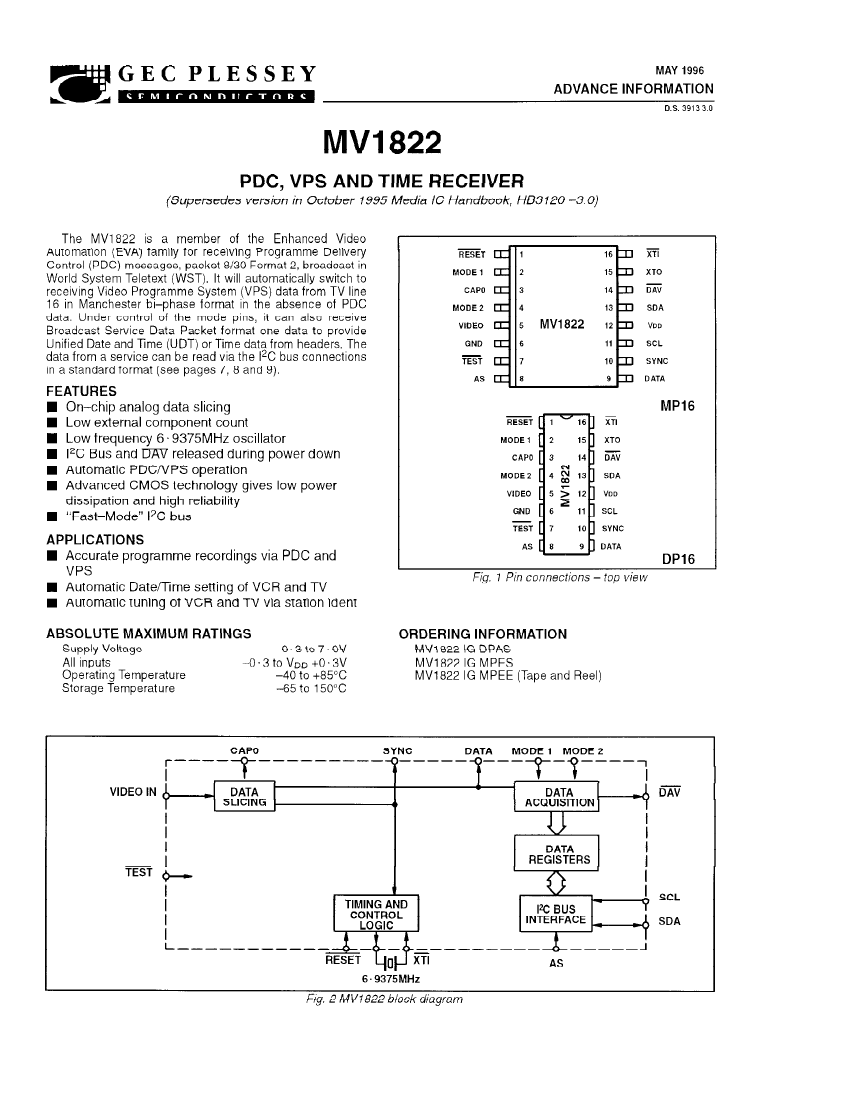

Preview

MV1822IGDPAS: DescriptionTELETEXT AND VPS/PDC DECODER, PDIP16; CategoryOther integrated circuit (IC) Consumption circuit; File Size584KB，11 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

MV1822IGDPAS Overview

TELETEXT AND VPS/PDC DECODER, PDIP16

MV1822IGDPAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Commercial integrated circuit types	TELETEXT AND VPS/PDC DECODER
Crystal frequency nominal	6.9375 MHz
External page memory support	NO
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
video input processor	NO
width	7.62 mm

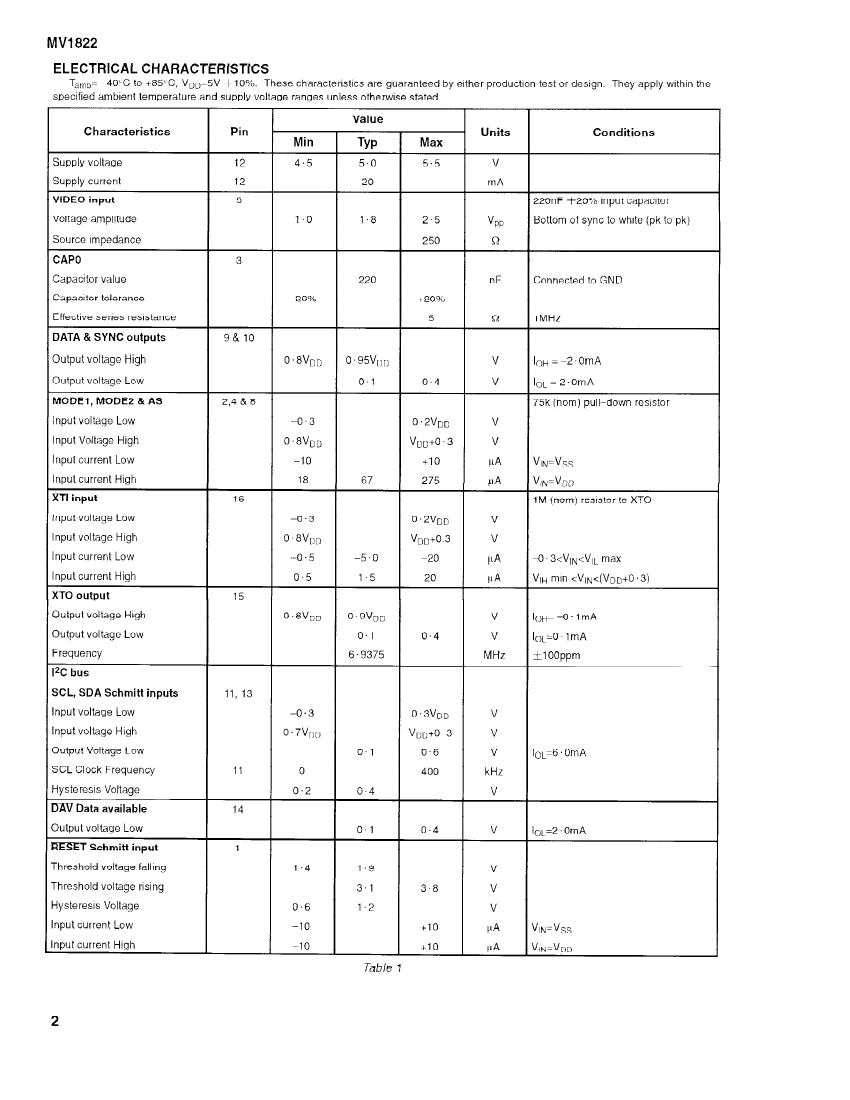

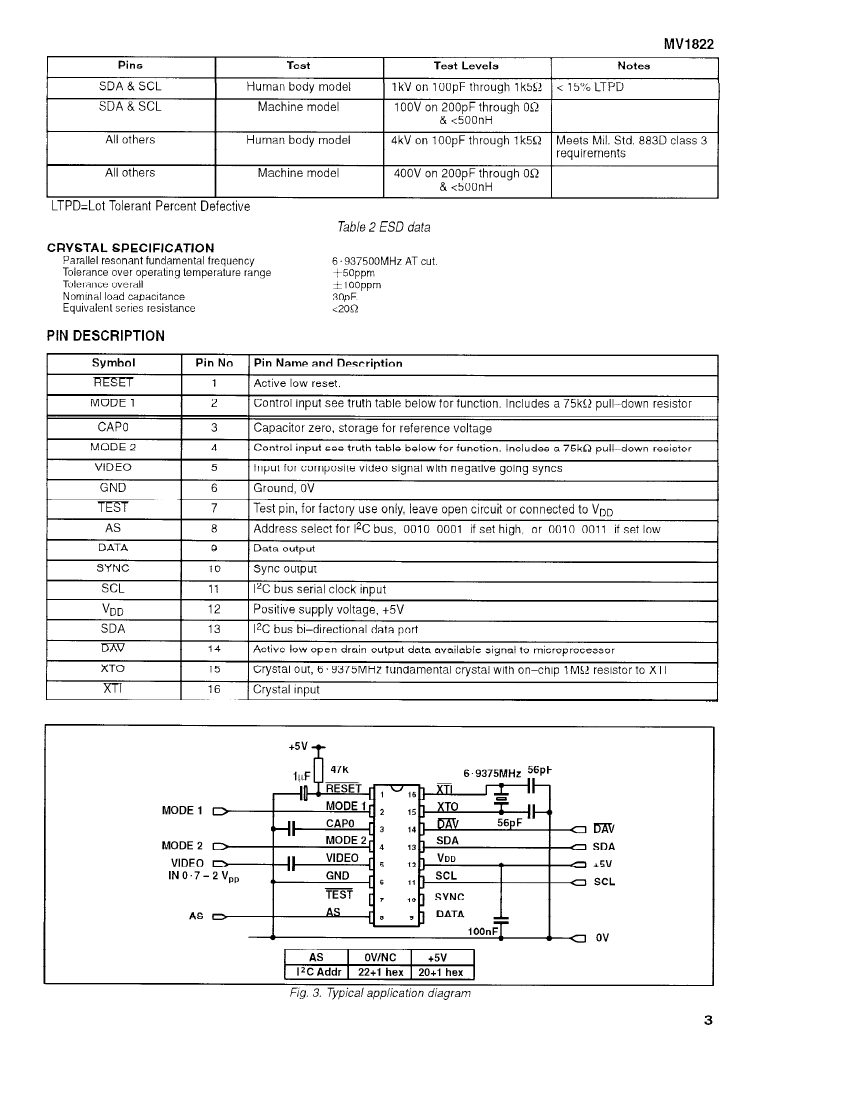

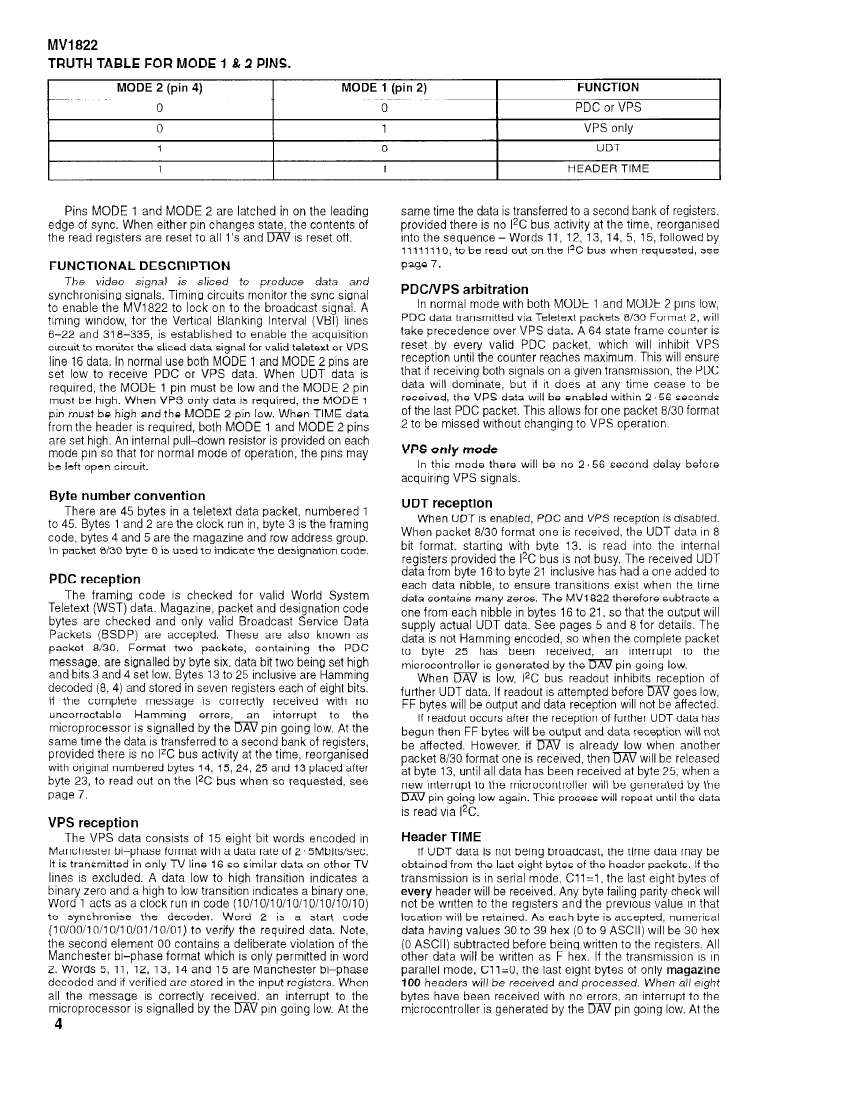

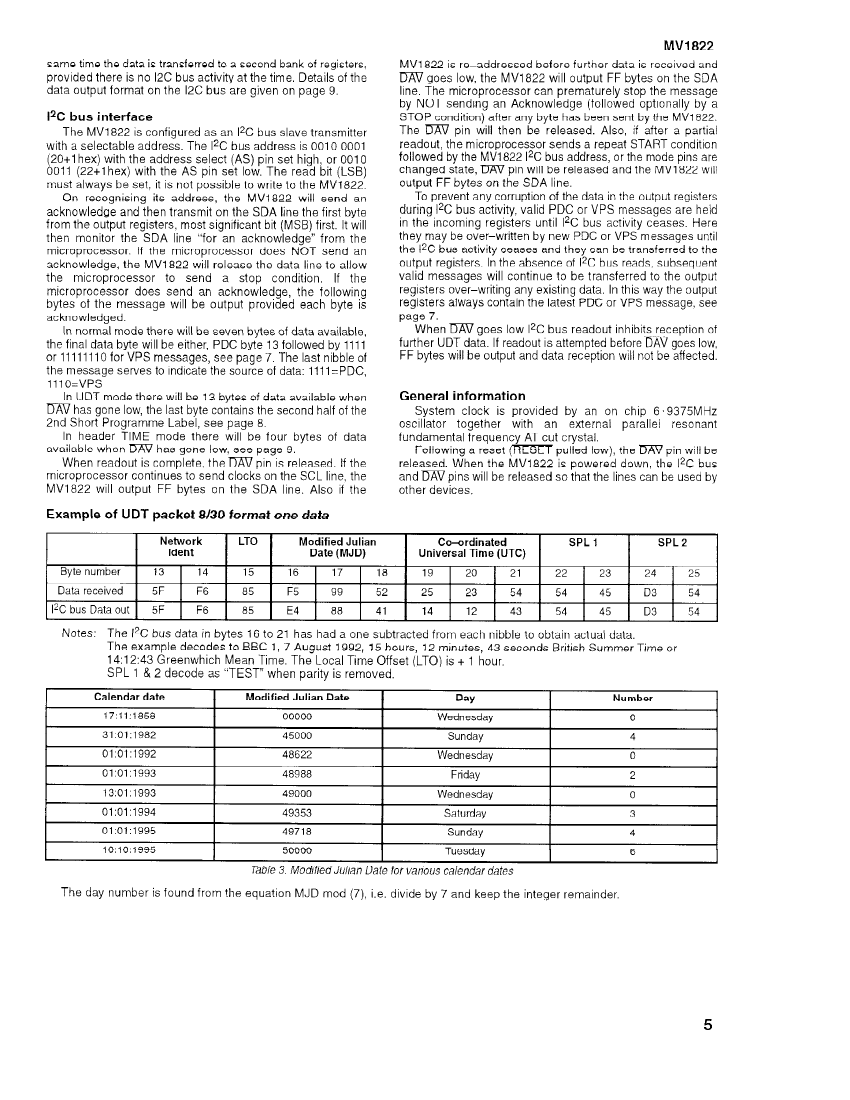

Preview

Download Datasheet

View All

MV1822IGDPAS Related Products

	MV1822IGDPAS	MV1822IGMPEE	MV1822IGMPES
Description	TELETEXT AND VPS/PDC DECODER, PDIP16	TELETEXT AND VPS/PDC DECODER, PDSO16	TELETEXT AND VPS/PDC DECODER, PDSO16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi
package instruction	DIP, DIP16,.3	SOP,	SOP, SOP16,.4
Reach Compliance Code	unknown	unknown	unknown
Commercial integrated circuit types	TELETEXT AND VPS/PDC DECODER	TELETEXT AND VPS/PDC DECODER	TELETEXT AND VPS/PDC DECODER
Crystal frequency nominal	6.9375 MHz	6.9375 MHz	6.9375 MHz
External page memory support	NO	NO	NO
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.91 mm	1.91 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
surface mount	NO	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
video input processor	NO	NO	NO
width	7.62 mm	3.9 mm	3.9 mm
Encapsulate equivalent code	DIP16,.3	-	SOP16,.4
power supply	5 V	-	5 V
technology	BIPOLAR	-	BIPOLAR
length	-	9.905 mm	9.905 mm
