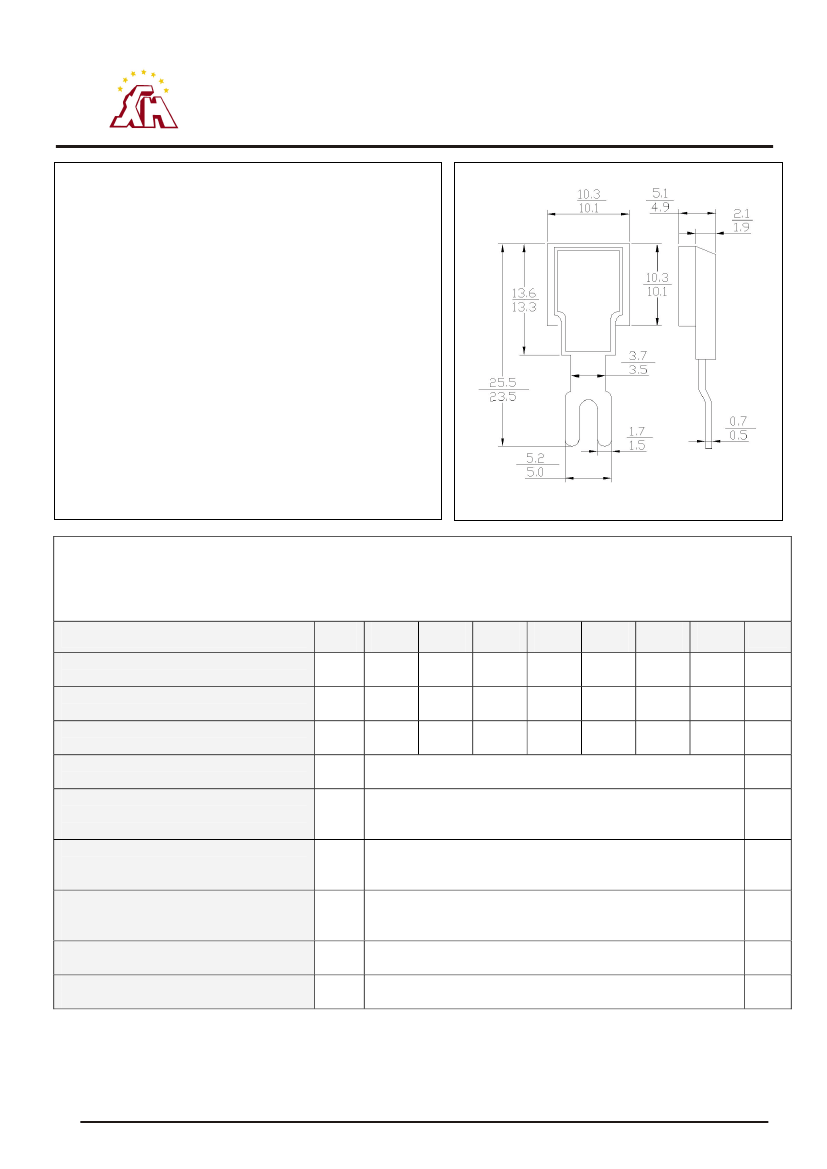

星合电子

ＸＩＮＧＨＥ　ＥＬＥＣＴＲＯＮＩＣＳ

特性：

FEATURES

◆大电流承受½力.High

current capability

◆½成本.Low

cost

◆扩散烧结.

Diffused junction

◆正向压降½.Low

forward voltage drop

◆½漏电.

Low leakage current

◆高浪涌承受½力.High

surge current capability

◆35A 工½在表面温度是125℃,无热损耗的情况下.

35Ampere Operation At TL=125℃ With No Thermal Runaway

ZQ5000

THRU

ZQ5010

BLOCK

机械性½：

MECHANICAL DATA

Dimension in millimeters

极限值和电参数

TA= 25℃除非另有规定.

单相,正半弦波,60HZ,阻抗或电感负½½.为电容装½½,减少电流的

20%

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.

型

最大峰值反向电压

号

TYPE

符号

RRM

RMS

F（AV）

ZQ5000

ZQ5001

ZQ5002

ZQ5004

ZQ5006

ZQ5008

ZQ5010

单 ½

Maximum Current Peak Reverse Voltage

最大反向有效值电压

100

200

140

200

400

280

400

600

420

600

800

560

800

1000

700

1000

Working Peak Reverse Voltage

最大直流截止电压

Maximum DC Blocking Voltage

最大正向平均整流电流

Ta=100℃，

Maximum Average Forward Rectified Current

峰值正向浪涌电流

Peak Forward Surge Current 8.3ms Single

Sine-wave on Rated Load (JEDEC Method)

最大瞬间正向压降＠100A

FSM

500

Maximum Instantaneous Forward Voltage

Drop at 100A DC

最大反向直流电流

1.03

1.0

200

STG

Maximum DC Reverse Current

Ta = 25℃

at Rated DCBlocking Voltage

Ta = 150℃

典型结电容

Typical Junction Capacitance (NOTE 1)

工½及储存温度范围

μA

140

-55½+150

℃

Operating AND Storage Temperature Range

注

释

: NOTE

在

1MHz

下测量，½加

4.0V

D.C

的反向电压.

Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.

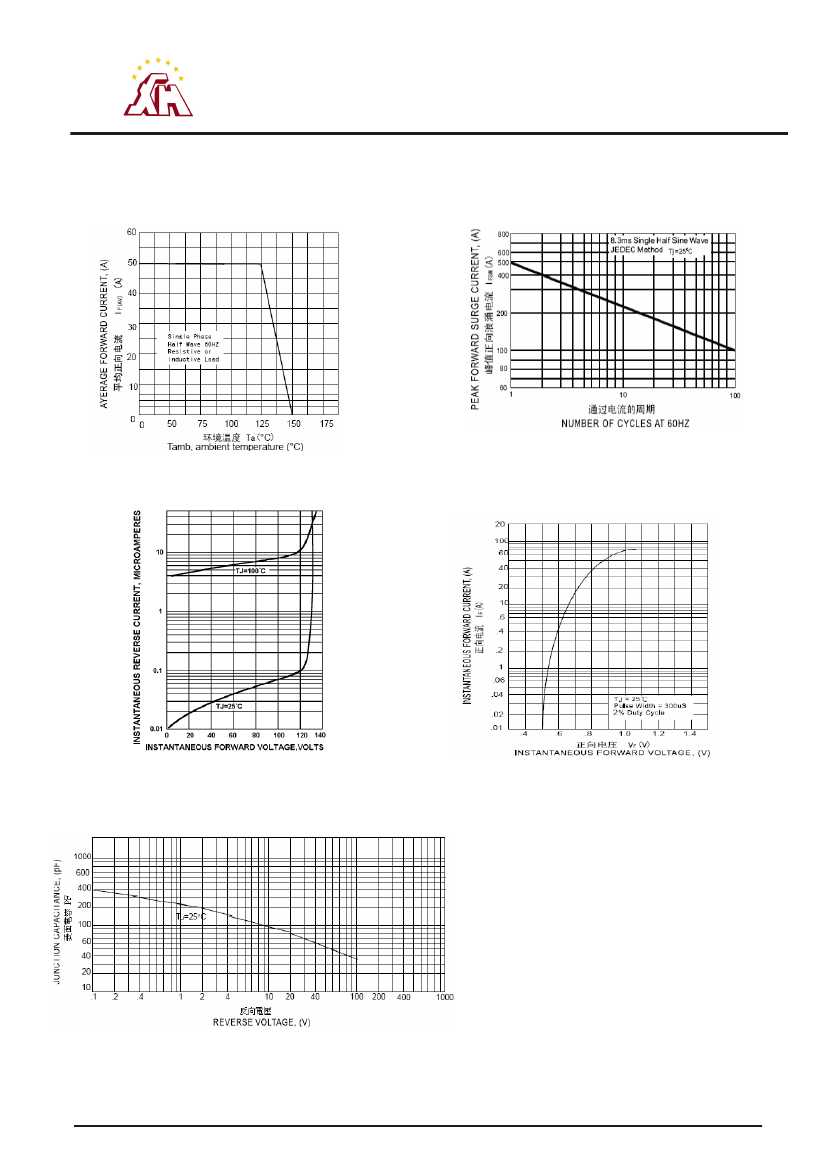

ＧＡＯＭＩ　ＸＩＮＧＨＥ　ＥＬＥＣＴＲＯＮＩＣＳＣＯ．，ＬＴＤ．　　　　ＷＷＷ．ＳＤＤＺＧ．ＣＯＭ　　　　　ＴＥＬ：０５３６－２２１０３５９　　　　　　　ＱＱ：４６４７６８０１７
