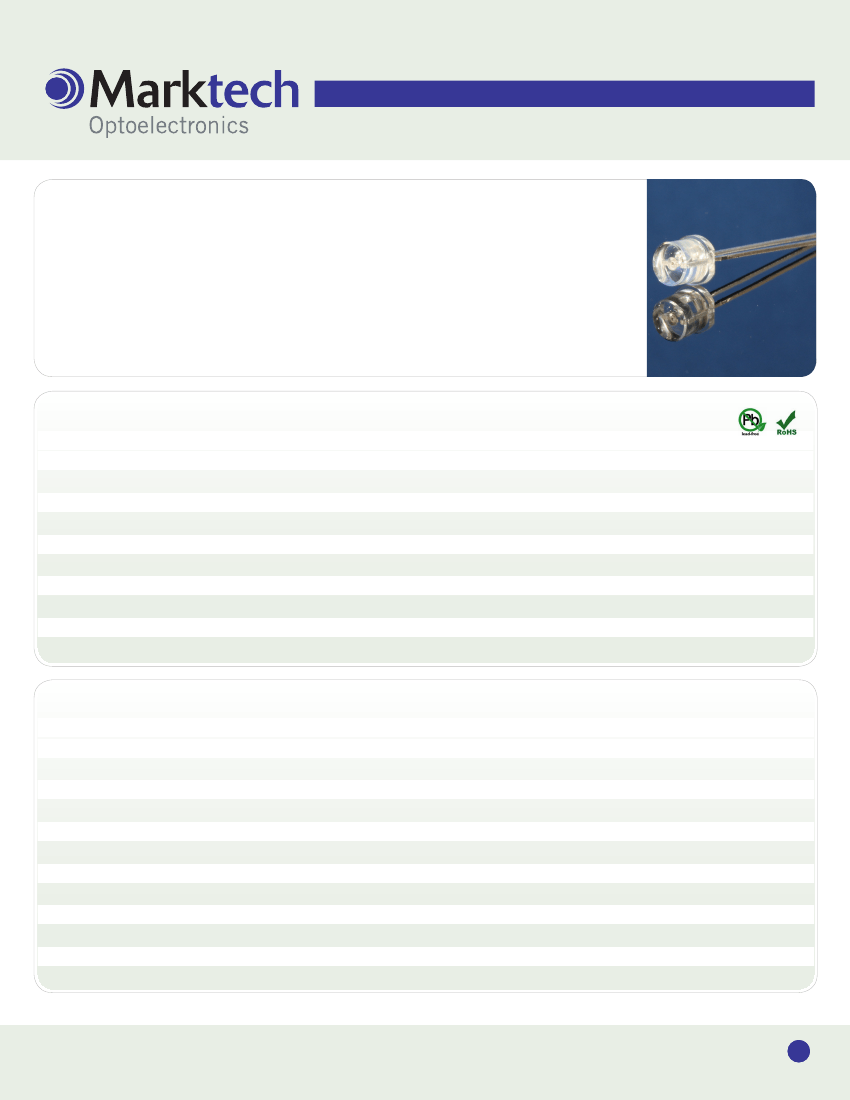

Visible Red Emitter
Product No:
M TE7000N2-R
Peak Emission Wavelength: 700nm
The MTE7000N2-R is a red, 5mm water clear emitter designed for applications requiring flat top, high
power output and high reliability in a wide angle package.
FE AT U R E S
A PPL I C A TI O N S
>
High Reliability
>
Wide Beam Angle
>
Optical Sensors
> Optical Switches
>
Medical Application
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current (DC)
Forward Current (Pulse)*1
Reverse Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Lead Soldering Temperature*2
IF
IFP
VR
PD
Topr
Tstg
Tj
Tls
50
0.5
3
120
-20 ~ +80
-30 ~ +100
100
260
mA
A
V
mW
ºC
ºC
ºC
ºC
*1: Tw=10µsec, T=10msec; *2: Time 3 Sec max, Position: Up to 2mm from the body.
Electrical & Optical Characteristics (Ta = 25ºC)
IT E M S
SY M BO L
C O N D I TI O N S
MIN
T YP
MA X
UNIT
Power Output
Forward Voltage
Reverse Current
Peak Emission Wavelength
Spectral Line Half Width
Half Intensity Beam Angle
Rise Time
Fall Time
Junction Capacitance
Temperature Coefficient of PO
Temperature Coefficient of VF
PO
VF
IR
λp
∆λ
Ө
Tr
Tf
Cj
P/T
V/T
IF=20mA
IF=20mA
VR=5V
IF=20mA
IF=20mA
IF=20mA
IFP=20mA
IFP=20mA
1MHz, V=0V
IF=10mA
IF=10mA
1.0
--
--
--
--
--
--
--
--
--
--
2.0
1.7
--
700
20
±45
--
--
35
-0.6
-2.0
--
2.1
10
--
--
--
--
--
--
--
--
mW
V
µA
nm
nm
deg
nS
nS
pF
%/ºC
mV/ºC
2012-05-17
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
Visible Red Emitter
Product No:
M TE7000N2-R

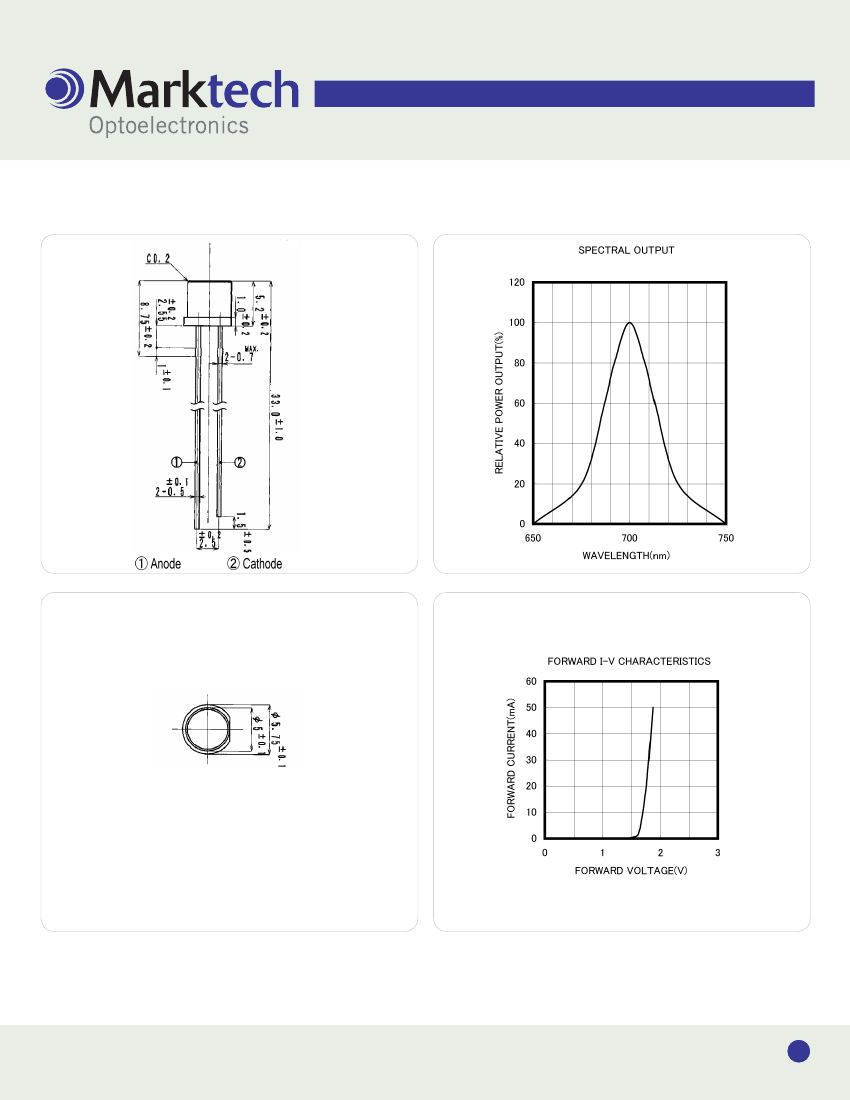

Unit: mm, Tolerance: ±0.2
2012-05-17
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
2
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

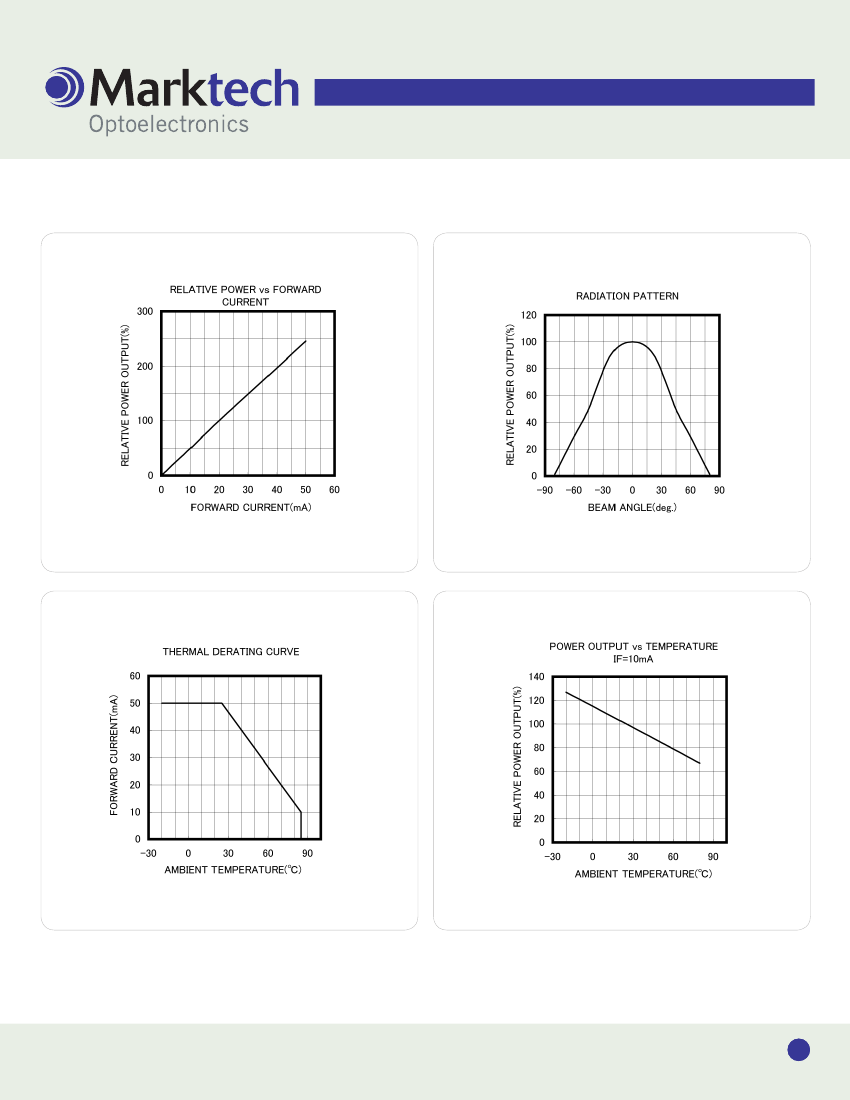

Visible Red Emitter
Product No:
M TE7000N2-R
2012-05-17
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
3
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
Visible Red LED
Product No:
M TE7000N2-R
The information contained herein is subject to change without notice.
