CXA1571N datasheet, PDF - EEWORLD Datasheet

CXA1571N: DescriptionConsumer Circuit, Bipolar, PDSO20, 4.40 MM, PLASTIC, SSOP-20; CategoryOther integrated circuit (IC) Consumption circuit; File Size272KB，14 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

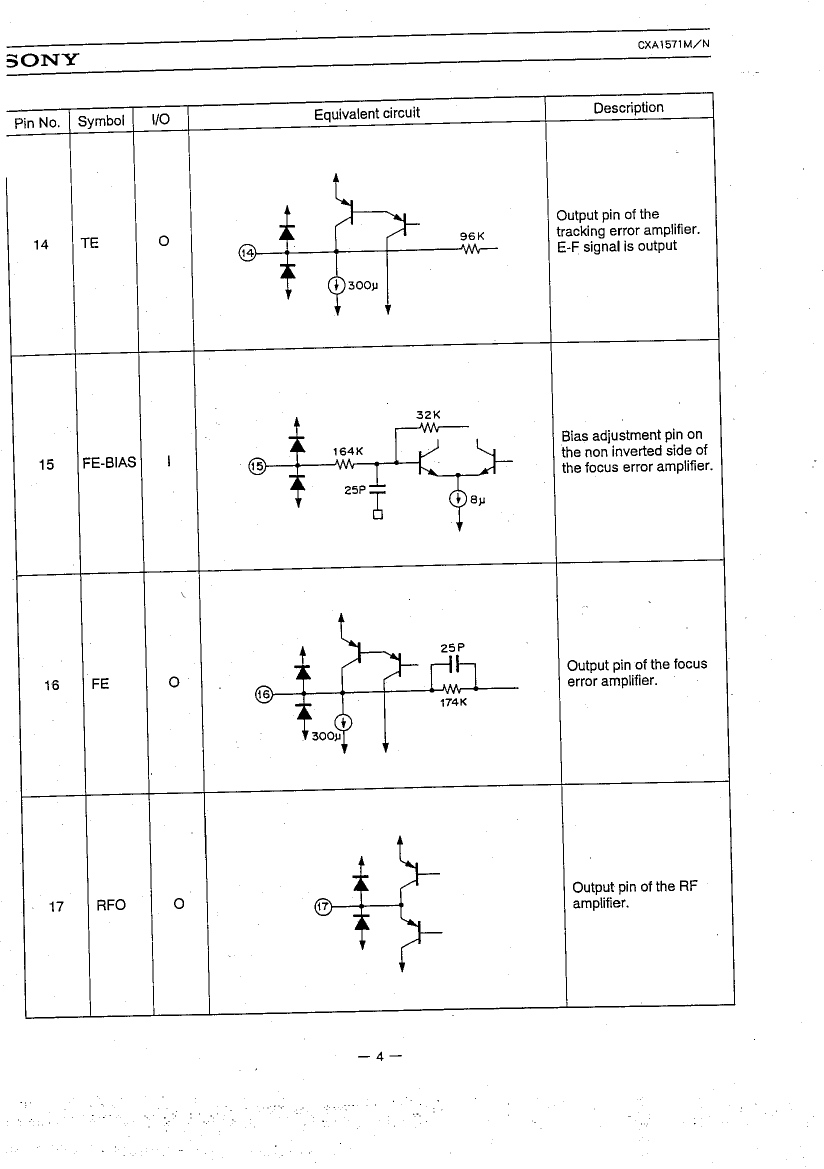

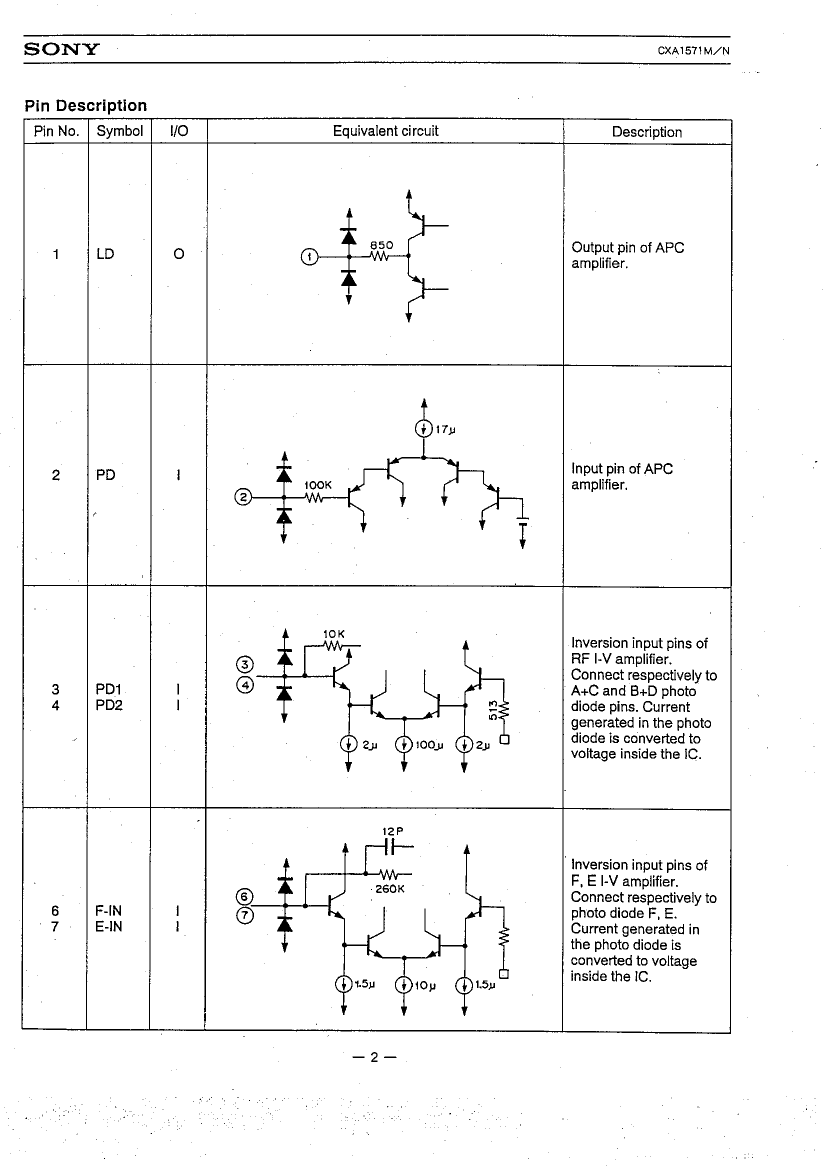

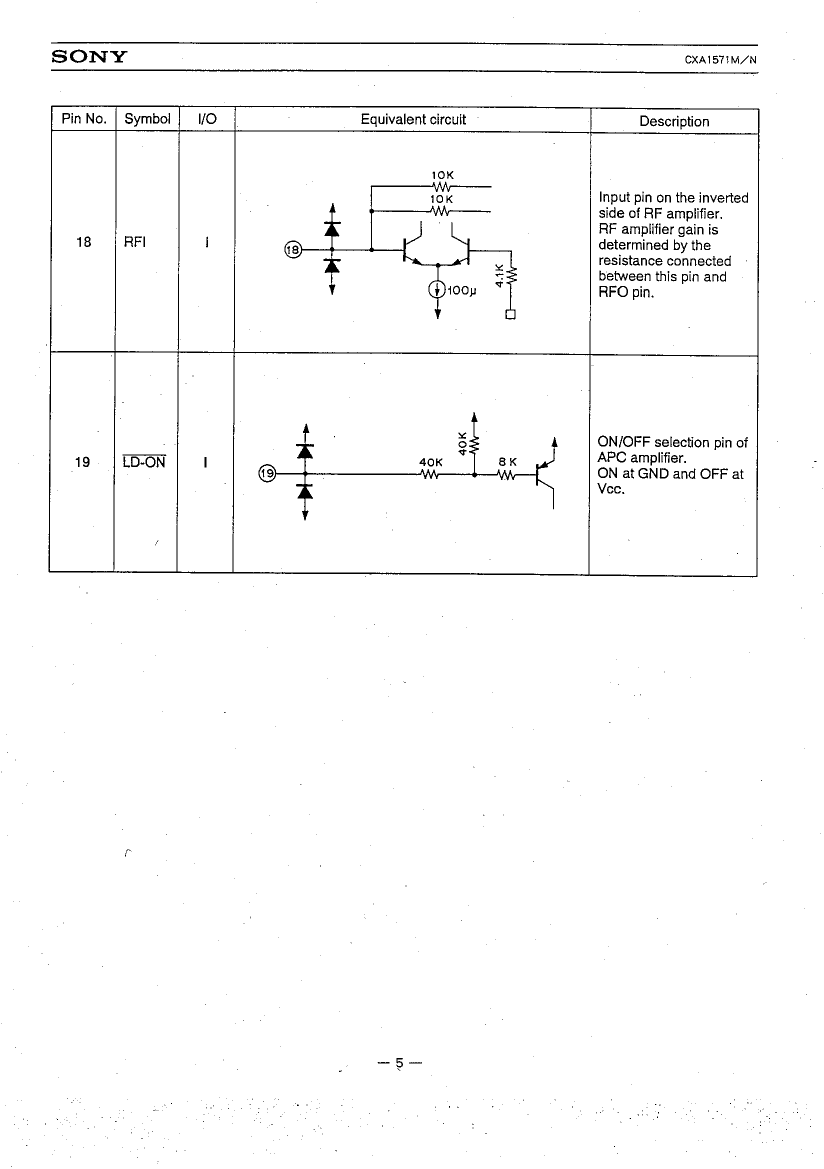

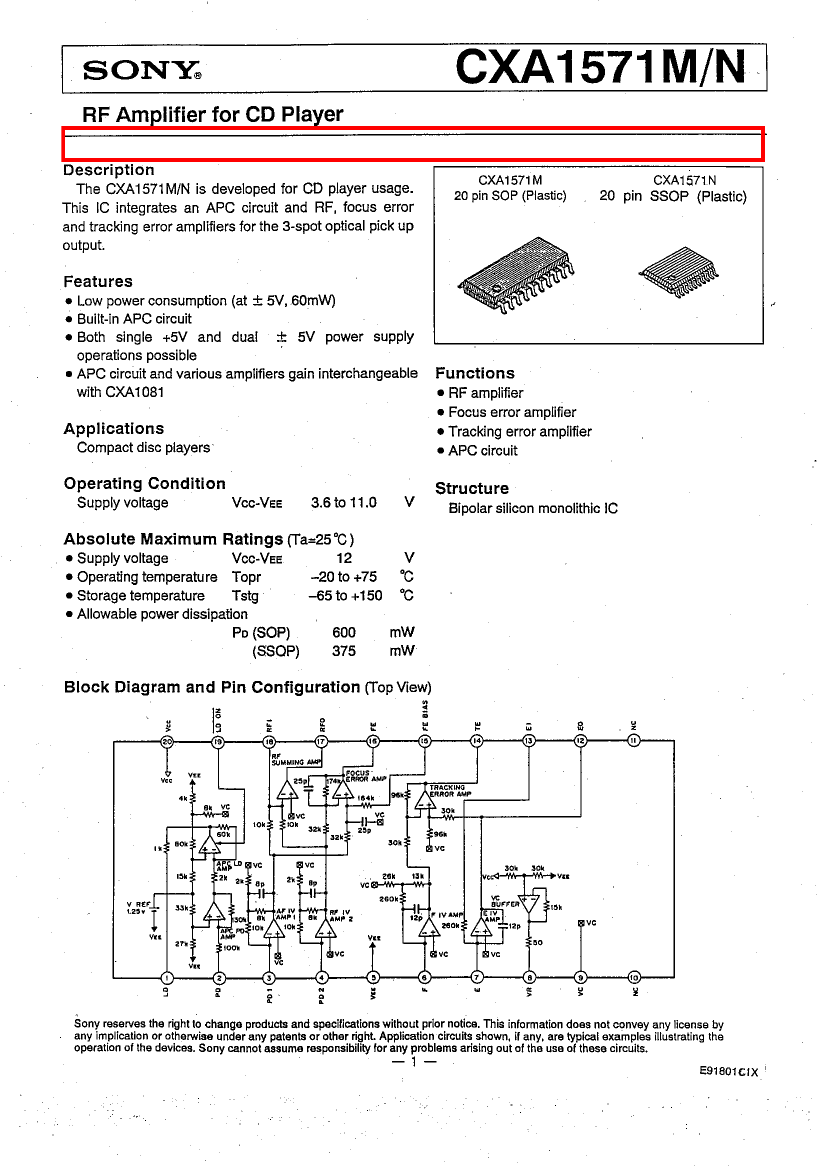

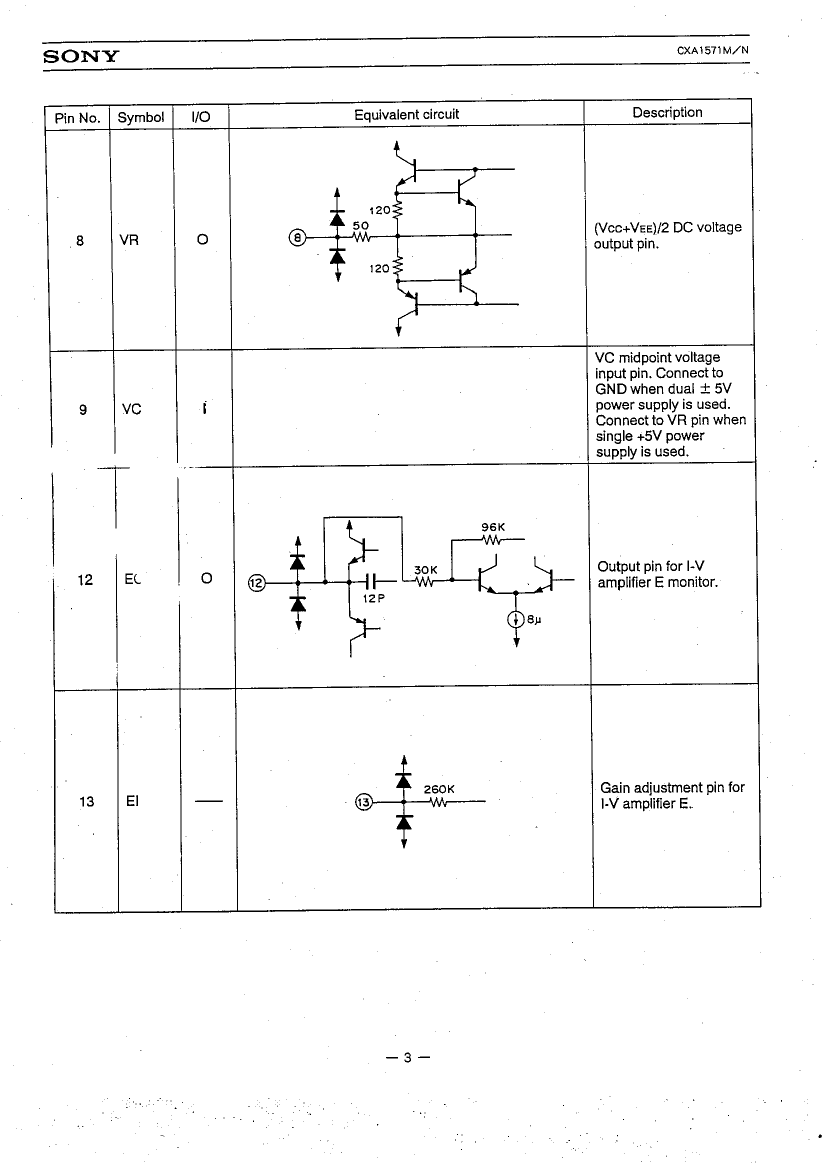

CXA1571N Overview

Consumer Circuit, Bipolar, PDSO20, 4.40 MM, PLASTIC, SSOP-20

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SONY
Parts packaging code	SSOP
package instruction	LSSOP, TSSOP20,.25
Contacts	20
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G20
JESD-609 code	e6/e4
length	6.5 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	+-5 V
Certification status	Not Qualified
Maximum seat height	1.45 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH/PALLADIUM
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

For the availability of this product, please contact the sales office.

	CXA1571N	CXA1571M
Description	Consumer Circuit, Bipolar, PDSO20, 4.40 MM, PLASTIC, SSOP-20	Consumer Circuit, Bipolar, PDSO20, 0.300 INCH, PLASTIC, SOP-20
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SONY	SONY
Parts packaging code	SSOP	SOIC
package instruction	LSSOP, TSSOP20,.25	SOP, SOP20,.3
Contacts	20	20
Reach Compliance Code	unknown	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e6/e4	e4
length	6.5 mm	12.45 mm
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	SOP
Encapsulate equivalent code	TSSOP20,.25	SOP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
power supply	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.45 mm	2.25 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN BISMUTH/PALLADIUM	Palladium (Pd)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	10
width	4.4 mm	5.3 mm
