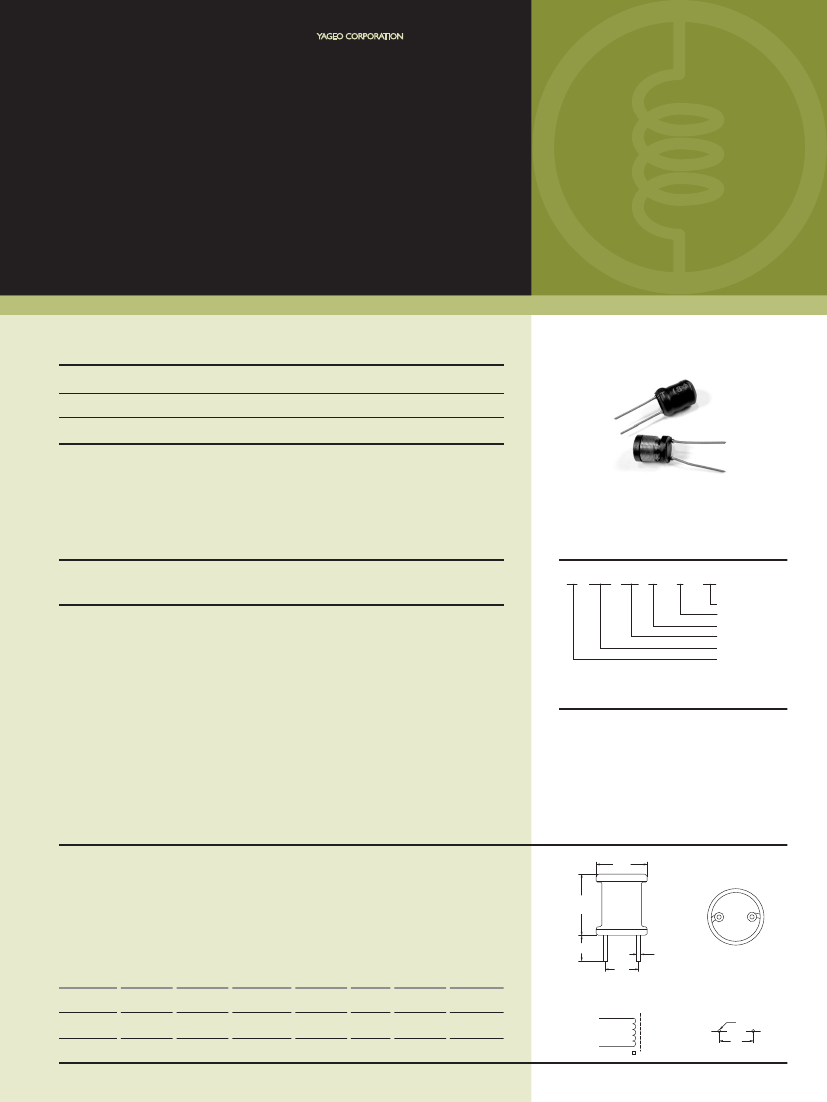

YAGEO CORPORATION
DIP / SMD INDUCTORS
SL Series
FEATURES
Halogen Free products
Unshield construction
DIP drum Inductor
DIP Power Inductors
APPLICATIONS
Notebook, Inkjet printer, Copy machine, Display monitor, Cellular phone, ADSL modem, Game machine,
TV, Video tape recorder, Video camera, Microwave, Lighting and Car electronics.
PRODUCT IDENTIFICATION
SL
0608 2R2 M
-
V
-
HF
Halogen Free
Vertical / Horizontal
Tolerance
Inductance
Dimensions
Product Symbol
■
Tolerance: J = ±5%, K = ±10%, L = ±15%, M = ±20%,
P = ±25%, N = ±30%, Y = min
SHAPES AND DIMENSIONS
A
Unit: mm
B
C
E
D
TYPE
SL0608
SL1012
SL1112
A
6.7 max
B
10.5 max
C
4.0 ± 1.2
D
3.0 ± 0.5
E
0.65
0.8
-
a
b
1.0 ± 0.05 3.0 ± 0.1
1.2 ± 0.05 5.0 ± 0.1
1.5 ± 0.05 9.0 ± 0.1
Connection Schematic
S
Land Pattern
a
10.0 ± 0.5 15.0 max
11.5 max
13.0 max
4.0 +1.5/-1.0 5.0 ± 0.5
4.5 ± 1.0
9.0 ± 0.1
F
b
102
ELECTRICAL CHARACTERISTICS
SL0608
PART NO.
SL0608-2R2
SL0608-2R7
SL0608-3R3
SL0608-3R9
SL0608-4R7
SL0608-5R6
SL0608-6R8
SL0608-8R2
SL0608-100
SL0608-120
SL0608-150
SL0608-180
SL0608-220
SL0608-270
SL0608-330
SL0608-390
SL0608-470
SL0608-560
SL0608-680
SL0608-820
SL0608-101
SL0608-121
SL0608-151
SL0608-181
SL0608-221
SL0608-271
SL0608-331
SL0608-391
SL0608-471
SL0608-561
SL0608-681
SL0608-821
SL0608-102
SL0608-122
SL0608-152
SL0608-182
SL0608-222
SL0608-272
SL0608-332
SL0608-392
SL0608-472
SL0608-562
INDUCTANCE
(µH)
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
270.00
330.00
390.00
470.00
560.00
680.00
820.00
1000.00
1200.00
1500.00
1800.00
2200.00
2700.00
3300.00
3900.00
4700.00
5600.00
TOLERANCE
(±%)
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
TEST FREQUENCY
(KHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DC RESISTANCE
(
Ω
) Max.
0.026 ±30%
0.028 ±30%
0.027 ±30%
0.030 ±30%
0.033 ±30%
0.035 ±30%
0.041 ±20%
0.048 ±20%
0.052 ±20%
0.054 ±20%
0.059 ±20%
0.065 ±20%
0.076 ±20%
0.083 ±20%
0.100 ±20%
0.105 ±20%
0.120 ±20%
0.140 ±20%
0.150 ±20%
0.210 ±20%
0.230 ±20%
0.260 ±20%
0.370 ±20%
0.420 ±20%
0.550 ±20%
0.650 ±20%
0.740 ±20%
0.950 ±20%
1.080 ±20%
1.220 ±20%
1.590 ±20%
1.760 ±20%
2.490 ±20%
2.760 ±20%
3.240 ±20%
4.560 ±20%
5.180 ±20%
6.080 ±20%
8.800 ±20%
9.470 ±20%
10.900 ±20%
12.300 ±20%
IDC
(A)
3.40
3.20
3.00
2.80
2.60
2.40
2.00
1.80
1.70
1.65
1.50
1.25
1.20
0.95
0.90
0.85
0.80
0.75
0.70
0.55
0.50
0.49
0.45
0.40
0.36
0.35
0.30
0.27
0.24
0.22
0.21
0.18
0.16
0.15
0.13
0.12
0.11
0.10
0.10
0.80
0.08
0.07
Note:
Isat: DC current at which the inductance drops 10% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 45 °C
103
ELECTRICAL CHARACTERISTICS
SL1012
PART NO.
SL1012-2R2
SL1012-2R7
SL1012-3R3
SL1012-3R9
SL1012-4R7
SL1012-5R6
SL1012-6R8
SL1012-8R2
SL1012-100
SL1012-120
SL1012-150
SL1012-180
SL1012-220
SL1012-270
SL1012-330
SL1012-390
SL1012-470
SL1012-560
SL1012-680
SL1012-820
SL1012-101
SL1012-121
SL1012-151
SL1012-181
SL1012-221
SL1012-271
SL1012-331
SL1012-391
SL1012-471
SL1012-561
SL1012-681
SL1012-821
SL1012-102
SL1012-122
SL1012-152
SL1012-182
SL1012-222
SL1012-272
SL1012-332
SL1012-392
INDUCTANCE
(µH)
2.20
2.70
3.30
3.90
4.70
5.60
6.80
8.20
10.00
12.00
15.00
18.00
22.00
27.00
33.00
39.00
47.00
56.00
68.00
82.00
100.00
120.00
150.00
180.00
220.00
270.00
330.00
390.00
470.00
560.00
680.00
820.00
1000.00
1200.00
1500.00
1800.00
2200.00
2700.00
3300.00
3900.00
TOLERANCE
(±%)
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
TEST FREQUENCY
(KHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DC RESISTANCE
(
Ω
) ±20%
0.014
0.015
0.016
0.018
0.019
0.021
0.022
0.024
0.026
0.028
0.033
0.036
0.040
0.044
0.051
0.054
0.060
0.067
0.075
0.095
0.110
0.120
0.160
0.180
0.210
0.280
0.320
0.400
0.450
0.560
0.660
0.800
1.000
1.200
1.500
1.800
2.100
2.700
3.200
3.500
IDC
(A)
5.90
5.50
5.20
4.80
4.60
4.30
4.20
4.00
3.90
3.80
3.50
3.40
3.20
3.00
2.80
2.70
2.50
2.30
2.10
1.80
1.70
1.60
1.40
1.30
1.10
1.00
0.90
0.80
0.70
0.68
0.64
0.55
0.50
0.45
0.42
0.40
0.36
0.32
0.28
0.26
Note:
Isat: DC current at which the inductance drops 10% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 45 °C
104
ELECTRICAL CHARACTERISTICS
SL1112
PART NO.
INDUCTANCE
(µH)
0.35
0.60
1.00
1.40
1.80
2.40
3.00
3.90
4.70
5.60
6.80
7.80
9.10
10.00
12.00
TOLERANCE
(±%)
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
TEST FREQUENCY
(KHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DC RESISTANCE
(
Ω
) ±20%
0.0014
0.0018
0.0023
0.0028
0.0033
0.0038
0.0044
0.0049
0.0055
0.0061
0.0087
0.0094
0.0124
0.0132
0.0140
IDC
(A)
14.00
13.00
12.00
11.00
10.00
9.60
9.20
8.60
8.20
7.80
7.40
7.00
6.60
6.30
6.00
SL1112-R35
SL1112-R60
SL1112-1R0
SL1112-1R4
SL1112-1R8
SL1112-2R4
SL1112-3R0
SL1112-3R9
SL1112-4R7
SL1112-5R6
SL1112-6R8
SL1112-7R8
SL1112-9R1
SL1112-100
SL1112-120
Note:
Isat: DC current at which the inductance drops 10% from its value without current
Irms: The actual current when temperature of coil becomes
ΔT
= 45 °C
