DCR1594SW26 datasheet, PDF - EEWORLD Datasheet

DCR1594SW26: DescriptionSilicon Controlled Rectifier, 3000000mA I(T), 2600V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size408KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

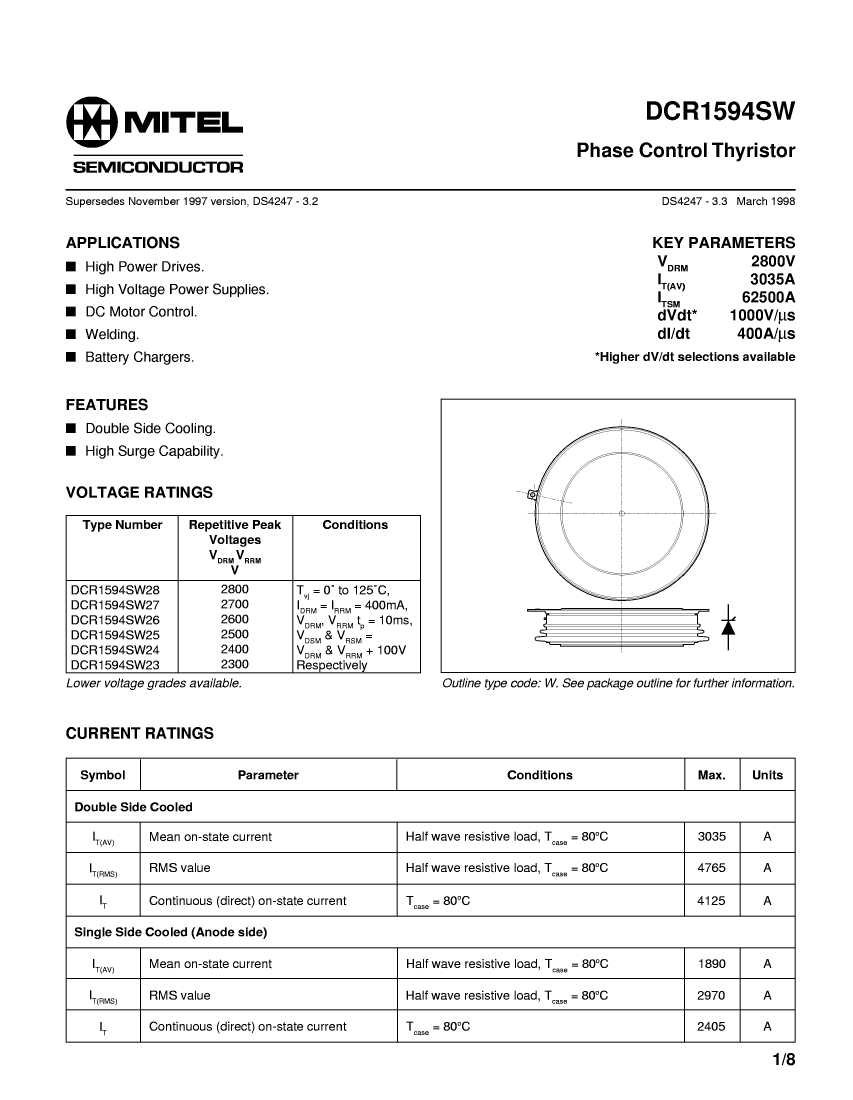

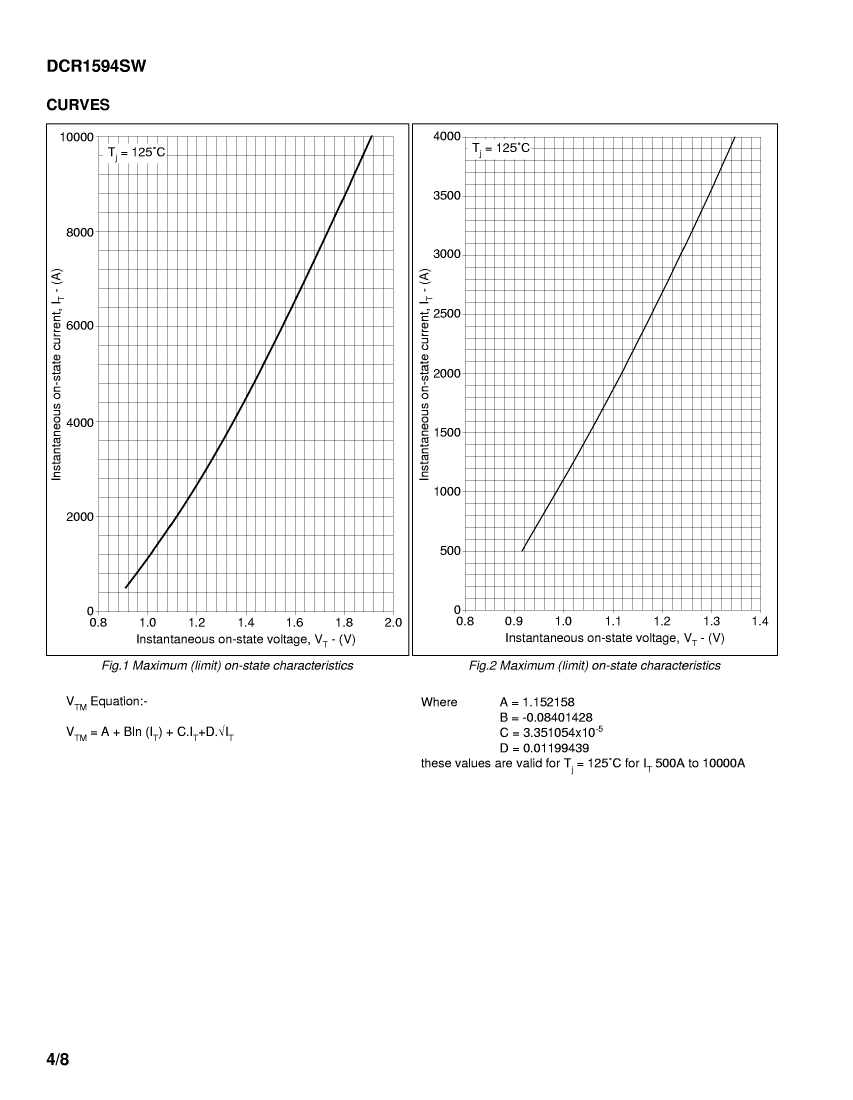

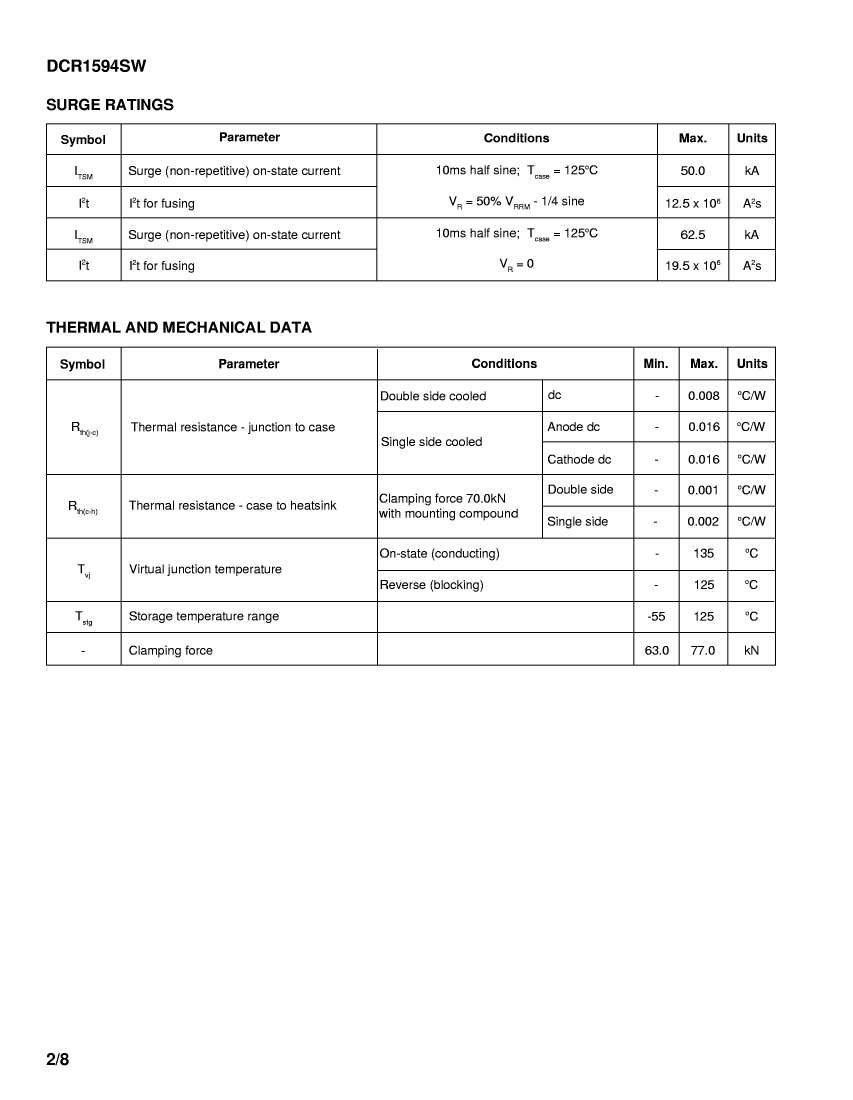

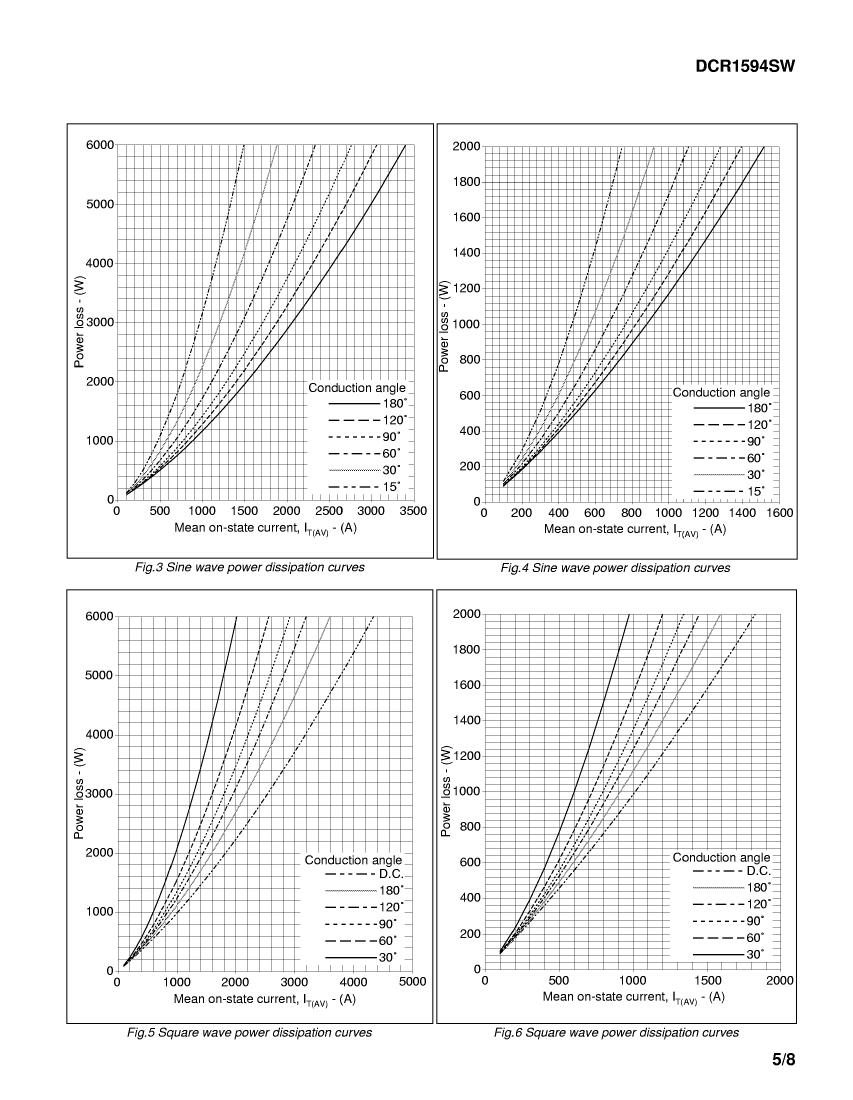

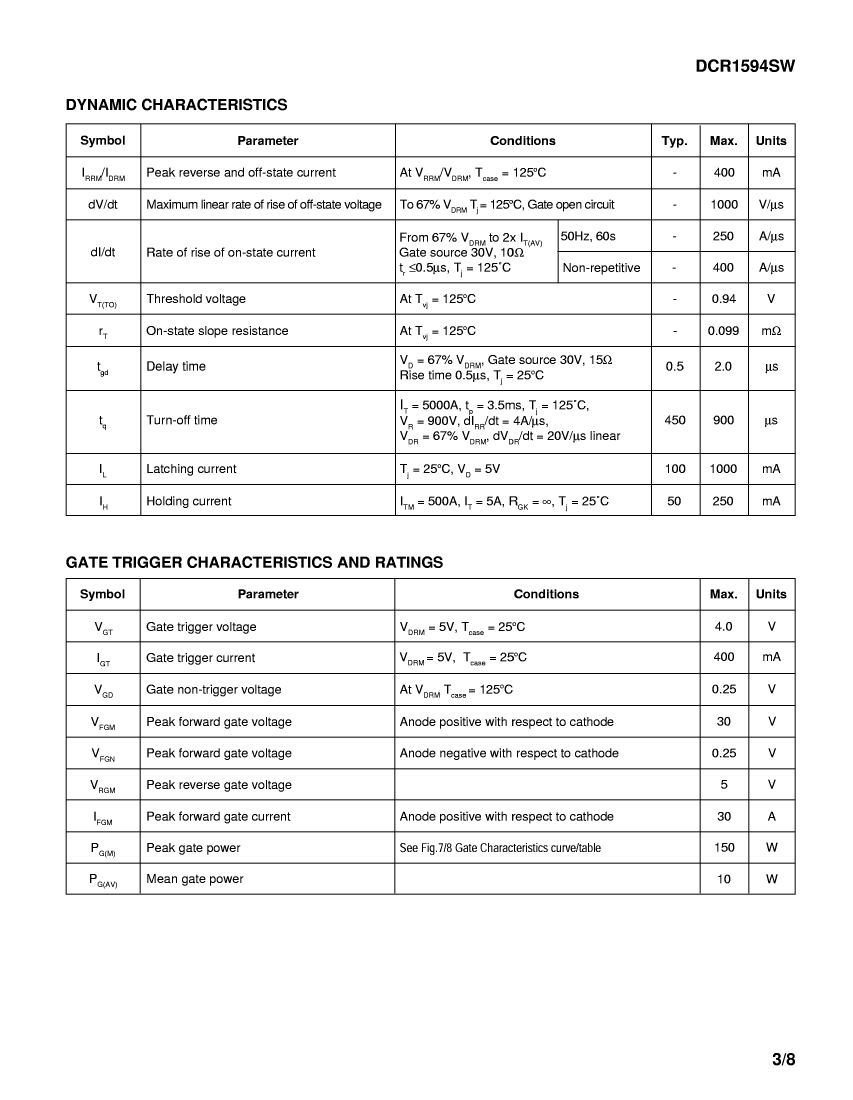

DCR1594SW26 Overview

Silicon Controlled Rectifier, 3000000mA I(T), 2600V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	450 µs
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	400 mA
Maximum DC gate trigger voltage	4 V
Maximum leakage current	400 mA
On-state non-repetitive peak current	50000 A
Maximum on-state current	3000000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Off-state repetitive peak voltage	2600 V
surface mount	NO
Trigger device type	SCR

DCR1594SW26 Related Products

	DCR1594SW26	DCR1594SW25	DCR1594SW23	DCR1594SW24	DCR1594SW27	DCR1594SW28
Description	Silicon Controlled Rectifier, 3000000mA I(T), 2600V V(DRM),	Silicon Controlled Rectifier, 3000000mA I(T), 2500V V(DRM),	Silicon Controlled Rectifier, 3000000mA I(T), 2300V V(DRM),	Silicon Controlled Rectifier, 3000000mA I(T), 2400V V(DRM),	Silicon Controlled Rectifier, 3000000mA I(T), 2700V V(DRM),	Silicon Controlled Rectifier, 3000000mA I(T), 2800V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal circuit commutation break time	450 µs	450 µs	450 µs	450 µs	450 µs	450 µs
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	400 mA	400 mA	400 mA	400 mA	400 mA	400 mA
Maximum DC gate trigger voltage	4 V	4 V	4 V	4 V	4 V	4 V
Maximum leakage current	400 mA	400 mA	400 mA	400 mA	400 mA	400 mA
On-state non-repetitive peak current	50000 A	50000 A	50000 A	50000 A	50000 A	50000 A
Maximum on-state current	3000000 A	3000000 A	3000000 A	3000000 A	3000000 A	3000000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Off-state repetitive peak voltage	2600 V	2500 V	2300 V	2400 V	2700 V	2800 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
