Datasheet> All Categories > Passive components> oscillator> ZX95-2015-S+

ZX95-2015-S+: DescriptionVoltage Controlled Oscillator, 1975MHz Min, 2015MHz Max, ROHS COMPLIANT, CASE GB956; CategoryPassive components oscillator; File Size333KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZX95-2015-S+ Overview

Voltage Controlled Oscillator, 1975MHz Min, 2015MHz Max, ROHS COMPLIANT, CASE GB956

ZX95-2015-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Objectid	1727209289
Reach Compliance Code	not_compliant
ECCN code	EAR99
compound_id	69107083
Other features	SMA CONNECTOR
Maximum control voltage	5 V
Minimum control voltage	0.5 V
Modulation sensitivity	18 MHz/V
Installation features	CHASSIS MOUNT
offset frequency	1 kHz
Maximum operating frequency	2015 MHz
Minimum operating frequency	1975 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	7.5 dBm
phase noise	-85 dBc/Hz
physical size	30.48mm x 19.05mm x 11.68mm
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

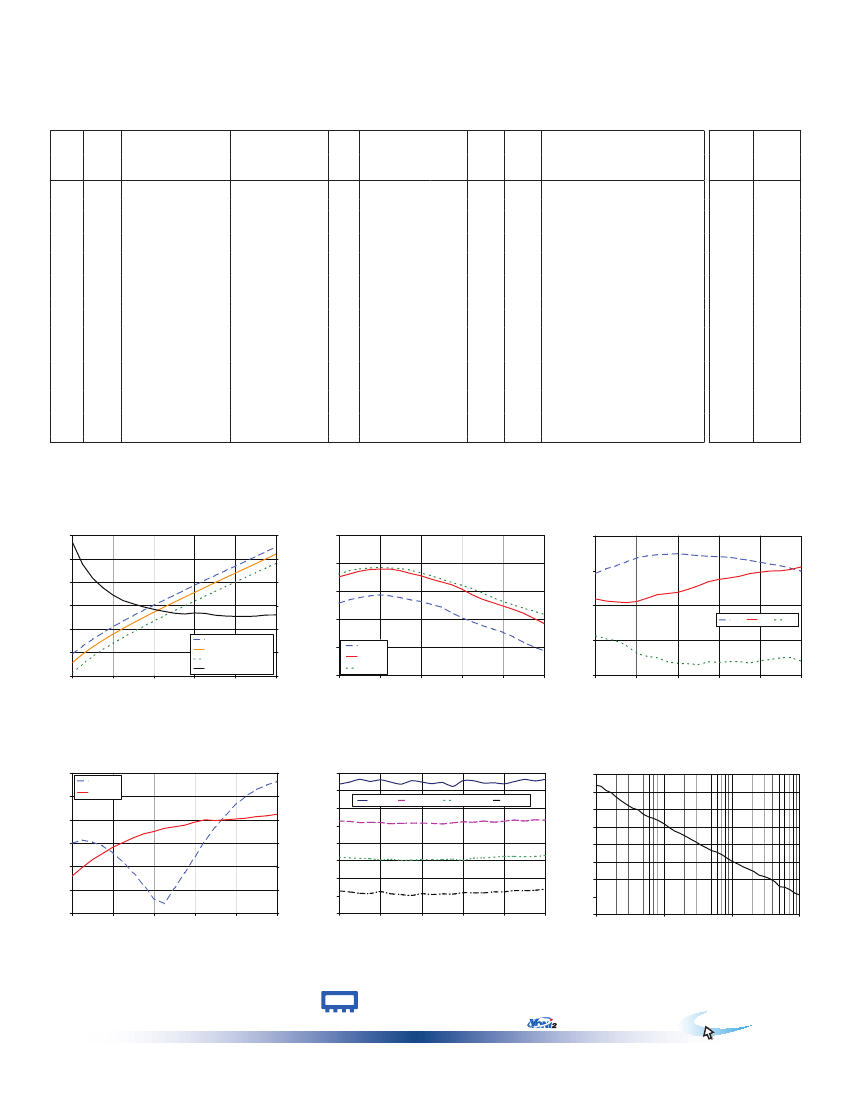

Download Datasheet

View All

%QCZKCN

8QNVCIG %QPVTQNNGF 1UEKNNCVQT

9 7XQLQJ IRU 3// ,& V

(GCVWTGU

OLQHDU WXQLQJ FKDUDFWHULVWLFV

ORZ SKDVH QRLVH

ORZ SXOOLQJ

ORZ SXVKLQJ

SURWHFWHG E\ 86 SDWHQW

WR 0+]

&$6( 67</( *%

&RQQHFWRUV

5/#

0RGHO

=;6

3ULFH

4W\

#RRNKECVKQPU

U G

ODE

LQVWUXPHQWDWLRQ

ZHUHOHVV FRPPXQLFDWLRQV

SRLQWWRSRLQW UDGLR

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

'NGEVTKECN 5RGEK ECVKQPU

/1&'.

(4'3

/*\

219'4

2*#5' 01+5'

670+0)

010

*#4/10+%5 27..+0) 275*+0)

176276 F$E*\ 55$ CV QHHUGV

*#4/10+%

F$E

RMRM

/*\8

12'4#6+0)

F$O

HTGSWGPEKGUM*\

81.6#)' 5'05+ 2146

5274+175

" F$T

219'4

4#0)' 6+8+6; %#2 /1&7.#6+10

F$E

/*\

6[R

/*\8 R( $#0&9+&6*

8EE %WTTGPV

/*\

XQNVU O#

7\S

0LQ 0D[

7\S

0D[

7\S

0D[

0LQ 0D[

/CZKOWO 4CVKPIU

2SHUDWLQJ 7HPSHUDWXUH

& WR &

6WRUDJH 7HPSHUDWXUH

& WR &

$EVROXWH 0D[ 6XSSO\ 9ROWDJH 9FF

$EVROXWH 0D[ 7XQLQJ 9ROWDJH 9WXQH

$OO VSHFLÀFDWLRQV

RKP V\VWHP

3HUPDQHQW GDPDJH PD\ RFFXU LI DQ\ RI WKHVH OLPLWV DUH H[FHHGHG

1WVNKPG &TCYKPI

1WVNKPG &KOGPUKQPU

KPEJ

(

)

JUDPV

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

5(9 25

('5)

5$9

3DJH RI

ZX95-2015-S+ Related Products

	ZX95-2015-S+	ZX95-2015+
Description	Voltage Controlled Oscillator, 1975MHz Min, 2015MHz Max, ROHS COMPLIANT, CASE GB956	Voltage Controlled Oscillator, 1975MHz Min, 2015MHz Max, ROHS COMPLIANT, CASE GB956
Is it Rohs certified?	conform to	conform to
Maker	Mini-Circuits	Mini-Circuits
Reach Compliance Code	not_compliant	unknown
Maximum control voltage	5 V	5 V
Minimum control voltage	0.5 V	0.5 V
Modulation sensitivity	18 MHz/V	18 MHz/V
Installation features	CHASSIS MOUNT	CHASSIS MOUNT
offset frequency	1 kHz	1 kHz
Maximum operating frequency	2015 MHz	2015 MHz
Minimum operating frequency	1975 MHz	1975 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	7.5 dBm	7.5 dBm
phase noise	-85 dBc/Hz	-85 dBc/Hz
physical size	30.48mm x 19.05mm x 11.68mm	30.48mm x 19.05mm x 11.68mm
Maximum slew rate	35 mA	35 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
