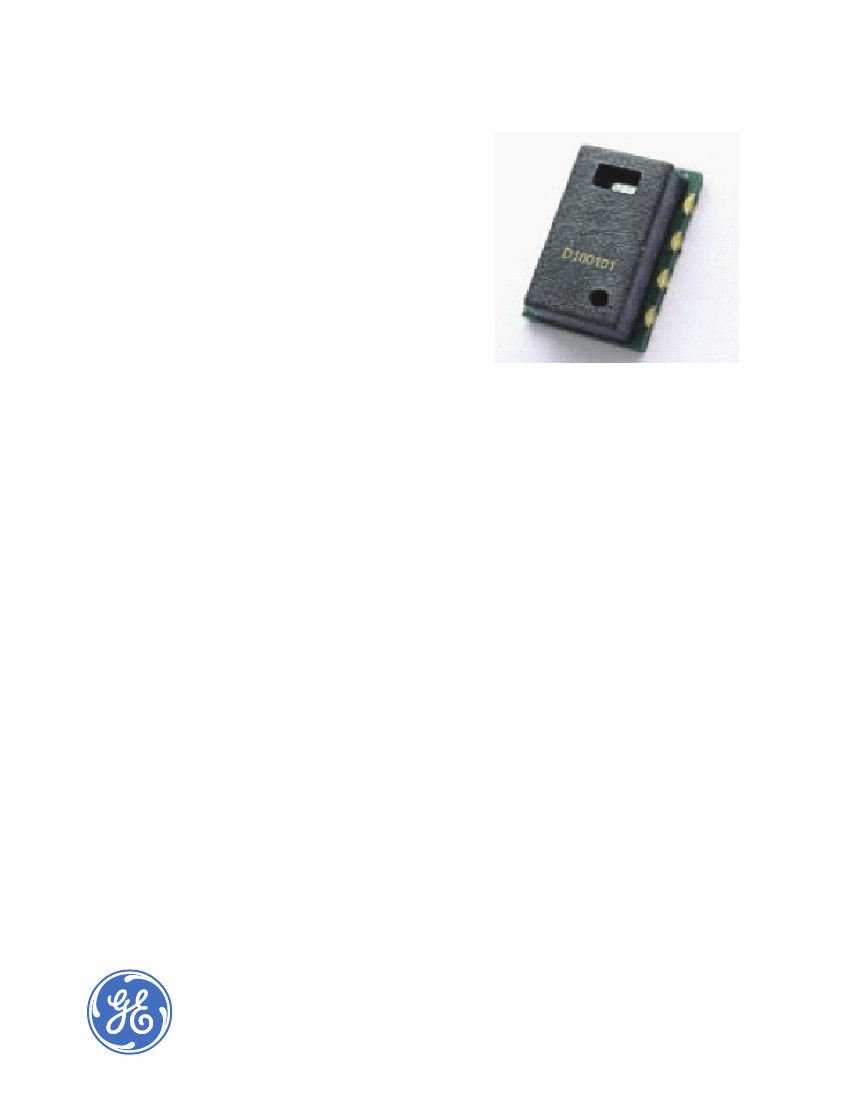

ChipCap 2
Features
™
A Fully Calibrated Humidity
and Temperature Sensor
• Fully Calibrated & Temperature Compensated
• Digital or Analog Output with Alarm Function
• Precision & Accuracy (±2%RH, ±0.3°C, 14 bit )
• Free Operating Voltage (min 2.7V to max 5.5V)
• Low Current Consumption
• SMD Package for Automated Assembly
• Reliable in Harsh Environments
ChipCap 2 offers the most advanced and cost
effective humidity and temperature sensing
solution for virtually any type of application.
A capacitive polymer sensor chip and a CMOS
integrated circuit with EEPROM are integrated into
one embedded system in a reflow solderable SMD
package.
Individually calibrated and tested, ChipCap 2
performs at ±2% from 20% to 80% RH (±3% over
entire humidity range), and is simple and ready
to use without further calibration or temperature
compensation.
ChipCap 2 provides linear output signals in various
interfaces to customer requirements:
• I²C interface
• PDM convertible to analog signal
• Alarm function for preset control at min/max
humidity
Applications
• Energy Saving HVAC Control —Air Conditioning,
Refrigeration, Indoor Air Quality, Vent Fans,
Home Appliances, Humi/Dehumidifiers
• Process Control & Instrumentation—Medical
Instruments, Handheld Devices, Weather
Stations, Food Processing, Printers, RFIDs
• Automobile & Transportation—Cabin Climate
Control, Defogging Control Condensing
Preventive Device
• Medical — Nebulizers, Oxygen air, CPAP/Sleep
Apnea devices
• OEM assemblies available
Sensor Performance
Relative Humidity (RH%)
Resolution
Accuracy
1
Repeatability
Hysteresis
Linearity
Response time
3
Temp Coefficient
Operating Range
Long Term Drift
14 bit (0.01%RH)
±2.0 %RH (20~80%RH)
2
±0.2 %RH
±2.0 %RH
<2.0 %RH
7.0 sec (τ 63%)
Max 0.13 %RH/°C (at 10~60°C, 10~90%RH)
0 ~ 100 %RH (Non-Condensing)
<0.5 %RH/yr (Normal condition)
Temperature (°C)
Resolution
Accuracy
1
Repeatability
Response time
2
Operating range
Long term drift
14 bit (0.01°C)
±0.3°C
±0.1°C
5.0 sec (τ 63%)
- 40 to 125°C
<0.05°C/yr (Normal condition)
1. Accuracies measured at 25°C, 5.0V
2. Min 5.0 sec, Max 20 sec
1. Custom Accuracy Tolerance Available
2. Accuracies measured at 25°C, 5.0V.
3. Measured at 25°C, 1m/sec airflow for achieving 63% of step
from 33%RH to 90%RH

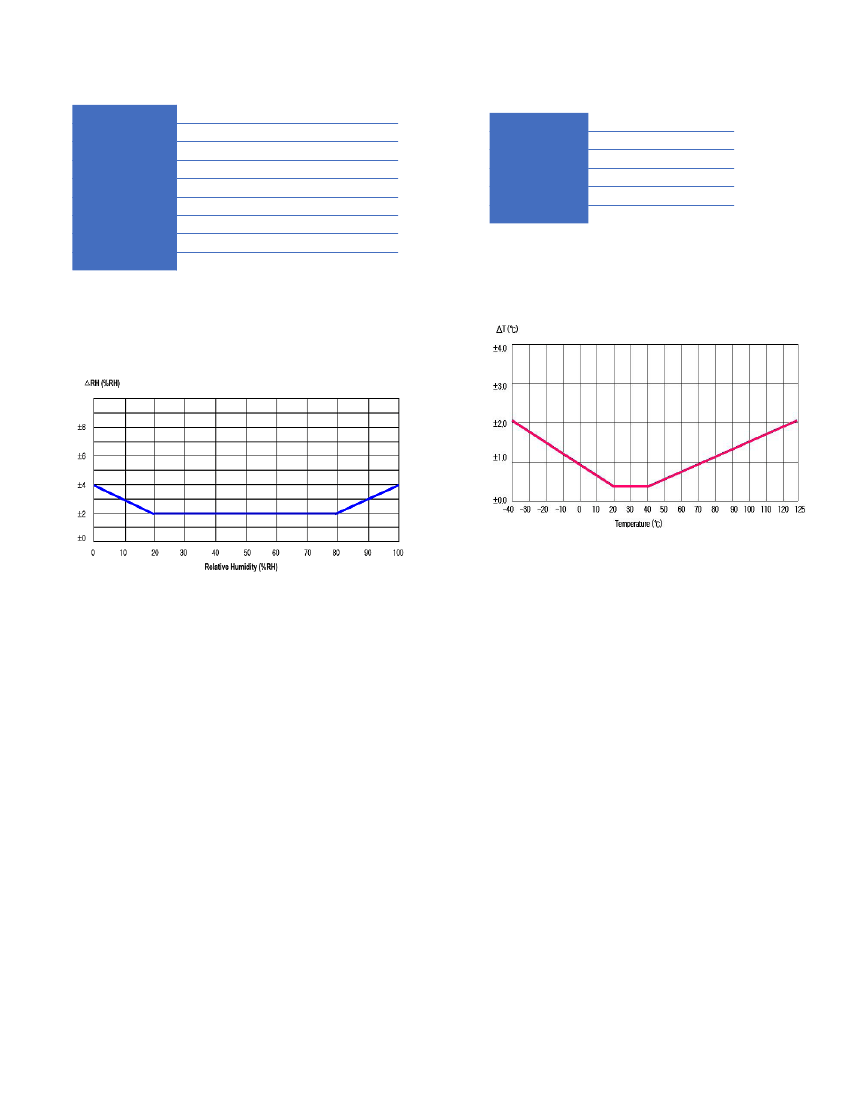

Typical Temperature Accuracy
Typical %RH Accuracy
Absolute Maximum Rating
Electrical Specifications
s
Supply Voltage
min 2.7V to max 5.5V
Parameter
Supply Voltage (VDD)
Storage Temp (T
strg
)
Junction Temp (T
j
)
Min
-0.3V 6.0V
-50°C 150°C
-55°C 150°C
Max
Supply Current (IDD)
750 µA (typical)
Soldering Information
Standard or IR Solder Reflow
Tp: 260°C, tp: 40 sec. (qualify Pb free profile)
Note: After soldering reconditioning will be required.
Details for this process can be found in the ChipCap2
application note (916-127).
Sleep Current (Isleep)
0.6 µA (typical)
Environmental
Operating Temperature Range
- 40 to 125°C
Package Contents
Operating RH Range
0 to 100 % RH (non-condensing)
Capacitive polymer RH Sensor,
PTA (Proportional to Absolute) Temperature sensor
integrated ASIC chip in LCC (Leadless Chip Carrier)
package, SMD, RoHS compliant
Pin Connection
Ordering Information
GE part no.
CC2A25
CC2A23
CC2D23S
Description
ChipCap2, analog, 2%, 5v
ChipCap2, analog, 2%, 3.3v
ChipCap2, digital, sleep mode, 2%, 3.3v
ChipCap2, digital , sleep mode, 2%, 5v
ChipCap2, digital, 2%, 3.3v
ChipCap2, digital, 2%, 5v
CC2-D
CC2D25S
CC2D23
CC2D25
CC2D35
CC2A33
CC2D33S
CC2D35S
CC2D33
CC2A35
ChipCap2, digital, 3%, 5v
ChipCap2, analog, 3%, 3.3v
ChipCap2, digital, sleep mode, 3%, 3.3v
ChipCap2, digital , sleep mode, 3%, 5v
ChipCap2, digital, 3%, 3.3v
ChipCap2, analog, 3%, 5v
Packaging Tape and Reel

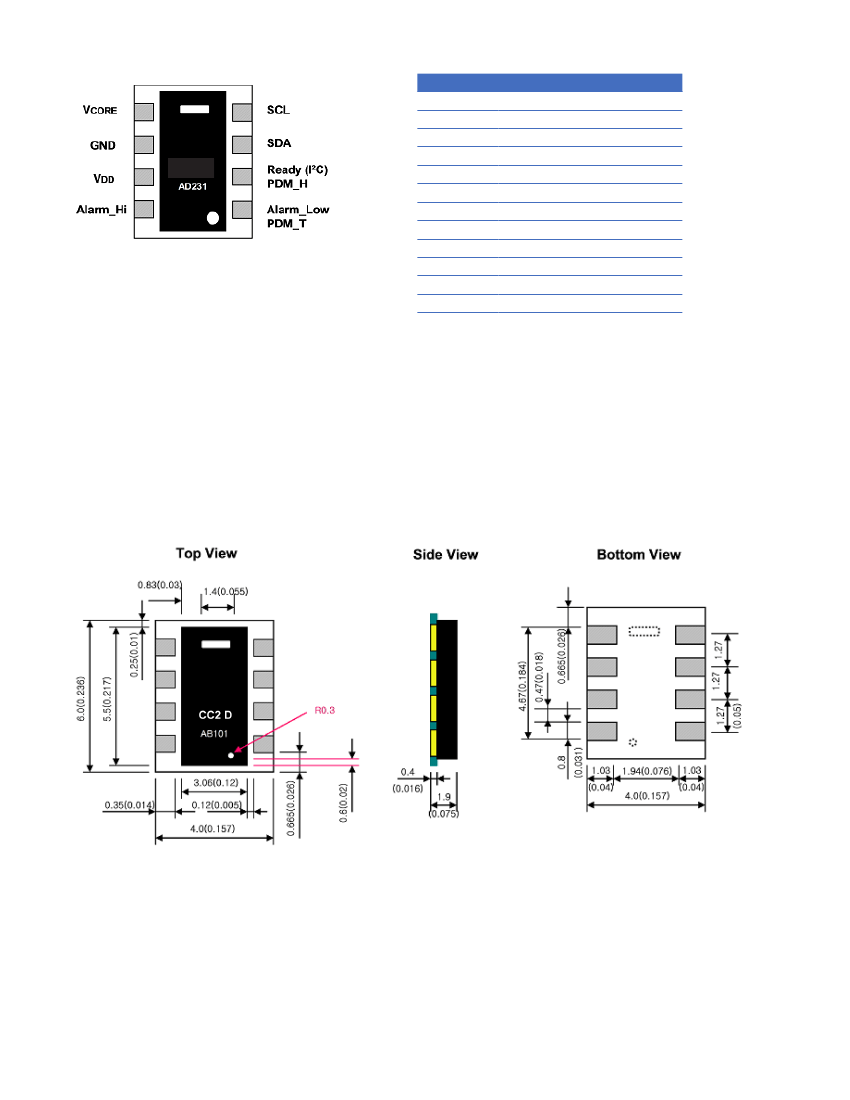

Dimensions (units: mm (inch))
www.ge-mcs.com
920-558A
© 2012 General Electric Company. All Rights Reserved. Specifications are subject to change without notice. GE is a registered trademark of General Electric Company. Other company or product
names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not affiliated with GE.
