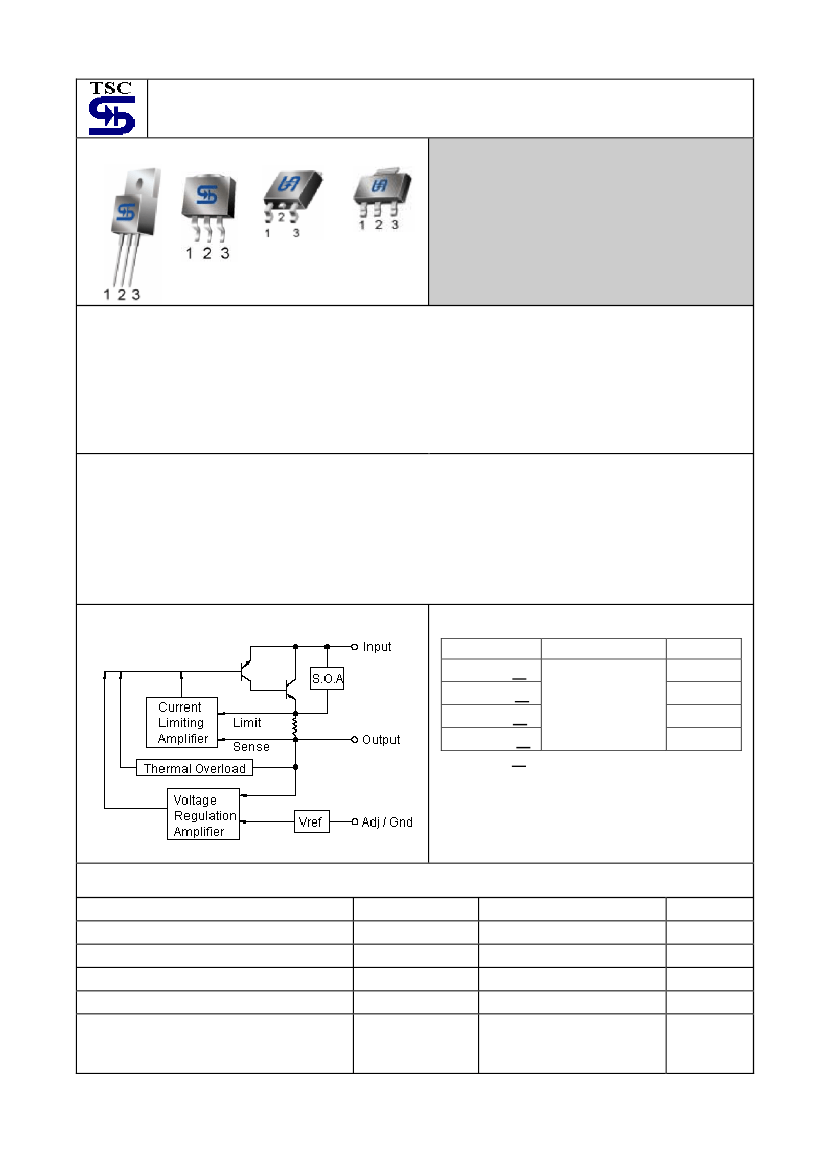

TS1117S

800mA Low Dropout Positive Voltage Regulator

TO-220

TO-263

TO-252

SOT-223

Low Dropout Voltage 1.5V max

Pin assignment:

1. Ground / Adj

2. Output

Input

General Description

The TS1117S Series are high performance positive voltage regulators are designed for use in applications requiring low

dropout performance at full rated current, Additionally, the TS1117S Series provides excellent regulation over variations

due to changes in line, load and temperature. Outstanding features include low dropout performance at rated current, fast

transient response, internal current limiting and thermal shutdown protection of the output device. The TS1117S Series

are three terminal regulators with fixed and adjustable voltage options available in popular packages.

This series is offered in 3-pin TO-263, TO-220, TO-252 and SOT-223 package.

Features



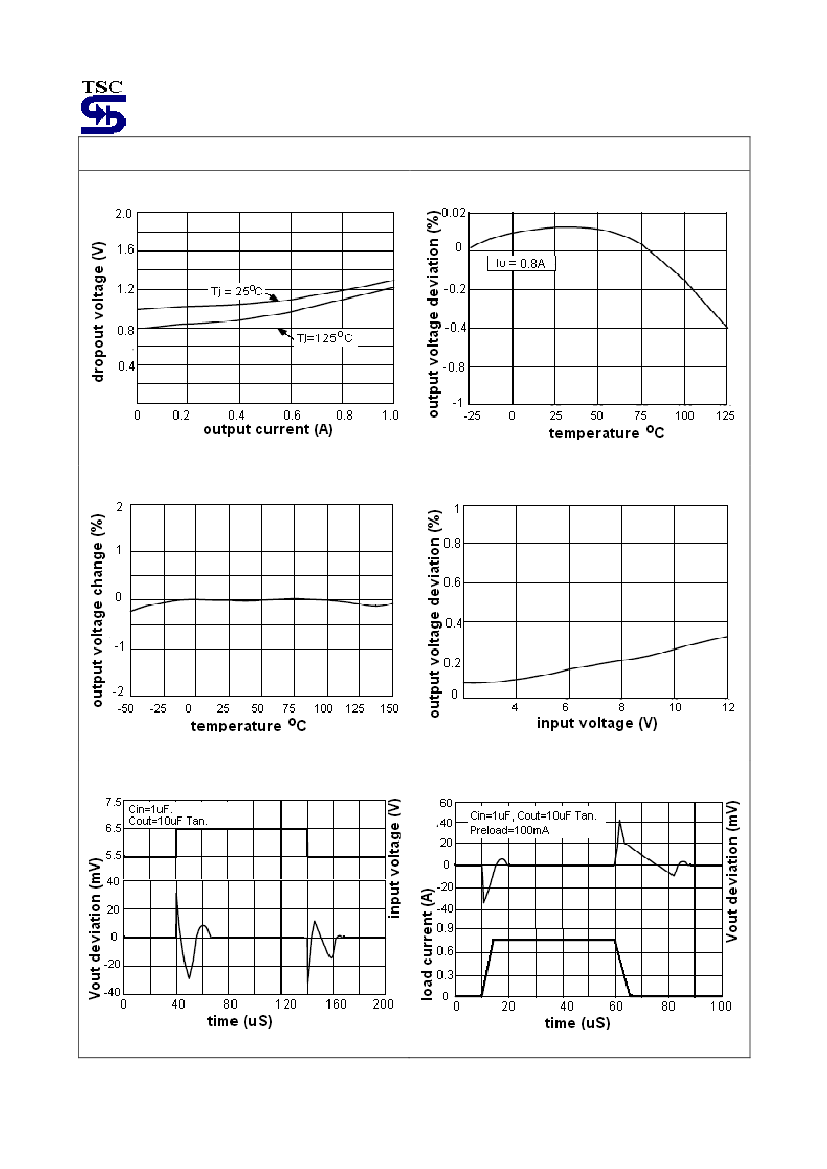

Low dropout performance 1.5V max.

Full current rating over line and temperature.

Fast transient response

±2%Total

output regulation over line, load and

temperature



Adjust pin current max 90μA over temperature

Line regulation typical 0.015%.

Load regulation typical 0.05%.

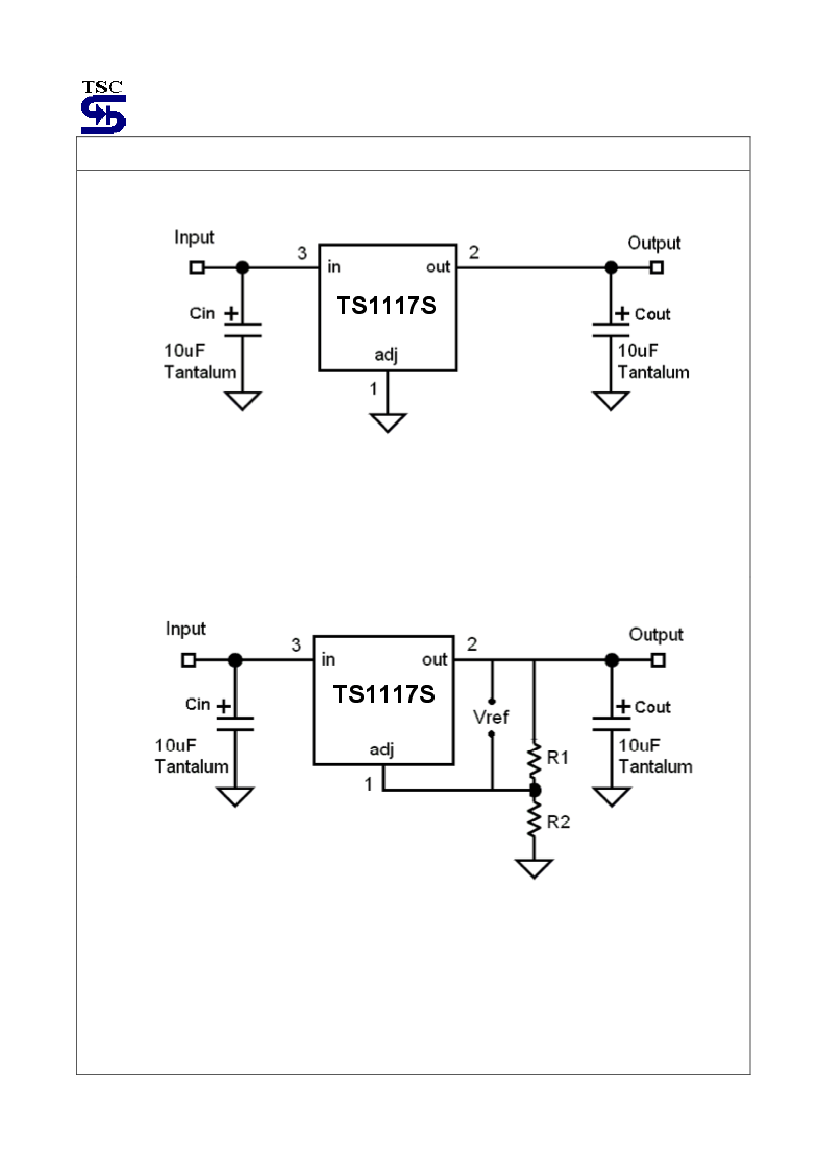

Fixed/adjustable output voltage

TO-220, TO-263 TO-252 and SOT-223 package



Block Diagram

Ordering Information

Part No.

TS1117SCZxx

TS1117SCMxx

TS1117SCPxx

TS1117SCWxx

0 ~ +125 C

Operating Temp.

Package

TO-220

TO-263

TO-252

SOT-223

Note: Where

denotes voltage option, available are

5.0V, 3.3V, 2.5V and 1.8V. Leave blank for

adjustable version. Contact factory for additional

voltage options.

Absolute Maximum Rating

Input Supply Voltage

Operation Input Supply Voltage

Power Dissipation

Operating Junction Temperature Range

Storage Temperature Range

Lead Soldering Temperature (260 C)

TO-220 / TO-263 Package

TO-252 / SOT-223 Package

Vin (max.)

Vin (opr., Typ.)

STG

Internally Limited

0 ~ +125

-65 ~ +150

TS1117S

1-6

2005/11 rev. E
