50 Ohm 2 Way 2.92mm Power Divider From
10 GHz to 40 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
50 Ohm 2 Way 2.92mm Power Divider From 10 GHz to 40 GHz Rated at 10 Watts
Configuration
Input Connector
Output Connectors
Frequency Range, GHz
Number of Output Ports
Housing Material and Plating
2.92mm Female
2.92mm Female
10 to 40
2
Aluminum
PE2078
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Insertion Loss, dB
Maximum Input Power, Watts
Maximum Input VSWR
Maximum Output VSWR
Minimum Isolation, dB
Phase Balance, Degrees
Flatness, dB
10 to 40
50
2
10
1.6:1
1.7:1
15
±
6
0.6

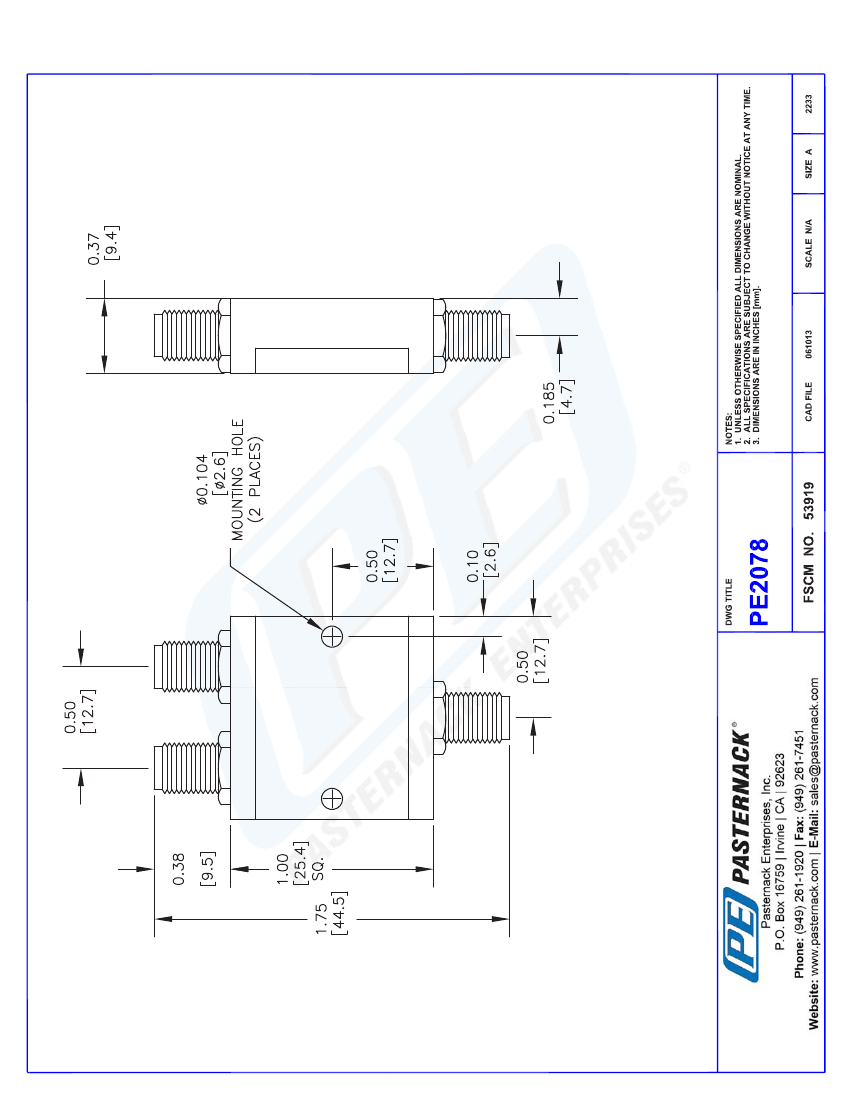

Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
-54 to +125
1.75 [44.45]
1 [25.4]
0.37 [9.4]
Input Connector
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Output Connectors
Contact Material and Plating
Connector Material and Plating
Body Material and Plating
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Beryllium Copper, Gold
Passivated Stainless Steel
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way 2.92mm Power Divider From 10 GHz to 40 GHz Rated at 10 Watts PE2078
PE2078 REV 1.0
1
50 Ohm 2 Way 2.92mm Power Divider From
10 GHz to 40 GHz Rated at 10 Watts
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
50 Ohm 2 Way 2.92mm Power Divider From 10 GHz to 40 GHz Rated at 10 Watts from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 2 Way 2.92mm Power Divider From 10 GHz to 40 GHz Rated at 10 Watts PE2078
URL:
http://www.pasternack.com/2-way-2.92mm-power-divider-10-40-ghz-10-watts-pe2078-p.aspx
PE2078
PE2078 REV 1.0
