Not for new designs, this product will be discontinued soon

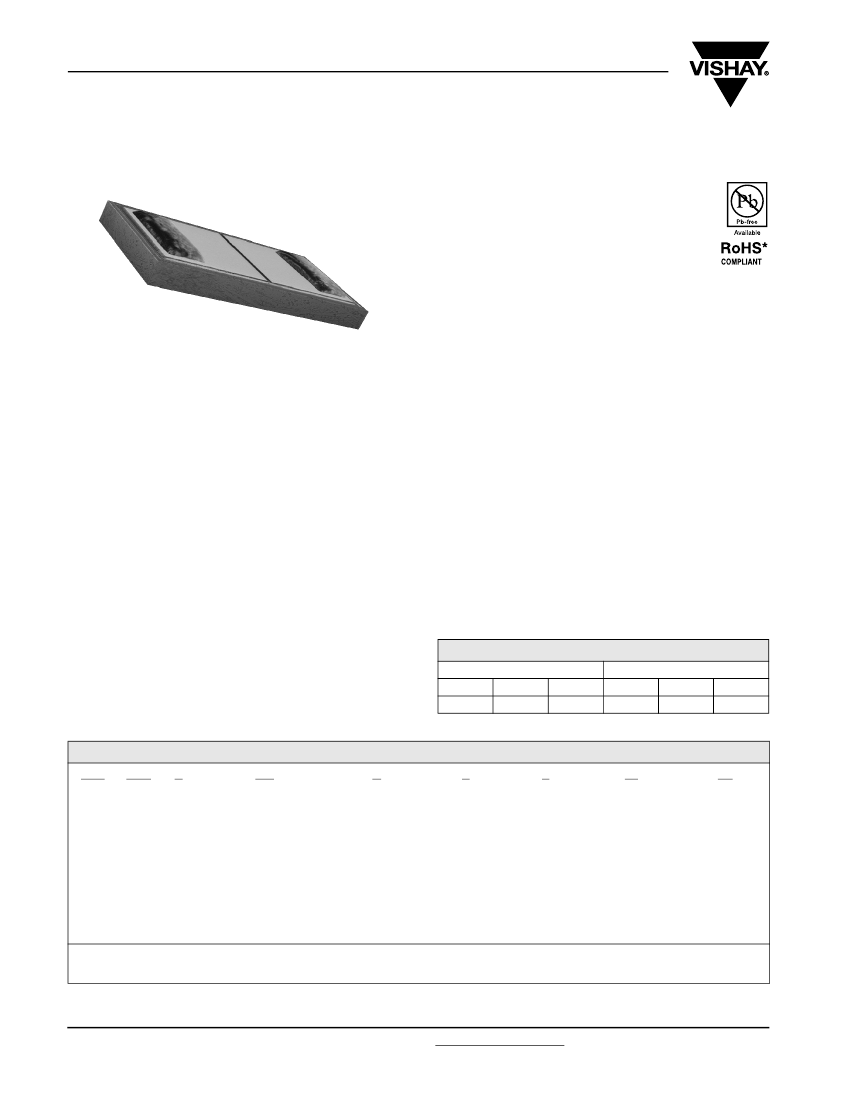

HPC0402A
Vishay
High Performance, High Precision
Surface Mount 0402 Capacitor
FEATURES
•
Terminations are Sn/Ag/Cu or Au. The
standard product is lead (Pb)-free and RoHS
compliant, but terminations containing lead are
available
•
New technology surface mount capacitor
based on a special semiconductor process
•
Construction reduces the parasitic inductance and brings
the SRF values to ultra-high frequencies
•
Capacitance is extremely stable in a wide range of
frequencies from 1 MHz to several GHz
•
High Q and low ESR
•
Tight tolerance to ± 1 % or 0.05 pF
•
Ultra high SRF
•
Low parasitic inductance (~ 0.032 nH)
•
Capacitance range: 0.1 pF to 180
PATENTED
ELECTRICAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Temperature Coefficient
of Capacitance (TCC):
0 ± 30 ppm/°C
Insulation Resistance:
10
11
Ω
min
Voltage:
2.5 x rated voltage (DC)
for 5 seconds
Ageing:
none
APPLICATIONS
•
•
•
•
•
•
•
•
Wireless communications
Mobile phones
Cordless phones
GPS
VCO
Filter Networks
Matching Networks
Embedded substrates
ENVIRONMENTAL SPECIFICATIONS
Life Test:
Thermal Shock:
Moisture Resistance:
1000 hours, + 125 °C at
2 x rated voltage (DC)
100 Cycles, - 55 °C/+ 150 °C
1000 hours at rated DCV,
85 % RH, + 85 °C
CAPACITANCE TOLERANCE CODE
FOR LESS THAN 10 pF
A
B
C
± 0.05 pF ± 0.10 pF ± 0.25 pF
FOR 10 pF AND HIGHER
F
±1%
G
±2%
J
±5%
ORDERING INFORMATION
HPC
MODEL
0402
SIZE
A
TYPE
100
CAPACITANCE VALUE
G
CAPACITANCE
TOLERANCE
X
TERMINATION
X
VOLTAGE
T0
PACKAGING
XX
SPECIAL
ENGINEERING
CONTROL
CODE
Leave blank
when no special
requirements
apply
The first two digits are
significant, the third is a
multiplier. An “R”
indicates a decimal point.
Examples: 101 = 100 pF
4R7 = 4.7 pF
see chart above
X = Tin/Lead
termination
W = Lead
(Pb)-free
terminations
1=6V
Z = 10 V
Y = 16 V
X = 25 V
M = 50 V
L = 100 V
T0 = 10 000 pcs
T5 = 5000 pcs
T1 = 1000 pcs
tape and reel
“W” terminations preferred.
“See Part Numbering System, Document 10147, for complete explanations.”
* Pb containing terminations are not RoHS compliant, exemptions may apply.
www.vishay.com
12
For technical questions, contact: siliconRFcap@vishay.com
Document Number: 10117
Revision: 16-Dec-08
Not for new designs, this product will be discontinued soon
HPC0402A
High Performance, High Precision
Surface Mount 0402 Capacitor
DIMENSIONS
L
W
Vishay
B
FOR 0.1 - 0.5 pF
W
A
C
FOR 0.6 - 180 pF
W
C
B
B
For PCB pad design please see assembly/reflow recommendations document 10125.
DIMENSION
L
W
T*
A
A1
B
C
D
E
INCHES
0.040 ± 0.002
0.020 ± 0.002
0.016 ± 0.004
0.006 ± 0.002
0.004 ± 0.001
0.028 ± 0.002
0.014 ± 0.002
0.008 ± 0.002
0.010 ± 0.002
MILLIMETERS
1.02 ± 0.05
0.51 ± 0.05
0.40 ± 0.10
0.15 ± 0.05
0.10 ± 0.03
0.71 ± 0.05
0.36 ± 0.05
0.20 ± 0.05
0.25 ± 0.05
D
T
A1
* For low profile versions see data sheet HPC0402B/C
SRF VS. CAPACITANCE (TYPICAL)
100
SRF (GHz)
E
10
1
0.1
1
10
CAPACITANCE (pF)
100
1000
ESR VS. FREQUENCY (TYPICAL)
1
18 pF
6.8 pF
ESR (ohms)
3.3 pF
0.1
0.01
0
500
1000
1500
FREQUENCY (MHz)
2000
2500
3000
Q VS. FREQUENCY (TYPICAL)
10 000
1000
Q FACTOR
1 pF
100
3.3 pF
6.8 pF
18 pF
10
33 pF
1
0
500
1000
1500
FREQUENCY (MHz)
2000
2500
3000
Document Number: 10117
Revision: 16-Dec-08
For technical questions, contact: siliconRFcap@vishay.com
www.vishay.com
13
Not for new designs, this product will be discontinued soon
HPC0402A
Vishay
High Performance, High Precision
Surface Mount 0402 Capacitor
CAPACITANCE RANGE AND VOLTAGE
CAPACITANCE (pF)
TOLERANCE
100 V
CODE:
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
VOLTAGE RATING AND VOLTAGE CODE
50 V
25 V
16 V
10 V
CODE:
CODE:
CODE:
CODE:
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
M
X
Y
Z
X
Y
Z
X
Y
Z
X
Y
Z
X
Y
Z
Y
Z
Y
Z
Y
Z
Y
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
6V
CODE:
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
www.vishay.com
14
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
For technical questions, contact: siliconRFcap@vishay.com
Document Number: 10117
Revision: 16-Dec-08
Not for new designs, this product will be discontinued soon
HPC0402A
High Performance, High Precision
Surface Mount 0402 Capacitor
ELECTRICAL SPECIFICATIONS
1)
CAPACITANCE
(pF)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
TOLERANC
E CODE**
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
A,B,C
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
F,G,J
SRF (GHz)
TYP.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
32.5
30.6
29.1
26.5
25.5
23.7
23.0
21.7
20.5
19.6
18.8
17.7
16.8
16.0
15.3
14.7
14.0
13.4
12.9
12.3
11.7
11.1
10.6
10.1
9.6
9.2
8.8
8.4
8.1
7.5
7.3
6.8
6.5
6.2
5.9
5.6
5.3
5.1
4.8
4.7
4.4
4.2
4.1
3.9
3.7
3.5
3.4
3.2
3.0
2.9
2.8
2.7
2.5
2.4
2.3
2.2
Ceff
Q
TYP.
200 MHz
Ceff
Q
TYP.
500 MHz
Ceff
Q
TYP.
1000 MHz
Ceff
Q
TYP.
2000 MHz
Ceff
Q
TYP.
2500 MHz
Vishay
0.80
0.90
1.00
1.20
1.30
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
5.10
5.60
6.20
6.80
7.50
8.20
9.10
10.0
11.0
12.0
13.0
15.0
16.0
18.0
20.0
22.0
24.0
27.0
30.0
33.1
36.1
39.1
43.1
47.1
51.1
56.1
62.2
68.2
75.3
82.3
91.4
100.5
110.6
120.7
130.8
151.1
161.2
181.5
12 994
12 052
11 340
10 395
9595
8316
7796
6930
6237
5670
5197
4620
4158
3780
3464
3198
2900
2654
2445
2227
2011
1834
1663
1521
1370
1247
1133
1039
959
831
779
692
623
566
519
461
415
377
346
319
290
265
244
222
201
183
166
152
136
124
113
103
95
83
77
69
0.80
0.90
1.00
1.20
1.30
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.31
4.71
5.11
5.61
6.21
6.81
7.52
8.22
9.12
10.0
11.0
12.0
13.1
15.1
16.1
18.1
20.1
22.1
24.2
27.2
30.3
33.3
36.4
39.5
43.6
47.7
51.8
56.9
63.2
69.4
76.7
84.0
93.5
103.1
113.7
124.4
135.2
157.0
168.0
190.1
3924
3639
3424
3139
2897
2511
2354
2092
1883
1711
1569
1394
1255
1141
1045
965
875
801
738
672
607
553
501
458
413
376
341
313
289
250
234
208
187
170
156
138
124
113
104
95
87
79
73
66
60
54
49
45
40
37
33
30
28
24
22
20
0.80
0.90
1.00
1.20
1.30
1.50
1.60
1.80
2.00
2.21
2.41
2.71
3.01
3.31
3.62
3.92
4.32
4.73
5.13
5.64
6.25
6.86
7.57
8.28
9.20
10.1
11.1
12.2
13.2
15.3
16.3
18.4
20.5
22.6
24.7
27.9
31.1
34.3
37.6
40.9
45.3
49.8
54.3
60.0
66.9
74.0
82.3
90.8
102.0
113.4
126.5
139.9
153.7
182.4
197.4
228.8
1392
1291
1215
1113
1028
890
835
742
667
607
556
494
444
404
370
341
310
283
261
237
214
195
177
162
145
132
120
110
101
88
82
73
65
59
54
48
43
39
36
33
30
27
25
22
20
18
16
15
13
12
11
10
9
7
7
6
0.80
0.90
1.00
1.21
1.31
1.51
1.61
1.82
2.02
2.22
2.43
2.73
3.04
3.35
3.66
3.97
4.39
4.81
5.23
5.75
6.39
7.03
7.78
8.53
9.51
10.5
11.6
12.7
13.9
16.1
17.3
19.7
22.1
24.6
27.1
31.0
35.0
39.1
43.4
47.8
54.0
60.5
67.2
76.2
87.8
100.3
116.3
134.1
160.0
190.0
229.7
278.1
338.4
518.3
661.1
439
407
383
351
324
280
263
233
210
190
174
155
139
126
116
107
96
88
81
74
66
60
54
50
45
40
36
33
31
26
24
22
19
17
16
14
12
11
10
9
8
7
6
6
5
4
4
3
3
2
2
2
1
1
1
0.80
0.91
1.01
1.21
1.31
1.52
1.62
1.82
2.03
2.24
2.44
2.76
3.07
3.38
3.70
4.02
4.44
4.87
5.30
5.84
6.50
7.16
7.94
8.73
9.76
10.8
12.0
13.2
14.4
16.9
18.1
20.8
23.5
26.3
29.2
33.7
38.6
43.7
49.1
54.8
63.1
72.1
81.9
95.6
114.6
136.9
168.6
208.6
278.8
384.9
296
275
258
236
218
189
177
157
141
128
117
104
93
85
77
71
64
59
54
49
44
40
36
33
29
27
24
22
20
17
16
14
12
11
10
8
7
7
6
5
5
4
3
3
2
2
2
1
1
1
1. 1) Additional non-standard values available on request
** A = ± 0.05; B = ± 0.10; C = ± 0.25; F = ± 1 %; G = ± 2 %; J = ± 5 %
Document Number: 10117
Revision: 16-Dec-08
For technical questions, contact: siliconRFcap@vishay.com
www.vishay.com
15
Legal Disclaimer Notice
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Document Number: 91000
Revision: 11-Mar-11
www.vishay.com
1
京公网安备 11010802033920号
EEWORLD
