595D106X0010A4W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 595D106X0010A4W

595D106X0010A4W: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507; CategoryPassive components capacitor; File Size335KB，24 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

595D106X0010A4W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507

595D106X0010A4W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	, 1507
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	1900 mΩ
high	1.4 mm
JESD-609 code	e4
leakage current	0.001 mA
length	3.7 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 13 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	200 mA
size code	1507
surface mount	YES
Delta tangent	0.06
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
width	1.8 mm

Preview

Download Datasheet

View All

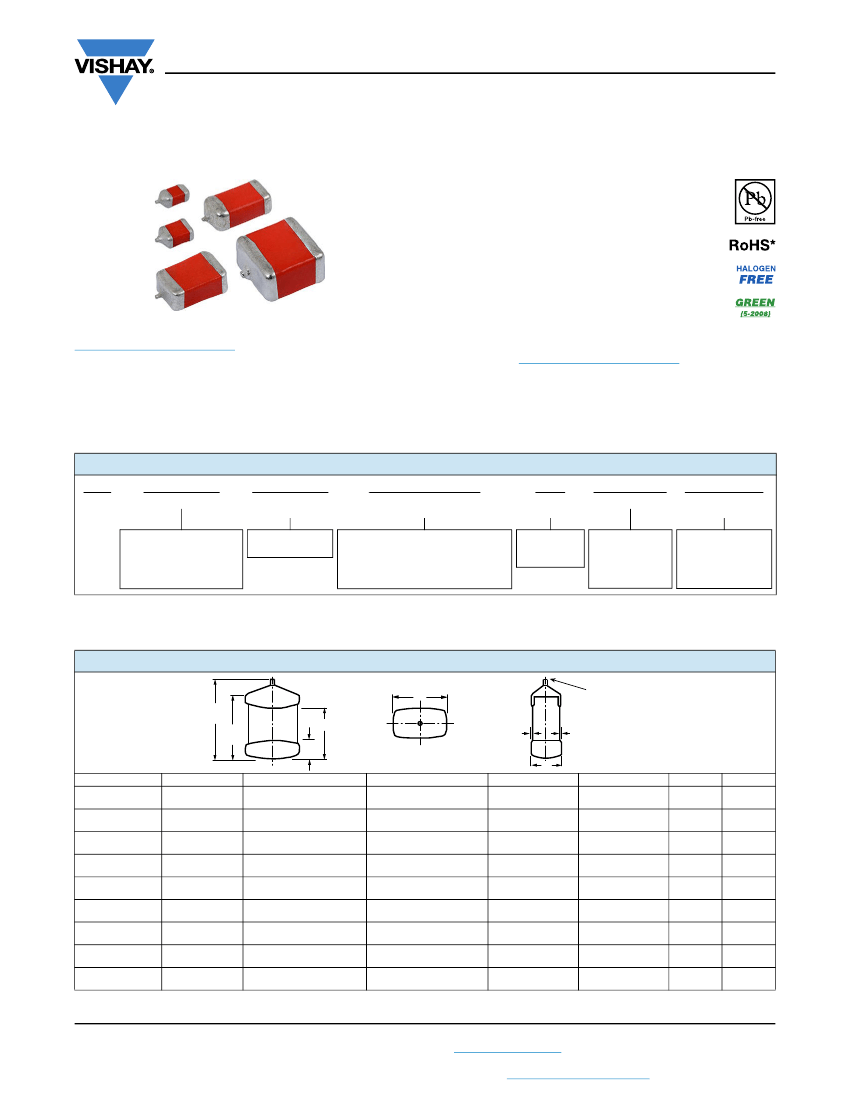

595D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors T

ANTAMOUNT

™,

Conformal Coated, Maximum CV

FEATURES

• Large capacitance rating range

• Terminations: 100 % tin (2) standard,

tin / lead available

Available

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40194

Operating Temperature:

-55 °C to +125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.1 μF to 1500 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 50 V

Moisture Sensitivity Level 2a

• 8 mm, 12 mm tape and reel packaging available

Available

per EIA 481 and reeling per IEC 60286-3.

7" [178 mm] standard. 13" [330 mm] available

Available

• Case code compatibility with EIA 535BAAC

and CECC 30801

Available

• All cases except R case are halogen-free

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

ORDERING INFORMATION

595D

TYPE

106

CAPACITANCE

This is expressed in pF.

The first two digits are

the significant figures.

The third is the number

of zeros to follow.

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

AT +85 °C

This is expressed in V.

To complete the three-digit block,

zeros precede the voltage rating.

A decimal point is indicated by an

“R” (6R3 = 6.3 V).

CASE

CODE

See Ratings

and Case

Codes table

TERMINATION

2 = 100 % tin

4 = gold plated

8 = solder

plated (60/40)

Special order

REEL SIZE AND

PACKAGING

Tape and reel

T = 7"

[178 mm] reel

W = 13"

[330 mm] reel

Note

• Preferred tolerances and reel sizes are in bold.

We reserve the right to substitute form-fit-function replacement products with higher voltage rating, tighter capacitance tolerance, lower

ESR (e.g., 594D series), or increased reliability screening (T95 series)

DIMENSIONS

in inches [millimeters]

MAX.

REF.

MAX.

Tantalum wire

nib identifies

anode (+)

terminal

MAX.

CASE CODE

L MAX.

0.087

[2.2]

0.126 ± 0.012

[3.2 ± 0.3]

0.146

[3.7]

0.142

[3.6]

0.158

[4.0]

0.281

[7.1]

0.221

[5.6]

0.293

[7.4]

0.283

[7.2]

0.045 ± 0.012

[1.1 ± 0.3]

0.063 ± 0.012

0.052 ± 0.012

[1.6 ± 0.3]

[1.3 ± 0.3]

0.072 ± 0.012

0.056 ± 0.012

[1.8 ± 0.3]

[1.4 ± 0.3]

0.106 ± 0.012

0.067 ± 0.012

[2.7 ± 0.3]

[1.7 ± 0.3]

0.110 + 0.012 / - 0.016 0.075 + 0.012 / - 0.024

[2.8 + 0.3 / - 0.4]

[1.9 + 0.3 / - 0.6]

0.126 ± 0.012

0.098 ± 0.012

[3.2 ± 0.3]

[2.5 ± 0.3]

0.144 ± 0.016

0.087 max.

[3.66 ± 0.4]

[2.2 max.]

0.170 + 0.012 / - 0.024

0.110 ± 0.012

[4.3 + 0.3 / - 0.6]

[2.8 ± 0.3]

0.235 + 0.012 / - 0.024 0.136 + 0.012 / - 0.016

[6.0 + 0.3 / - 0.6]

[3.5 + 0.3 / - 0.4]

0.016 ± 0.008

[0.4 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.042 ± 0.010

[1.07 ± 0.25]

0.078 ± 0.012

[2.0 ± 0.3]

0.085 ± 0.016

[2.2 ± 0.4]

0.080 ± 0.012

[2.0 ± 0.3]

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.133 ± 0.016

[3.4 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

D REF.

0.063

[1.6]

0.086

[2.2]

0.115

[2.9]

0.107

[2.7]

0.138

[3.5]

0.236

[6.0]

0.173

[4.4]

0.253

[6.4]

0.243

[6.2]

J MAX.

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

Note

• The anode termination (D less B) will be a minimum of 0.010" [0.25 mm]. T case = 0.005" [0.13 mm] minimum

Revision: 17-Jul-2018

Document Number: 40007

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

595D106X0010A4W Related Products

	595D106X0010A4W	595D106X0010A8W	595D106X9010A2W	595D106X9010A8W
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507	CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 10 uF, SURFACE MOUNT, 1507
capacitance	10 µF	10 uF	10 µF	10 µF
Capacitor type	TANTALUM CAPACITOR	SOLID	TANTALUM CAPACITOR	TANTALUM CAPACITOR
leakage current	0.001 mA	1uA	0.001 mA	0.001 mA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	125 °C	85 Cel	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 Cel	-55 °C	-55 °C
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
ripple current	200 mA	0.2A@100KHz	200 mA	200 mA
size code	1507	1507	1507	1507
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Is it lead-free?	Lead free	-	Lead free	Contains lead
Is it Rohs certified?	conform to	-	conform to	incompatible
Maker	Vishay	-	Vishay	Vishay
package instruction	, 1507	-	, 1507	, 1507
Reach Compliance Code	compli	-	compli	compli
ECCN code	EAR99	-	EAR99	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ	-	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
dielectric materials	TANTALUM (DRY/SOLID)	-	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
ESR	1900 mΩ	-	1900 mΩ	1900 mΩ
high	1.4 mm	-	1.4 mm	1.4 mm
JESD-609 code	e4	-	e3	e0
length	3.7 mm	-	3.7 mm	3.7 mm
negative tolerance	20%	-	10%	10%
Number of terminals	2	-	2	2
Package shape	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	-	SMT	SMT
method of packing	TR, Embossed Plastic, 13 Inch	-	TR, Embossed Plastic, 13 Inch	TR, Embossed Plastic, 13 Inch
positive tolerance	20%	-	10%	10%
Rated (DC) voltage (URdc)	10 V	-	10 V	10 V
surface mount	YES	-	YES	YES
Delta tangent	0.06	-	0.06	0.06
Terminal surface	Gold (Au)	-	Matte Tin (Sn) - with Nickel (Ni) barrie	Tin/Lead (Sn60Pb40)
width	1.8 mm	-	1.8 mm	1.8 mm
