FW-25-05-G-D-163-075 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FW-25-05-G-D-163-075

FW-25-05-G-D-163-075: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size793KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FW-25-05-G-D-163-075 Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

FW-25-05-G-D-163-075 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Objectid	1646300940
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
compound_id	56699305
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FW
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50

Preview

Download Datasheet

View All

F-209-1

FW–10–05–G–D–400–090–A

FW–25–03–G–D–163–120

FW–20–05–G–D–500–075

Surface

SMT

Mount

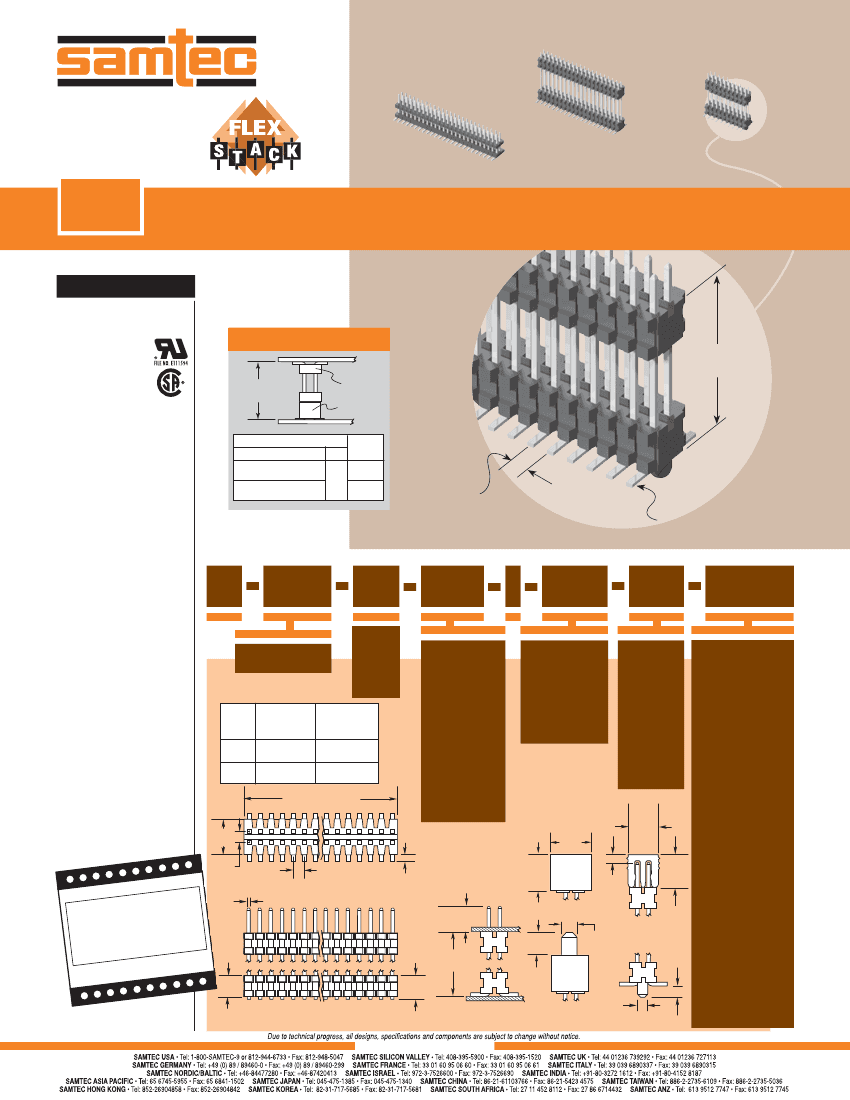

.050" BOARD STACKER

Mates with:

CLP, FFSD, FLE

Low proﬁle or

skyscraper styles

SERIES

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FW

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

1.75A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

APPLICATIONS

Variable

board spacing

Mated

Height

CLP

Lead Style

FW-XX-03-X-X-233-065

FW-XX-03-X-X-303-065

CLP

– 02

Mated

Height

(8,13)

.320

(9,91)

.390

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (02-30)

(0,15mm) .006" max (31-50)

(1,27mm x 1,27mm)

.050" x .050"

micro pitch

Surface

mount

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

STACKER

HEIGHT

POST

HEIGHT

OPTION

02 thru 50

–G

= 10µ" (0,25µm)

Gold on post,

Gold ﬂash on tail

–“XXX”

= Stacker

Height

(in inches)

Example: –250

= (6,35mm) .250"

–“XXX”

= Post Height

(in inches)

(1,65mm)

.065"

minimum

Example:

–065

= (1,65mm)

.065"

(3,45)

.136

(5,08)

.200

(4,06)

.160

LEAD STACKER

STYLE HEIGHT

–03

–05

STACKER

+ POST

–L

= 10µ" (0,25µm)

Gold on post,

Matte Tin on tail

= End Shroud

(–075 post height only.

Mate only with CLP)

(5,46mm) .215" to

(15,49mm) .610"

stacker height only

9 pins/row min.

–ES

(5,46) (8,51) (7,11) (10,16)

.215 to .335 .280 to .400

(8,64) (15,49) (10,29) (17,15)

.340 to .610 .405 to .675

–EP

= End Shroud

with Guide Post

(–075 post height only.

Mate only with CLP.)

(5,46mm) .215"

to (15,49mm .610"

stacker height only)

9 pins/row min.

–F

100

No. of positions x

(1,27) .050

= Gold ﬂash on

post, Matte Tin

on tail

(4,76)

.188

(3,42)

.135

(1,27)

.050

(1,27) .050

EL AV

TAPE & RE

AILABILITY

arges.

No tooling ch e lesser of

er is th

Minimum ordntity or 125 pieces.

a full reel quantity above minimum.

r any qu gn, manufacture.

Orde

In-house de turn-around.

Quick

tions

for specifica

Call Samtecring information.

and orde

(0,41)

.016

(1,19)

.047

POST HEIGHT

(1,65) .065

MIN

(4,27)

.168

–A

= Alignment Pin

(3 positions min.)

(5,46mm) .215" to

(15,75mm) .620" stacker

height only

(0,76)

.030

–ES

–P

STACKER

HEIGHT

(3,05)

.120

(1,91)

.075

DIA

(0,86)

.034

–P

= Pick & Place Pad

(5 positions min.)

(2,51)

.099

(2,92)

.115

–EP

Note:

This Series is

non-standard, non-returnable.

(0,89)

.035

DIA

–TR

–A

= Tape & Reel

(Post+Stacker Height =

(17,46mm) .6875 max.)

WWW.SAMTEC.COM
