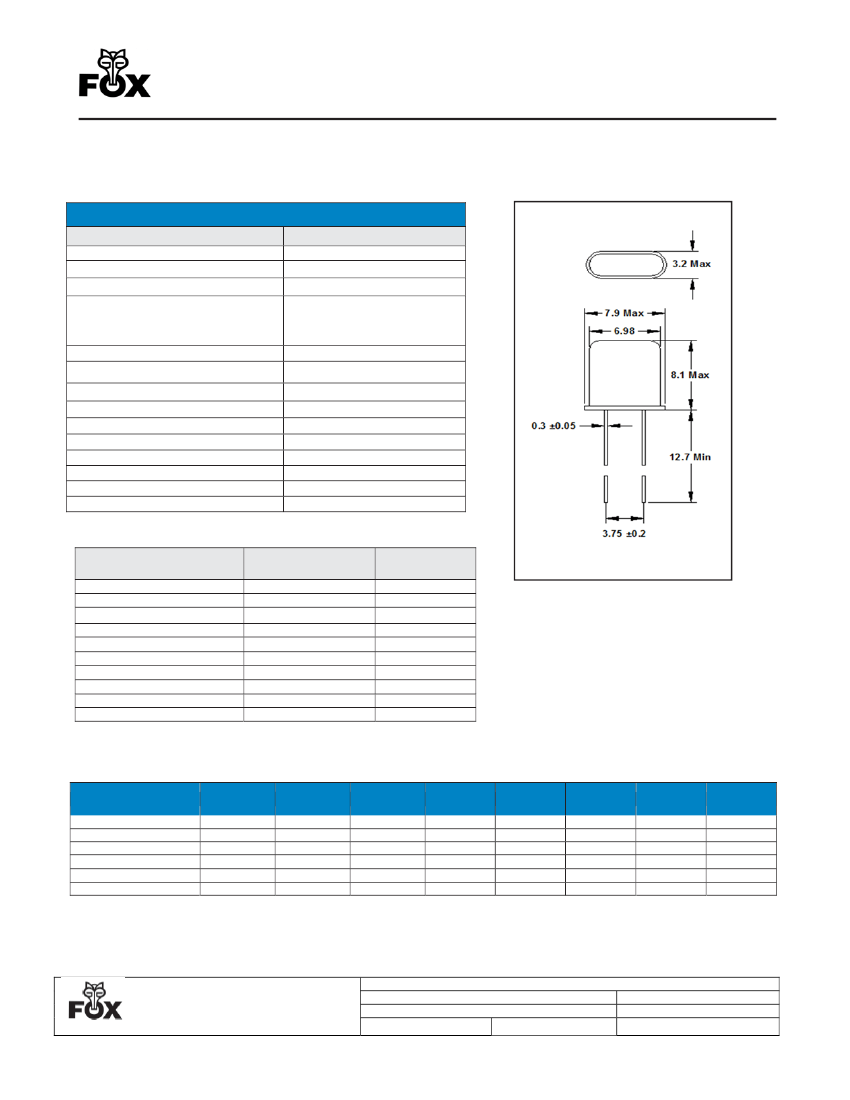

Resistance Weld Thru-Hole Crystal
•
Tolerances down to ±10 PPM
•
Stabilities down to ±5 PPM
•
Operating Temperature Range to -40ºC
~ +85ºC
C80T
(former HC80U)
DATASHEET
Page
1
of
2
• C4ST STANDARD SPECIFICATIONS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
(T
STG
)
Storage
Shunt Capacitance (Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
RoHS Compliant
MAX
(unless otherwise noted)
3.579545 ~ 200.0 MHz
(See options on page 2)
(See options below)
(See options below)
-40ºC ~ +85ºC
7pF
(See options on page 2)
1.0 mW
±3 PPM
260ºC / 10 Seconds
1
Au over Ni
Resistance Weld
Yes
Yes
Frequency Range
(MHz)
3.579545 ~ 4.0
>4.0 ~ 5.0
>5.0 ~ 6.0
>6.0 ~ 7.0
>7.0 ~ 8.0
>8.0 ~ 10.0
>10.0 ~ 11.0
>11.0 ~ 50.0
25.0 ~ 123.0
60.0 ~ 200.0
Operating
Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
5th OT
Max
ESR
Ω
300
250
180
120
100
90
60
40
60
100
All dimensions are in millimeters
.
Note: Dimensional drawing is for reference to critical specifications defined by
size measurements. Certain non-critical visual attributes may vary.
•Available Operating Temperatures and Stabilities*
Operating Temperature
0°C to +50°C
0°C to +70°C
-10°C to +60°C
-10°C to +70°C
-20°C to +70°C
-40°C to +85°C
Key: O=Available, X=Not Available
*Does not imply a stocked part.
±5 PPM
O
O
O
O
O
X
±10 PPM
O
O
O
O
O
X
±15 PPM
O
O
O
O
O
O
±20 PPM
O
O
O
O
O
O
±25 PPM
O
O
O
O
O
O
±30 PPM
O
O
O
O
O
O
±50 PPM
O
O
O
O
O
O
±100 PPM
O
O
O
O
O
O
© Copyright 2019 Fox Electronics, All rights reserved
Title / Description:
C80T STANDARD SPECIFICATIONS
Drawing Number:
Size: A
Part Number: 101540
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
04/10/2019
Resistance Weld Thru-Hole Crystal
C80T
(former HC80U)
DATASHEET
Page
2
of
2
Available Options & Part Identification for Thru-Hole Crystal C80T
1
F C80T B A A M 122.88
F
FOX
C80T
Model
Number
B
Tolerance
A=100ppm
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
A
Stability
A=100ppm
B=50ppm
C=30ppm
D=25ppm
E=20ppm
F=15ppm
H=10ppm
L=5ppm
A
Load
Capacitance
2
A=Series
G=12pF
L=18pF
M=20pF
M
Operating
Temperature
A=0 to +50C
C=0 to +70C
D=-10 to +60C
E=-10 to +70C
F=-20 to +70C
M=-40 to +85C
122.88
Frequency
(MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available.
Contact Fox Technical Support for assistance
Corporate
Headquarters
Sales
Tech Support
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
http://www.FOXONLINE.com/email
PRODUCT USE: Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox
Electronics' sole discretion. All information in this document, including descriptions of product features and performance, is subject to
change without notice. Performance specifications and the operating parameters of the described products are determined in the
independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein
is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of Fox
Electronics' products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights
of others. This document is presented only as a guide and does not convey any license under intellectual property rights of Fox Electronics
or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life support systems or
similar devices where the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or
safety of users. Anyone using a Fox Electronics product in such a manner does so at their own risk, absent an express, written agreement
by Fox Electronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice.
Other trademarks and service marks used herein, including protected names, logos and designs, are the property of Fox Electronics or
their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
