Cree
®
EZ400™ Gen II LED
Data Sheet
CxxxEZ400-Sxxx00-2
Cree’s EZBright™ LEDs are the next generation of solid-state LED emitters that combine highly efficient InGaN
materials with Cree’s proprietary optical design and device technology to deliver superior value for high-intensity LEDs.
The optical design maximizes light extraction efficiency and enables a Lambertian radiation pattern. Additionally, these
LEDs are die attachable with conductive epoxy, solder paste or solder preforms, as well as the flux eutectic method.
These vertically structured, low forward voltage LED chips are approximately 170 microns in height. Cree’s EZ™ chips
are tested for conformity to optical and electrical specifications. These LEDs are useful in a broad range of applications,
such as general illumination, automotive lighting and LCD backlighting.
FEATURES
•
EZBright Power Chip LED Rf Performance
–
–
–
•
•
•
•
•
●
90 mW min. @ 150 mA – 450 & 460 nm
75 mW min. @ 150 mA - 470 nm
25 mW min. @ 150 mA - 527 nm
APPLICATIONS
•
General Illumination
–
–
–
–
–
•
•
•
Automobile
Aircraft
Decorative Lighting
Task Lighting
Outdoor Illumination
Lambertian Radiation
Conductive Epoxy, Solder Paste or Preforms,
or Flux Eutectic Attach
Low Forward Voltage – 3.5 V Typical at 150 mA
Single Wire Bond Structure
Maximum DC Forward Current - 200 mA
Dielectric Passivation Across Epi Surface
White LEDs
Crosswalk Signals
Television Backlighting
CxxxEZ400-Sxxx00 Chip Diagram
Top View
EZBright LED Chip
380 x 380 μm
2
Backside
Metallization
Gold Bond Pad
112 μm
Dielectric Passivation
t = 170 μm
Cathode (-)
Bottom View
Die Cross Section
.-
CPR3ED Rev
Data Sheet:
Anode (+);
3 μm AuSn
Subject to change without notice.
www.cree.com
1
Maximum Ratings at T
A
= 25°C
Note 1
DC Forward Current
Peak Forward Current
LED Junction Temperature
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Typical Electrical/Optical Characteristics at T
A
= 25°C, If = 150 mA
Part Number
Forward Voltage (V
F
, V)
Min.
C450EZ400-Sxxx00-2
C460EZ400-Sxxx00-2
C470EZ400-Sxxx00-2
C527EZ400-Sxxx00-2
Mechanical Specifications
Description
P-N Junction Area (µm)
Chip Area (µm)
Chip Thickness (µm)
Top Au Bond Pad Diameter (µm)
Au Bond Pad Thickness (µm)
Back Contact Metal Area (µm)
Back Contact Metal Thickness (µm)
3.1
3.1
3.1
3.2
Typ.
3.5
3.5
3.5
3.7
Max.
4.1
4.1
4.1
4.2
Note 2
CxxxEZ400-Sxxx00-2
200 mA
350 mA
Note 3
145°C
5 V
-40°C to +100°C
-40°C to +120°C
Reverse Current
[I(Vr=5 V), μA]
Max.
2
2
2
2
Full Width Half Max
(λ
D
, nm)
Typ.
20
21
24
35
CxxxEZ400-Sxxx00-2
Dimension
350 x 350
380 x 380
170
112
3.0
380 x 380
3.0
Tolerance
±40
±40
±25
±15
±1.0
±40
±1.0
Notes:
1. Maximum ratings are package-dependent. The above ratings were determined using a Au-plated TO39 header without an
encapsulant for characterization. Ratings for other packages may differ. The junction temperature should be characterized in a
specific package to determine limitations. Assembly processing temperature must not exceed 325°C (< 5 seconds). See Cree
EZBright Applications Note for assembly-process information.
2. All products conform to the listed minimum and maximum specifications for electrical and optical characteristics when assembled
and operated at 150 mA within the maximum ratings shown above. Efficiency decreases at higher currents. Typical values
given are within the range of average expected by the manufacturer in large quantities and are provided for information only.
All measurements were made using a Au-plated TO39 header without an encapsulant. Optical characteristics measured in an
integrating sphere using Illuminance E.
3. This peak forward current specification is based on a 400-ms pulse width at a 1/5-duty cycle with a junction temperature of
65°C.
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the
Cree logo are registered trademarks, and EZBright, EZ, and EZ400 are trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com
2
CPR3ED Rev. -
Standard Bins for CxxxEZ400-Sxxx00-2
LED chips are sorted to the
radiant flux
and
dominant wavelength
bins shown. A sorted die sheet contains die
from only one bin. Sorted die kit (CxxxEZ400-Sxxx00-2) orders may be filled with any or all bins (CxxxEZ400-0xxx-2)
contained in the kit. All radiant flux and all dominant wavelength values shown and specified are at If = 150 mA. Radiant
flux values are measured using Au-plated TO39 headers without an encapsulant.
C450EZ400-S09000-2
Radiant Flux
C450EZ400-0213-2
C450EZ400-0214-2
C450EZ400-0215-2
C450EZ400-0216-2
120 mW
C450EZ400-0209-2
C450EZ400-0210-2
C450EZ400-0206-2
C450EZ400-0211-2
C450EZ400-0207-2
C450EZ400-0212-2
C450EZ400-0208-2
105 mW
C450EZ400-0205-2
90 mW
445 nm
447.5 nm
450 nm
Dominant Wavelength
C460EZ400-S09000-2
452.5 nm
455 nm
Radiant Flux
C460EZ400-0213-2
C460EZ400-0214-2
C460EZ400-0215-2
C460EZ400-0216-2
120 mW
C460EZ400-0209-2
C460EZ400-0210-2
C460EZ400-0206-2
C460EZ400-0211-2
C460EZ400-0207-2
C460EZ400-0212-2
C460EZ400-0208-2
105 mW
C460EZ400-0205-2
90 mW
455 nm
457.5 nm
460 nm
Dominant Wavelength
C470EZ400-S07500-2
462.5 nm
465 nm
Radiant Flux
C470EZ400-0209-2
C470EZ400-0210-2
C470EZ400-0211-2
C470EZ400-0212-2
105 mW
C470EZ400-0205-2
C470EZ400-0206-2
C470EZ400-0202-2
C470EZ400-0207-2
C470EZ400-0203-2
C470EZ400-0208-2
C470EZ400-0204-2
90 mW
C470EZ400-0201-2
75 mW
465 nm
467.5 nm
470 nm
Dominant Wavelength
C527EZ400-S2500-2
472.5 nm
475 nm
Radiant Flux
C527EZ400-0207-2
C527EZ400-0208-2
C527EZ400-0209-2
50 mW
C527EZ400-0204-2
C527EZ400-0205-2
C527EZ400-0202-2
C527EZ400-0206-2
C527EZ400-0203-2
40 mW
C527EZ400-0201-2
25 mW
520 nm
525 nm
530 nm
535 nm
Dominant Wavelength
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the
Cree logo are registered trademarks, and EZBright, EZ, and EZ400 are trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com
3
CPR3ED Rev. -
Dominant Wavel
2
1
0
-1
-2
25
50
75
100
125
150

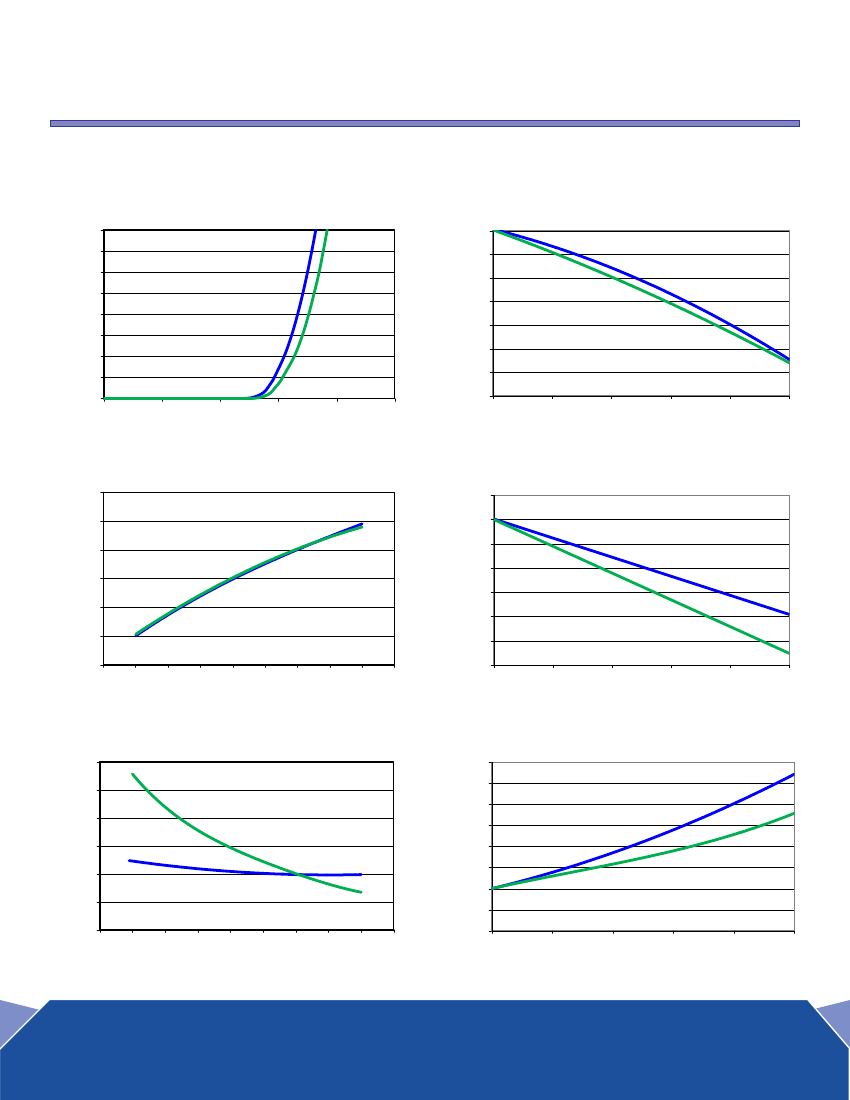

Characteristic Curves
Junction Temperature (°C)
These are representative measurements for the EZBright400. Actual curves will vary slightly for the various radiant flux
and dominant wavelength bins.
Forward Current vs. Forward Voltage
200
100%
Relative Light Intensity vs Junction Temperature
175
150
Relative Light Intensity
95%
90%
85%
80%
If (mA)
125
100
75
50
25
0
75%
70%
65%
0
1
2
3
4
5
25
50
75
100
125
150
Vf (V)
Junction Temperature (°C)
Relative Intensity vs. Forward Current
150%
150%
125%
Relative Intensity vs. Forward Current
0.100
Voltage Shift vs Junction Temperature
Relative Intensity
Relative Intensity
125%
100%
100%
75%
75%
50%
50%
25%
Mean(Vf Shift)
Voltage Shift (V)
0
0
25
25
50
50
75
75
100
125
150
150
175
175
200
200
225
225
100
(mA)
125
If
0.000
-0.100
-0.200
-0.300
-0.400
-0.500
-0.600
25
50
75
100
125
150
25%
0%
0%
If (mA)
Mean(Vf Shift)
EZ400
Junction Temperature (°C)
Wavelength Shift vs. Forward Current
16
12
Dominant Wavelength Shift vs Junction Temperature
Dominant Wavelength Shift (nm)
200
200
225
225
6
5
4
3
16
Wavelength Shift vs. Forward Current
DW Shift (nm)
DW Shift (nm)
12
8
8
4
2
1
0
4
0
0
-4
-4
-8
-8
-1
-2
25
50
75
100
125
150
0
0
25
25
50
50
75
75
100
125
150
150
175
175
100
(mA)
125
If
Junction Temperature (°C)
If (mA)
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
Junction Temperature
www.cree.com
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the
Cree logo are registered trademarks, and EZBright, EZ, and EZ400 are trademarks of Cree, Inc.
Relative Light Intensity vs
4
CPR3ED Rev. -
100%

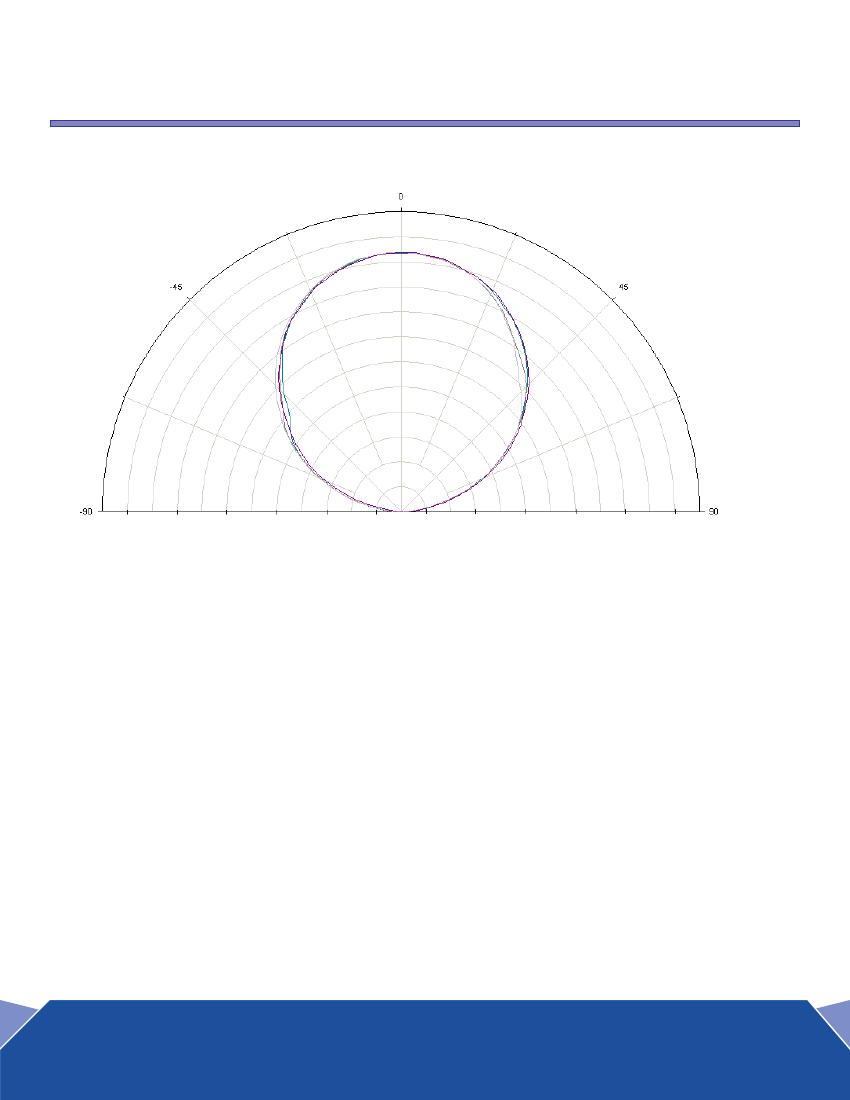

Radiation Pattern
This is a representative radiation pattern for the EZBright Power Chip LED product. Actual patterns will vary slightly for
each chip.
Copyright © 2009 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree and the
Cree logo are registered trademarks, and EZBright, EZ, and EZ400 are trademarks of Cree, Inc.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
www.cree.com
5
CPR3ED Rev. -
