94268-108LF datasheet, PDF - EEWORLD Datasheet

94268-108LF: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

94268-108LF Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
Objectid	2145326791
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	57356251
Other features	ROHS COMPLIANT & BAG PACKAGING
body width	0.165 inch
subject depth	0.157 inch
body length	0.315 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7514 N
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	94268
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

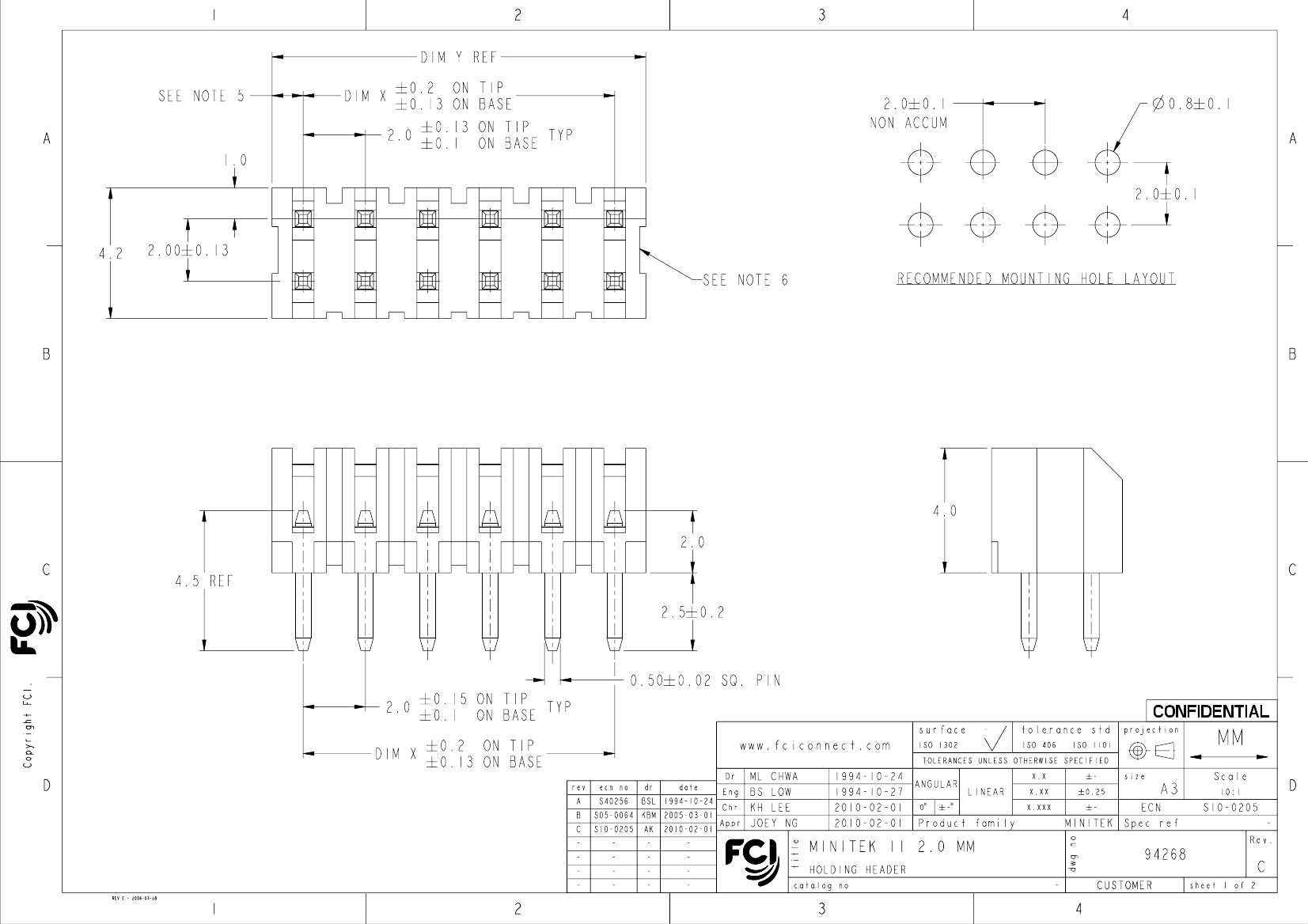

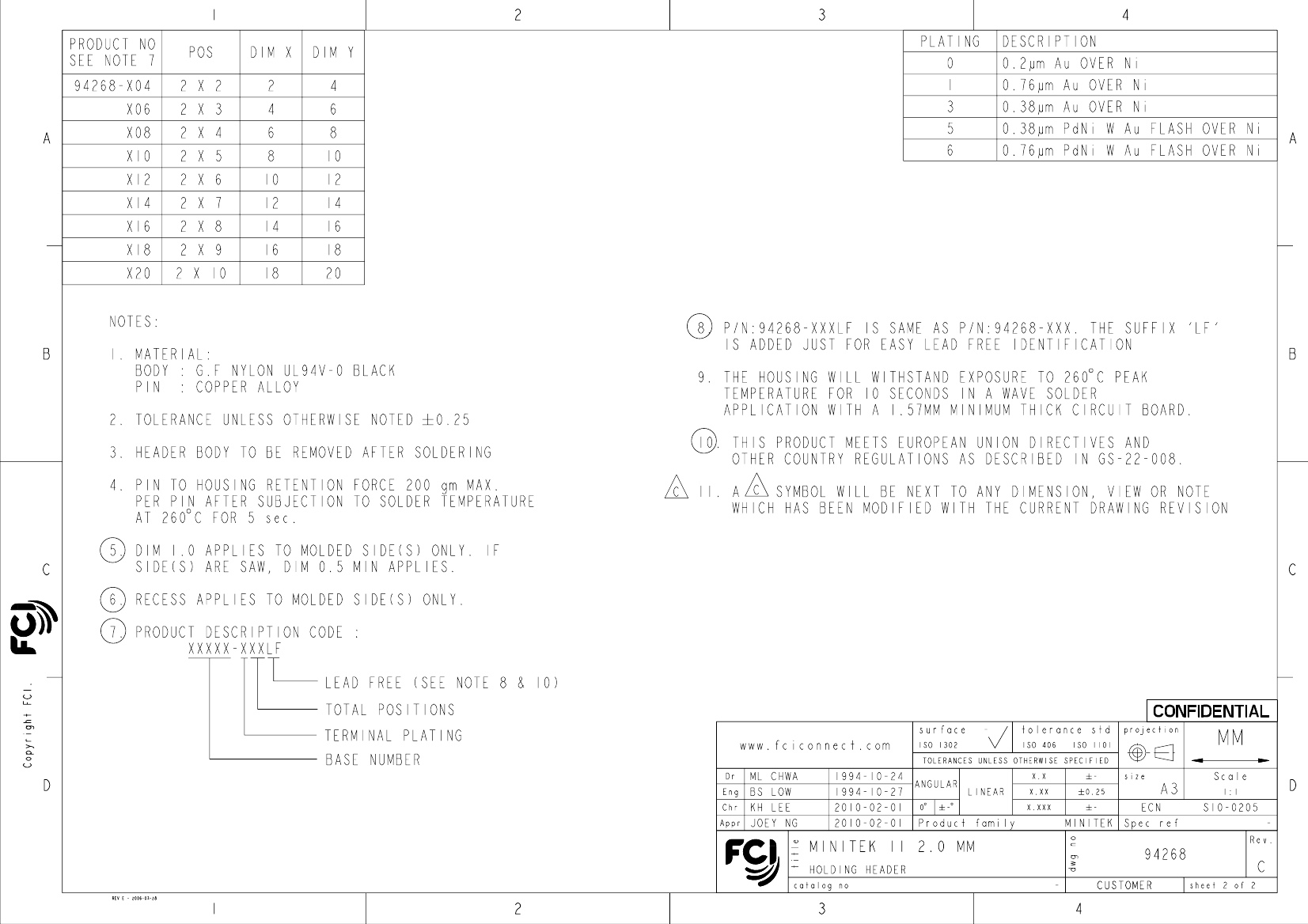

PDM: Rev:C

STATUS:

Released

Printed: Oct 12, 2010
