R1210N271C-TR-FE

Description
Switching Regulator, 0.4A, 120kHz Switching Freq-Max, CMOS, PDSO5, HALOGEN FREE AND ROHS COMPLIANT, SOT-23, 5 PIN
CategoryPower/power management    The power supply circuit
File Size163KB,2 Pages
ManufacturerRICOH Electronic Devices Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

R1210N271C-TR-FE Online Shopping

Suppliers Part Number Price MOQ In stock
R1210N271C-TR-FE - - View Buy Now

R1210N271C-TR-FE Overview

Switching Regulator, 0.4A, 120kHz Switching Freq-Max, CMOS, PDSO5, HALOGEN FREE AND ROHS COMPLIANT, SOT-23, 5 PIN

R1210N271C-TR-FE Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRICOH Electronic Devices Co., Ltd.
Parts packaging codeSOT-23
package instructionSOT-23, 5 PIN
Contacts5
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage8 V
Nominal input voltage6.5 V
JESD-30 codeR-PDSO-G5
JESD-609 codee3
length2.9 mm
Humidity sensitivity level1
Number of functions1
Number of terminals5
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current0.4 A
Nominal output voltage2.7 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
Maximum seat height1.3 mm
surface mountYES
Switch configurationBOOST
Maximum switching frequency120 kHz
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.6 mm

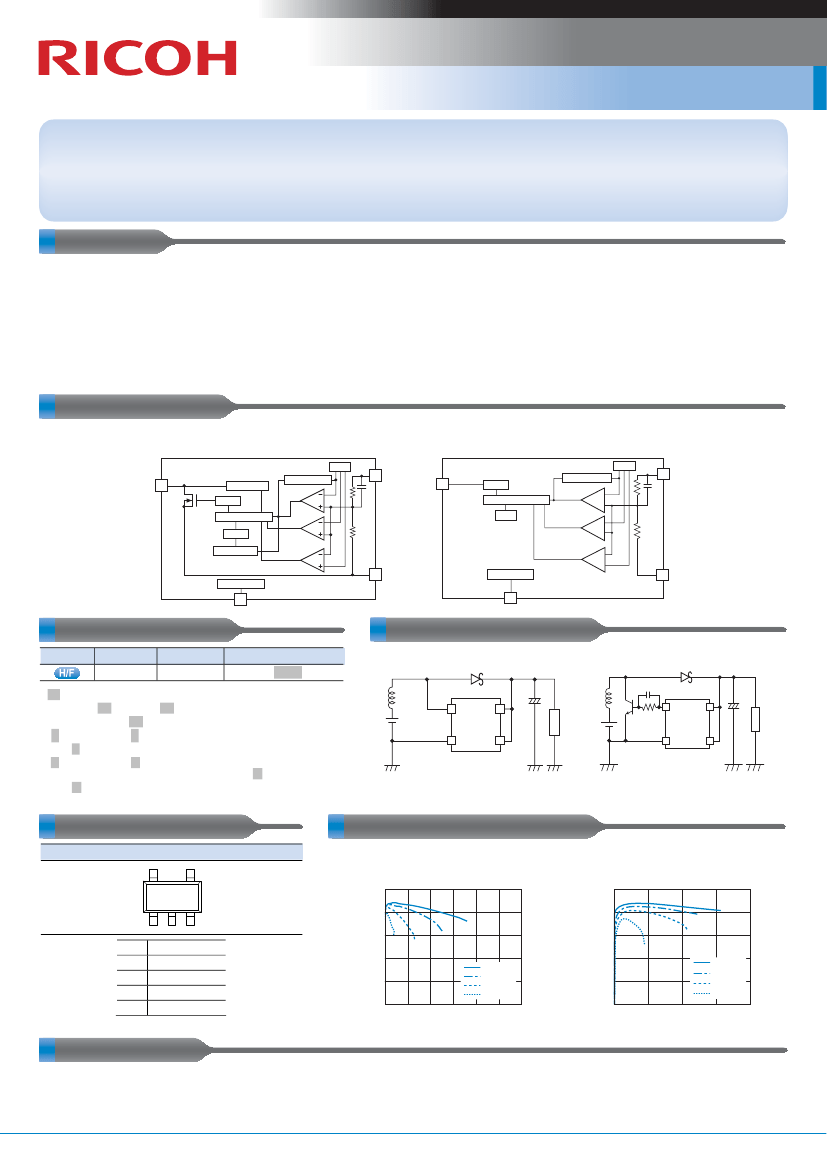

R1210N Series
8V Input PWM Step-up DC/DC Converter
The R1210N Series are low supply current, CMOS-based PWM step-up DC/DC converters. By simply using an inductor, a diode, and a
capacitor as external components, a high-efficiency step-up DC/DC converter can be easily configured. The xx1 version with an
internal output transistor and the xx2 version with an external transistor are available. The oscillator frequency can be selected from
100kHz or 180kHz. The xx1A version is also available, which contains a basic frequency changeover circuit that switches the
oscillator frequency from 100kHz to 35kHz when output load is reduced. R1210N also has a function that detects drastic changes in
output voltage and reduces the amount of overshoot/undershoot by switching control mode.
FEATURES
Supply Current (I
DD1
)·············· Typ. 35μA (R1210N301, 100kHz), Typ. 60μA (R1210N301, 180kHz)
Supply Current (I
DD2
)·············· Typ. 10μA (V
OUT
=SET V
OUT
+0.5V, 100kHz)
(V
OUT
=SET V
OUT
×
0.96)
Typ. 20μA (R1210N302, 100kHz), Typ. 25μA (R1210N302, 180kHz)
Typ. 15μA (Same as the above, 180kHz)
Standby Current (I
standby
) ········ Max. 0.5μA (In standby)
Input Voltage Range (V
IN
) ······ Max. 8.0V
Start-up Voltage (V
start
)··········· Max. 0.9V (xx1 Version), 0.8V(xx2 Version)
Output Voltage Range (V
OUT
) ··· 2.2V to 6.0V (internally fixed) (2.2V to 3.5V for xx1A)
Output Voltage Accuracy ·······
±
2.5%
Oscillator Frequency (f
osc
) ·············· 100kHz (xx1A/xx1C/xx2C Version),
Basic Frequency Change-over Circuit ···· 100kHz
35kHz
180kHz (xx1D/xx2D Version)
(only xx1A Version)
Oscillator Maximum Duty Cycle (Maxduty)····· Typ. 85%
Efficiency········································ Typ. 88% (R1210N301,
V
IN
=1.8V, I
OUT
=10mA)
Package ········································· SOT-23-5
BLOCK DIAGRAMS
R1210Nxx1x
(Internal output transistor type)
Vref
L
X
5
V
LX
limiter
Buffer
PWM Controller
OSC
fosc Control
4 GND
Chip Enable
1
CE
Chip Enable
R1210Nxx2x
(External transistor type)
Vref
Phase Comp.
2 V
OUT
EXT
5
Buffer
PWM Controller
OSC
Phase Comp.
-
+
-
+
-
+
2
V
OUT
4
GND
1
CE
SELECTION GUIDE
Halogen Free Package Q'ty per Reel
Part No.
SOT-23-5 3,000 pcs R1210N.xx∗$ -TR-FE
.xx.
: Specify the output voltage within the range of
2.2V (.22.) to 6.0V (.60.) in 0.1V steps.
(up to 3.5V (.35.) for xx1A)
.
.
: Select from (.1.) internal output transistor type or
(.2.) external transistor type.
.$.
: Select from (.A.) oscillator frequency 100kHz, built-in
basic frequency change-over circuit, (.C.) 100kHz or
(.D.) 180kHz.
(R1210Nxx2A-TR-F is not available.)
TYPICAL APPLICATIONS
R1210Nxx1x
SD
Cb
R1210Nxx2x
SD
L
LOAD
5
L
Rb
4
V
IN
4
GND CE
1
V
IN
GND CE
1
L : 100μH, SD : MA721, C
L
: 22μF×2
L : 27μH, SD : RB491D, Tr : 2SD1628G,
C
L
: 47μF×2, Rb : 300Ω, Cb : 0.01μF
PACKAGE (Top View)
SOT-23-5
5
4
TYPICAL CHARACTERISTICS
R1210N301C
Efficiency vs. Output Current
100
80
Efficiency
η
(%)
R1210N302C
Efficiency vs. Output Current
100
80
Efficiency
η
(%)
L:100μH
L:27μH
1
2
3
60
40
20
0
60
40
20
0
V
IN
=2.5V
V
IN
=2.0V
V
IN
=1.5V
V
IN
=0.9V
0
200
400
600
Output Current I
OUT
(mA)
800
1
2
3
4
5
CE
V
OUT
NC
GND
L
X
or EXT
V
IN
=2.5V
V
IN
=2.0V
V
IN
=1.5V
V
IN
=0.9V
0
50
100
150
200
250
300
Output Current I
OUT
(mA)
APPLICATIONS
Power source for battery-powered equipment
Power source for hand-held communication equipment, cameras, and VCRs
Power source for equipment that requires the voltage greater than the battery voltage
No.EK-067-111001
Step-up DC/DC Converter
LOAD
L
X
V
OUT
2
C
L
Tr
5
EXT V
OUT
2
C
L
