Part Number

Search

84646-1003

Description
Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,
CategoryThe connector    The connector
File Size327KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

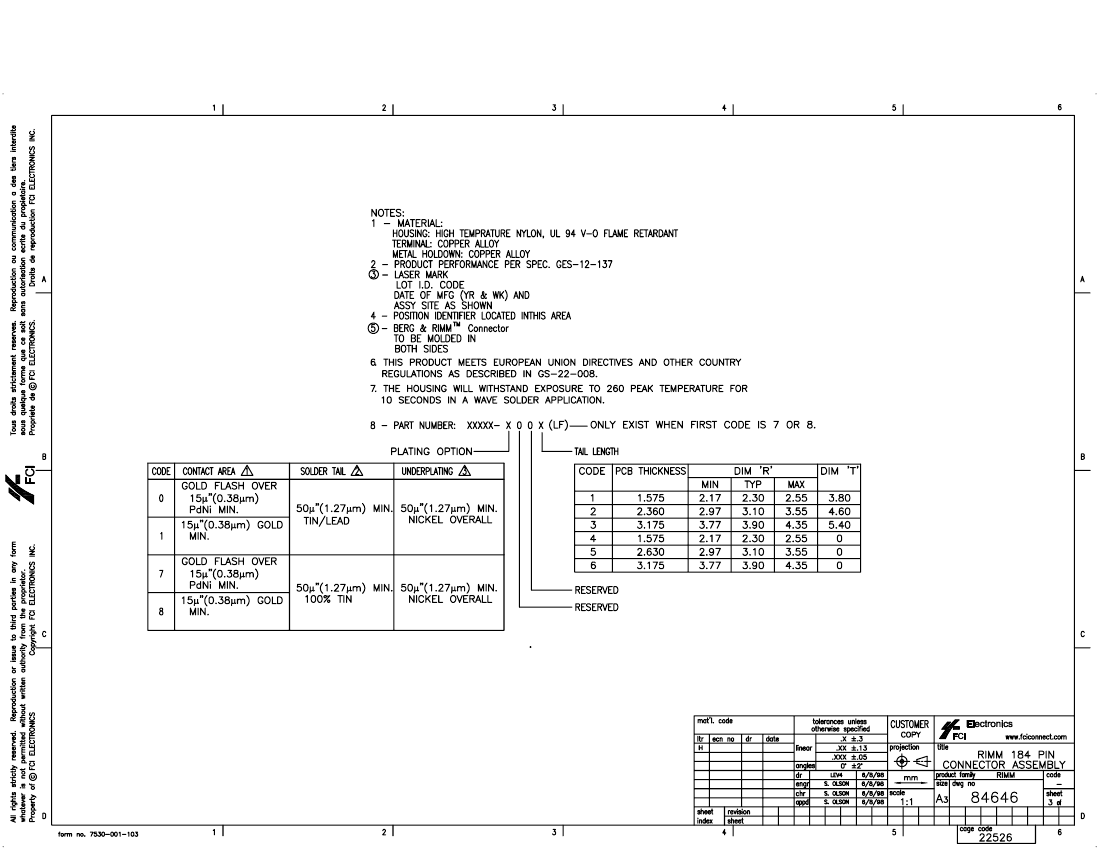

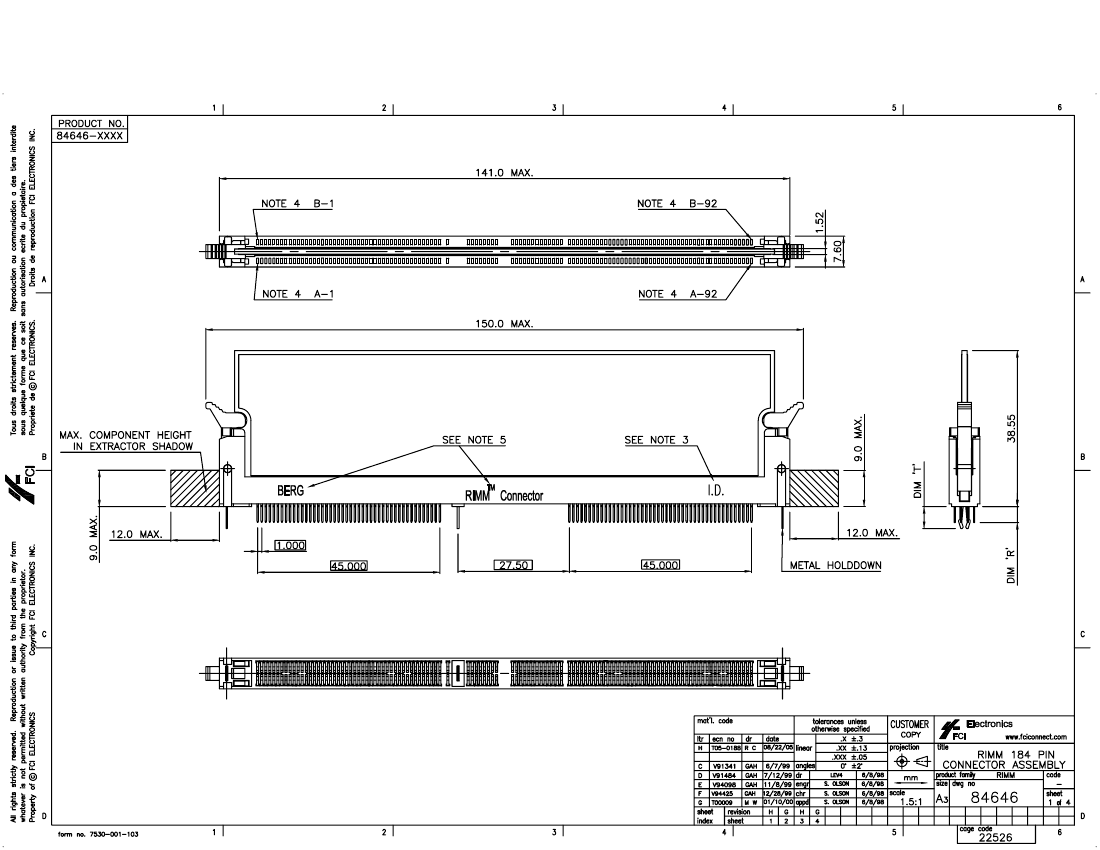

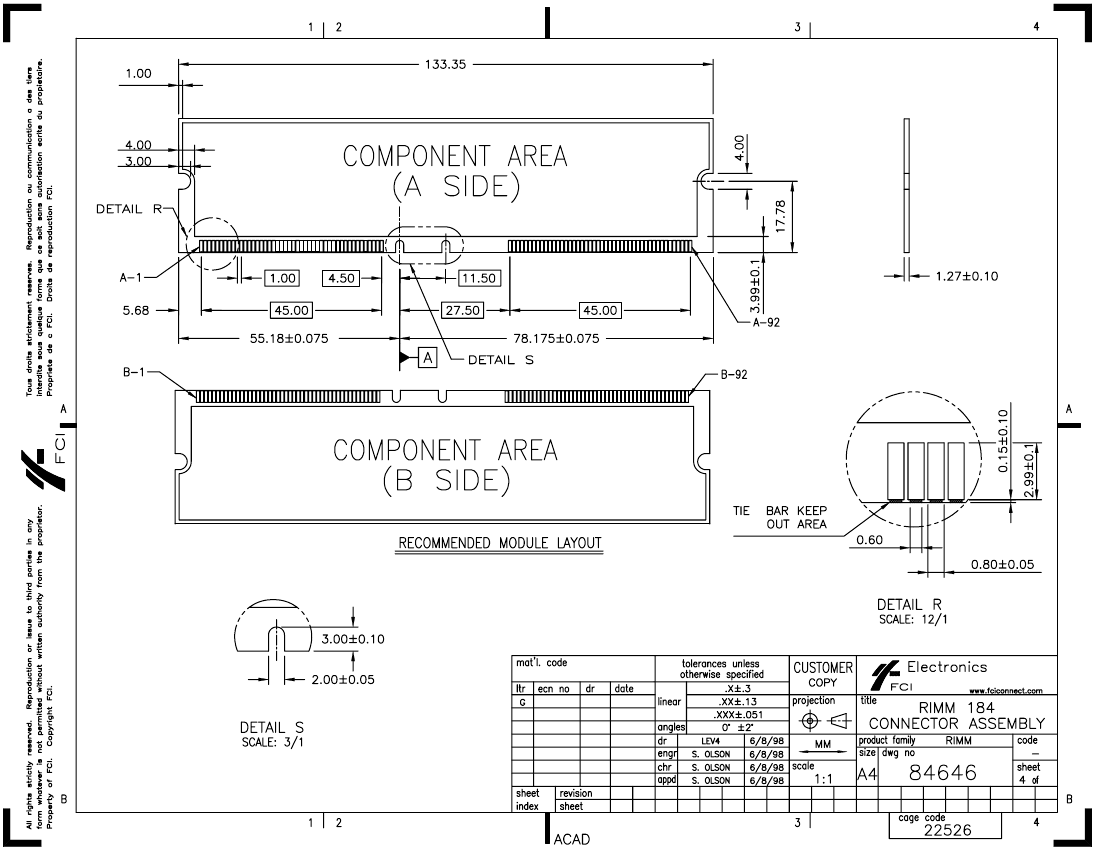

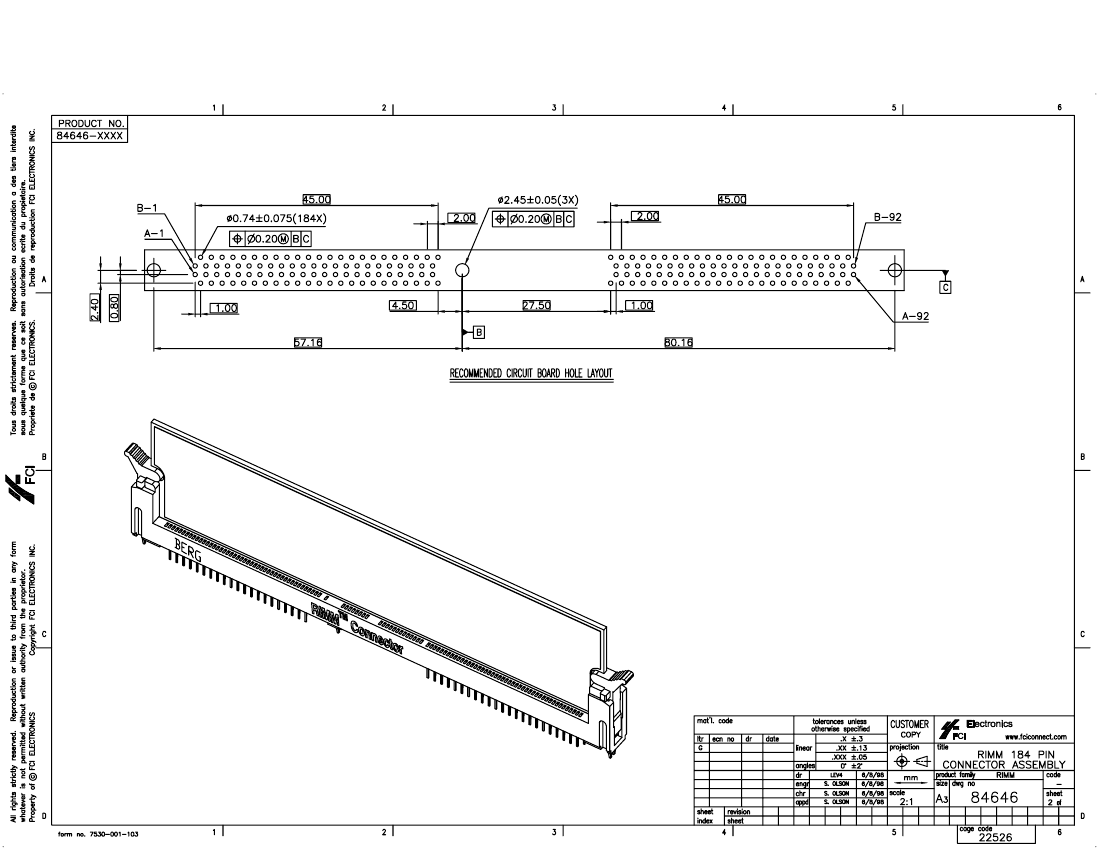

84646-1003 Overview

Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,

84646-1003 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresRIMM, LATCHED
Board mount optionsSPLIT BOARD LOCK
body width0.299 inch
subject depth1.453 inch
body length5.906 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN LEAD (50) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceLIF N
Insulation resistance1000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number84646
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing0.063 mm
Plating thickness15u inch
polarization keyCTR W/GUIDE SLOTS
Rated current (signal)0.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.154 inch
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts184
UL Flammability Code94V-0
Evacuation force-minimum valueLIF N
PDM: Rev:H
STATUS:
Released
Printed: Jan 23, 2010
.
