ECJ1VB1E154M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> ECJ1VB1E154M

ECJ1VB1E154M: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 6.3 V, X5R, 1 uF, SURFACE MOUNT, 0402; CategoryPassive components; File Size312KB，6 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

ECJ1VB1E154M Overview

CAPACITOR, CERAMIC, MULTILAYER, 6.3 V, X5R, 1 uF, SURFACE MOUNT, 0402

ECJ1VB1E154M Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	6.3 V
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	DISCONTINUED
terminal coating	MATTE Tin OVER Nickel
Installation features	surface mount
Manufacturer Series	ECJ
size code	0402
capacitance	1 uF
packaging shape	Rectangular PACKAGE
Capacitor type	ceramics
Terminal shape	WRAPAROUND
Temperature Coefficient	15%
Temperature characteristic code	×5R
multi-layer	Yes

Preview

Download Datasheet

View All

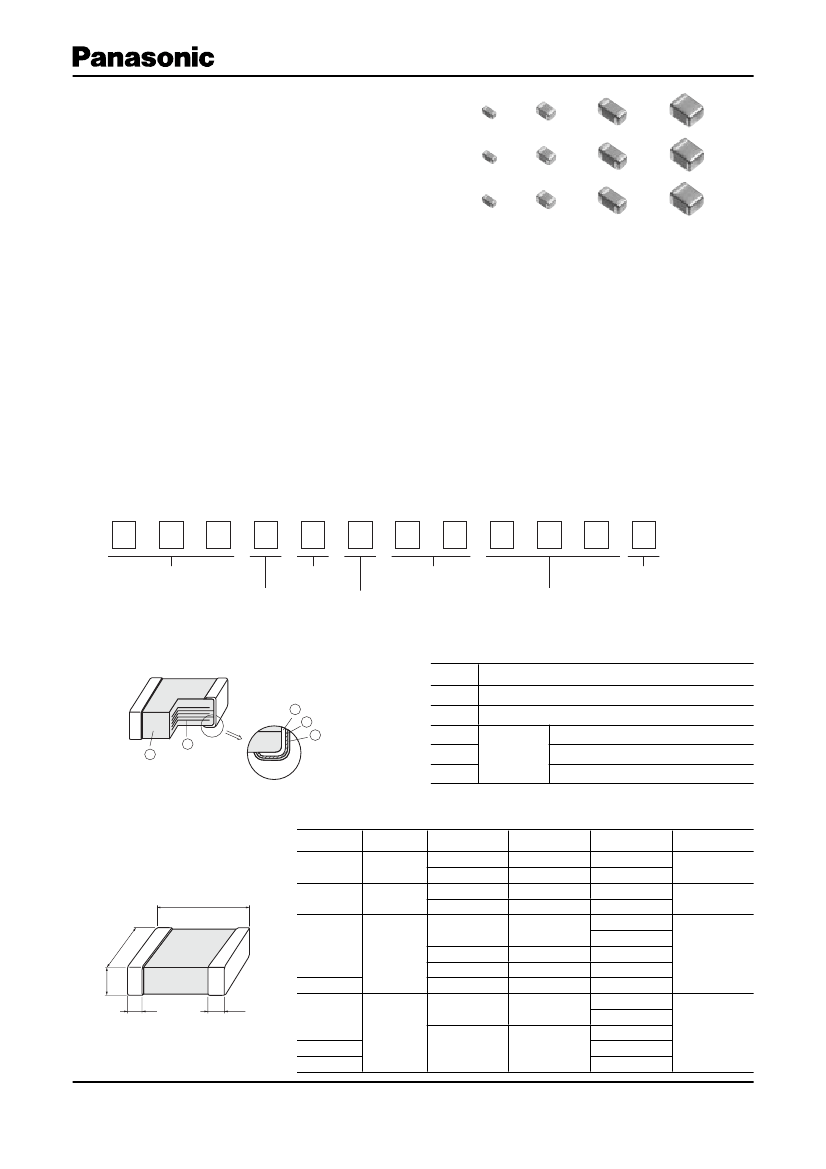

Multilayer Ceramic Capacitors(High Capacitance)

Multilayer Ceramic Capacitors

(High Capacitance)

Series:

ECJ

■

Features

●

Small size and high capacitance

●

Low ESR/ESL and excellent high-frequency characteristics

●

Ideal alternative to TANTALUM CHIP CAPACITORS

and ALUMINUM ELECTROLYTIC CAPACITORS

●

RoHS compliant

■

Recommended Applications

●

Class 2 (Hi-K Type)

· Power supply circuitry decoupling applications

DC-DC converter power supply circuitry of the

high-speed LSI smoothing circuit

■

Handling Precautions

See Page 48 to 53

■

Packaging Speciﬁcations

See Page 45, 46, 56

■

Discontinued / Revised Part Numbers,

Alternative Part Numbers

See Page 54, 55

■

Explanation of Part Numbers

(Example)

Product Code

(ECJ:Multilayer Ceramic

Chip Capacitors)

Packaging

Rated Voltage Code

Style Code

Size Code

Temperature

Characteristic Code

Capacitance

Tolerance Code

Nominal Capacitance

■

Construction

Name

Ceramic dielectric

Internal electrode

Terminal

electrode

Substrate electrode

Intermediate electrode

External electrode

■

Dimensions in mm (not to scale)

Size Code Size (EIA)

0402

0603

1.00±0.05

1.00

+0.15

–0.05

1.6±0.1

1.60±0.15

2.0±0.1

0.50±0.05

0.50

+0.15

–0.05

0.8±0.1

0.80±0.15

1.25±0.10

1.25±0.15

1.25±0.20

1.25±0.15

1.60±0.15

1.6±0.2

0805

2.00±0.15

2.0±0.2

2.00±0.15

3.20±0.15

1206

3.2±0.2

0.50±0.05

0.50

+0.15

–0.05

0.8±0.1

0.80±0.15

0.85±0.10

1.25±0.10

1.25±0.15

1.25±0.20

0.85±0.10

1.15±0.10

1.6±0.2

0.85±0.10

1.15±0.10

, L

0.2±0.1

0.3±0.2

0.50±0.25

0.6±0.3

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

02 Dec. 2008

– EC2 –
