Small Signal Field-Effect Transistor, 0.42A I(D), 240V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Zetex Semiconductors |
| Objectid | 1407999353 |
| package instruction | CYLINDRICAL, O-MBCY-W3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| compound_id | 10915403 |
| Configuration | SINGLE |
| Minimum drain-source breakdown voltage | 240 V |
| Maximum drain current (Abs) (ID) | 0.42 A |
| Maximum drain current (ID) | 0.42 A |
| Maximum drain-source on-resistance | 16 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-39 |
| JESD-30 code | O-MBCY-W3 |
| JESD-609 code | e0 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | 235 |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 5 W |
| Maximum power dissipation(Abs) | 5 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Maximum time at peak reflow temperature | 10 |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |

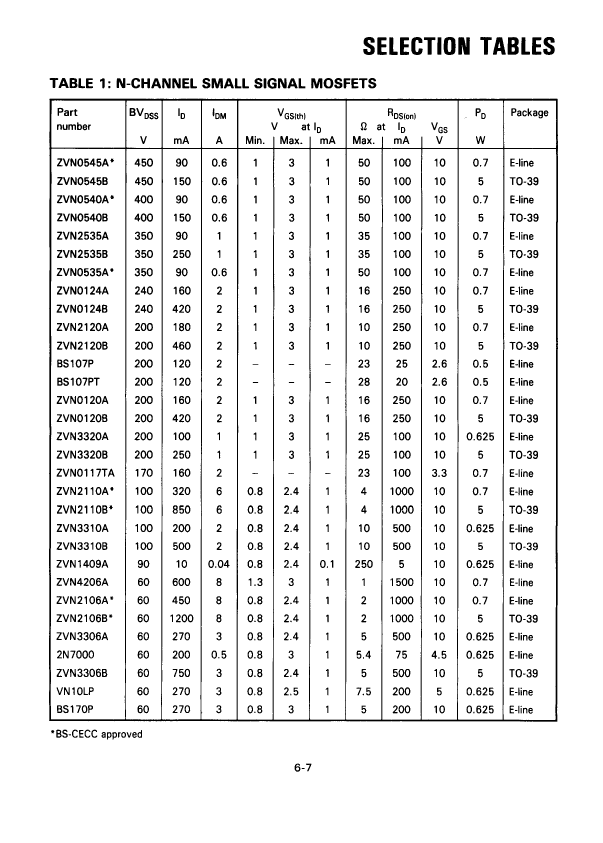

| ZVN0124B | ZVN0540B | ZVN0545B | ZVN2106B | ZVN2120B | ZVN3306B | |
|---|---|---|---|---|---|---|
| Description | Small Signal Field-Effect Transistor, 0.42A I(D), 240V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 | Small Signal Field-Effect Transistor, 0.15A I(D), 400V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 | Small Signal Field-Effect Transistor, 0.15A I(D), 450V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 | Small Signal Field-Effect Transistor, 1.2A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 | Small Signal Field-Effect Transistor, 0.46A I(D), 200V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 | Small Signal Field-Effect Transistor, 0.75A I(D), 60V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-39 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Zetex Semiconductors | Zetex Semiconductors | Zetex Semiconductors | Zetex Semiconductors | Zetex Semiconductors | Zetex Semiconductors |
| package instruction | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 | CYLINDRICAL, O-MBCY-W3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum drain-source breakdown voltage | 240 V | 400 V | 450 V | 60 V | 200 V | 60 V |
| Maximum drain current (Abs) (ID) | 0.42 A | 0.15 A | 0.15 A | 1.2 A | 0.46 A | 0.75 A |
| Maximum drain current (ID) | 0.42 A | 0.15 A | 0.15 A | 1.2 A | 0.46 A | 0.75 A |
| Maximum drain-source on-resistance | 16 Ω | 50 Ω | 50 Ω | 2 Ω | 10 Ω | 5 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-39 | TO-39 | TO-39 | TO-39 | TO-39 | TO-39 |
| JESD-30 code | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 | O-MBCY-W3 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | 235 | 235 | 235 | 235 | 235 | 235 |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum power consumption environment | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Maximum power dissipation(Abs) | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 | 10 | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
