LPC-B26TM2G3 datasheet, PDF - EEWORLD Datasheet

LPC-B26TM2G3: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

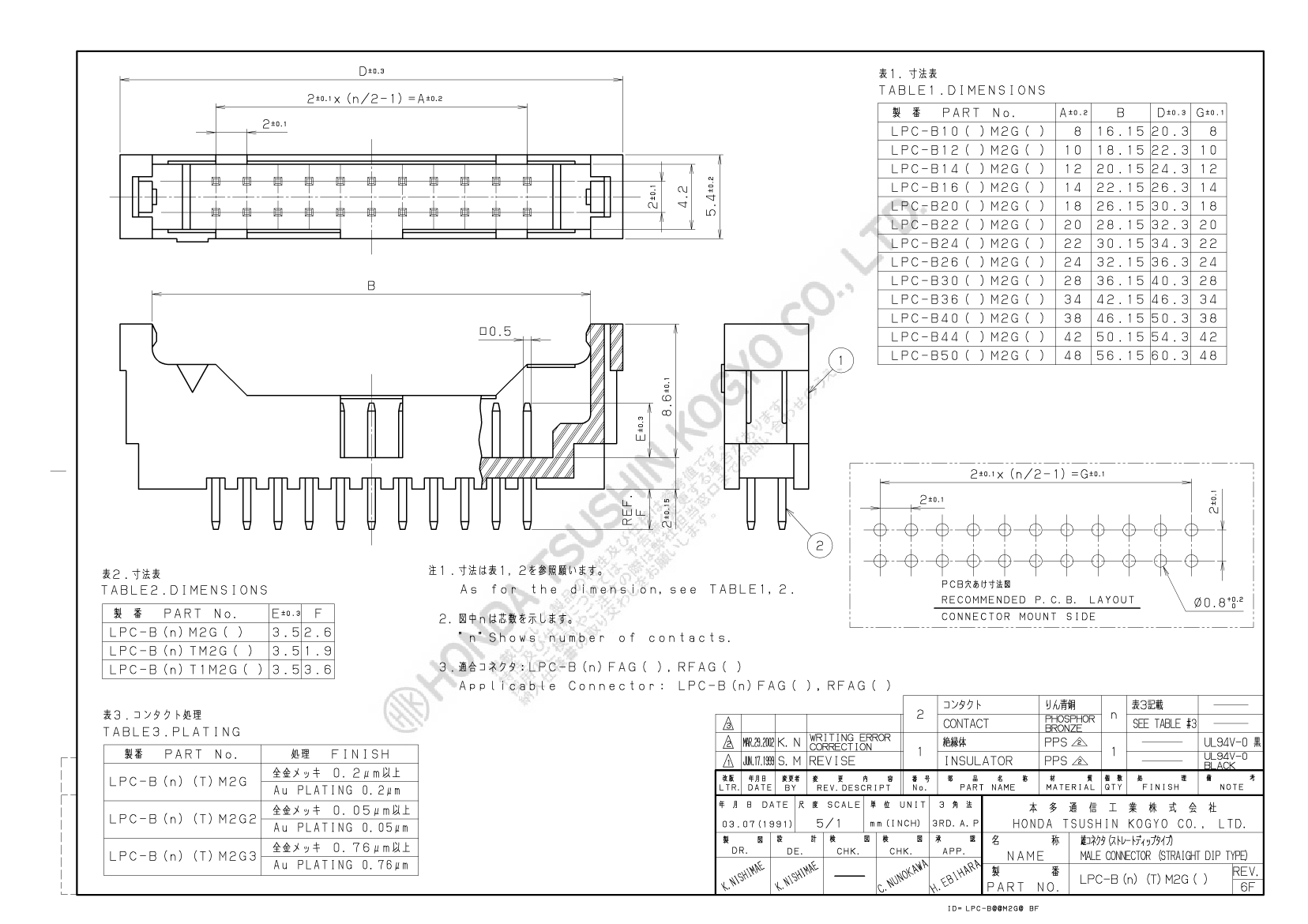

LPC-B26TM2G3 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Objectid	1939856893
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	62334615
Other features	NONE
body width	0.213 inch
subject depth	0.417 inch
body length	1.429 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
