DFN14-OFREQXB50 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFN14-OFREQXB50

DFN14-OFREQXB50: DescriptionClipped Sine Output Oscillator, 16MHz Min, 175MHz Max, DIP-4; CategoryPassive components oscillator; File Size24KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFN14-OFREQXB50 Overview

Clipped Sine Output Oscillator, 16MHz Min, 175MHz Max, DIP-4

DFN14-OFREQXB50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	175 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	50 Ω
Output level	0.6363 V
physical size	20.3mm x 12.7mm x 7mm
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

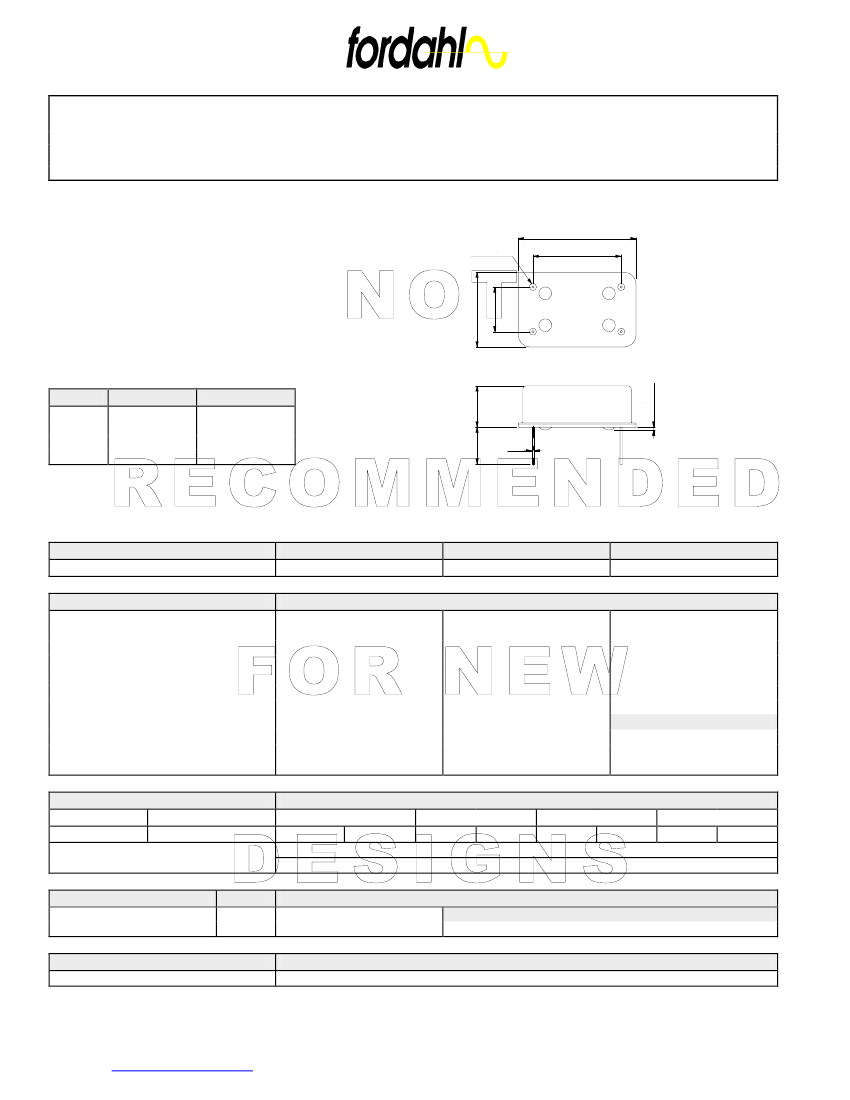

FREQUENCY CONTROL PRODUCTS

ECL, PECL & CLIPPED SINE WAVE CLOCK OSCILLATORS

TYPES DFN 14-E & DFN 14-O

ECL 10KH OR CLIPPED SINE WAVE OUTPUT

NEGATIVE OR POSITIVE SUPPLY VOLTAGE

PIN 1

20.3± 0.1

15.24

OPTIONAL COMPLEMENTARY OUTPUTS

7.62

STANDARD DIL 14 PACKAGE

VARIOUS PIN-OUT OPTIONS

12.7± 0.1

DFN 14-E

NC/Output B

Vee

Output A

GND

NC/Output B

GND

Output A

Vcc

H = 7.00 mm

6.3

H± 0.1

DFN 14-O/EC

0.45

TYPE

Frequency Range

ELECTRICAL SPECIFICATIONS

supply voltage

supply current

output load

duty cycle (ECL / PECL @ 50 % level)

rise/fall times (20 to 80 %)

high/low levels/output amplitude

start up

DFN 14-E

16 to 175 MHz

DFN 14-EC

16 to 175 MHz

-5.2 V ± 5 %

≤

50 mA

ECL 10KH (50

Ω

to -2 V)

40/60...60/40 %

≤

2 ns

≥

-1.0 V/

≤

-1.6 V

≤

10 ms @ -4.94 V

5V±5%

≤

50 mA

PECL 10 KH (50

Ω

to 3 V)

40/60...60/40 %

≤

2 ns

≥

3.97 V/

≤

3.45 V

≤

10 ms @ 4.75 V

0.75± 0.1

DFN 14-O

16 to 175 MHz

5V±5%

≤

50 mA

Ω,

square wave,

AC coupled

40/60...60/40 % @ 0 V

0 dBm ± 2 dB

≤

10 ms @ 4.75 V

FREQUENCY STABILITY

types

temperature range stability

all types

remarks

0 to 70°C

≤ ±

code

stability [ ppm ] and temperature code

stability code

stability

code

XB20

XB25

XB50

≤ ±

100 XB100

for codes XB20 and XB25 > 80 MHz please consult factory

stability includes calibration at 25°C, temperature, ageing, Vcc and load changes 1 yr.

OPTIONS

inverted pin-out

complementary output

CODE

pin 14 : Vee, pin 7 : GND

180° phase shifted

ORDERING CODE

Example

type + option code + frequency + temperature code

DFN 14-EC 77.760 MHz XB20
