GF063PKB100K: DescriptionTrimmer, Cermet, 0.5W, 10ohm, 250V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 2720, 1/4 INCH, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size130KB，5 Pages; ManufacturerTokyo Cosmos Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

GF063PKB100K Overview

Trimmer, Cermet, 0.5W, 10ohm, 250V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 2720, 1/4 INCH, SQUARE, 3 PINS

GF063PKB100K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Tokyo Cosmos Electric Co., Ltd.
package instruction	PCB Mount, 2720
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Top Adjust
Lead length	5 mm
Manufacturer's serial number	GF063-K
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	5.5 mm
Package length	6.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	5 mm
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	10 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	250 deg
series	GF063PK
size code	2720
surface mount	NO
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal shape	FLAT
Tolerance	10%
Operating Voltage	250 V

Preview

Download Datasheet

View All

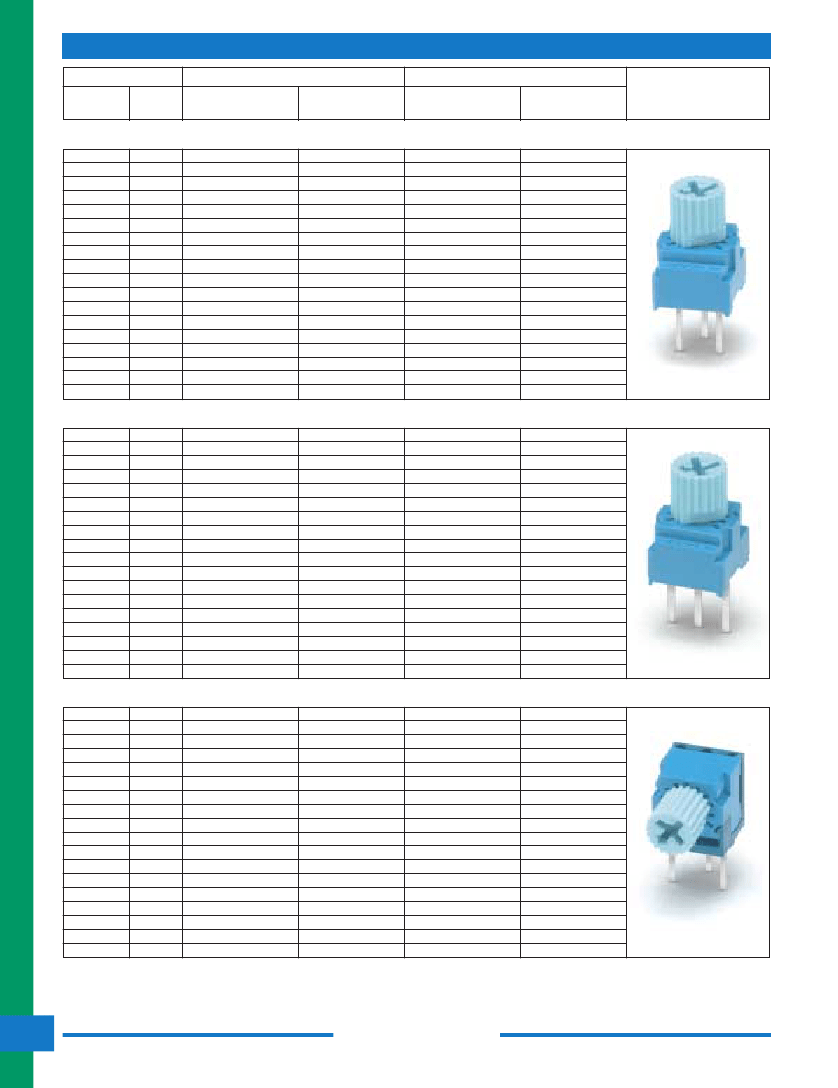

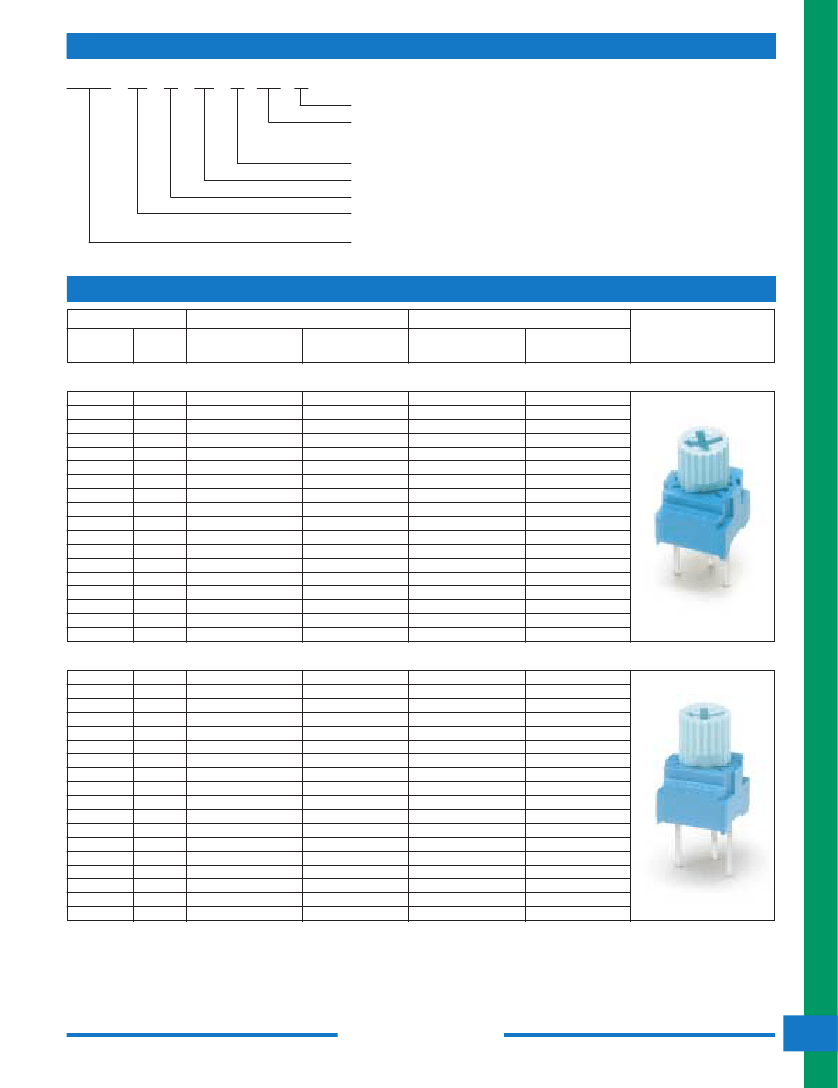

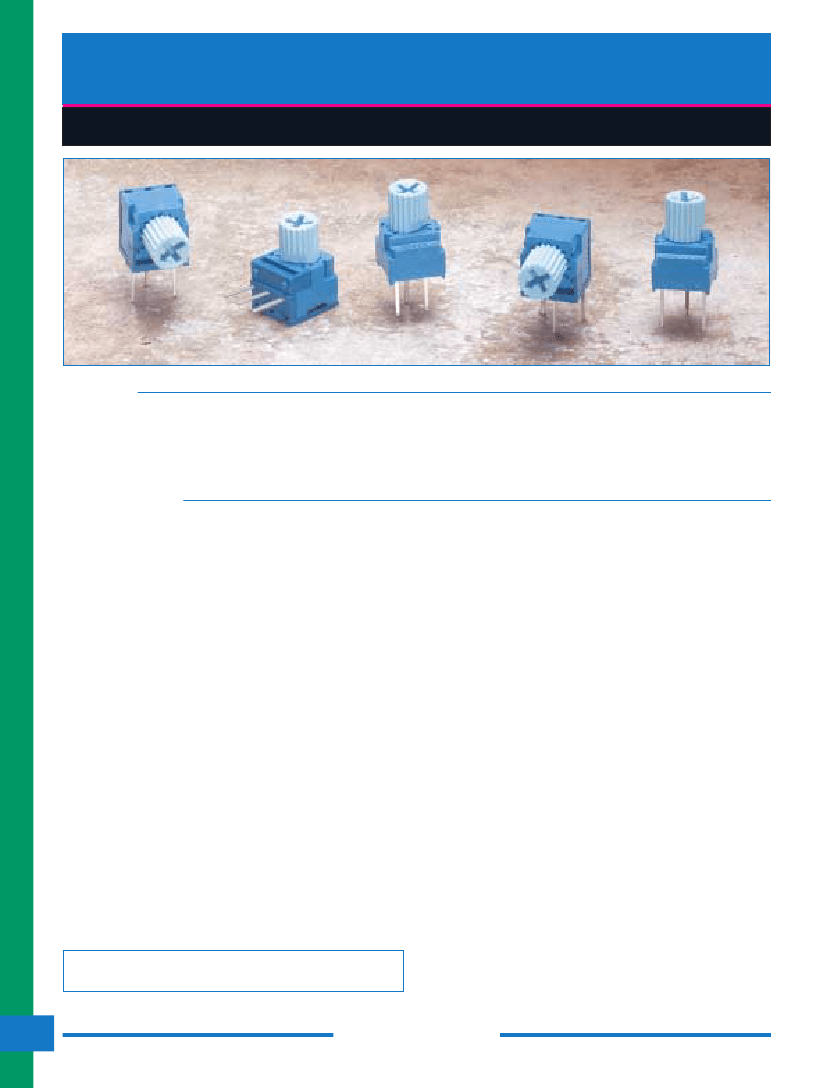

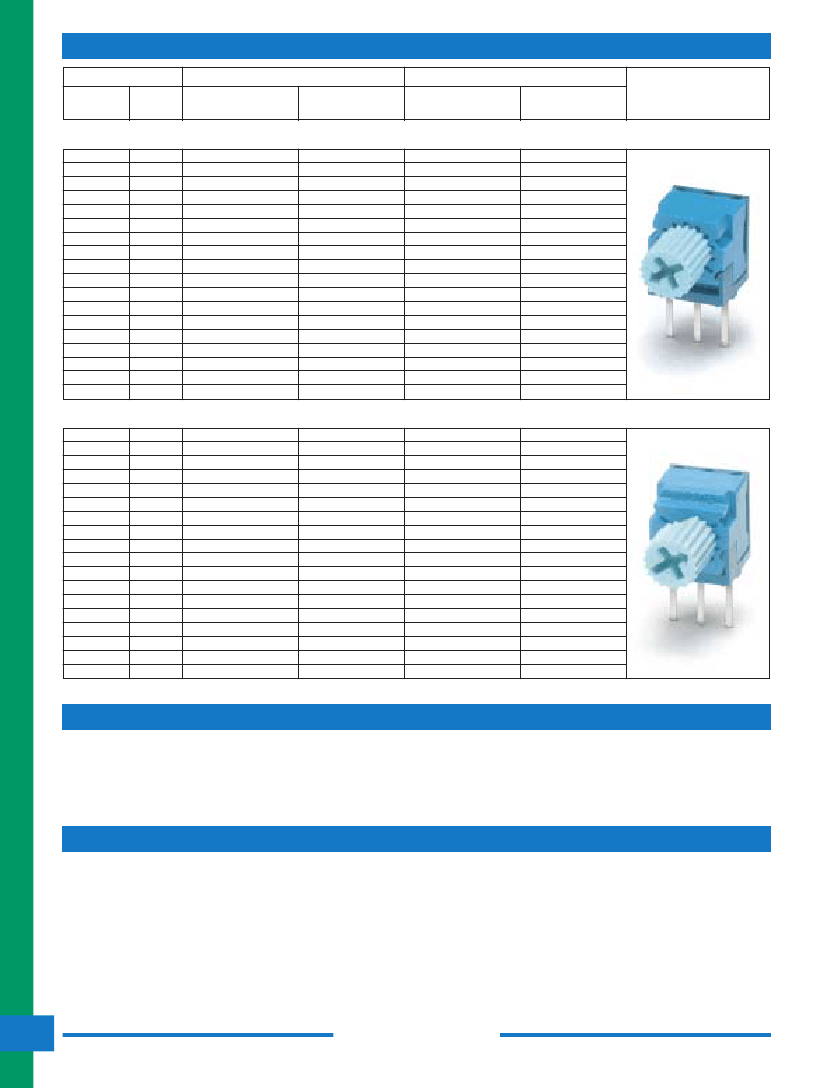

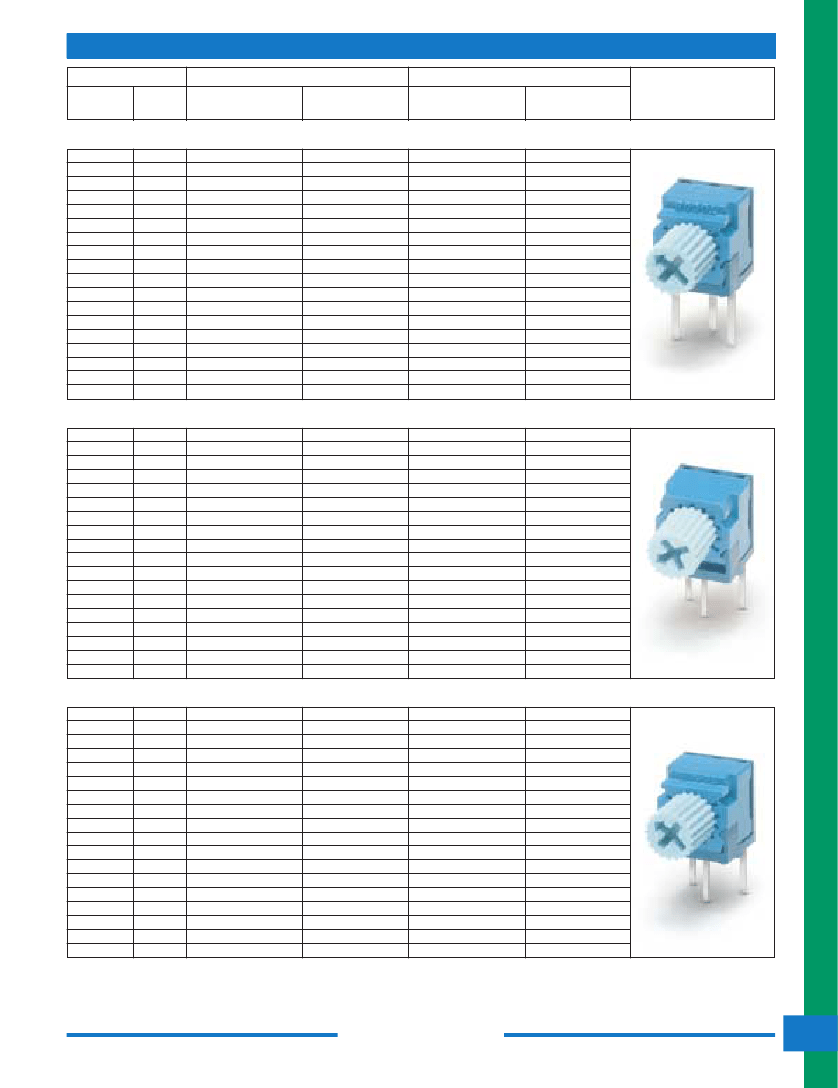

GF063-K

Series

with Knob

TOCOS

POTENTIOMETERS

1/4’’ Square, Single-Turn, Through-Hole Sealed Cermet Trimmers

Features

1/4” square, single-turn, through-hole, sealed cermet trimmers

Top and side adjust styles available

Knob on all models for convenient fingertip adjustment

Same design and housing sizes as GF063 series

Precious metal, multi-contact wiper design

Meets UL 94V-0 flammability requirements

Sealed to withstand immersion cleaning processes

Tape and ammo box available for PK, P1K and UK models

Specifications

Electrical

Standard Resistance Range

. . . . . . . . . . . . . . 10Ω to 5MΩ

(standard 1, 2 & 5 sequence )

Resistance Tolerance

. . . . . . . . . . . . . . .

10% and

20%

End Resistance

. . . . . . . . . . 1% or 1Ω, whichever is greater

Resistance Taper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear

Peak Noise (C.R.V.)

. . . . . . . 1% or 1Ω, whichever is greater

Power Rating

. . . . . . . . 0.5 watt at

70 C, 0 watt at

125 C

Maximum Input Voltage

. . . . . . . . 250VDC or power rating,

whichever is smaller

Temperature Coefficient

. . . . . . . . . . . . . . . .

100ppm / C

Insulation Resistance

. . . . . 1,000MΩ minimum at 500VDC

Dielectric Strength

. . . . . . . . . . . . . . . . . 900VAC, 1 minute

Adjustment Travel

. . . . . . . . . . . . . . . . . . . . . . . . . 210

Environmental

Temperature Range

. . . . . . . . . . . . . . . . .

55 C to

125 C

Low Temperature Operation

. . . . 55 C, 0.5 watt, 2 hours

∆T/R

)

2%, S.S.

)

High Temperature Exposure

. . . . . . . . . 125 C, 250 hours

∆T/R

)

2%, S.S.

)

Load Life

. . . . . . . . . . . . . . . . .

70 C, 0.5 watt, 1,000 hours

∆T/R

)

3%, S.S.

)

Thermal Shock

. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,

30 minutes each, 5 cycles

∆T/R

)

1%, S.S.

)

Shock

. . . . . . . . . . . . 100G, 6ms, 6 directions, 3 times each

∆T/R

)

1%, S.S.

)

Vibration

. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,

20G, 12 hours

)

1%, S.S.

)

∆T/R

Humidity

. . . . . . . . . . . . . . . . . . . . . . . .

40 C, 90-95%RH,

0.5 watt, 500 hours

∆T/R

)

3%, S.S.

)

Mechanical

Mechanical Travel

. . . . . . . . . . . . . . . . . . . . . . . . . 250

Shaft Torque

. . . . . . . . . . . . . . 200 gf

•

cm (2.77 oz

•

in) max.

Stop Strength

. . . . . . . . . . . . . . 500 gf

•

cm (6.93 oz

•

in) min.

Flammability of Plastic Materials

. . . . . . . Meets UL 94V-0

Nominal Weight

. . . . . . . . . . . . . . 0.54g (PK, P1K, WK, UK )

0.64g (SK, S1K, XK, X1K, VK, V1K )

Marking

. . . . . . . . . Resistance code, date code, model type

Moisture Resistance

. . . . . .

10 C to 65 C, 80-98%RH,

0.5 watt, 10 cycles, 240 hours

∆T/R

)

Soldering Heat Resistance

. . . . . . . . . . . 350 C, 3 seconds

∆T/R

)

Seal Test

. . . . . . . . . . . . . . . . . 85 C, hot water for 1 minute

Rotational Life

. . . . . . . . . . 100 cycles without discontinuity

∆T/R

)

(2Ω 3%)

∆T/R

= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )

All GF063-K models are available without knobs.

Refer to GF063 Series on page 56.
