DS1844-10: DescriptionDigital Potentiometer, CMOS, PDIP8,; CategoryAnalog mixed-signal IC converter; File Size1MB，14 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1844-10 Overview

Digital Potentiometer, CMOS, PDIP8,

DS1844-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/5 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

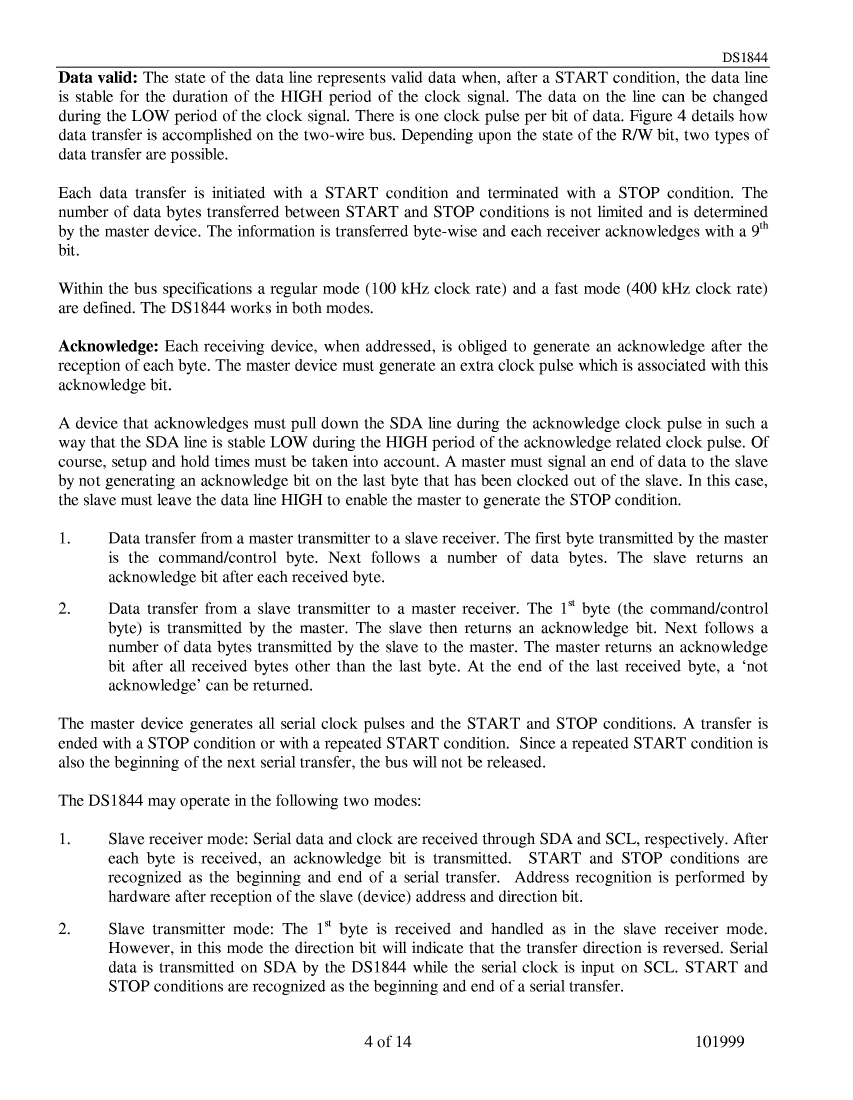

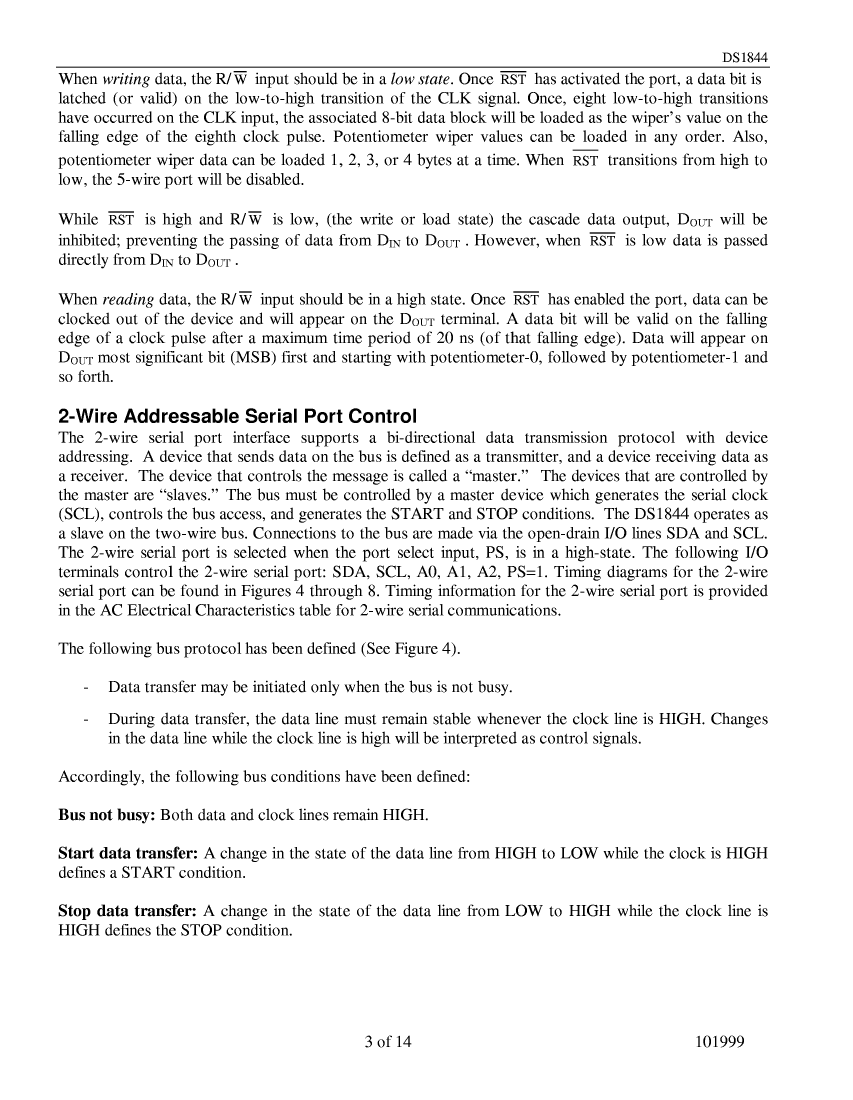

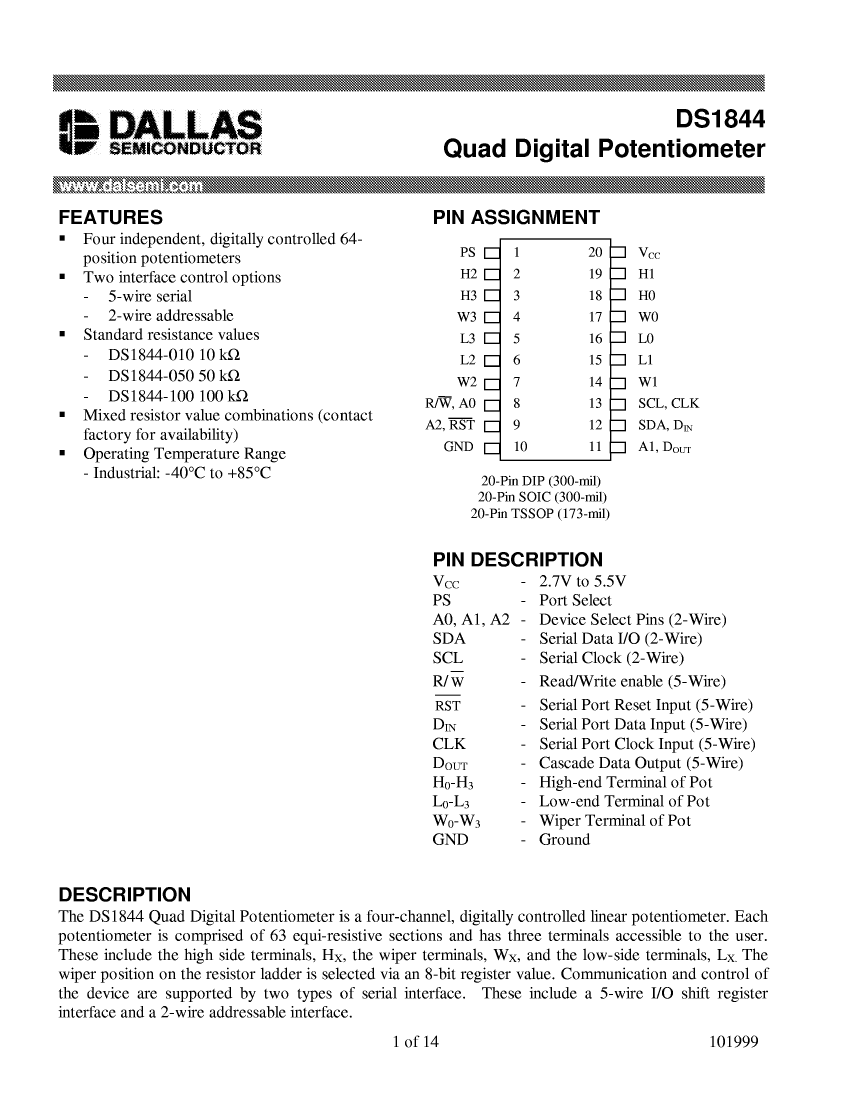

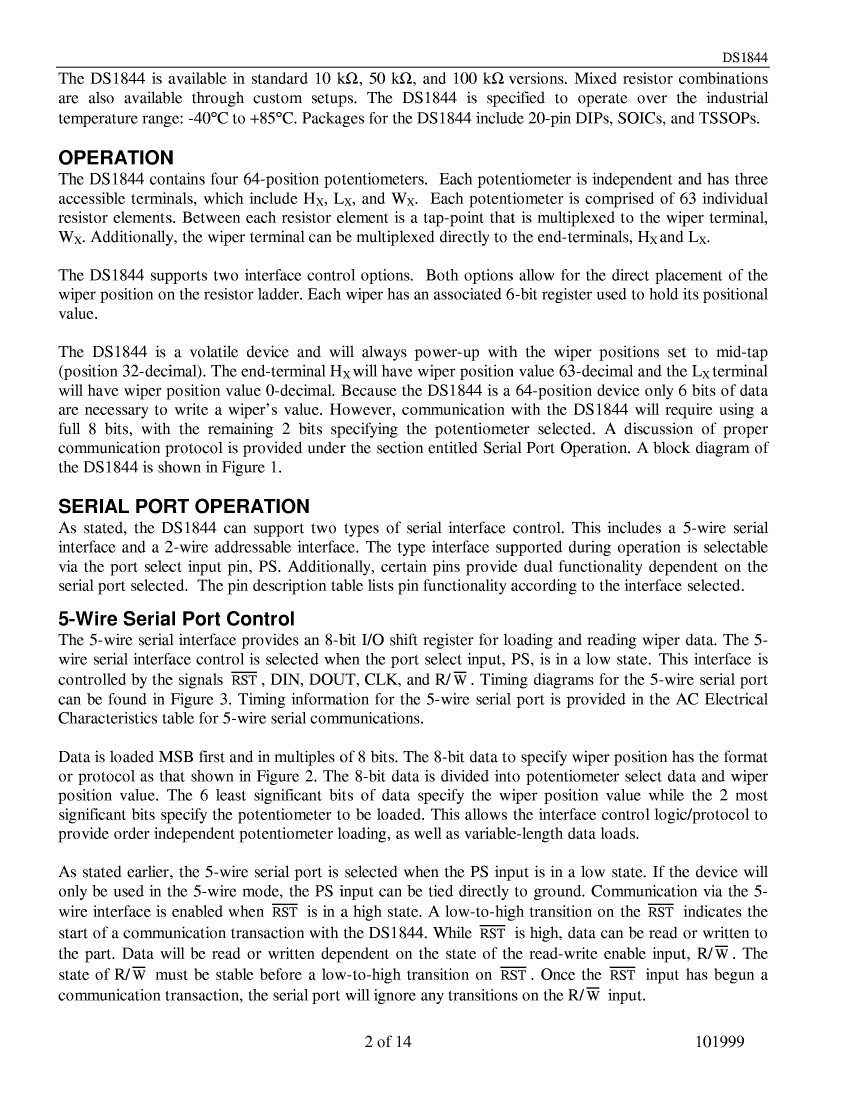

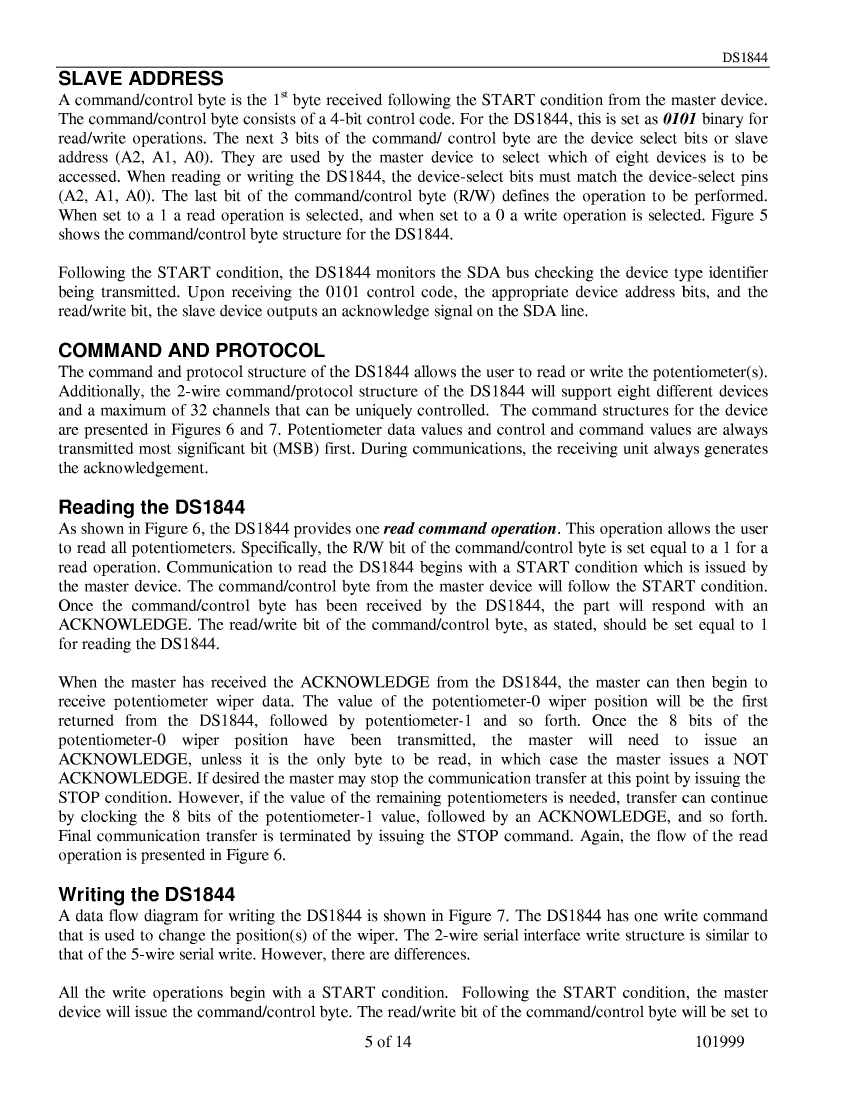

Preview

Download Datasheet

View All

DS1844-10 Related Products

	DS1844-10	DS1844-100S	DS1844-100E	DS1844-10E	DS1844-10S	DS1844-50S	DS1844-50	DS1844-50E
Description	Digital Potentiometer, CMOS, PDIP8,	Digital Potentiometer, CMOS, PDSO20,	Digital Potentiometer, CMOS, PDSO20,	Digital Potentiometer, CMOS, PDSO20,	Digital Potentiometer, CMOS, PDSO20,	Digital Potentiometer, CMOS, PDSO20,	Digital Potentiometer, CMOS, PDIP20,	Digital Potentiometer, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER
JESD-30 code	R-PDIP-T8	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	8	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	TSSOP	TSSOP	SOP	SOP	DIP	TSSOP
Encapsulate equivalent code	DIP8,.3	SOP20,.25	TSSOP20,.25	TSSOP20,.25	SOP20,.25	SOP20,.25	DIP20,.3	TSSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	0.635 mm	0.635 mm	1.27 mm	1.27 mm	2.54 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	DALLAS	-	-	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
package instruction	DIP, DIP8,.3	-	-	TSSOP, TSSOP20,.25	SOP, SOP20,.25	SOP, SOP20,.25	DIP, DIP20,.3	TSSOP, TSSOP20,.25
