SL2211M2C5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> SL2211M2C5

SL2211M2C5: DescriptionSlide Switch, DPDT, Latched And Momentary, 5A, 28VDC, Solder Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size569KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

SL2211M2C5 Overview

Slide Switch, DPDT, Latched And Momentary, 5A, 28VDC, Solder Terminal, Panel Mount-threaded

SL2211M2C5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	FLUSH BUTTON
body height	16 mm
Body length or diameter	11.51 mm
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (DC)	28 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	SL
Installation features	PANEL MOUNT-THREADED
Maximum operating force	9.45 N
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
seal	DUST PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	DPDT
Switch type	SLIDE SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER

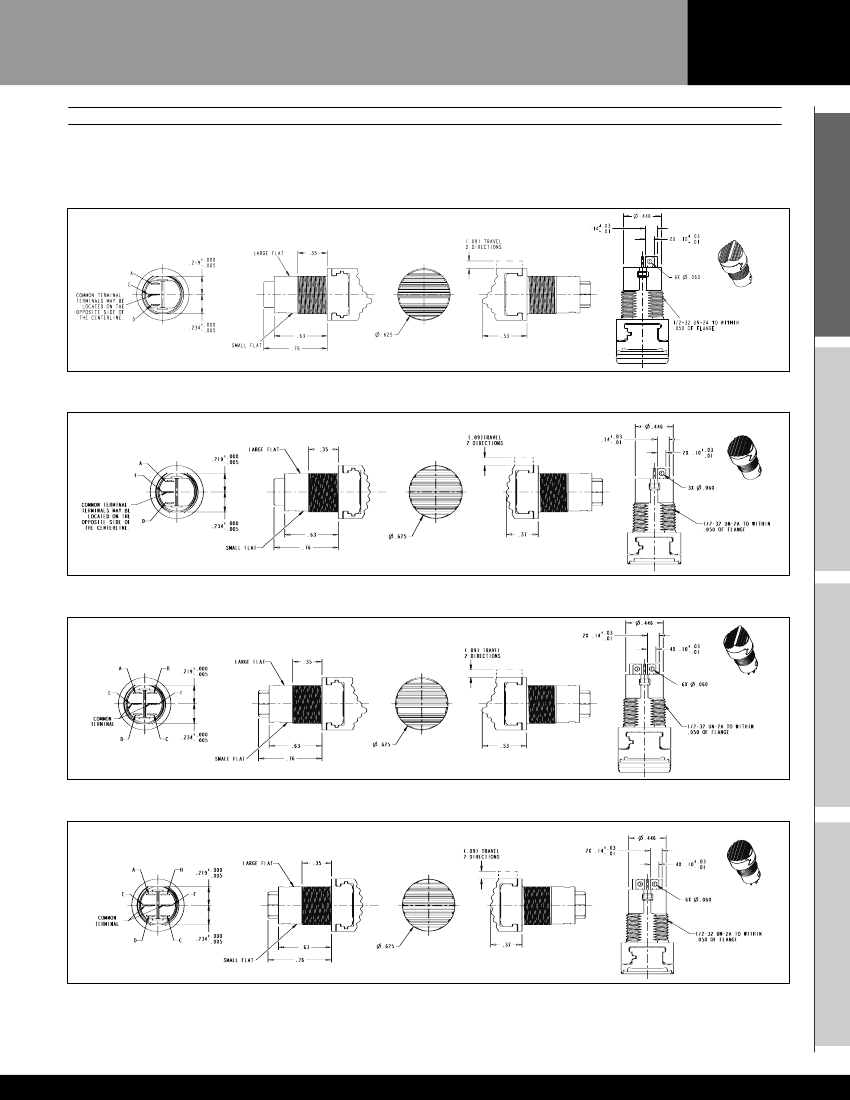

Preview

Download Datasheet

View All

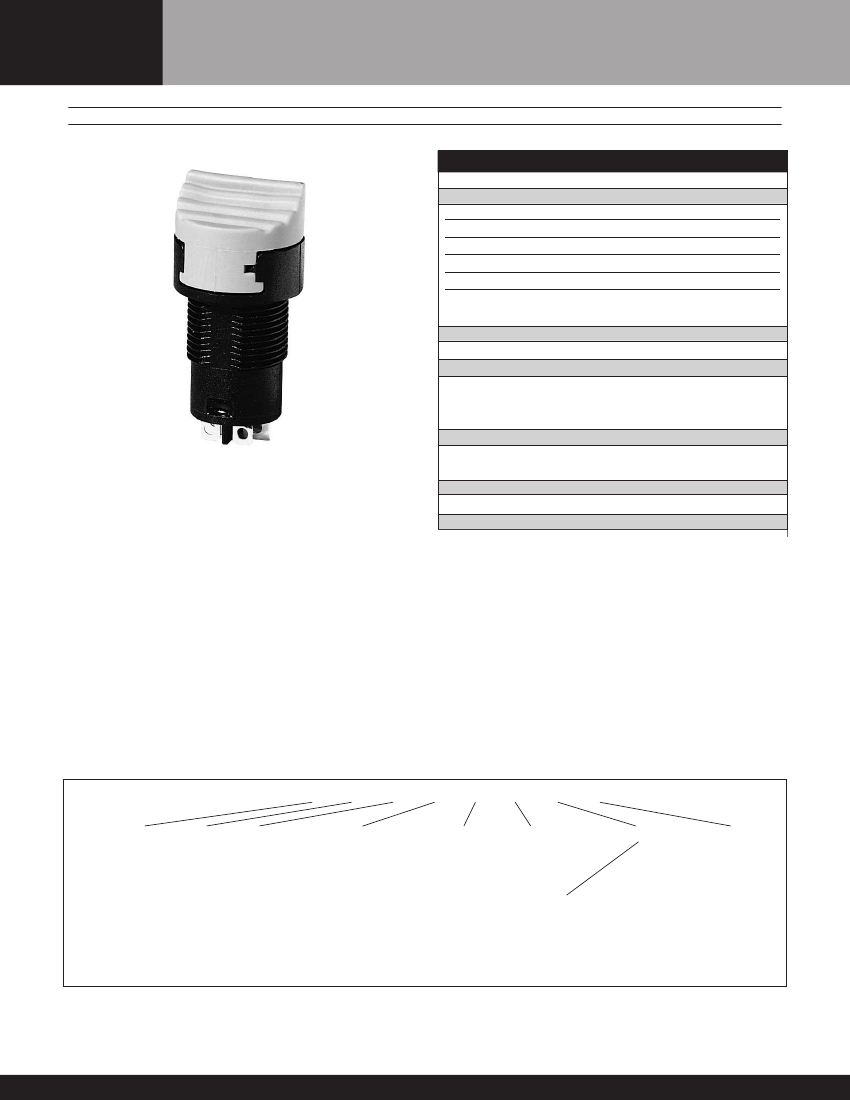

SLIDE

SWITCH

SLIDE SWITCH

COMMERCIAL AND MILITARY GRADE

Standard Characteristics/Ratings:

ELECTRICAL: (AT 28 VDC)

LOAD

Resistive

Inductive

Lamp

Low Level

Electrical Life

AMPERES

5 amps

3 amps

1 amp

10 mAmp@30mV

100,000 cycles, all loads

OPERATIONAL:

Mechanical Life:

Seal:

Operating Force:

Total Travel:

100,000 cycles.

Dust tight to MIL-PRF-8805 Design 2.

24oz ± 10oz

.120 max 2 Directions

MOUNTING HARDWARE:

Each switch is supplied with a hex nut and lockwasher.

PHYSICAL:

Quality Features:

• Single and double pole, double throw switch

configuration

• Low level rating available with gold-plated

contacts and terminals

• Three position center off with momentary or

maintained switch action in any combination

• Dust tight to MIL-PRF-8805 Design 2

• Raised and flush button contours available

• Choice of button color

• FAA/PMA available — contact factory

Temperature Range:

-55°C to +85°C

Button:

Case:

Nylon

Black, Polyester

SL-

Number of Poles

1. Single

2. Double

Button Style Case Style

1. Raised

2. Flush

Seal

Grade

M. Mil

Current Rating

1. Std

2. Low Level

Switch Action/Circuit

Button Color

1. Red

2. Black

3. Orange

4. Yellow

5. Green

6. Blue

7. Purple

8. Gray

9. White

1. Front mount

-32 Thread

1. Dust tight

MIL-PRF-8805 Design 2

Large Flat Position

A. ON

B. MOM-ON

C. ON

D. MOM-ON

Center Position

OFF

Small Flat Position

MOM-ON

OTTO CONTROLS • 2005 Full Line Catalog

Specifications Subject To Change Without Notice
