C-13-DFBA-PB-SLCHI/APC-V-G5 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-13-DFBA-PB-SLCHI/APC-V-G5

C-13-DFBA-PB-SLCHI/APC-V-G5: DescriptionDFB Laser Module Emitter, 1280nm Min, 1335nm Max, LC/APC Connector, Through Hole Mount; CategoryWireless rf/communication Optical fiber; File Size154KB，4 Pages; ManufacturerSource Photonics

Download Datasheet Parametric View All

C-13-DFBA-PB-SLCHI/APC-V-G5 Overview

DFB Laser Module Emitter, 1280nm Min, 1335nm Max, LC/APC Connector, Through Hole Mount

C-13-DFBA-PB-SLCHI/APC-V-G5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Source Photonics
Objectid	1030754997
Reach Compliance Code	unknown
compound_id	8483446
Built-in features	ISOLATOR, MONITOR PHOTODIODE
Communication standards	GR-468
Connection Type	LC/APC CONNECTOR
Fiber optic equipment types	DFB LASER MODULE EMITTER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum operating wavelength	1335 nm
Minimum operating wavelength	1280 nm
Nominal operating wavelength	1310 nm
Supply current	40 mA
Maximum supply voltage	1.8 V
Nominal supply voltage	1.2 V
surface mount	NO
Minimum threshold current	20 mA
Transmission type	DIGITAL

Preview

Download Datasheet

View All

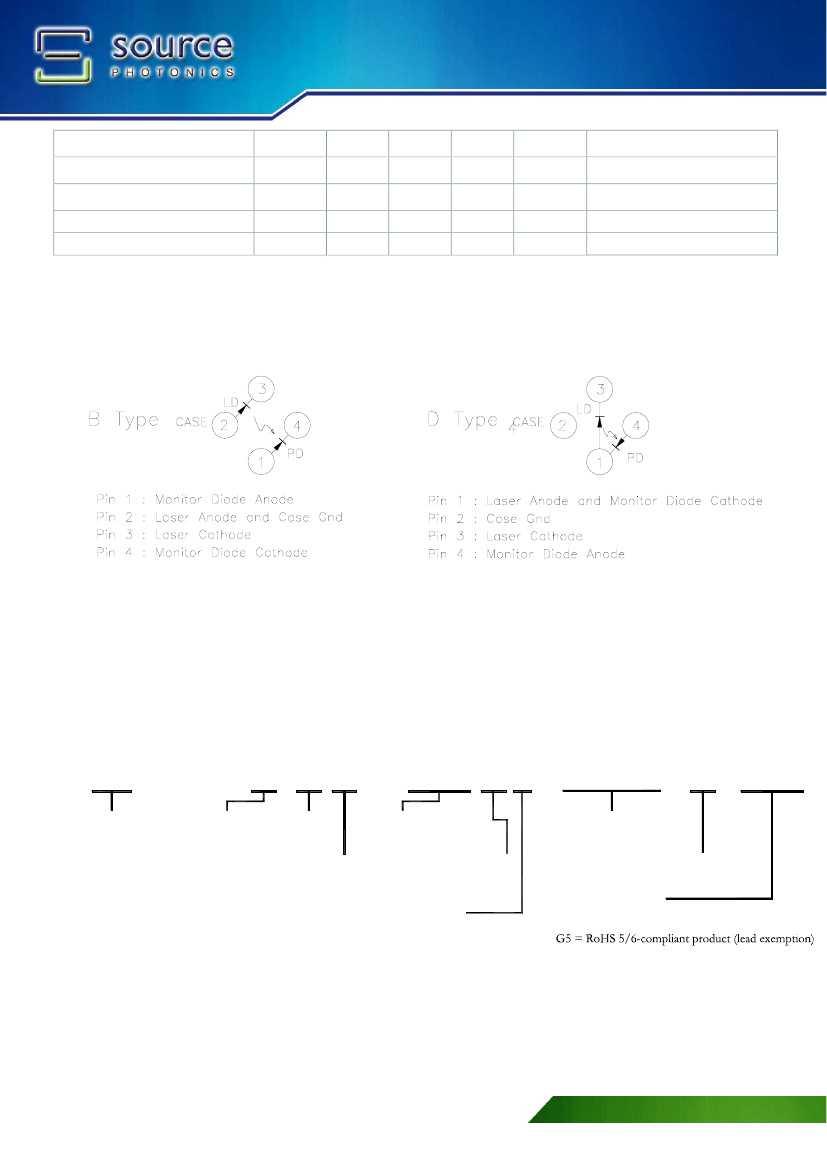

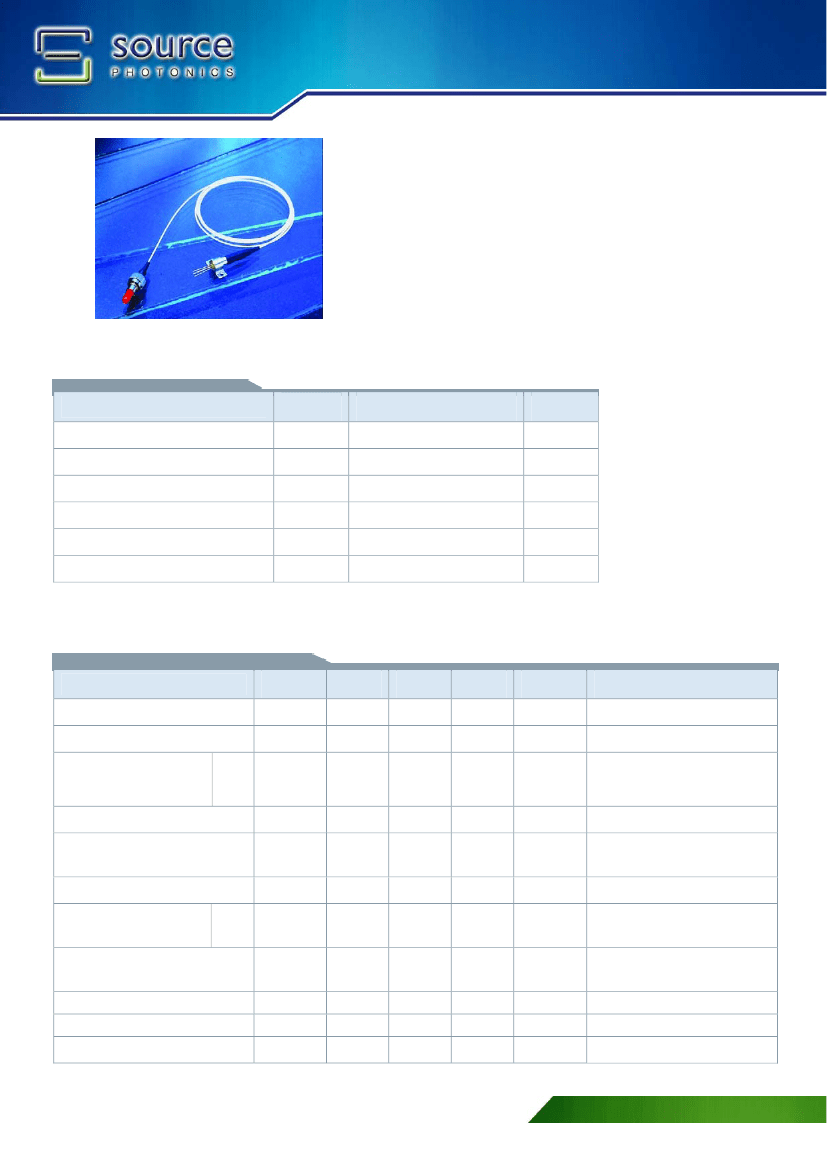

P/N: C-13-DFBA-PX-SXXXI/XXX-X-XX

Analog 1310nm MQW-DFB Laser Diode Module

Features

Laser diode with multi-quantum-well structure

Un-cooled operation at -20 to +85°C

Built-in InGaAs monitor photodiode

Hermetically sealed active component

Complies with Telcordia Technologies GR-468-CORE

Single frequency operation with high SMSR

Fiber pigtailed package with optional FC/ST/SC/MU/LC connector

Design for Analog fiber-optics application

RoHS Compliant available

Absolute Maximum Ratings (Tc=25°C)

Parameter

Fiber Output Power

Reverse Voltage

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

H/2

Symbol

RLD

RPD

FPD

opr

stg

Rating

2.5(H)/4(2)

-20 ~ 85

-40 ~ 85

Unit

°C

(All optical data refer to a coupled 9/125

m SM fiber)

Optical and Electrical Characteristics

Parameter

Threshold Current

Operating Current

Optical Output Power

Operating Voltage

Peak Wavelength

Side mode Suppression Ratio

Slope Efficiency

Optical Isolation

Rise / Fall Time

Relative Intensity Noise

Second Order Distortion

Symbol

Ith

RIN

SSO

(Tc=25°C)

Min.

1280

0.05

0.1

Typ.

1.2

1310

-150

DS-6031 Rev 0.0 2010-03-11

Max.

1.8

1335

0.1

0.5

-145

-40

Unit

Notes

CW, P

= P

(Min)

CW, Ith+20mA, kink free

CW, P

= P

(Min)

CW, P

= P

(Min),

RMS(-20dB)

= -20~85°C

CW, P

= P

(Min), -20~85°C

mW/mA

dB/Hz

dBc

CW, P

= P

(Min)

=25

°C

-20

°C

< T

< 85

°C

Ibias=Ith, 10~90%

Note1

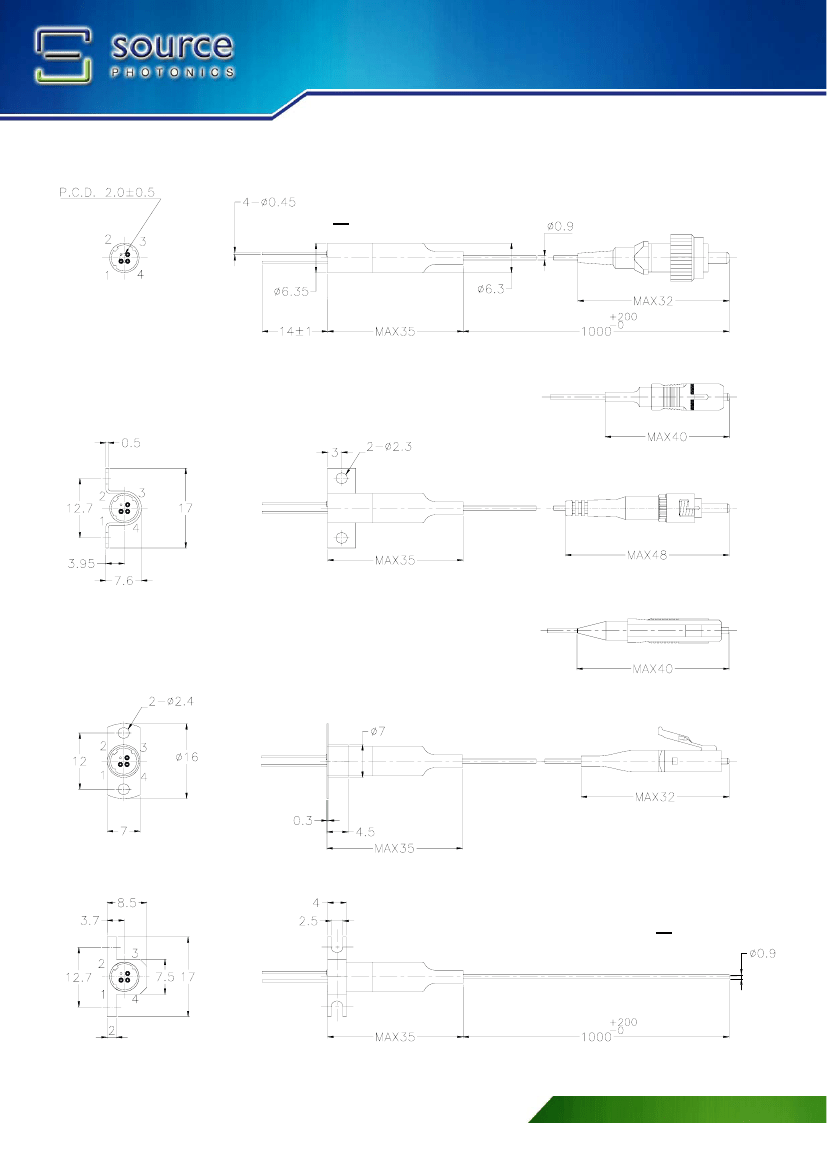

P/N: C-13-DFBA-PX-SXXXI/XXX-X-XX

Analog 1310nm MQW-DFB Laser Diode Module

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static

free environment is highly recommended. Follow guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or

indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Source Photonics’s sole and

absolute discretion. Source Photonics warrants performance of its products to current specifications only in

accordance with the company’s standard one-year warranty; however, specifications designated as

“preliminary”

are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said

products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular

purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for

further warranty information.

Source Photonics assumes no liability for applications assistance, customer product design, software performance,

or infringement of patents, services, or intellectual property described herein. No license, either express or implied,

is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no

representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual

property rights. Products described in this document are NOT intended for use in implantation or other life support

applications where malfunction may result in injury or death to persons. Source Photonics customers using or

selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source

Photonics for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN

“AS

IS” BASIS. Customer agrees

that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or

indirectly from any use of the information contained in this document. Customer must contact Source Photonics to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is

current.

DS-6031 Rev 0.0 2010-03-11
