T77-G37-20.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> T77-G37-20.0MHZ

T77-G37-20.0MHZ: DescriptionClipped Sine Output Oscillator, 20MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-6; CategoryPassive components oscillator; File Size81KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

T77-G37-20.0MHZ Overview

Clipped Sine Output Oscillator, 20MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-6

T77-G37-20.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	SOLCC8/10,.2
Reach Compliance Code	compliant
Other features	TRI-STATE
Ageing	1 PPM/YEAR
Maximum control voltage	3.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	4 ppm
frequency stability	0.3%
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CLIPPED SINE
Output impedance	100000 Ω
Output level	0.8 V
Encapsulate equivalent code	SOLCC8/10,.2
physical size	7.0mm x 5.0mm x 2.0mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

EURO

QUARTZ

Rugged construction SMD OCXO

Very rugged construction TCXO

Industry-standard 7x5mm miniature SMD format

Tight tolerances over temperature from 0.3ppm

Wide frequency range, 10MHz to 50MHz

Available with HCMOS or CLIPPED SINEWAVE outputs

T75 TCXO

10.0MHz to 50.0MHz

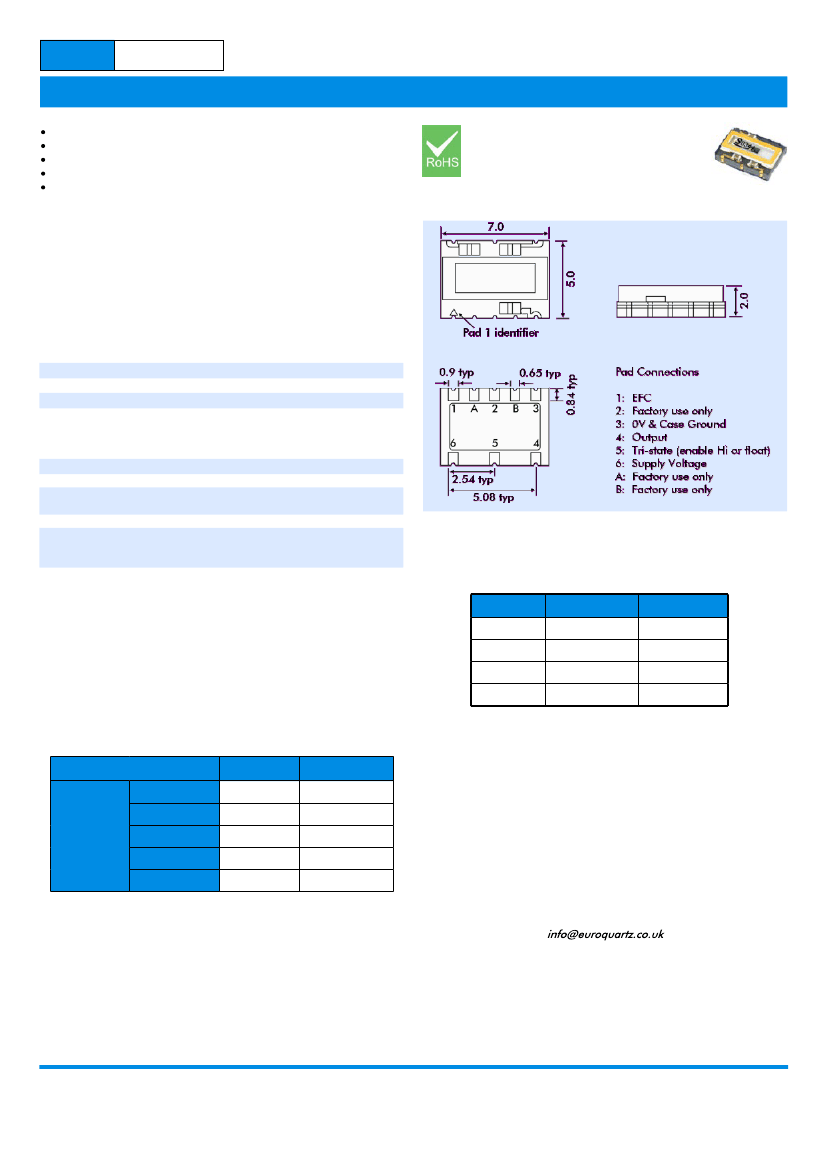

T75 - OUTLINES AND DIMENSIONS

DESCRIPTION

T75 series TCXOs are packaged in the industry-standard 7x5mm

miniature SMD format. The parts have a rugged construction, able to

withstand up to 100,000g and offer a wide frequency range with

close tolerances over temperature.

GENERAL SPECIFICATION

Frequency Range:

Output:

Symmetry:

Output level

Clipped Sine:

HCMOS T75:

HCMOS T76:

Temperature Stability:

Ageing:

Frequency adjust:

Supply Voltage:

Supply Current

HCMOS:

Clipped Sine:

10.0MHz to 50.0MHz

HCMOS or Clipped Sinewave

50%±10% (HCMOS)

+0.8Vp-p typical into 10pF/100kOhm

+0.2V max. to +2.8V min

+0.2V max to +4.2V min

See table

<1ppm/yr at 10MHz (typical)

±4ppm typical via 0 to Vcc

control voltage, positive slope.

+3.3VDC ±5% or +5.0VDC

<6mA

<2mA

SPECIFYING INFORMATION

Model No:

ENVIRONMENTAL

Vibration:

per MIL-STD-202G, Meth. 214, Cond. I-F

Shock:

per MIL-STD-202G, Meth. 213, Cond. F

(Shock levels to 100,000g are available)

T75

T76

T77

T78

Input Voltage

+3.3V

+5.0V

+3.3V

+5.0V

Output Type

HCMOS

CLIP SINE

FREQUENCY STABILITY OVER TEMPERATURE

Temperature Stability (°C)

-10 ~ +60

(Other

temperature

stabilities

are

available)

-20 ~ +70

-40 ~ +85

-55 ~ +95

Tolerance

±0.3ppm

±0.5ppm

±1.0ppm

±2.0ppm

Option

G37

N57

T57

T16

V26

There are a wide variety of custom options available for the T75 series

TCXOs. Contact Euroquartz technical sales with your requirements:

T75 - CUSTOMISED PARAMETERS

T75 - PART NUMBERING PROCEDURE

Example:

T75-G37-20.0MHz

(Model number - option - frequency)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
