ISL6256AHAZ-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ISL6256AHAZ-T

ISL6256AHAZ-T: DescriptionHighly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C; CategoryPower/power management The power supply circuit; File Size1MB，26 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

ISL6256AHAZ-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ISL6256AHAZ-T	-	-	View	Buy Now

ISL6256AHAZ-T Overview

Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C

ISL6256AHAZ-T Parametric

Parameter Name	Attribute value
Brand Name	Intersil
Maker	Renesas Electronics Corporation
Parts packaging code	QFN, QSOP
package instruction	SSOP, SSOP28,.25
Contacts	28, 28
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
Adjustable threshold	YES
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G28
JESD-609 code	e3
length	9.905 mm
Humidity sensitivity level	3
Number of channels	1
Number of functions	1
Number of terminals	28
Maximum operating temperature	100 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	3 mA
Maximum supply voltage (Vsup)	25 V
Minimum supply voltage (Vsup)	7 V
Nominal supply voltage (Vsup)	18 V
surface mount	YES
Temperature level	OTHER
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.895 mm

Preview

Download Datasheet

View All

DATASHEET

ISL6256, ISL6256A

Highly Integrated Battery Charger with Automatic Power Source Selector for

Notebook Computers

The ISL6256, ISL6256A is a highly integrated battery charger

controller for Li-ion/Li-ion polymer batteries. High Efficiency is

achieved by a synchronous buck topology and the use of a

MOSFET, instead of a diode, for selecting power from the

adapter or battery. The low side MOSFET emulates a diode at

light loads to improve the light load efficiency and prevent

system bus boosting.

The constant output voltage can be selected for 2, 3 and 4

series Li-ion cells with 0.5% accuracy over-temperature. It can

also be programmed between 4.2V + 5%/cell and

4.2V - 5%/cell to optimize battery capacity. When supplying

the load and battery charger simultaneously, the input current

limit for the AC adapter is programmable to within 3%

accuracy to avoid overloading the AC adapter, and to allow

the system to make efficient use of available adapter power

for charging. It also has a wide range of programmable

charging current. The ISL6256, ISL6256A provides outputs

that are used to monitor the current drawn from the AC

adapter, and monitor for the presence of an AC adapter. The

ISL6256, ISL6256A automatically transitions from regulating

current mode to regulating voltage mode.

ISL6256, ISL6256A has a feature for automatic power source

selection by switching to the battery when the AC adapter is

removed or switching to the AC adapter when the AC adapter is

available. It also provides a DC adapter monitor to support

aircraft power applications with the option of no battery charging.

FN6499

Rev 3.00

September 14, 2010

Features

• ±0.5% Charge Voltage Accuracy (-10°C to +100°C)

• ±3% Accurate Input Current Limit

• ±3% Accurate Battery Charge Current Limit

• ±25% Accurate Battery Trickle Charge Current Limit

• Programmable Charge Current Limit, Adapter Current

Limit and Charge Voltage

• Fixed 300kHz PWM Synchronous Buck Controller with

Diode Emulation at Light Load

• Overvoltage Protection

• Output for Current Drawn from AC Adapter

• AC Adapter Present Indicator

• Fast Input Current Limit Response

• Input Voltage Range 7V to 25V

• Support 2-, 3- and 4-Cells Battery Pack

• Up to 17.64V Battery-Voltage Set Point

• Control Adapter Power Source Select MOSFET

• Thermal Shutdown

• Aircraft Power Capable

• DC Adapter Present Indicator

• Battery Discharge MOSFET Control

Ordering Information

PART

NUMBER

(Notes 1, 2)

ISL6256HRZ

ISL6256HAZ

ISL6256AHAZ

PART

MARKING

ISL 6256HRZ

ISL 6256HAZ

TEMP

RANGE

(°C)

PACKAGE

(Pb-free)

PKG.

DWG. #

M28.15

• Less than 10µA Battery Leakage Current

• Supports Pulse Charging

• Pb-free (RoHS Compliant)

-10 to +100 28 Ld 5x5 QFN L28.5x5

-10 to +100 28 Ld QSOP

ISL6256AHRZ ISL6256 AHRZ -10 to +100 28 Ld 5x5 QFN L28.5x5

ISL6256 AHAZ -10 to +100 28 Ld QSOP

M28.15

NOTES:

1. Add “-T” suffix for tape and reel. Please refer to TB347 for details on

reel specifications.

2. These Intersil Pb-free plastic packaged products employ special Pb-

free material sets, molding compounds/die attach materials, and

100% matte tin plate plus anneal (e3 termination finish, which is

RoHS compliant and compatible with both SnPb and Pb-free

soldering operations). Intersil Pb-free products are MSL classified at

Pb-free peak reflow temperatures that meet or exceed the Pb-free

requirements of IPC/JEDEC J STD-020.

3. For Moisture Sensitivity Level (MSL), please see device information

page for

ISL6256, ISL6256A.

For more information on MSL please

see techbrief

TB363.

Applications

• Notebook, Desknote and Sub-notebook Computers

• Personal Digital Assistant

FN6499 Rev 3.00

September 14, 2010

Page 1 of 26

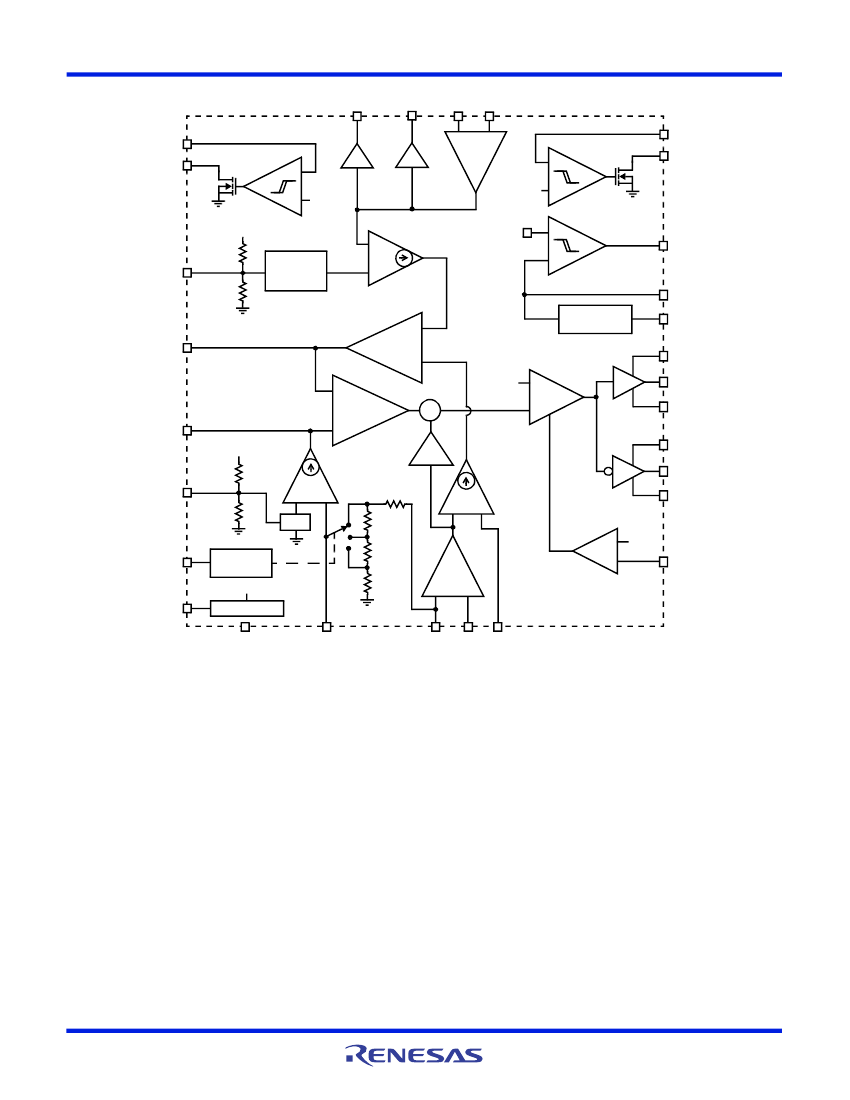

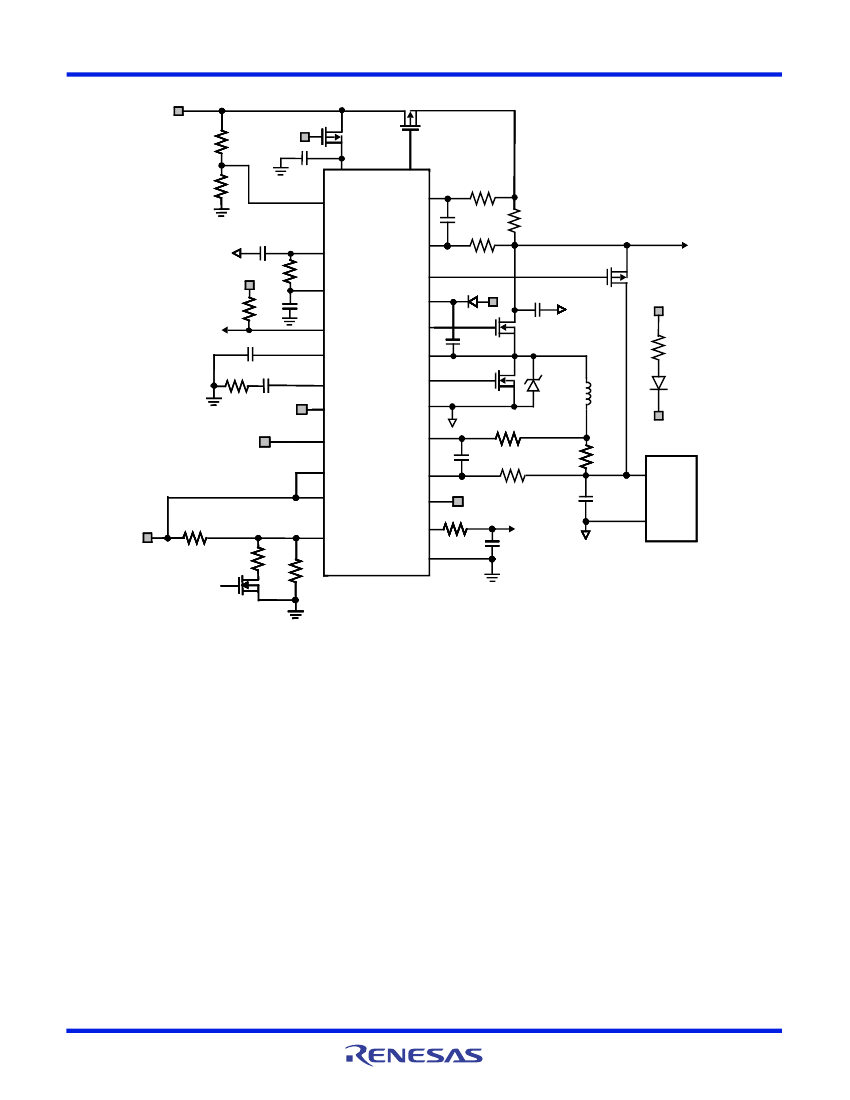

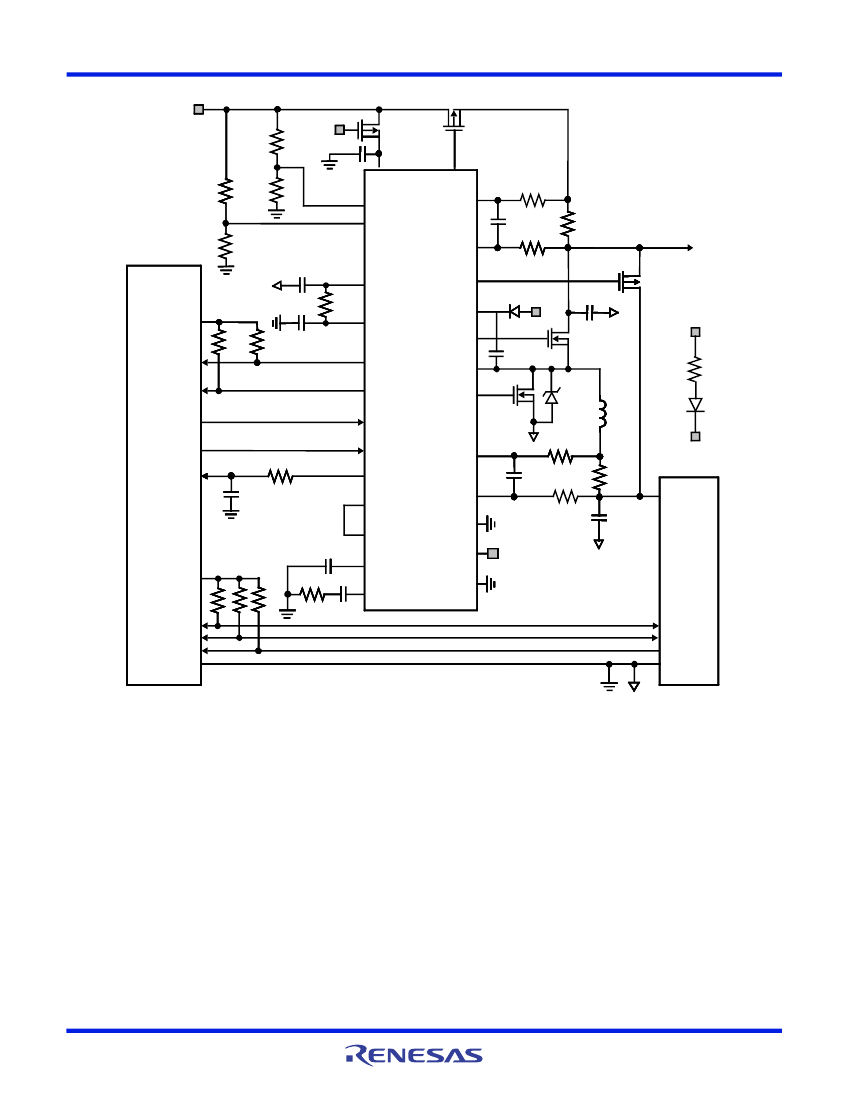

ISL6256AHAZ-T Related Products

	ISL6256AHAZ-T	ISL6256HRZ	ISL6256AHRZ-T	ISL6256HAZ-T	ISL6256AHAZ	ISL6256HAZ
Description	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C	Highly Integrated Battery Charger with Automatic Power Source Selector for Notebook Computers; QFN28, QSOP28; Temp Range: -10° to 100°C
Brand Name	Intersil	Intersil	Renesas	Intersil	Intersil	Intersil
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	QFN, QSOP	QFN, QSOP	QFN	QFN, QSOP	QFN, QSOP	QFN, QSOP
package instruction	SSOP, SSOP28,.25	HVQCCN, LCC28,.2SQ,20	HQCCN,	SSOP, SSOP28,.25	SSOP, SSOP28,.25	SSOP, SSOP28,.25
Contacts	28, 28	28, 28	28	28, 28	28, 28	28, 28
Reach Compliance Code	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustable threshold	YES	YES	YES	YES	YES	YES
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G28	S-PQCC-N28	S-PQCC-N28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
JESD-609 code	e3	e3	e3	e3	e3	e3
length	9.905 mm	5 mm	5 mm	9.905 mm	9.905 mm	9.905 mm
Number of channels	1	1	4	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	HVQCCN	HQCCN	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	260	260	260
Maximum seat height	1.75 mm	1 mm	1.05 mm	1.75 mm	1.75 mm	1.75 mm
surface mount	YES	YES	YES	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn)	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	NO LEAD	NO LEAD	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	30	NOT SPECIFIED	40	30	30
width	3.895 mm	5 mm	5 mm	3.895 mm	3.895 mm	3.895 mm
Factory Lead Time	1 week	21 weeks	-	22 weeks	22 weeks	22 weeks
Humidity sensitivity level	3	3	-	3	3	3
Encapsulate equivalent code	SSOP28,.25	LCC28,.2SQ,20	-	SSOP28,.25	SSOP28,.25	SSOP28,.25
power supply	5 V	5 V	-	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA	-	3 mA	3 mA	3 mA
Maximum supply voltage (Vsup)	25 V	25 V	-	25 V	25 V	25 V
Minimum supply voltage (Vsup)	7 V	7 V	-	7 V	7 V	7 V
Nominal supply voltage (Vsup)	18 V	18 V	-	18 V	18 V	18 V
