EDI4F3232F7M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> EDI4F3232F7M

EDI4F3232F7M: DescriptionFast Page DRAM Module, 32MX32, 70ns, CMOS, PSMA72,; Categorystorage storage; File Size615KB，12 Pages; ManufacturerWhite Electronic Designs Corporation; Websitehttp://www.wedc.com/

Download Datasheet Parametric Compare View All

EDI4F3232F7M Overview

Fast Page DRAM Module, 32MX32, 70ns, CMOS, PSMA72,

EDI4F3232F7M Parametric

Parameter Name	Attribute value
Maker	White Electronic Designs Corporation
Reach Compliance Code	unknown
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N72
memory density	1073741824 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of terminals	72
word count	33554432 words
character code	32000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32MX32
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	4096
Maximum standby current	0.064 A
Maximum slew rate	2.5 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

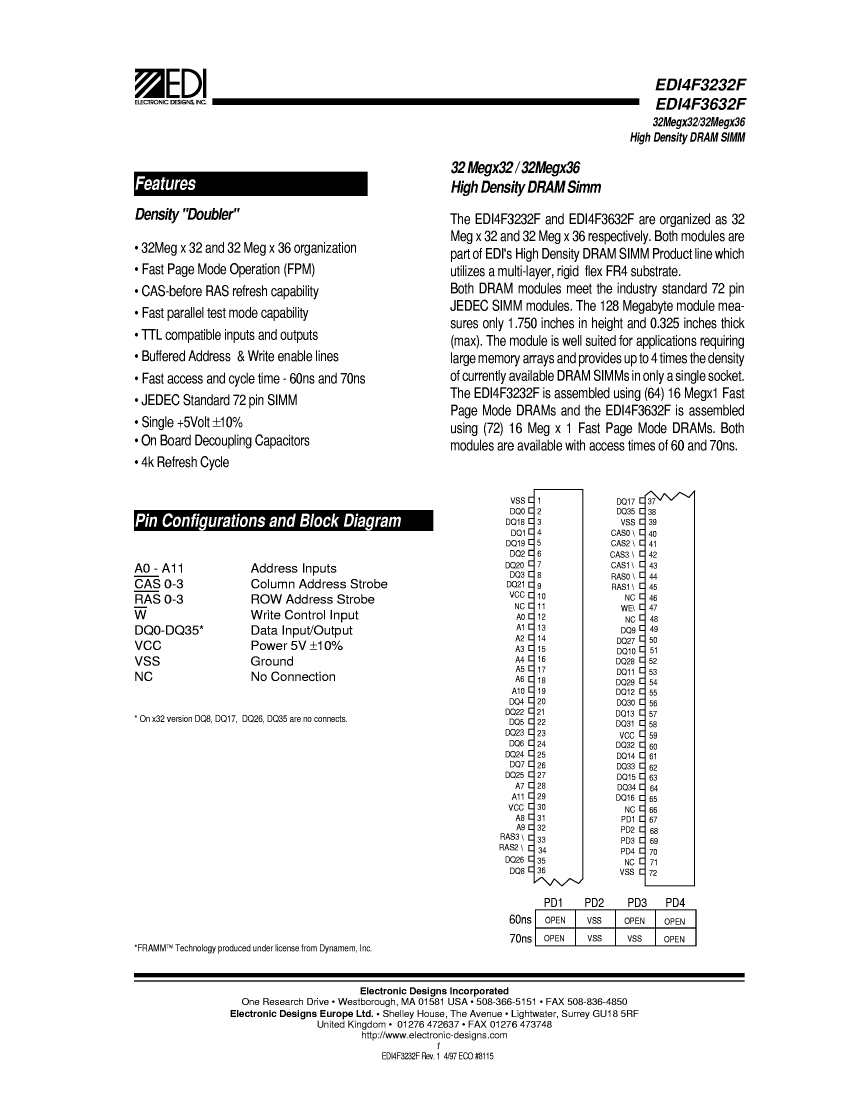

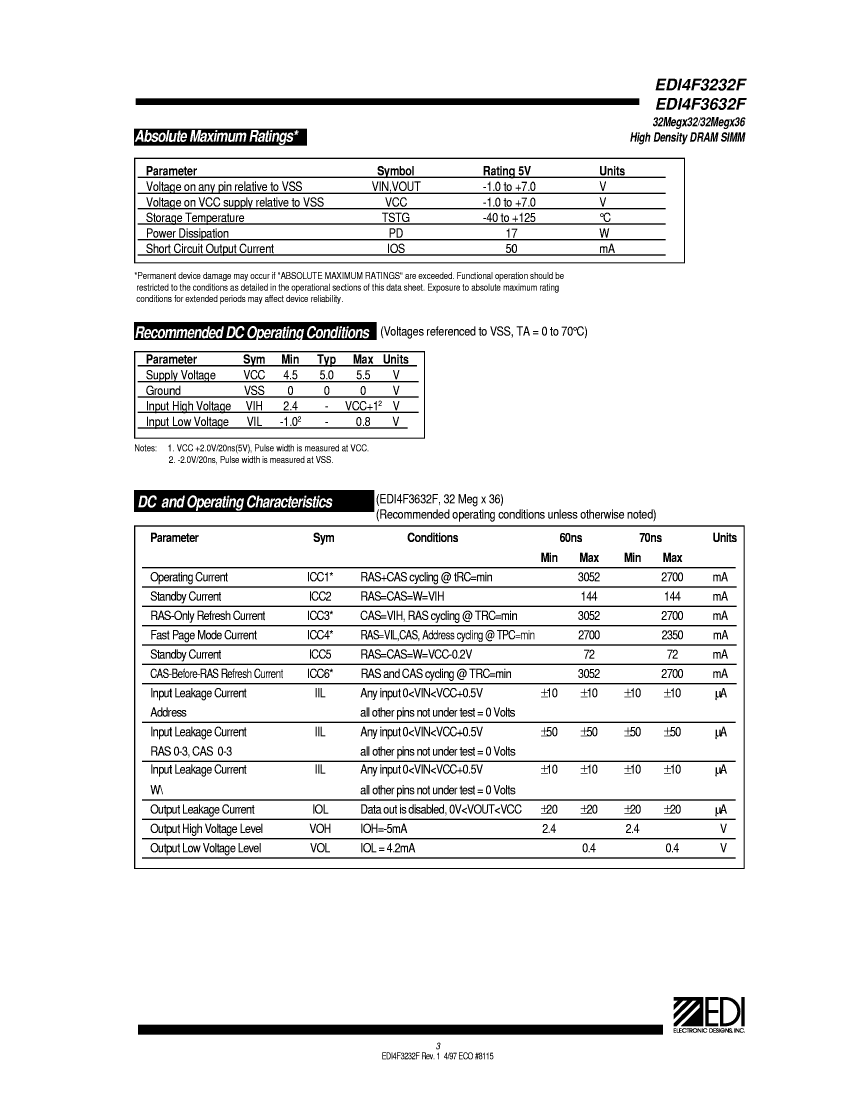

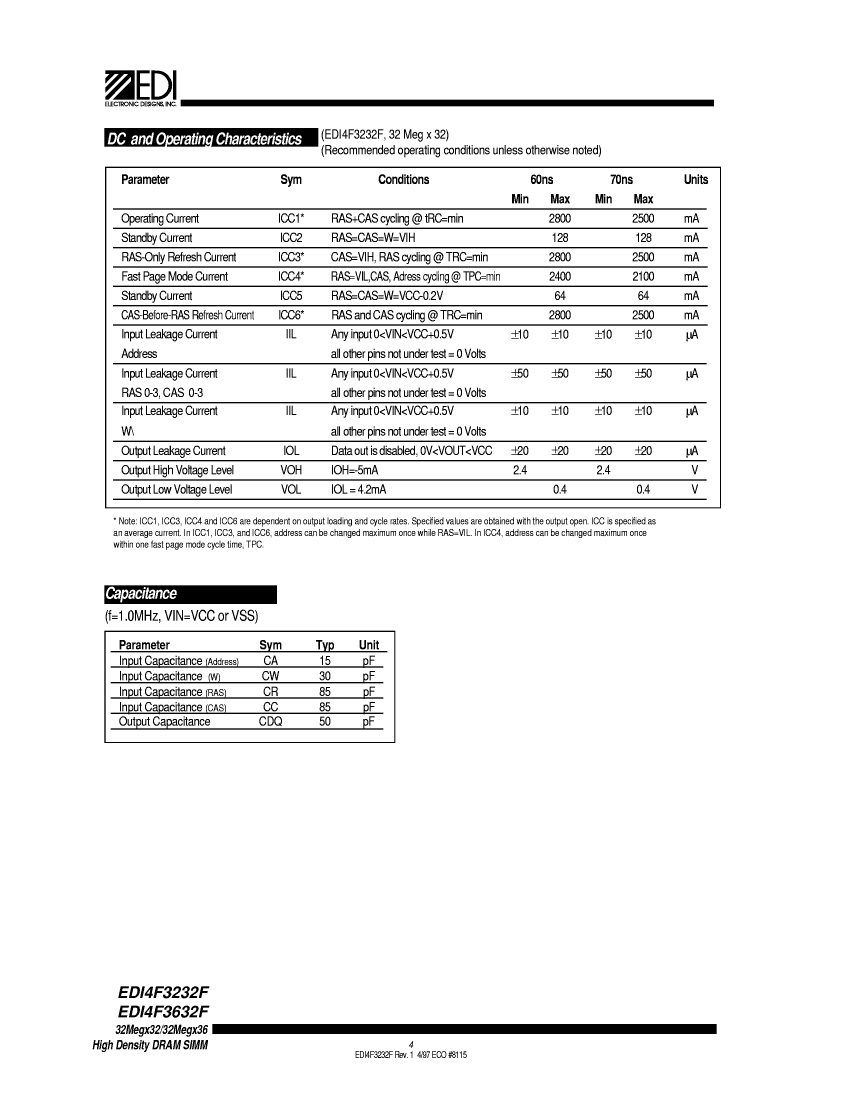

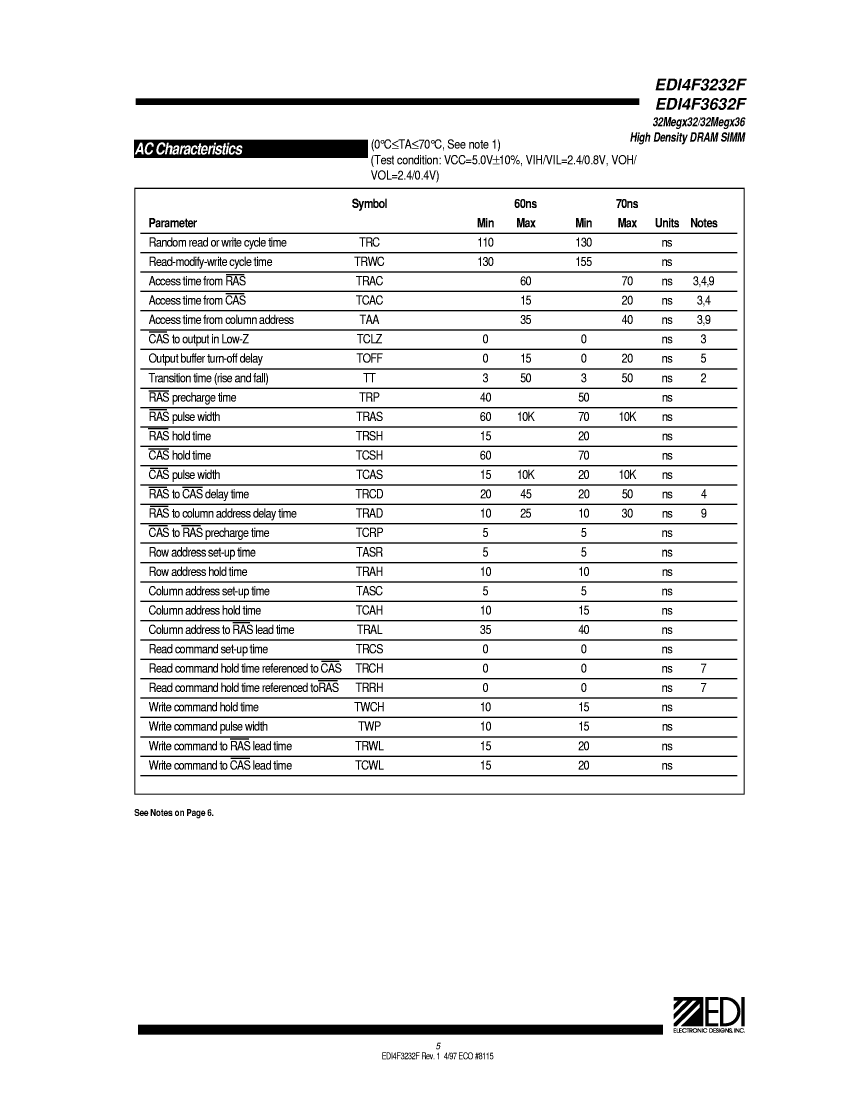

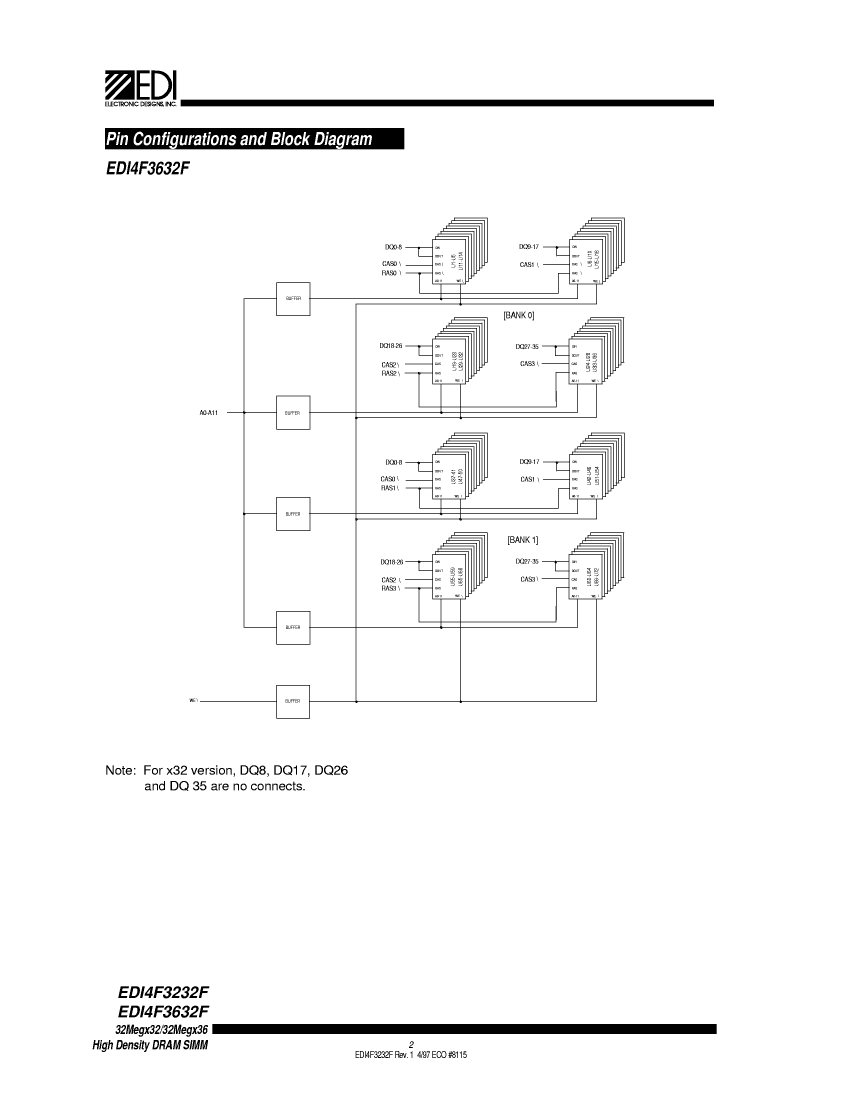

Preview

Download Datasheet

View All

EDI4F3232F7M Related Products

	EDI4F3232F7M	EDI4F3232G6M	EDI4F3232G7M	EDI4F3632F6M	EDI4F3632G7M	EDI4F3232F6M	EDI4F3632F7M	EDI4F3632G6M
Description	Fast Page DRAM Module, 32MX32, 70ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX32, 60ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX32, 70ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX36, 60ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX36, 70ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX32, 60ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX36, 70ns, CMOS, PSMA72,	Fast Page DRAM Module, 32MX36, 60ns, CMOS, PSMA72,
Maker	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation	White Electronic Designs Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	70 ns	60 ns	70 ns	60 ns	70 ns	60 ns	70 ns	60 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72
memory density	1073741824 bit	1073741824 bit	1073741824 bit	1207959552 bit	1207959552 bit	1073741824 bit	1207959552 bit	1207959552 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32	36	36	32	36	36
Number of terminals	72	72	72	72	72	72	72	72
word count	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words
character code	32000000	32000000	32000000	32000000	32000000	32000000	32000000	32000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32MX32	32MX32	32MX32	32MX36	32MX36	32MX32	32MX36	32MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096	4096	4096
Maximum standby current	0.064 A	0.064 A	0.064 A	0.072 A	0.072 A	0.064 A	0.072 A	0.072 A
Maximum slew rate	2.5 mA	2.8 mA	2.5 mA	3.052 mA	2.7 mA	2.8 mA	2.7 mA	3.052 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
