SC261B datasheet, PDF - EEWORLD Datasheet

SC261B: DescriptionTRIAC, 200V V(DRM), 25A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size91KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

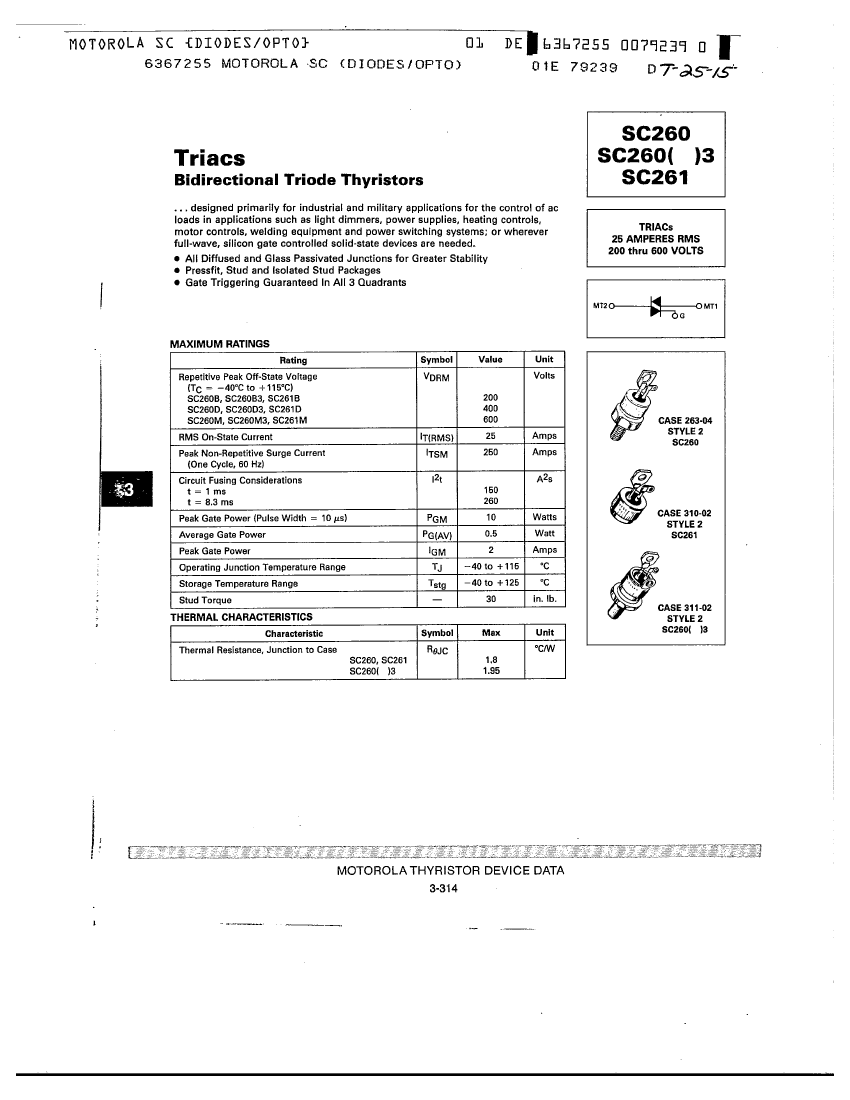

SC261B Overview

TRIAC, 200V V(DRM), 25A I(T)RMS

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Reach Compliance Code	unknown

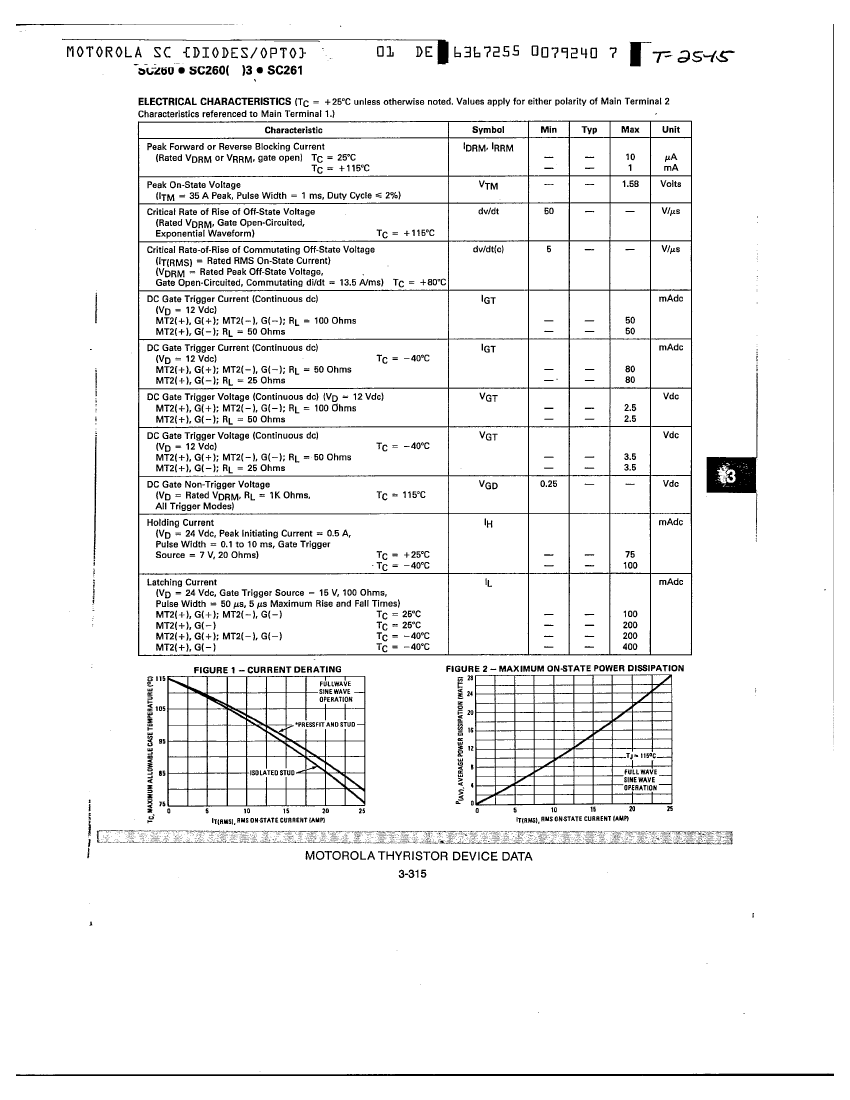

Critical rise rate of commutation voltage - minimum value	5 V/us
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	75 mA
Maximum leakage current	1 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	25 A
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	TRIAC

	SC261B	SC260M3	SC261M	SC261D
Description	TRIAC, 200V V(DRM), 25A I(T)RMS	TRIAC, 600V V(DRM), 25A I(T)RMS, CASE 311-02, 3 PIN	TRIAC, 600V V(DRM), 25A I(T)RMS	TRIAC, 400V V(DRM), 25A I(T)RMS
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Reach Compliance Code	unknown	unknown	unknown	unknow
Critical rise rate of commutation voltage - minimum value	5 V/us	5 V/us	5 V/us	5 V/us
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	50 mA	50 mA	50 mA	50 mA
Maximum DC gate trigger voltage	2.5 V	2.5 V	2.5 V	2.5 V
Maximum holding current	75 mA	75 mA	75 mA	75 mA
Maximum leakage current	1 mA	1 mA	1 mA	1 mA
Maximum on-state voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum operating temperature	110 °C	115 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	25 A	25 A	25 A	25 A
Off-state repetitive peak voltage	200 V	600 V	600 V	400 V
surface mount	NO	NO	NO	NO
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC
