EMC Components
EMC Filters for AC Power Line
Inlet-socket Type
FEATURES
• This inlet-socket type EMC filter prevent microcomputer opera-
tional errors by use of a common mode choke coil featuring an
amorphous core with exceptional magnetic characteristics.
• These plug-in type EMC filters provide highly effective attenua-
tion of high-voltage pulses power lines.
• These small, high-performance IEC-type inlet sockets with inte-
gral EMC filters provide outstanding common-mode noise atten-
uation characteristics over a wide band of frequencies.
• Current leakage is maintained at less than 0.4mA.
SAFETY STANDARDS
Standard and standard No.
U.S.A
Part No.
UL
ZUB2203H-FS
ZUB2206H-FS
∗
ZUB.H-FS Series
APPLICATIONS
Personal computers, computer terminals, office automation equip-
ment, digital applied devices (ECRs, electronic calculators, elec-
tronic scales, etc.), measurement devices, medical equipment, etc.
Particularly appropriate for various types of electronic devices that
require miniaturization.
Canada
CSA
CSA C22.2 No.8
LR76849C
LR76849C
Europe
∗
Produced before July, 2003
TÜV
VDE565 Teil3
R40030
R40030
Produced after July, 2003
NEMKO
EN133200
P03200359
P03200359
UL1283
E62388
E62388
The authorization standard is different depending on time when products were produced about European standards.
SHAPES AND DIMENSIONS
Typical dimensions for installation
From back side panel
ø3.6
R5.5
From front panel
ø3.6 or M3 tap
R3.5
G
D
A
Ground terminal
Faston
®
31.2
40
30
21.5
40
øH
C
F
E
B
23.2
• Tighten the panel mounting M3 dia. bolt with the torque under 5.88X10
–1
N•m.
Dimensions in mm
Part No.
A
B
C
D
ZUB2203H-FS, 2206H-FS
48
60.3
25
40
• Case: metal, input terminal: inlet-socket (EN60320), output terminal: Faston
®
#250(t:0.8mm)
E
38
F
5.2
G
30.5
øH
3.3

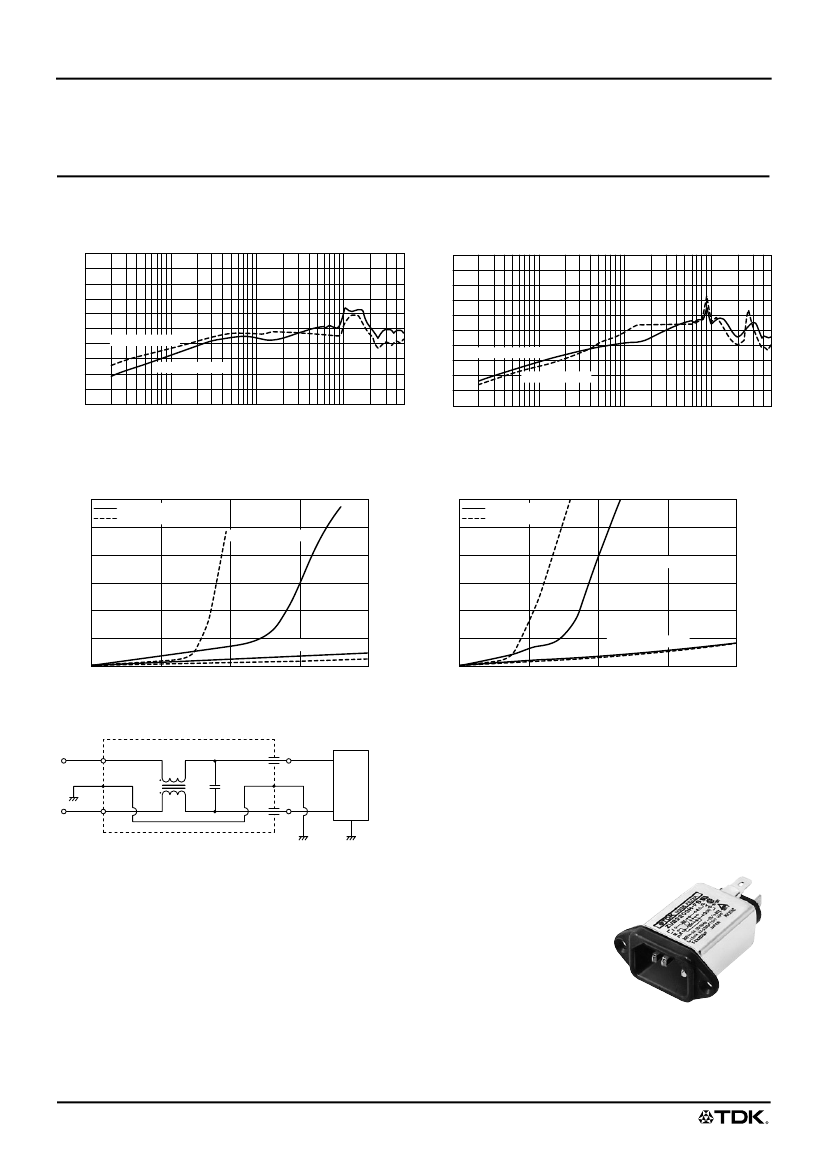

ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Eac(V)
Rated current(A)
Test voltage Eac(V)[Between terminal and ground terminal]
Insulation resistance(MΩ)
[DC. 500V, 1min/between terminal and ground terminal]
Leakage current(mA)[250V • 60Hz]
DC resistance(mΩ)
Operating temperature range(°C)[Including self-temperature rise]
With derating over(°C)
Temperature rise(°C)
Differential mode at 30dB
Attenuation frequency range
(MHz)[+5 to +35°C]
Common mode at 30dB
Differential mode at 20dB
Pulse attenuation characteristics
∗
Input pulse voltage(kV)
Common mode at 20dB
Weight(g)
∗
ZUB2203H-FS
250
3
2000
100min.
0.4max.
150max.
–25 to +85
55
30max.
2 to 300
1 to 300
1.3
0.7
48
ZUB2206H-FS
250
6
2000
100min.
0.4max.
100max.
–25 to +85
55
30max.
3 to 300
3 to 300
0.6
0.3
48
Input pulse width: 0.4µs
• Faston
®
is a registered trademark of Tyco Electronics AMP Corp. Incorporated.
• All specifications are subject to change without notice.
