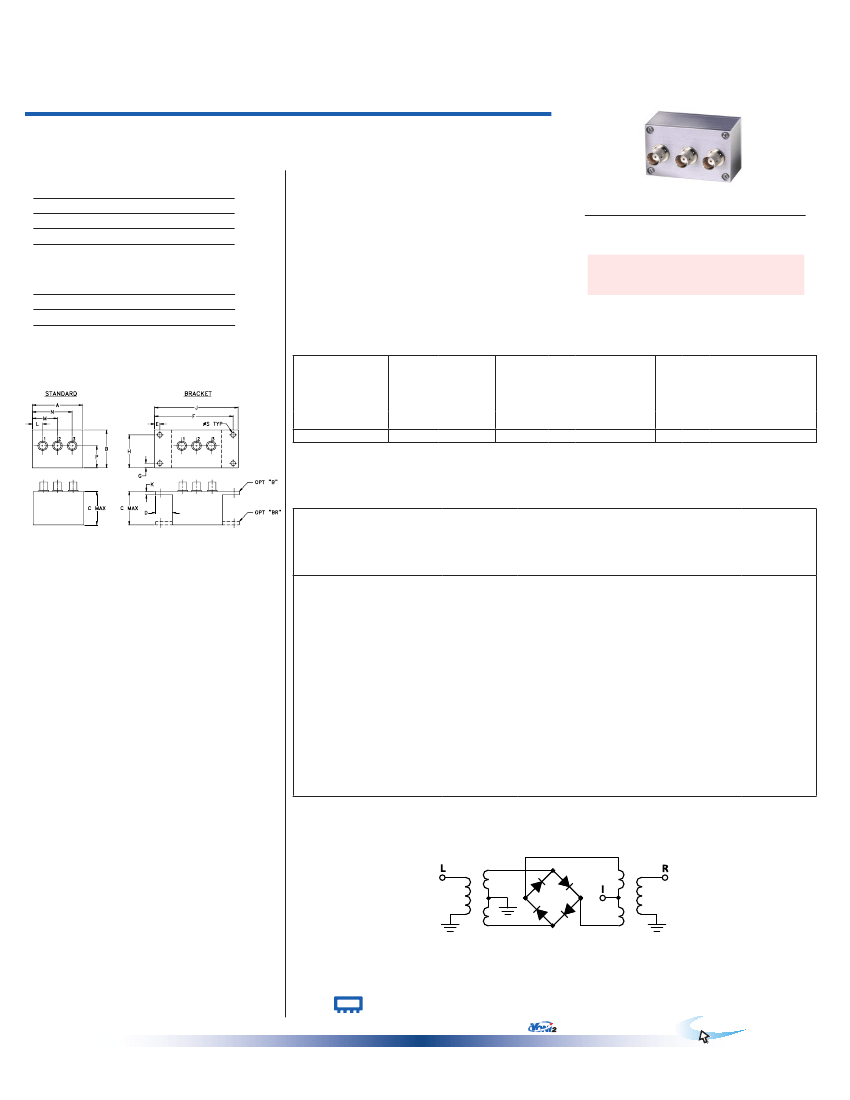

Frequency Mixer
Level 23 (LO Power +23 dBm) 5 to 500 MHz
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power
IF Current
-55°C to 100°C
-55°C to 100°C
350mW
40mA
Coaxial
ZAY-1+
Features
• low conversion loss, 6.57 dB typ.
• high L-R isolation, 40 dB typ. L-R & L-I
• rugged shielded case
CASE STYLE: M22
Connectors Model
BNC
ZAY-1+
BRACKET (OPTION “B”)
BRACKET (OPTION “BR”)
Price
$64.95
$5.00
$1.50
Qty.
(1-9)
(1+)
(1+)
Permanent damage may occur if any of these limits are exceeded.
Coaxial Connections
LO
RF
IF
1
3
2
Applications
• VHF/UHF
• instrumentation
• federal & defense communication
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Electrical Specifications
Outline Drawing
FREQUENCY
(MHz)
LO/RF
f
L
-f
U
5-500
DC-500
1 dB COMP.: +15 dBm typ.
IF
—
X
6.57
CONVERSION LOSS
(dB)
Mid-Band
m
σ
0.9
Total
Range
Max. Max.
7.5
8.5
L
Typ.
55
LO-RF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
25
Typ.
55
L
LO-IF ISOLATION
(dB)
M
Min.
45
Typ.
40
Min.
30
Typ.
30
U
Min.
20
L = low range [f
L
to 10 f
L
]
m= mid band [2f
L
to f
U
/2]
M = mid range [10 f
L
to f
U
/_]
U = upper range [f
U
/2 to f
U
]
Typical Performance Data
Frequency
(MHz)
Conversion
Loss
(dB)
LO
35.00
40.00
50.00
65.94
80.00
52.35
70.00
114.22
145.16
170.00
191.57
222.50
253.44
284.38
315.32
346.26
377.19
408.13
439.07
470.00
LO
+23dBm
6.52
6.40
6.40
6.43
6.40
6.39
6.36
6.53
6.68
6.69
6.52
6.52
6.64
6.74
6.62
6.50
6.43
6.50
6.81
6.62
Isolation
L-R
(dB)
LO
+23dBm
57.02
56.72
54.48
51.51
48.82
45.62
44.05
41.60
40.04
39.45
36.41
36.33
36.36
36.35
33.85
30.50
32.89
33.81
33.63
34.24
Isolation
L-I
(dB)
LO
+23dBm
82.02
82.32
81.28
75.99
72.57
62.91
58.66
53.71
51.38
50.73
46.45
47.23
47.98
46.73
44.99
41.75
42.28
42.66
41.41
40.42
VSWR
RF Port
(:1)
LO
+23dBm
1.29
1.14
1.06
1.05
1.07
1.08
1.10
1.12
1.14
1.16
1.18
1.20
1.22
1.24
1.26
1.29
1.31
1.35
1.38
1.44
VSWR
LO Port
(:1)
LO
+23dBm
2.50
2.37
2.33
2.31
2.37
2.20
2.25
2.11
2.25
2.06
2.17
2.04
2.10
1.96
2.04
1.96
1.95
1.90
1.87
1.83
RF
5.00
10.00
20.00
35.94
50.00
Outline Dimensions (
inch
)
mm
A
2.25
57.15
J
3.25
82.55
B
1.38
35.05
K
.10
2.54
C
1.24
31.50
L
.40
10.16
D
.50
12.70
M
1.15
29.21
E
.150
3.81
N
1.86
47.24
F
3.100
78.74
P
.64
16.26
G
.138
3.51
H
1.238
31.45
82.35
100.00
144.22
175.16
200.00
221.57
252.50
283.44
314.38
345.32
376.26
407.19
438.13
469.07
500.00
S
wt
.150 grams
3.81
74.0
Electrical Schematic
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. B
M121747
ZAY-1+
DJ/TD/CP/AM
091006
Page 1 of 2

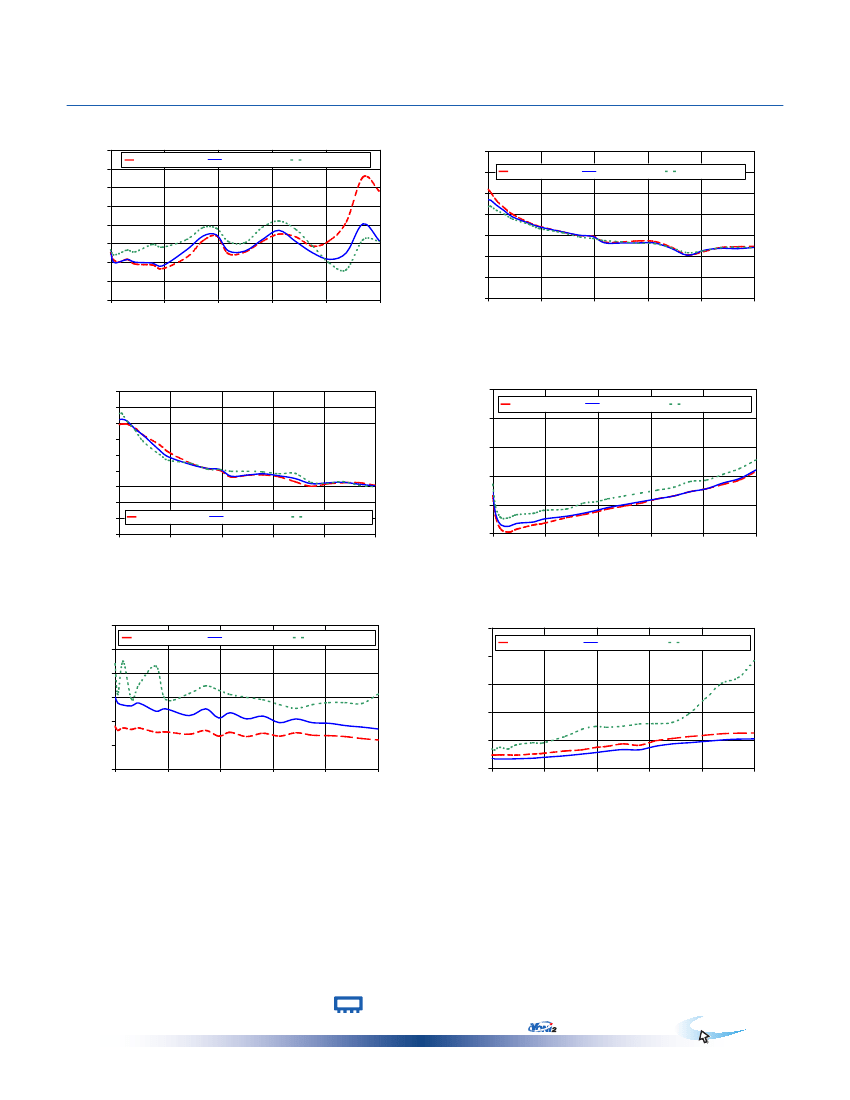

Performance Charts
7.6
CONVERSION LOSS (dB)
7.4
7.2
7.0
6.8
6.6
6.4
6.2
5
104
203
302
FREQUENCY (MHz)
401
500
at IF Freq of 30 MHz
ZAY-1+
LO=+26 dBm
ISOLATION (dB)
80
70
60
50
40
30
20
10
5
104
203
302
FREQUENCY (MHz)
401
500
LO=+20 dBm
ZAY-1+
L-R ISOLATION
LO=+23 dBm
LO=+26 dBm
ZAY-1+
CONVERSION LOSS
LO=+23 dBm
LO=+20 dBm
6.0
ZAY-1+
L-I ISOLATION
100
90
ISOLATION (dB)
80
60
50
40
30
20
10
5
104
203
302
FREQUENCY (MHz)
401
500
LO=+20 dBm
LO=+23 dBm
LO=+26 dBm
70
2.0
1.8
VSWR
1.6
1.4
1.2
1.0
5
104
LO=+20 dBm
ZAY-1+
RF VSWR
LO=+23 dBm
LO=+26 dBm
203
302
FREQUENCY (MHz)
ZAY-1+
IF VSWR
401
500
4.0
3.5
3.0
VSWR
2.5
2.0
1.5
1.0
5
ZAY-1+
LO VSWR
LO=+20 dBm
LO=+23 dBm
LO=+26 dBm
6.0
5.0
VSWR
4.0
3.0
2.0
1.0
LO=+20 dBm
LO=+23 dBm
LO=+26 dBm
104
203
302
FREQUENCY (MHz)
401
500
5
104
203
302
FREQUENCY (MHz)
401
500
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
Page 2 of 2
