72800-1112LF: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size146KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

72800-1112LF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

72800-1112LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	72800
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0

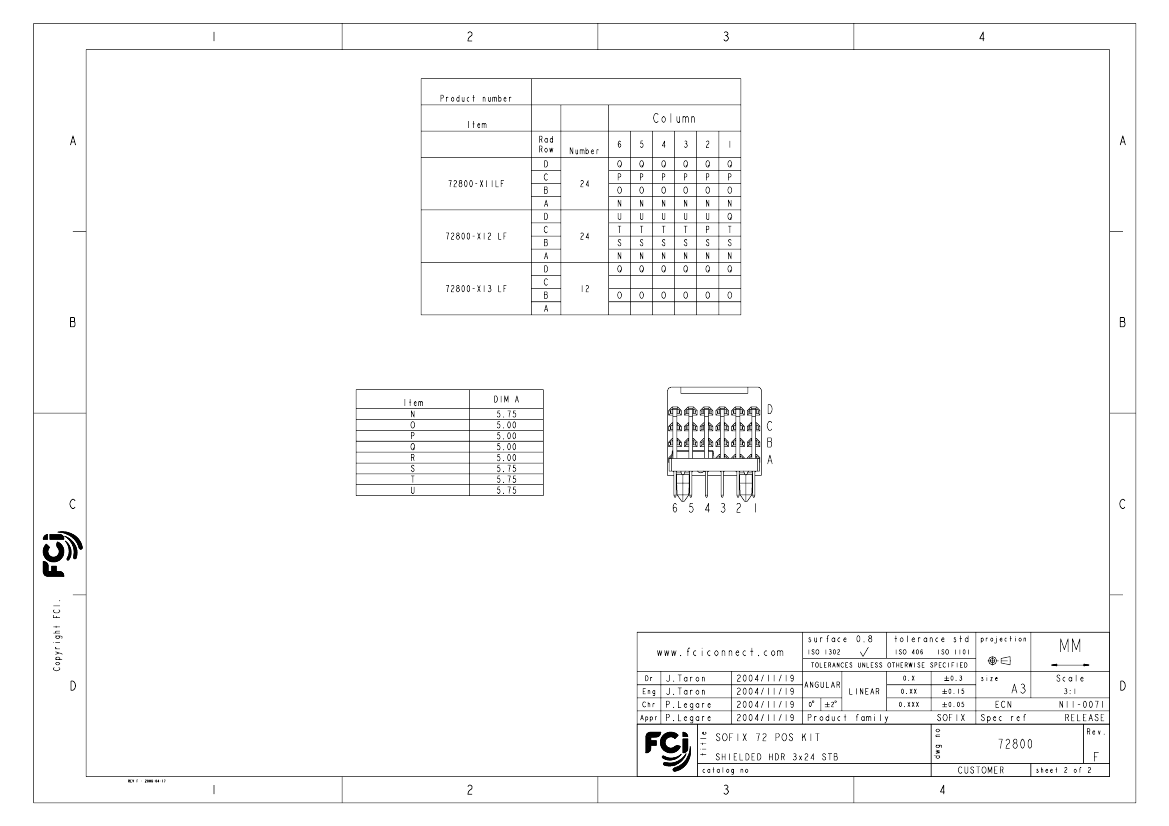

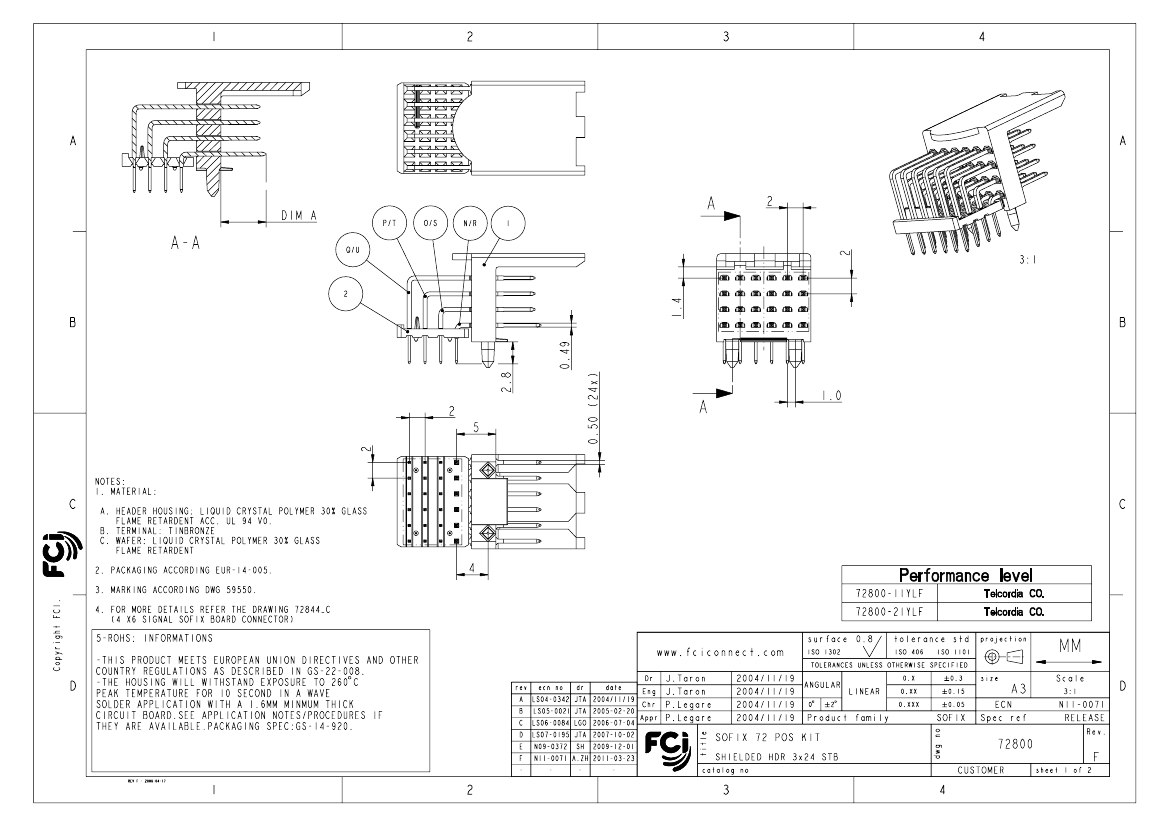

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Mar 31, 2011

72800-1112LF Related Products

	72800-1112LF	72800-1111LF	72800-211RLF	72800-2111LF	72800-2112LF	72800-2113LF	72800-1113LF
Description	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	METRAL SOFIX RA HDR	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	Connector, male pin	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Installation type	BOARD	BOARD	Through hole, right angle	BOARD	BOARD	BOARD	BOARD
Maker	Amphenol	Amphenol	-	-	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compli	-	compliant	compliant	compliant	compliant
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	-	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	-	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO
MIL compliance	NO	NO	-	NO	NO	NO	NO
Manufacturer's serial number	72800	72800	-	72800	72800	72800	72800
Mixed contacts	NO	NO	-	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Number of rows loaded	4	4	-	4	4	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	-	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	24	-	24	24	12	12
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0
